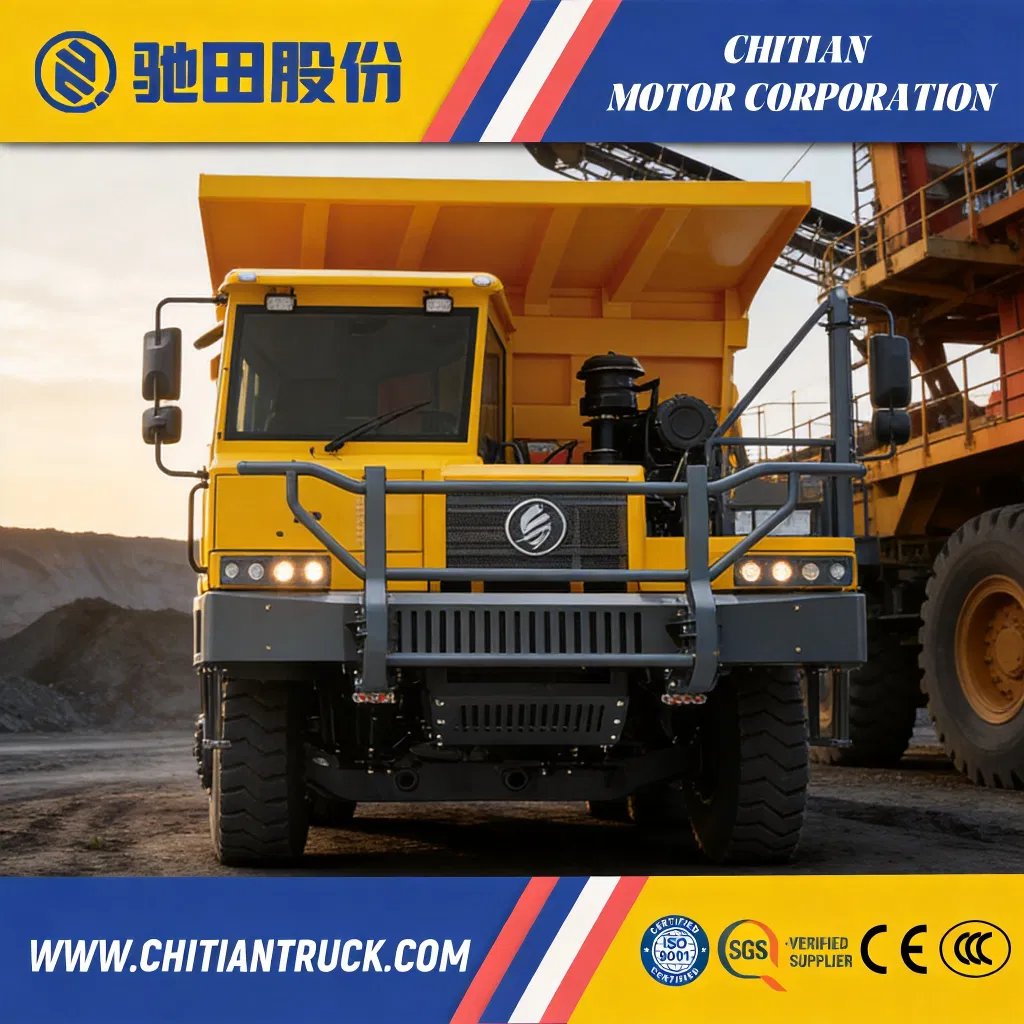

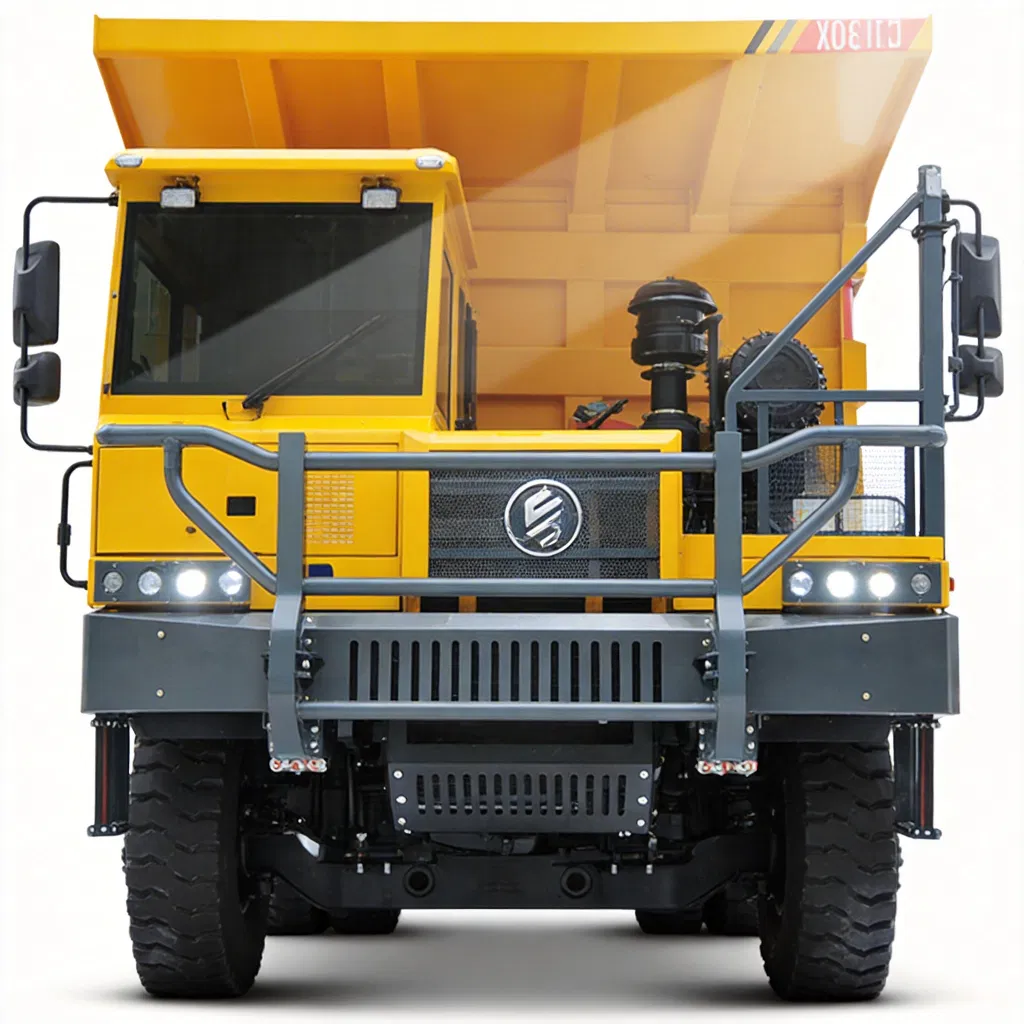

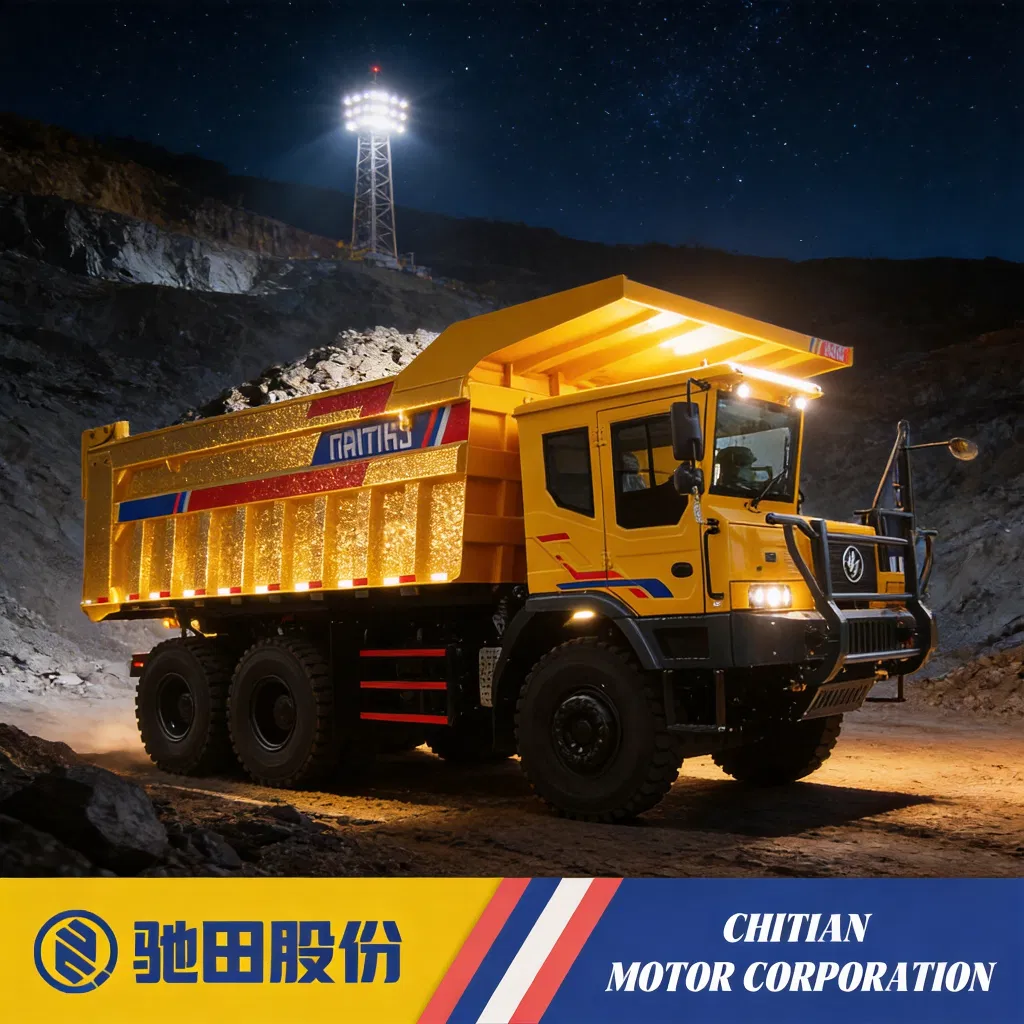

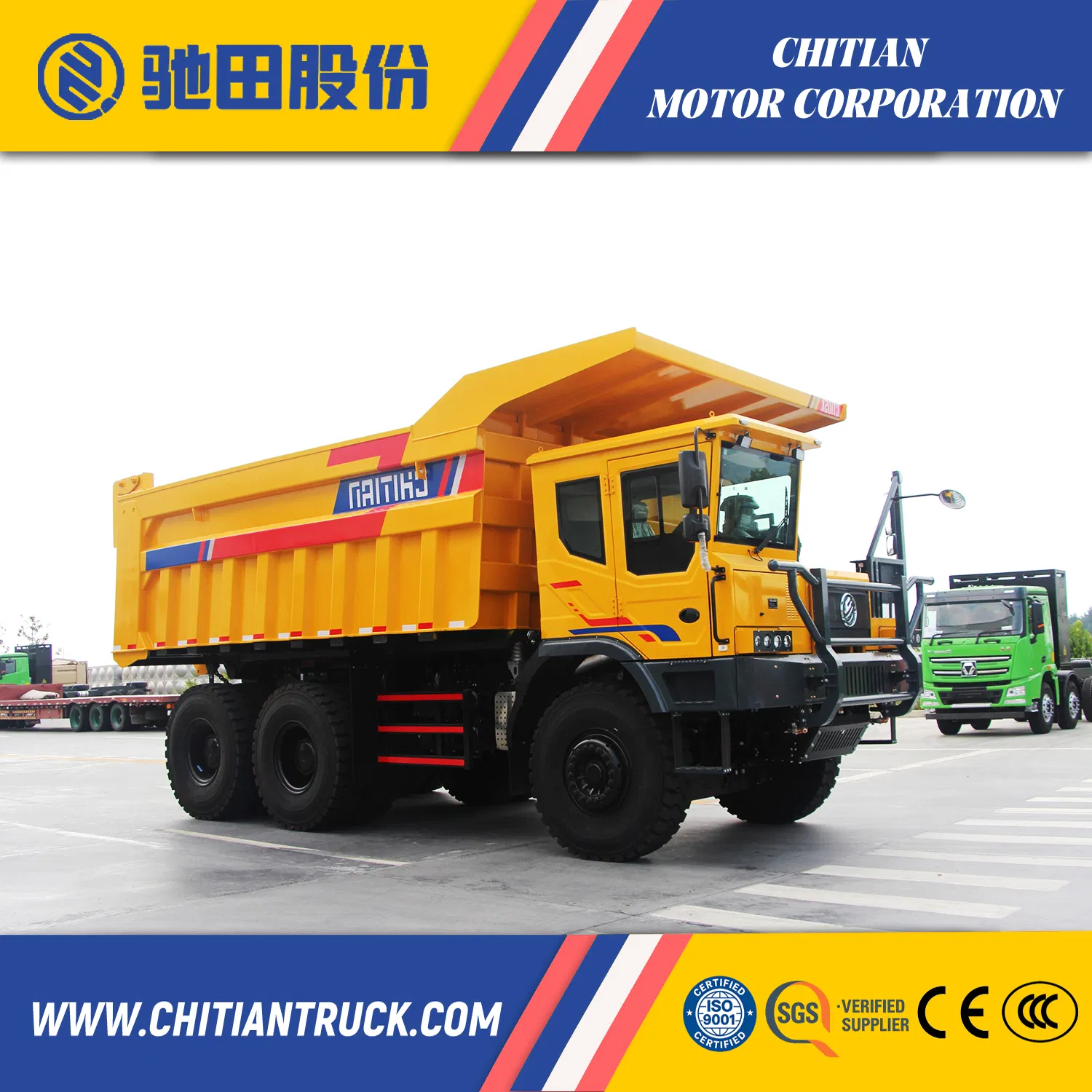

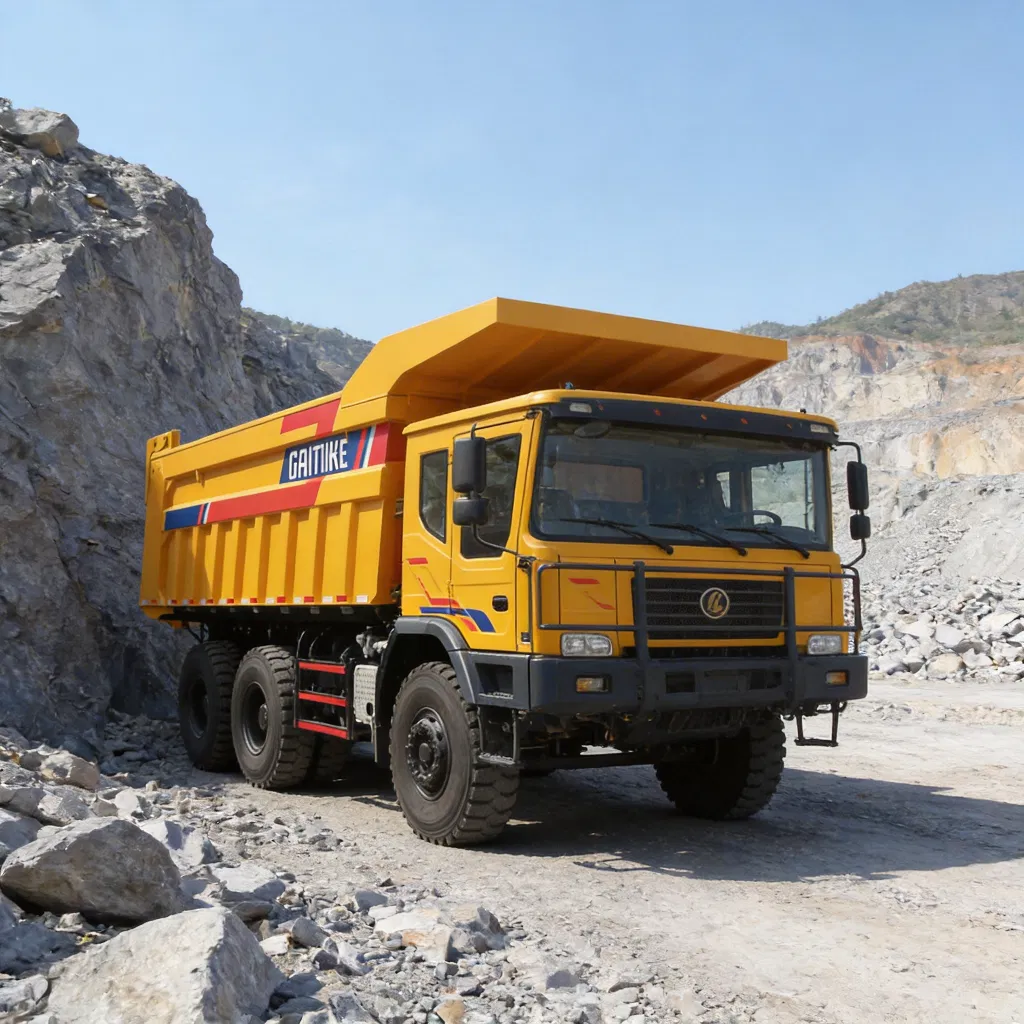

DIESEL MINING TRUCKS · 40 M³ / 49 M³ - Engineered specifically for the rigors of mining and construction, our Off-highway Heavy-duty Mining Dump Trucks are designed to conquer the most formidable environments. Available in robust 105-ton and 150-ton payload capacities.

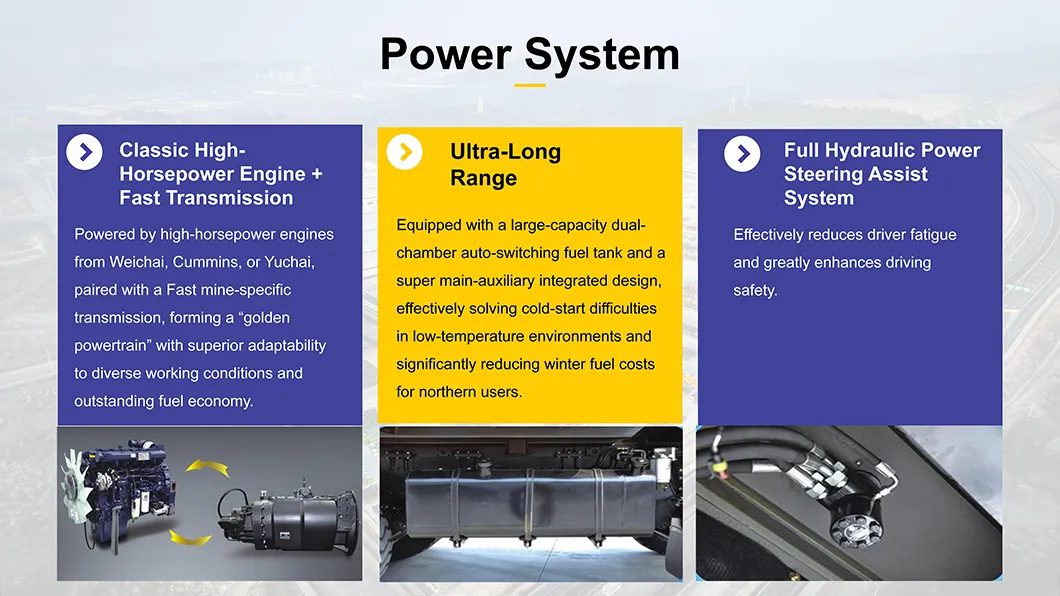

POWERTRAIN SYSTEM: Powered by top-tier diesel engines expertly paired with high-performance transmissions for optimal torque. For reduced fuel costs, hybrid and electric options are available.
HYDRAULIC SYSTEM: Featuring advanced hydraulic cylinders with German-imported seals and 5-layer chrome plating, ensuring swift dumping speed and prolonged service life.

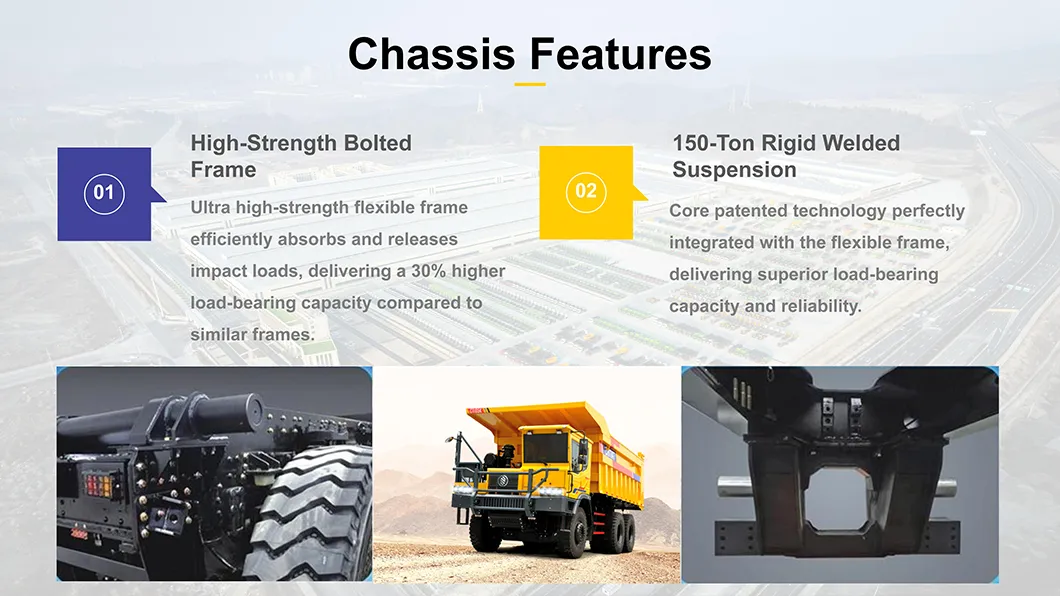

CHASSIS INNOVATIONS: High-strength, flexible frame engineered to absorb shock and elevate payload capacity by 30% over traditional frames.

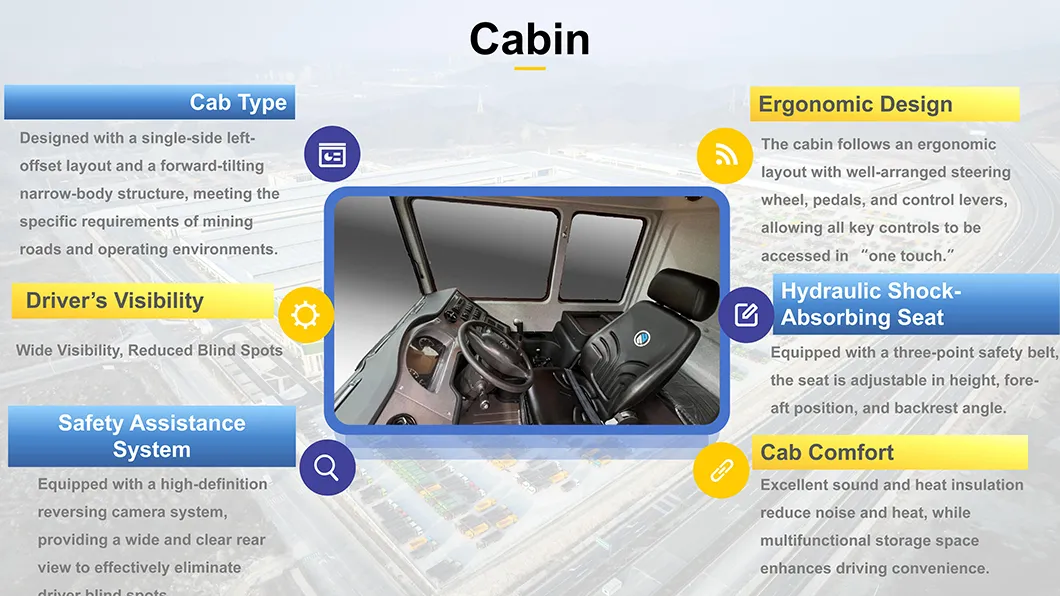

ERGONOMIC CAB & SAFETY: Left-side narrow design with panoramic views, hydraulic shock-absorbing seat, and dual-circuit air brakes for comprehensive safety.

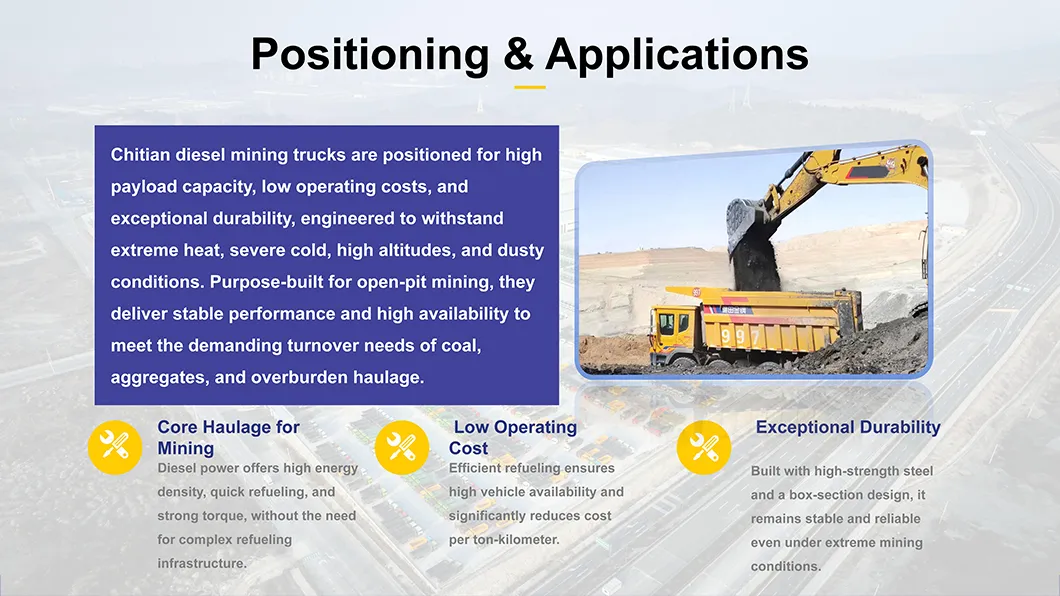

Transporting rock, coal, and overburden in grand-scale mining environments with high-frequency cycles.
Large-volume earthmoving for dams, hydroelectric projects, and expressway construction.
Operates reliably from scorching heat (+45°C) to bitter cold (-40°C).
Optimized for high-turnover transport between mining faces, crushers, and spoil heaps.
| Item | Specification | Item | Specification |
|---|---|---|---|
| Model | CT130K | Maximum Speed | 40 km/h |
| Vehicle Type | Off-Highway Mining Dump Truck | Maximum Gradeability | 34% |
| Drive Configuration | 6×4 | Minimum Turning Radius | 12 m |
| Power Type | Diesel | Rated Payload Capacity | 90,000 kg |
| Cargo Box Volume | 49 m³ | Gross Vehicle Weight | 130,000 kg |
| Overall Dimensions | 10,100 × 4,000 × 4,780 mm | Fuel Tank | Aluminum Alloy Large-Capacity |
| Wheelbase | 4,200 + 1,900 mm | Brake System | Dual-Circuit Drum Air Brake |

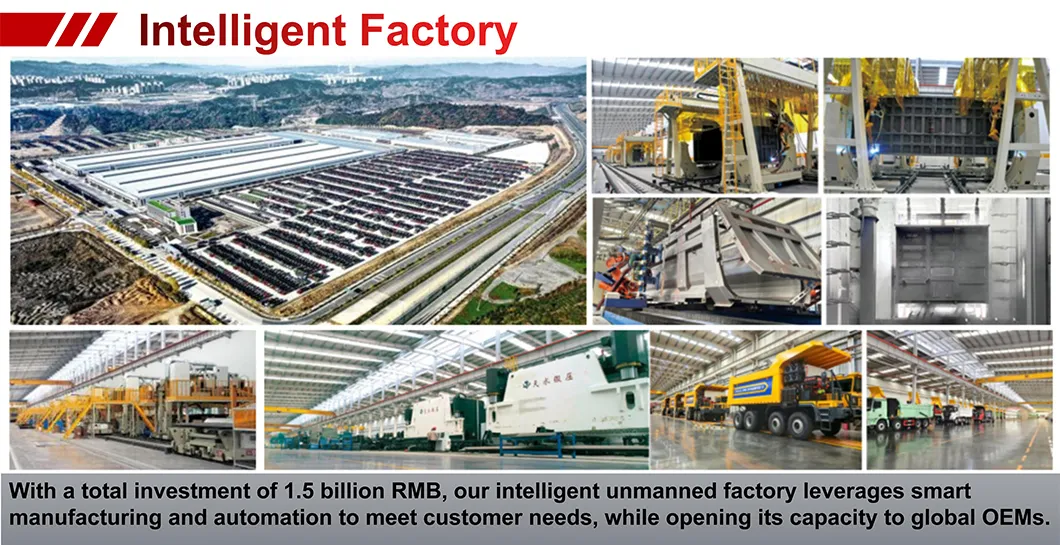

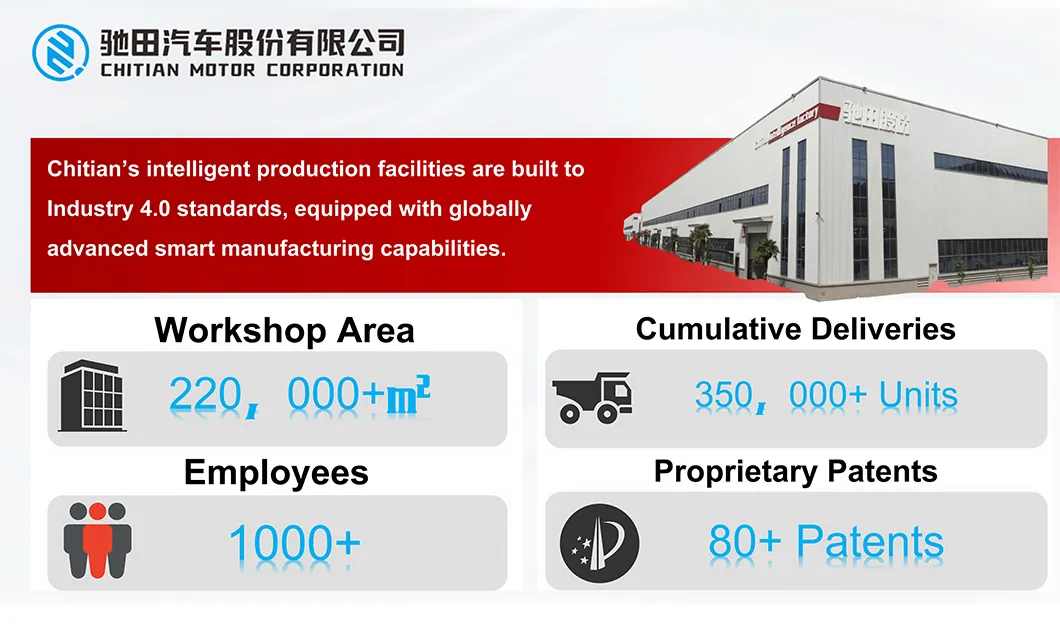

Founded in 1995, our company stands as a leading manufacturer of specialized engineering vehicles. With a focus on engineering dump trucks and off-road mining trucks, our production base spans 660,000 square meters. The facility boasts an annual production capacity exceeding 50,000 units and a legacy of delivering more than 350,000 vehicles globally.
Our commitment to lightweight technology and innovation has earned us recognition among the top machinery enterprises. Our products are exported to Central Asia, Southeast Asia, Africa, and Australia, adhering to international technical standards and quality criteria.
