CKLER Vehicle
1 / 5
| Model NO. | KPL201H |
| Type | Pallet Jack |
| Load Capacity | 2.0ton |
| Power | AC Motor / Electric |
| Lift height | 125mm |
| Turning Radius | 2217mm |
| Steering System | Electronic |
| Battery | 24V/205Ah Li-ion |

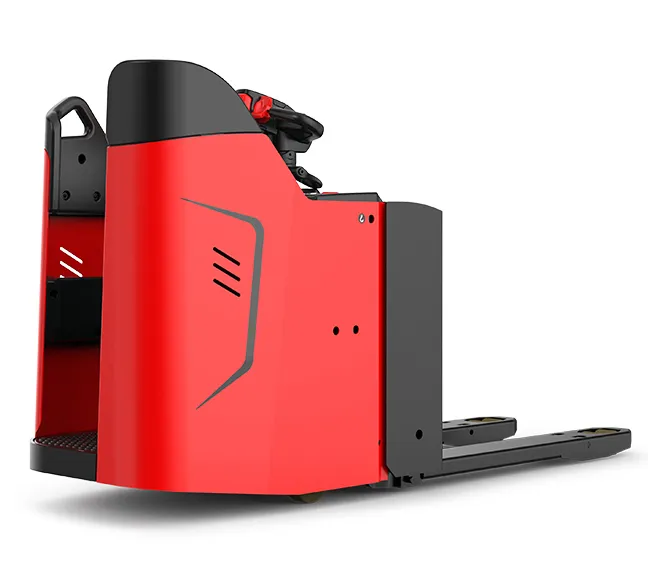

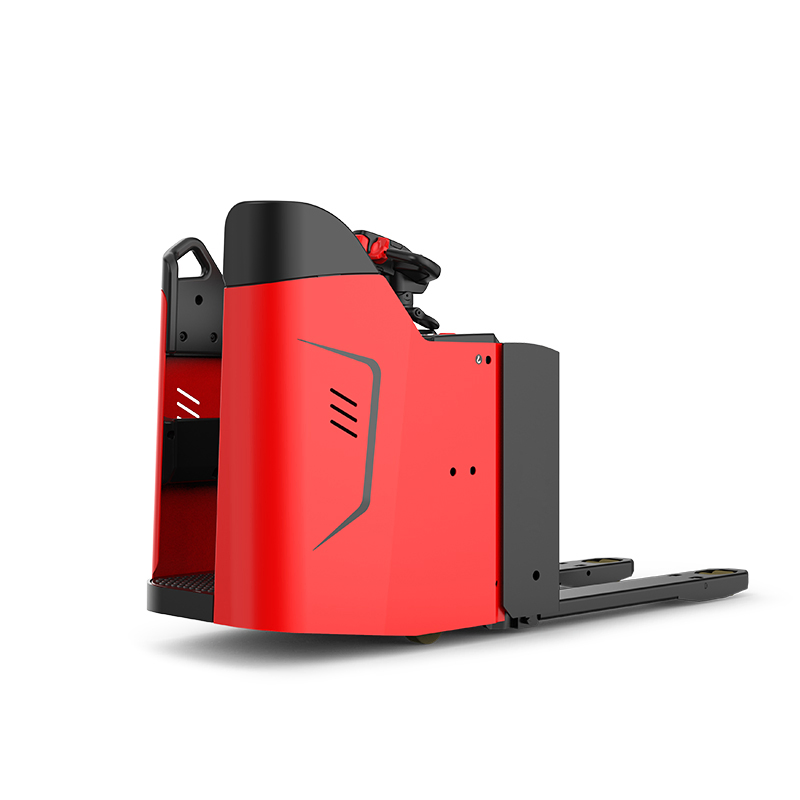

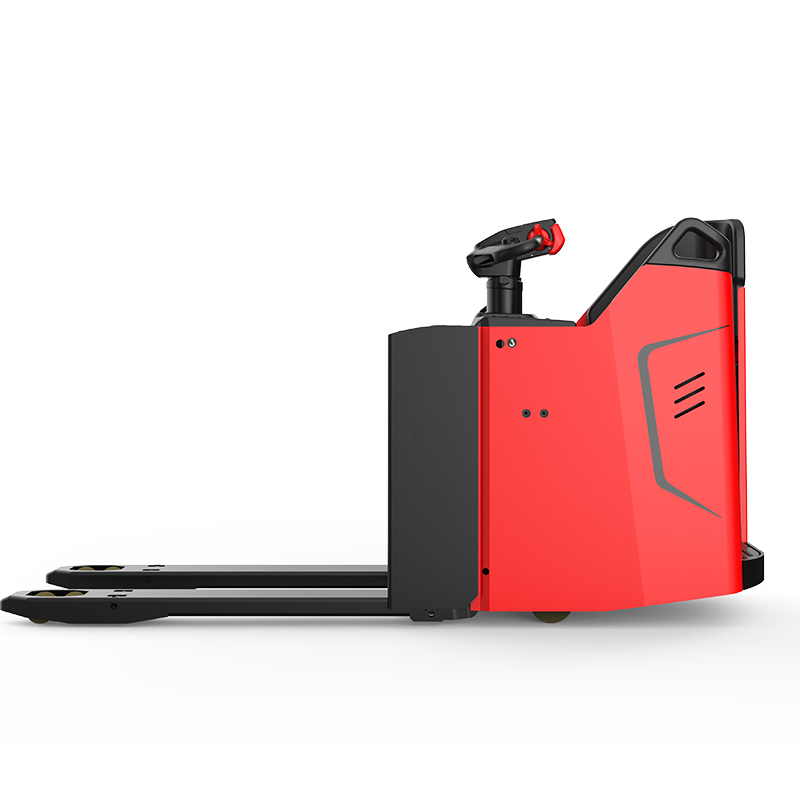

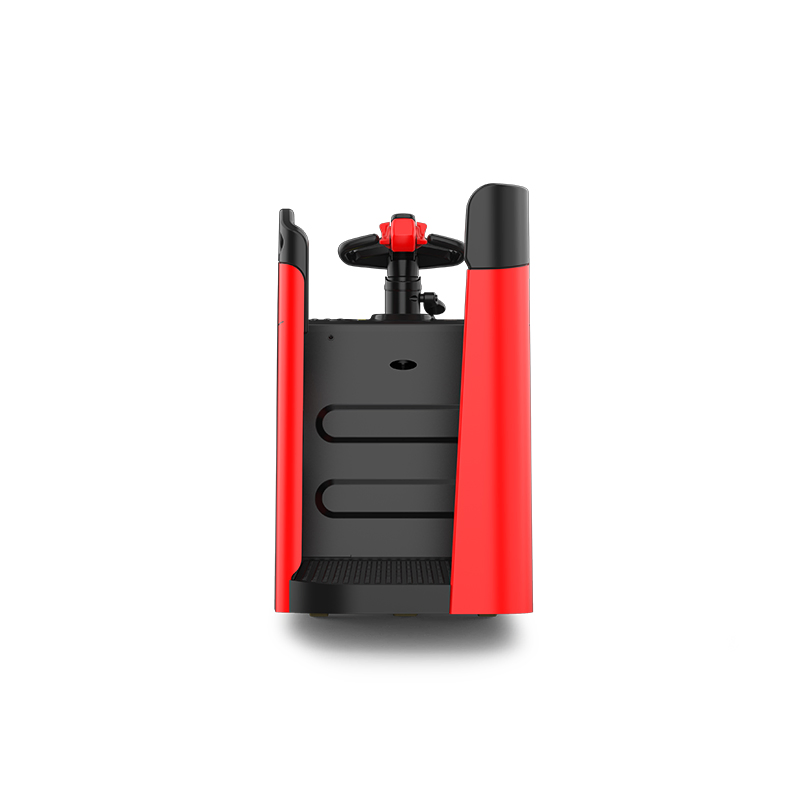

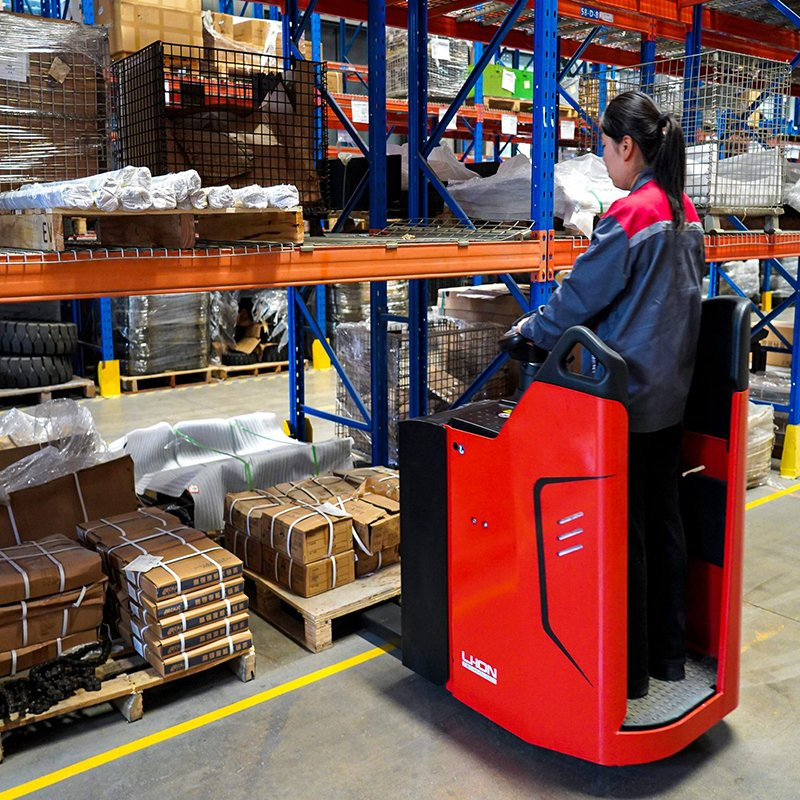

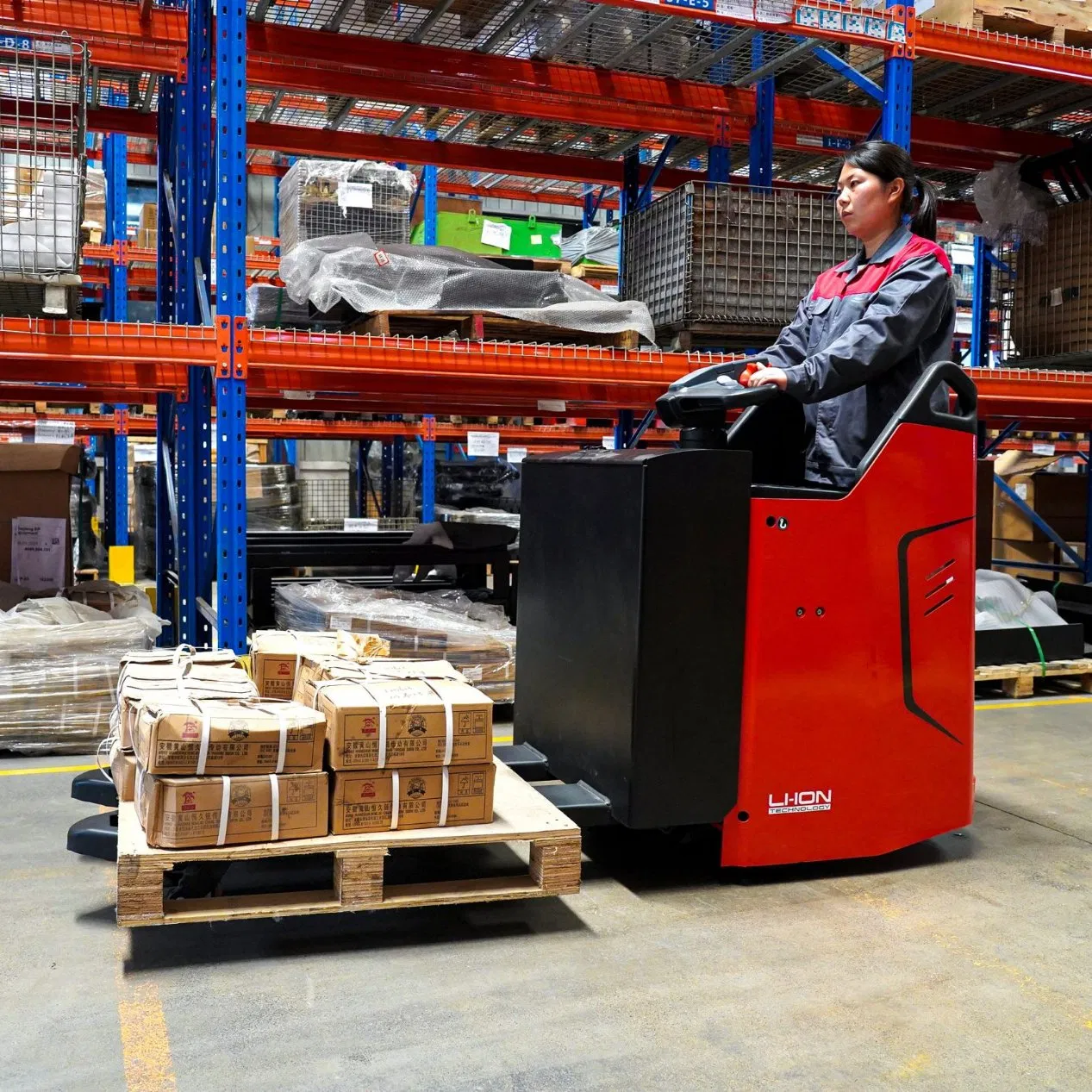

The KPL201(H) is a heavy-duty ride-on pallet truck with a 2-ton capacity, specifically designed for long-distance and long-duration operations. With fast acceleration and driving speed, this electric pallet truck boosts transportation efficiency significantly.

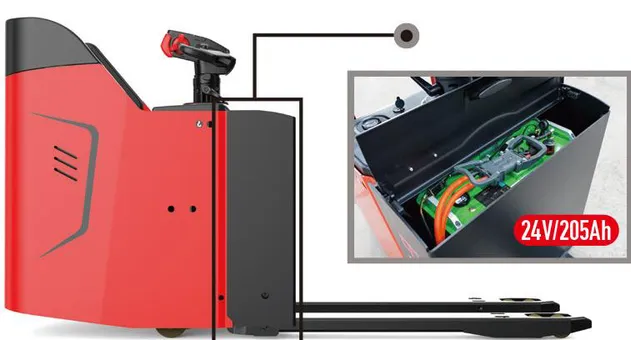

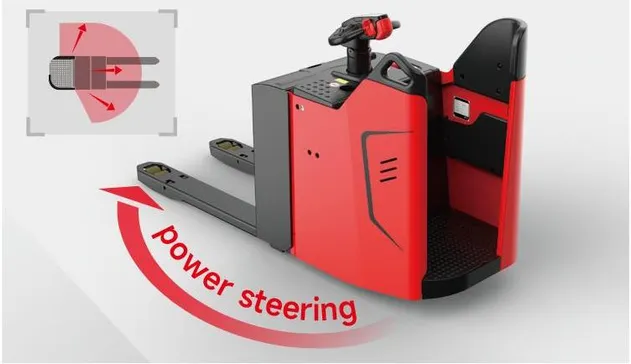

High travel speed, power steering, and Li-ion technology for intensive applications.
| Item | Parameter | Value |
|---|---|---|
| 1.1 | Drive | Electric |
| 1.2 | Drive mode | Standing |
| 1.3 | Load capacity | 2000 kg |
| 1.4 | Load center distance | 600 mm |
| 1.5 | Service weight | 705 kg |
| 1.6 | Lift height | 120 mm |
| 1.7 | Overall length | 2195 mm |
| 1.8 | Overall width | 734 mm |
| 1.9 | Turning radius | 2034 mm |
| 2.0 | Travel speed (laden/unladen) | 12 km/h |
| 2.1 | Battery voltage/capacity | 24V / 205Ah |

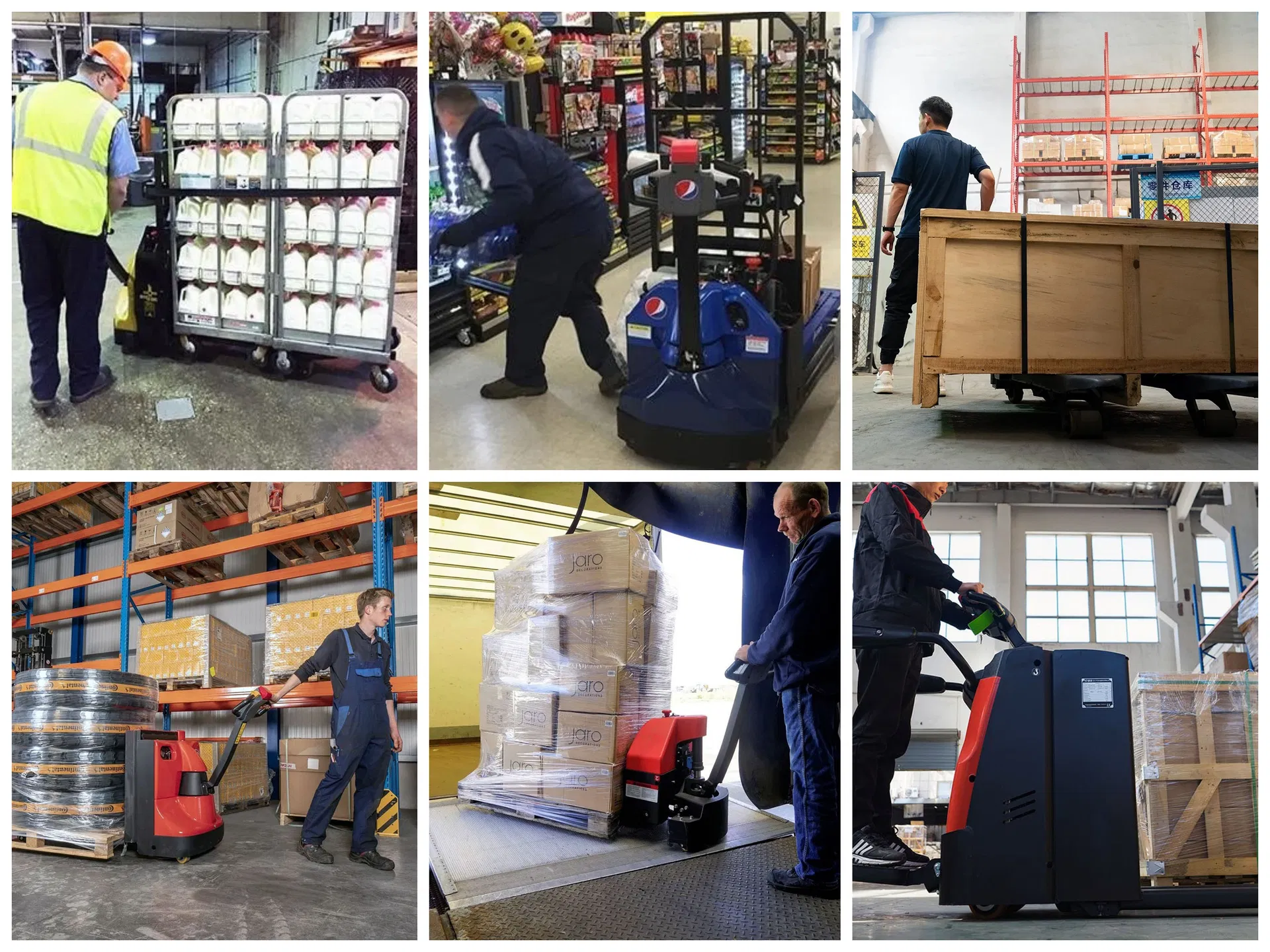

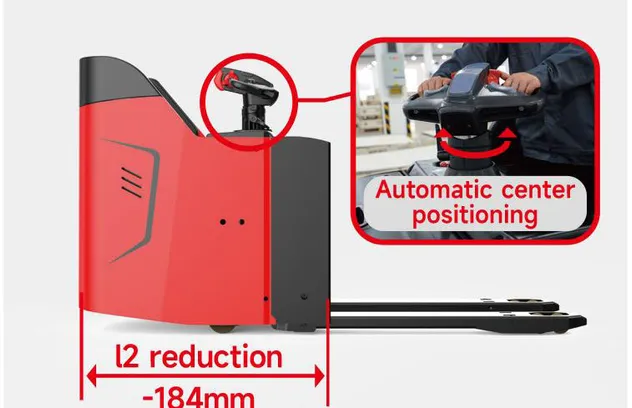

Long distance transportation: Ideal for large warehouses, logistics, and distribution centers. Direction control is improved by the height-adjustable tiller head.
Long duration operation: Sustains daily operations with opportunity charging during breaks, reaching 7% charge in just 10 minutes.
Established as a leading machinery manufacturer, we specialize in the R&D, production, sales, and service of high-performance material handling equipment. Our product range includes electric forklifts, electric stackers, pallet trucks, and industrial AGVs.
Our equipment is exported to more than 100 countries including the United States, Mexico, Canada, and Russia. We have built a strong reputation for high-quality products and fast service response.
