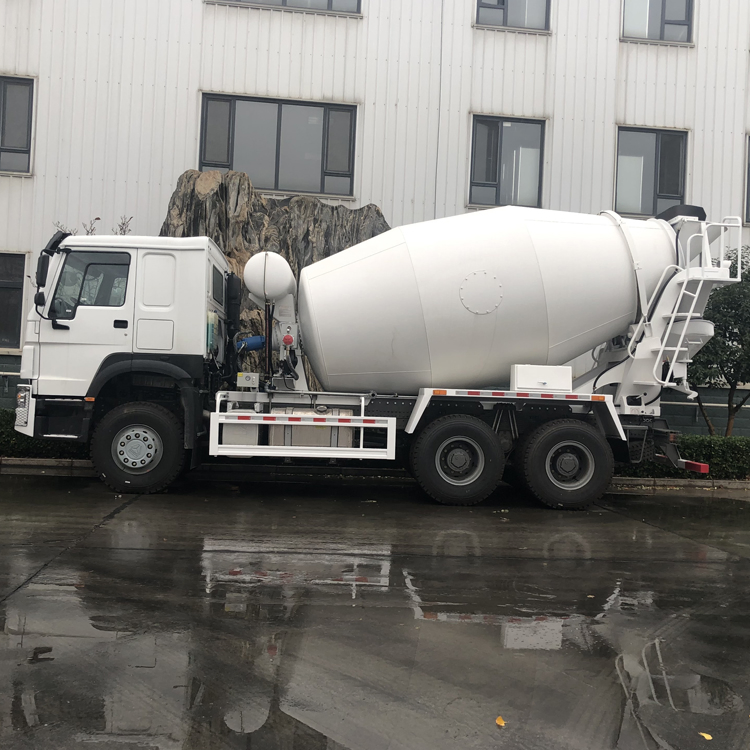

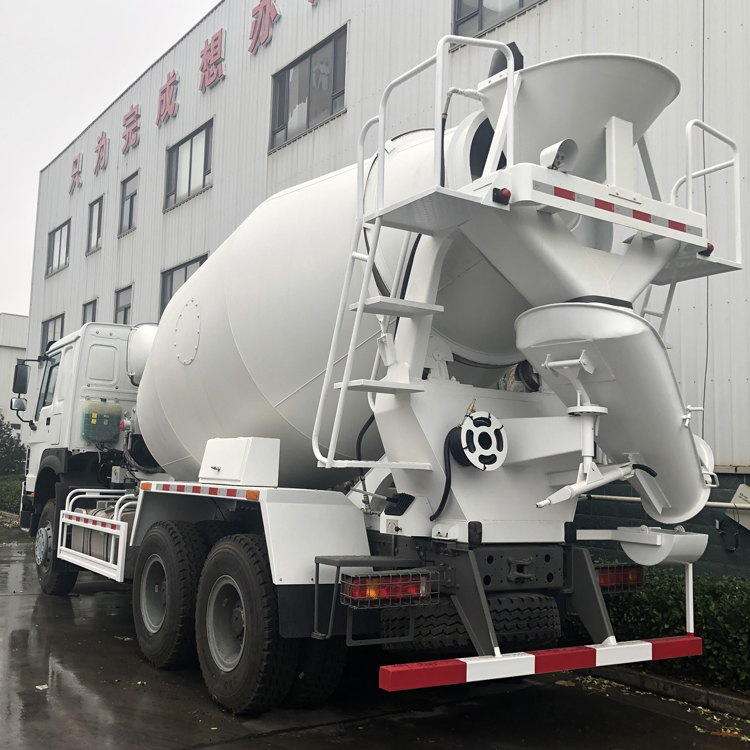

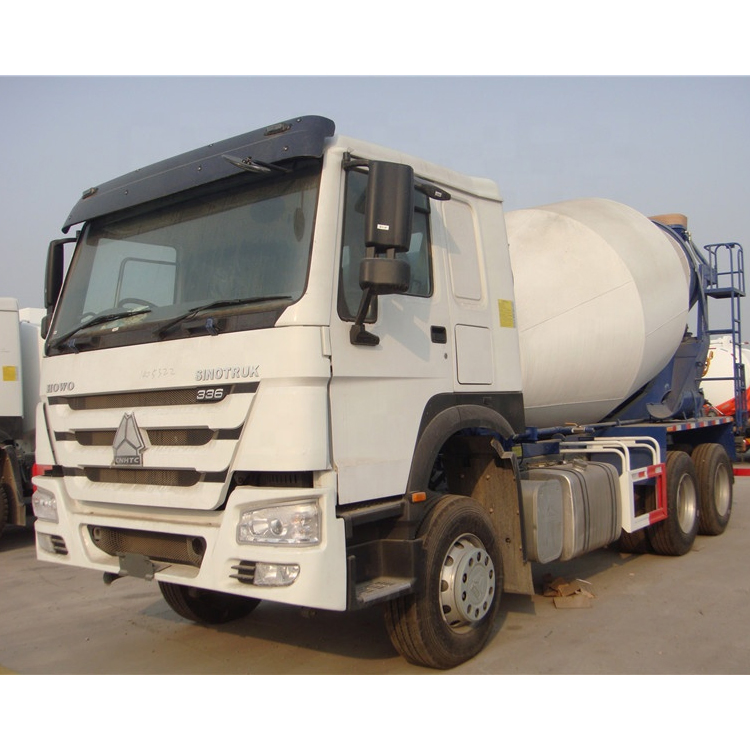

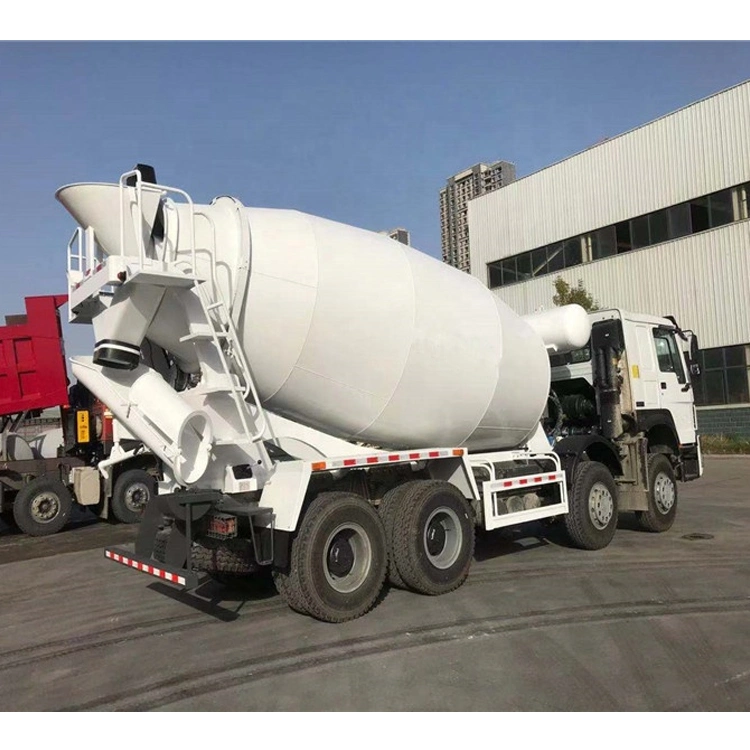

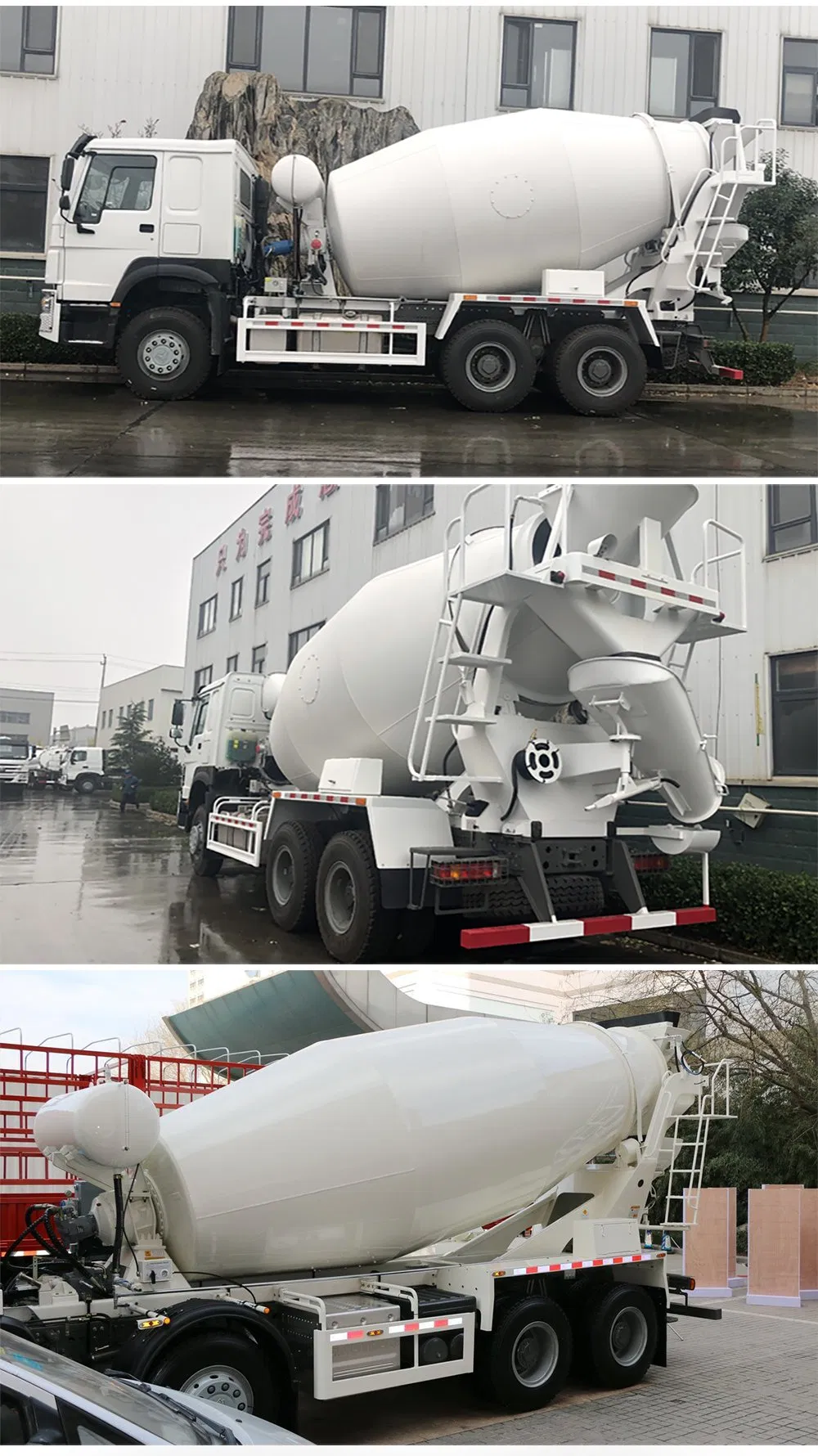

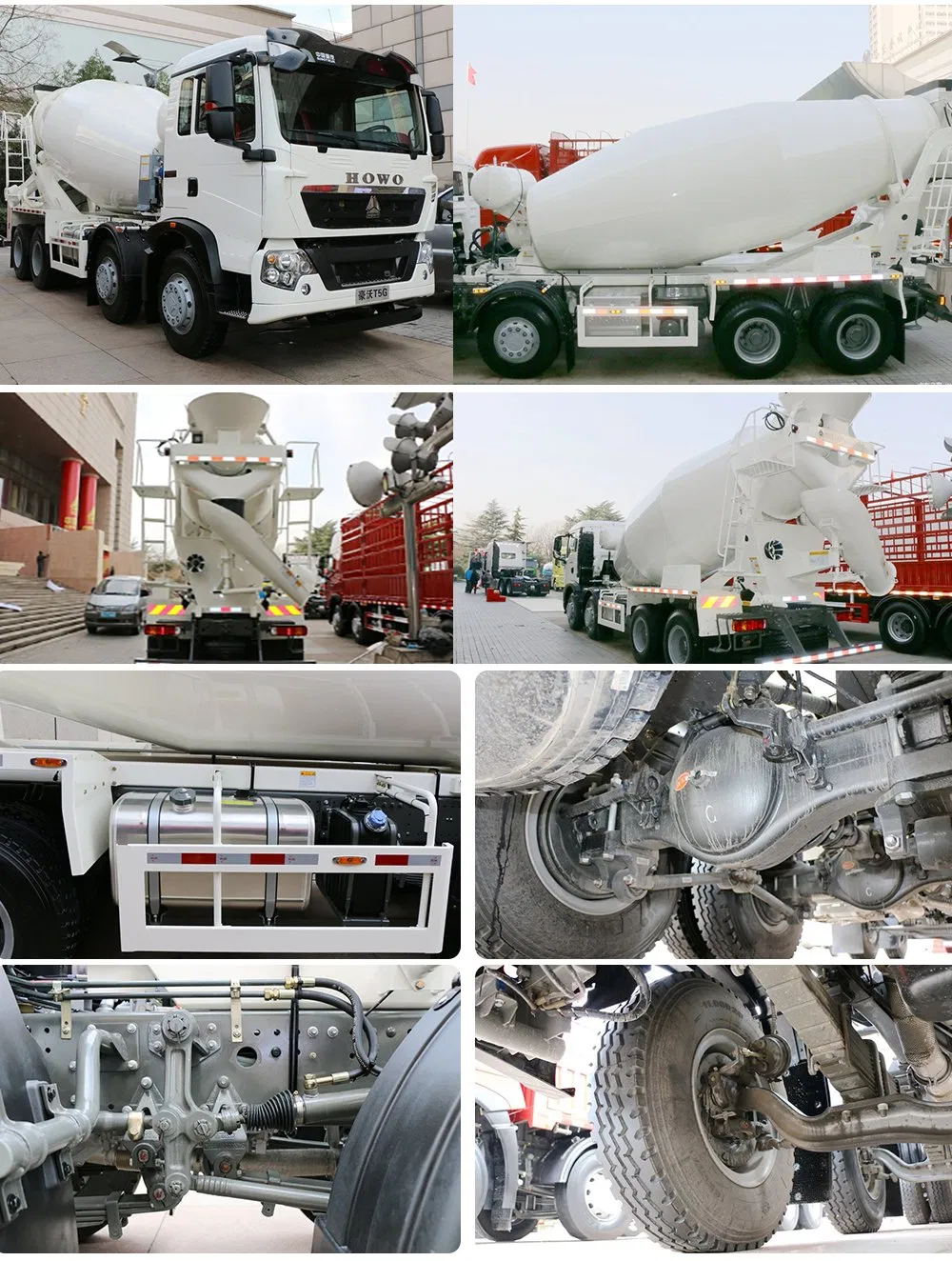

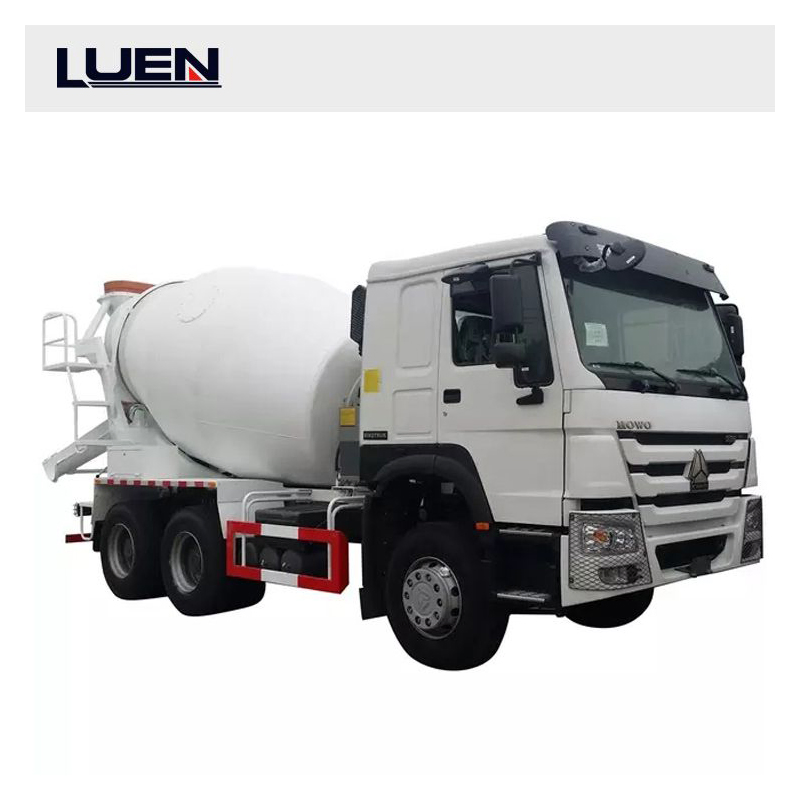

Used HOWO Heavy Duty Hino FM Faw 2p 500 3 Yard 10m Cement Construction Mixer transport Lorry Electric Tipper Dump Concrete Mixing Tanker Trailer Truck
Concrete mixer truck is an indispensable professional transportation tool for urban construction roads, bridges, houses, water conservancy projects, and mixing stations. The small concrete mixer truck has the characteristics of narrow body, short wheelbase, small turning radius and other personalized designs, and has strong advantages in working environments with limited height, width and length.
The concrete mixing and transportation tank can rely on the power of the dump truck to drive the gear oil pump and the hydraulic motor to drive the tank car to run. The hydraulic components are controlled by the control lever, which can realize fast feeding, fast unloading and slow unloading. Thanks to the oil circuit cooler, the oil temperature is kept below 55°C to ensure stable operation.
| Parameter Item | 3m³ | 4m³ | 6m³ | 8m³ |
|---|---|---|---|---|
| Mixing tank conveying capacity (m³) | 3 | 4 | 6 | 8 |
| Geometric capacity of drum (m³) | 4.8 | 6.2 | 8.96 | 13.87 |
| Filling ratio | 0.67 | 0.67 | 0.67 | 0.67 |
| Feeding speed (m³/min) | ≥3 | ≥3 | ≥3 | ≥3 |
| Discharge speed (m³/min) | ≥1 | ≥1 | ≥1 | ≥1 |
| Residual rate of discharge | ≤1.0% | ≤1.0% | ≤1.0% | ≤1.0% |
| Mixing drum speed (r/min) | 0-14 | 0-14 | 5-12 | 0-14 |
| Dimensions (m) | 3.8×1.95×2.1 | 4.0×1.95×2.1 | 5.7×2.2×2.59 | 5.8×2.5×2.9 |
