10 Inch Touch Screen Monitor 4G Dump Truck Backup Camera System Bsd Blind Spot Detection with Loop Recording Factory Direct Supply

Still deciding? Get samples of $ !
Order Sample

Product Description

ℹ️

Basic Information

Model NO.
HW-M503-5CH-BSD
Applicable Model
Car, SUV, Truck, Agricultural/Engineering Vehicles, RV, Forklift
Shell Material
ABS Plastic
Probe Number
5
Display Type
Reverse Image / Touch Screen
Interface
Air Plug
Function
Night Vision, Waterproof, Dustproof, Shockproof
Resolution
720P / 1080P
Waterproof Grade
IP68 (Camera) / IP65 (Monitor)
Monitor Size
10.1 Inch IPS
Power Supply
9-36V
Core Function
5 Channel Blind Spot Detection
💎

Product Highlights

10" 5 Channel AI Truck BSD Camera Monitor System with Waterproof Touch Screen
01
Integrated AI Safety & Fleet Management: 10.1-inch IPS touch screen system with 5-channel HD monitoring, integrating BSD/ADAS/DMS/LCA, 4G/GPS positioning and AI face recognition.
02
All-Weather High-Definition Cameras: 5 pcs 720P/1080P external cameras with IP68 waterproof rating and starry full-color night vision.
03

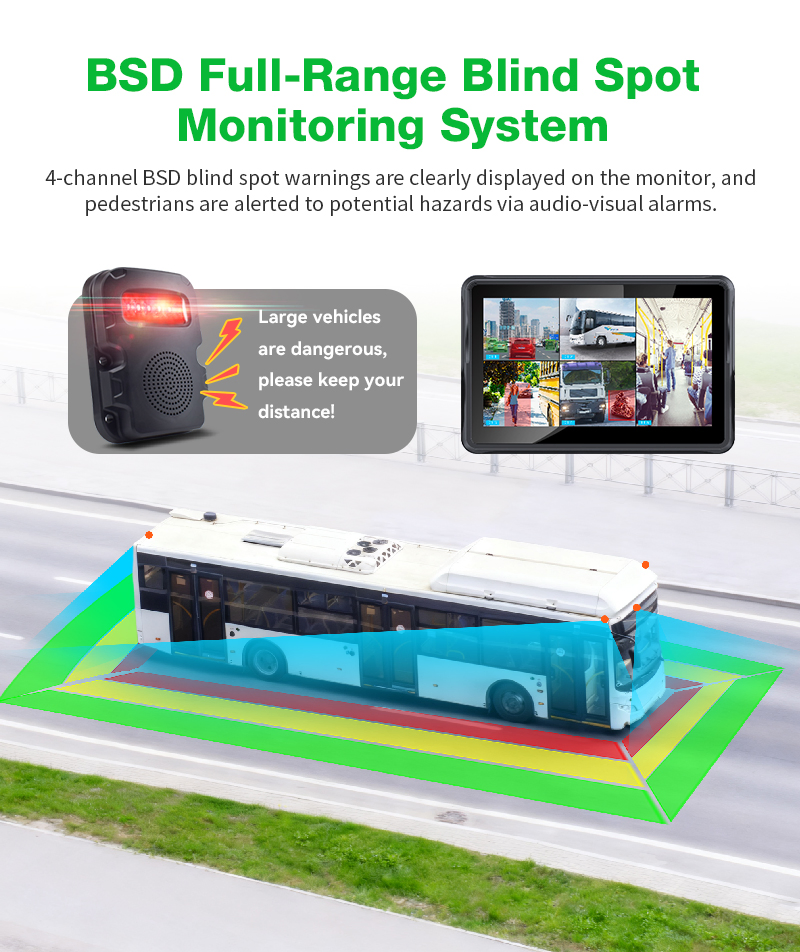

Intelligent Blind Spot Alarm: Automatic BSD detection with audible-visual alarms, live voice broadcasting, and ACC activation.
04
Storage & Recording: Supports up to 256G TF card dual recording with zero frame loss for parking surveillance.

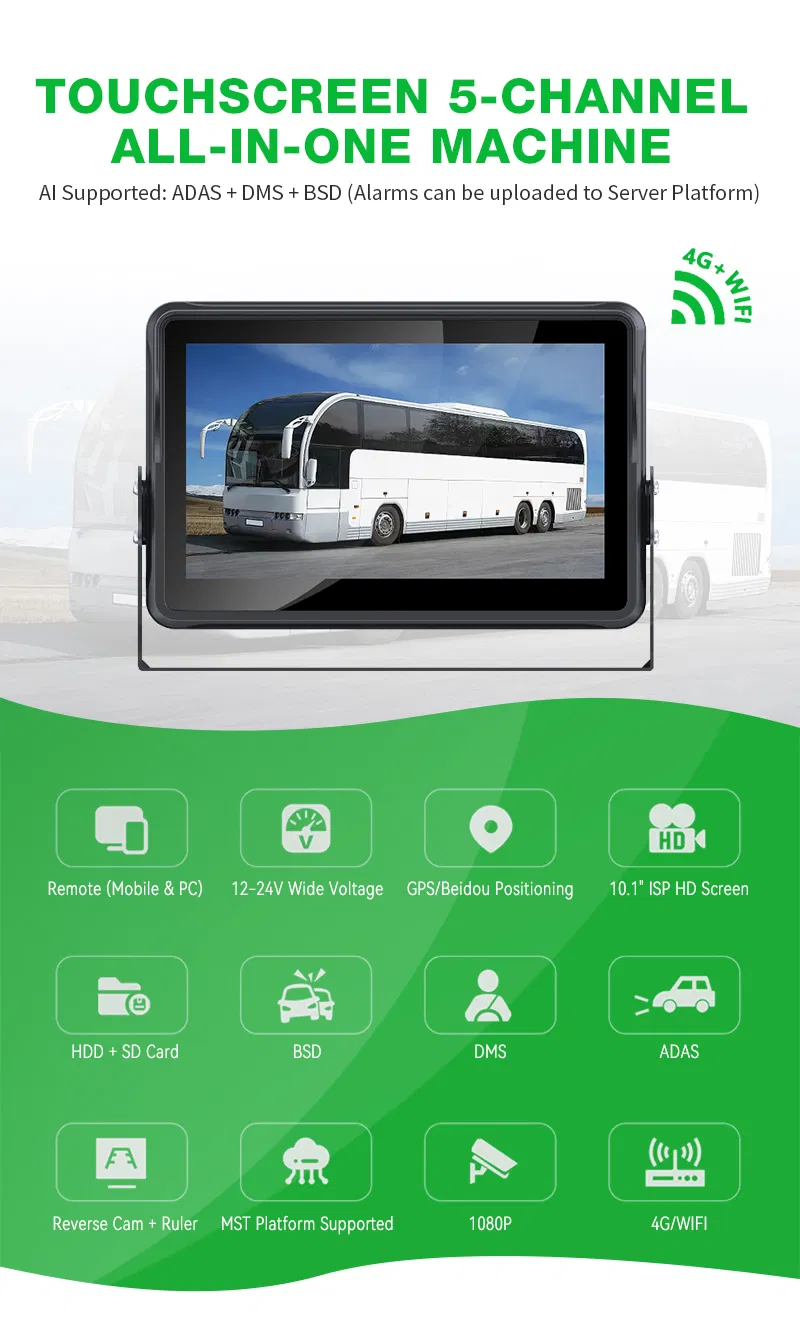

System Overview

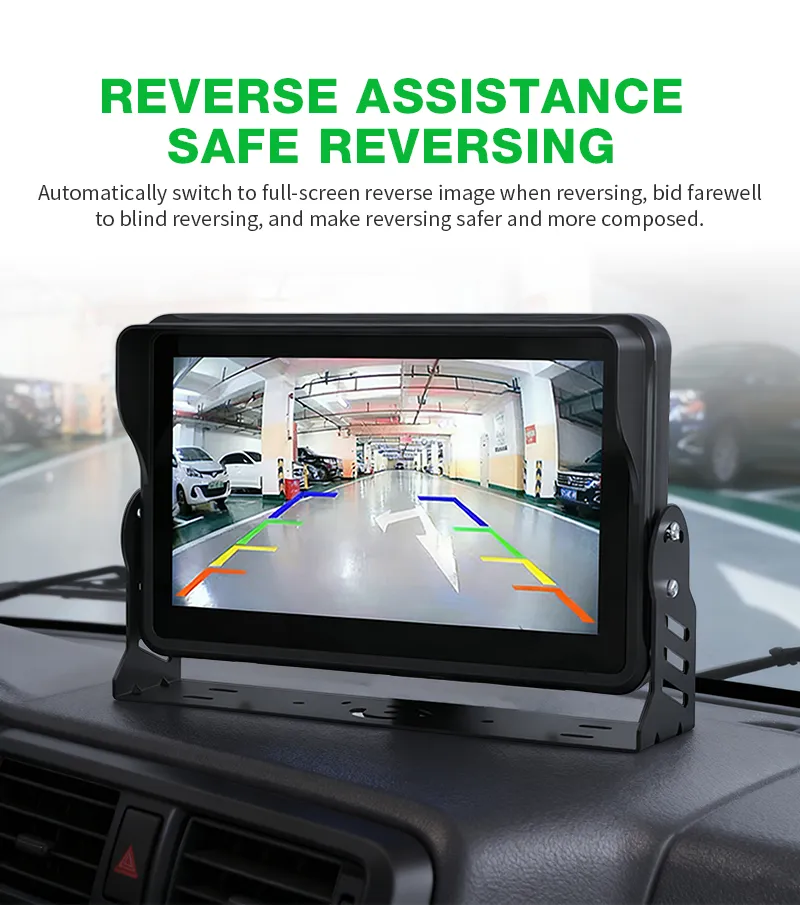

Monitor Features

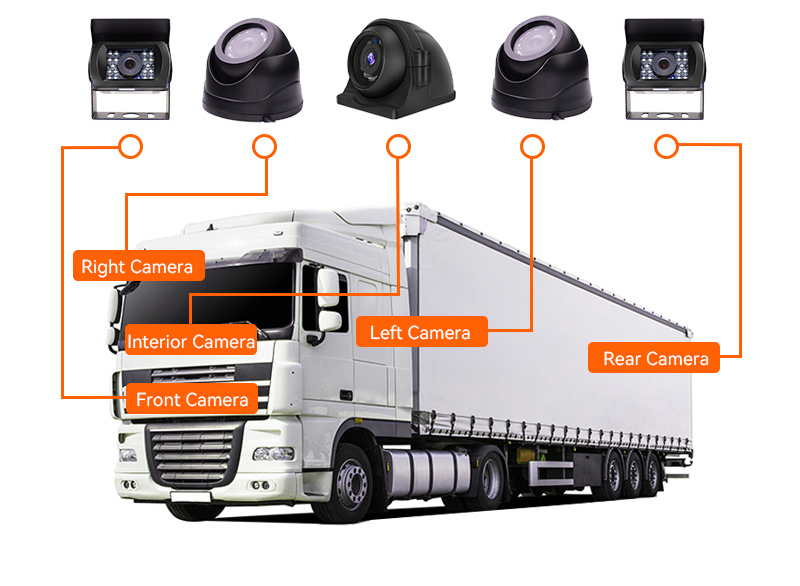

Camera Angles
AI Detection
Night Vision
Waterproof Test
📋

Technical Specifications

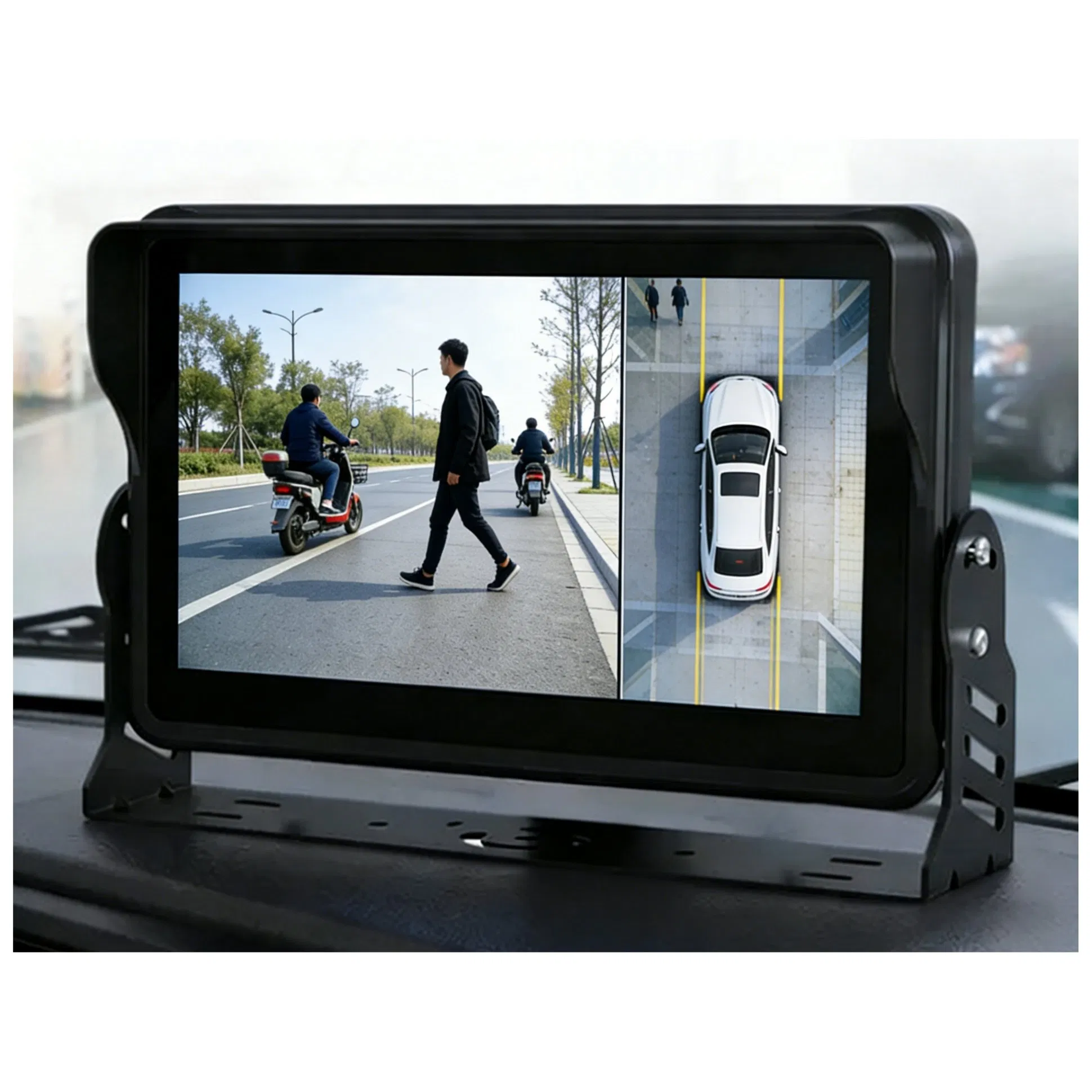

Screen10.1-inch IPS Touch screen (1024*600 resolution)
Cameras5 * 720P/1080P Waterproof External Starry Night Vision Cameras

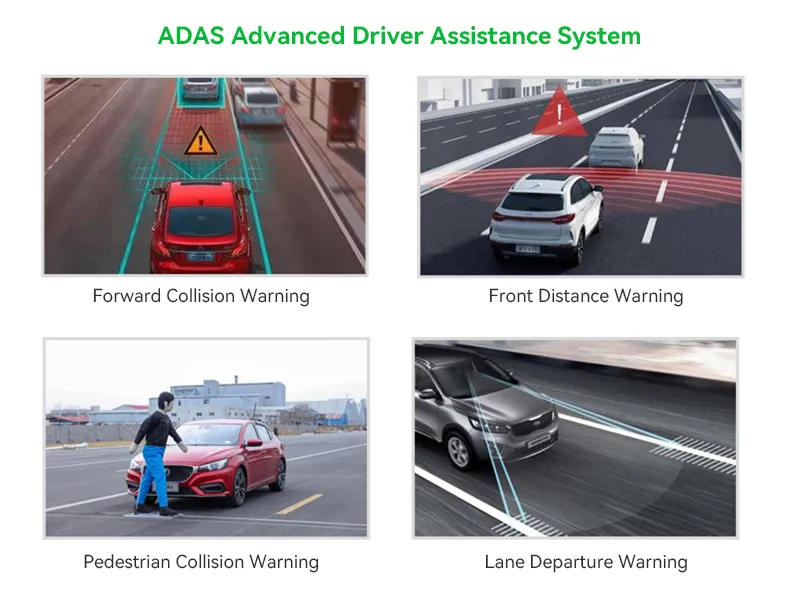

FunctionsBSD/ADAS/DMS/LCA/4G/GPS/AI Face Recognition
Warning SystemVisual warnings, live voice broadcasting, and audible-visual alarms
StorageSupports 256G high-speed TF cards (Dual recording)

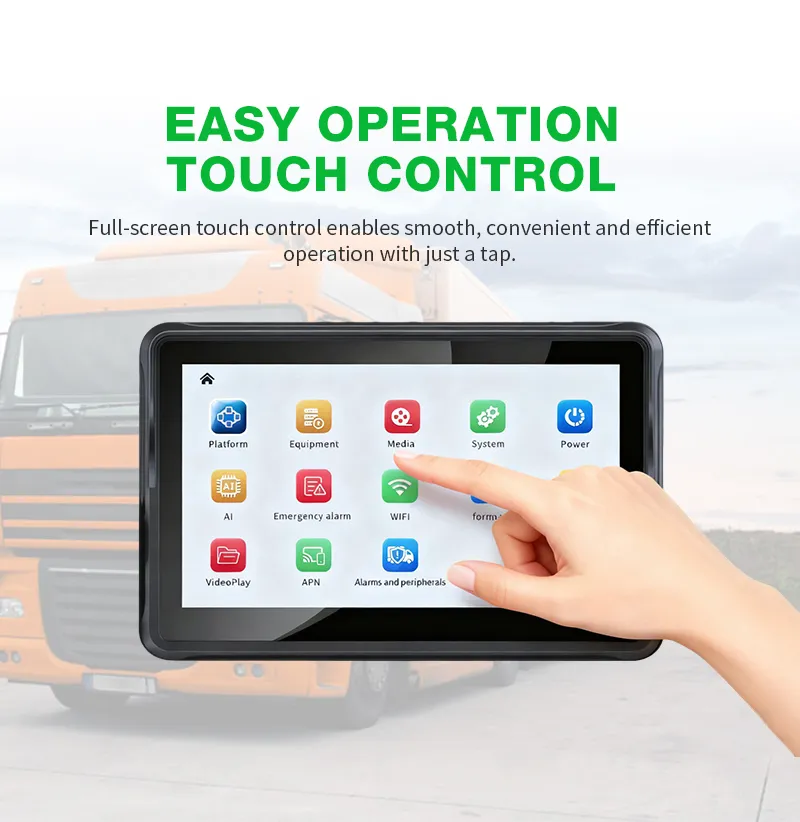

ControlKey control and Chinese voice recognition
Scale FunctionTwo scale rulers and automatic ruler switch
Power Supply12V / 24V (Compatible with 9-36V)
Operating Temp-20℃ to +70℃
Video FormatAHD 720 / 1080
TV SystemPAL / NTSC Optional
📦

Packing & Delivery

Each product is packed in a neutral color box with foam protection for safe transportation. Standard cartons are used for bulk packaging.

Packing Box
Delivery Process
Lead Time:
- Sample order: 3-7 working days.
- Bulk order (1-300 pieces): Approximately 20 days.
- Over 300 pieces: To be negotiated.
Shipping: Sea, air, or express (DHL, FedEx, UPS).
🏢

Company Overview

Company Video Cover

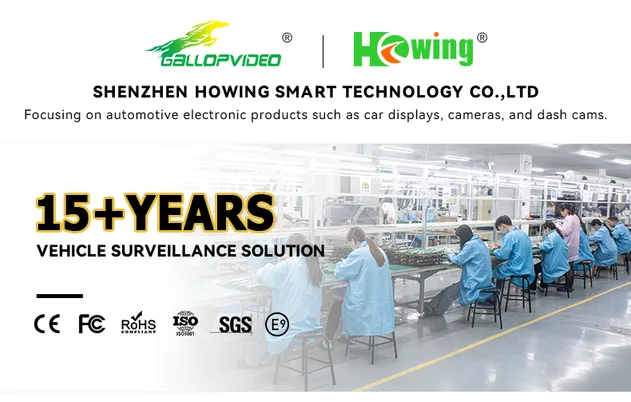

With 15 years of experience as a benchmark one-stop solution provider for commercial vehicle safety monitoring, we specialize in Truck AI BSD Human Detection Systems, rear-view systems, MDVR, and wireless monitoring solutions. Our facility is ISO 9001 certified, and products carry CE, FCC, RoHS, and IP68 certifications. We offer full ODM/OEM services including 7-day sampling and small-batch production, supported by one-on-one technical assistance and rapid after-sales service.

Factory 1
Factory 2
Factory 3

Frequently Asked Questions

What is the main function of the BSD system?
The Blind Spot Detection (BSD) system uses AI algorithms to identify pedestrians and vehicles in the driver's blind spots, providing real-time visual and audible warnings to prevent accidents.
Are the cameras waterproof?
Yes, the external cameras are rated IP68, making them fully waterproof and suitable for all-weather conditions, including heavy rain and pressure washing.
Does the system support night vision?
Yes, it features starry full-color night vision, allowing for high-definition monitoring and clear visibility even in extremely low-light environments.
Can I customize the system with my own logo?
Absolutely. We offer full OEM/ODM customization, including logo printing, graphic design, and customized packaging for orders over 50 sets.
What kind of storage does the system use?
The system supports high-speed TF cards up to 256G, providing dual recording to ensure continuous surveillance and evidence protection.
What is the warranty period for this system?
All products include a 1-year factory warranty. We also provide remote installation assistance and professional technical support throughout the product lifecycle.
