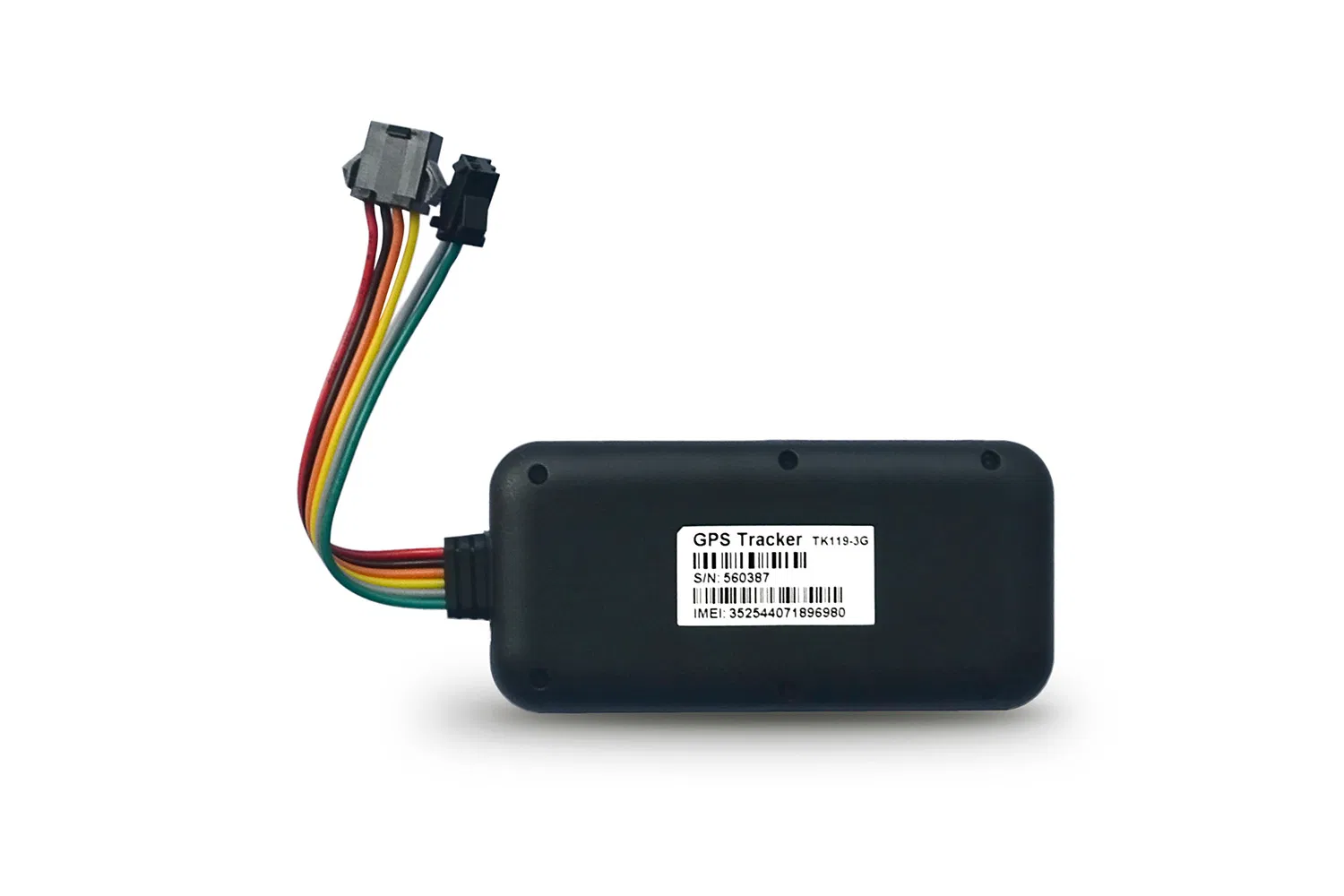

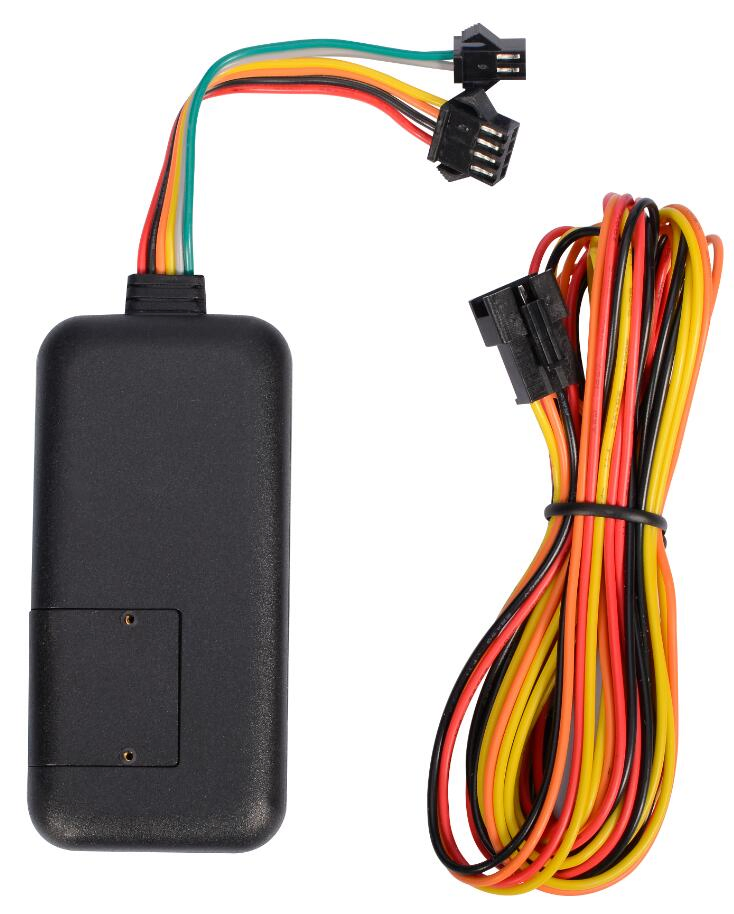

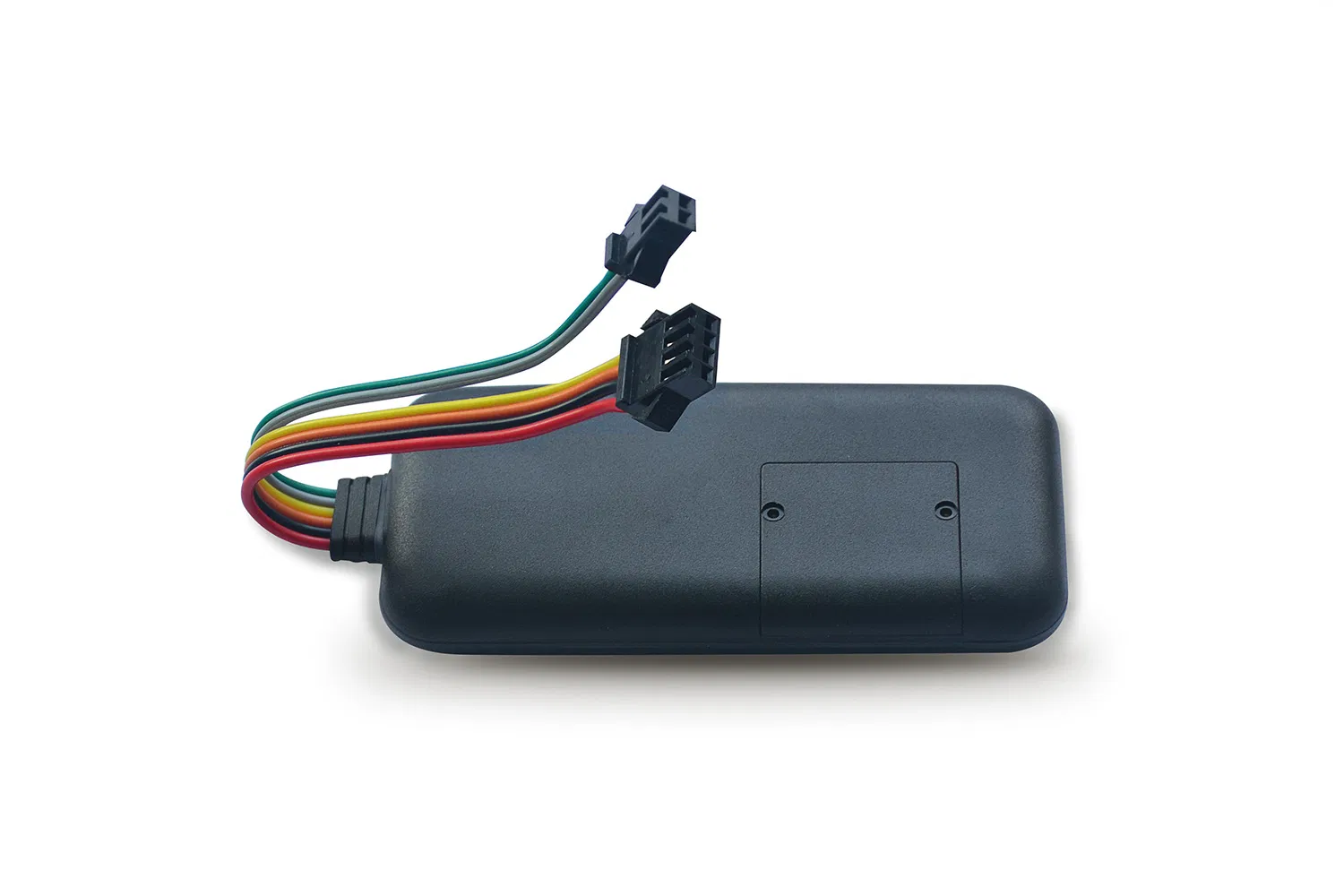

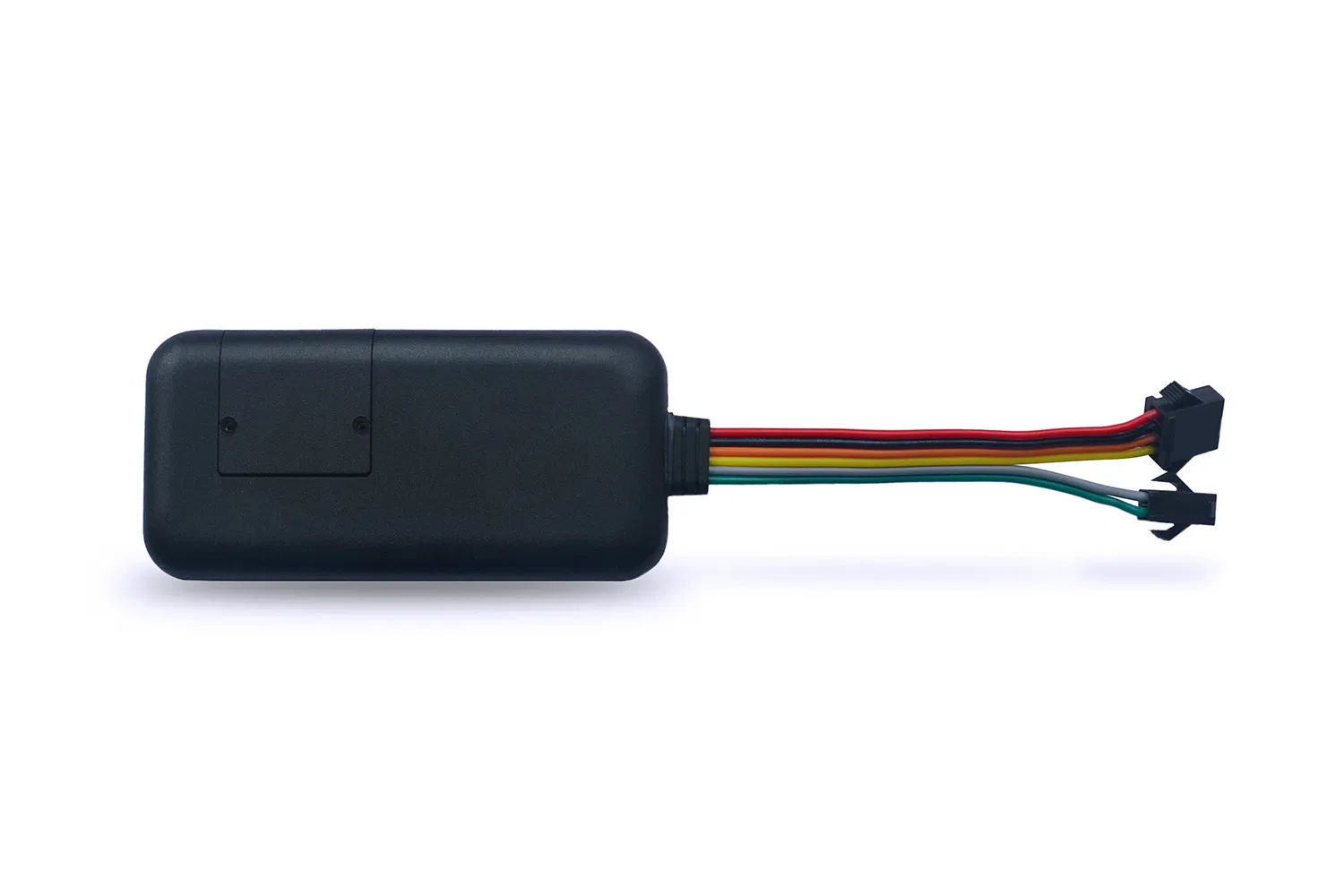

TK119-3G is a high-performance 3G Car GPS Tracker and tracking device that provides real-time monitoring for all types of vehicles with a power input range of 6V to 36V. The device supports various tracking platforms via computer or smartphone, including several third-party options for flexible management. It is widely utilized globally for professional fleet and asset tracking.
| Voltage | 12/ 24/ 36 VDC |
| Work Current | <50mA@12V |
| Standby Current | <10mA@12V |
| GPS Accuracy | 5-15m (Depend on GPS signal) |
| LBS Accuracy | About 200 m (Depending on base station density) |
| GPS Frequency | 1575MHz |
| GSM Frequency | 850/900/1800/1900MHz |
| WCDMA Frequency | W850/W1900/W2100 MHz |
| Start Time | Hot <3s, Warm <15s, Cold <60s |
| Battery Capacity | 70mAh |

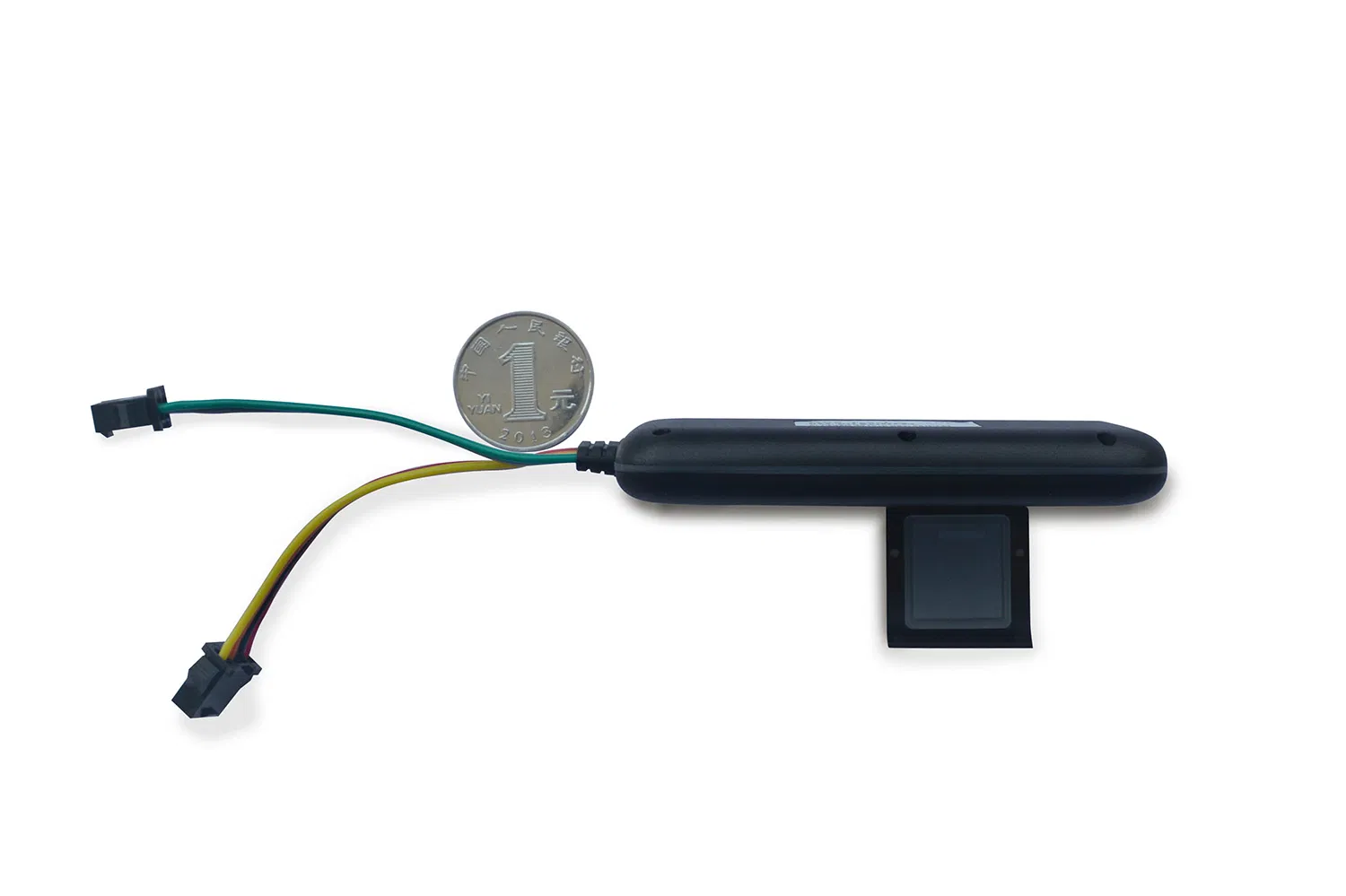

| Dimensions (mm) | 87(L)X41.6(W)X 12(H) |
| Work Temperature | -20ºC~70ºC |

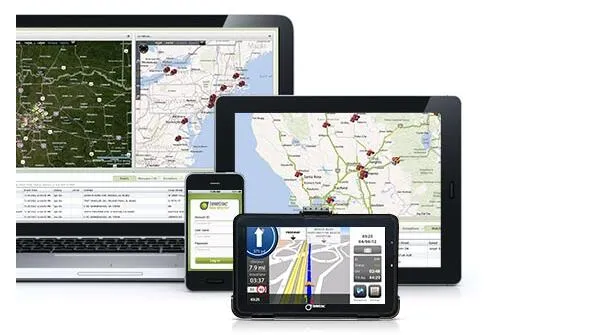

The device integrates a Satellite Receiver module and a mobile communication module. It achieves precise positioning using A-GPS and transmits position data to the server platform via GPRS at customized intervals (e.g., every 30 seconds). Users can view the exact location of the device on a map in real-time. A SIM card with GPRS data function is required for data transmission.
