📊 Basic Information
Resolution
1024*R.G.B*600
📦 Packaging & Delivery
Package Size
32.00cm * 42.00cm * 60.00cm

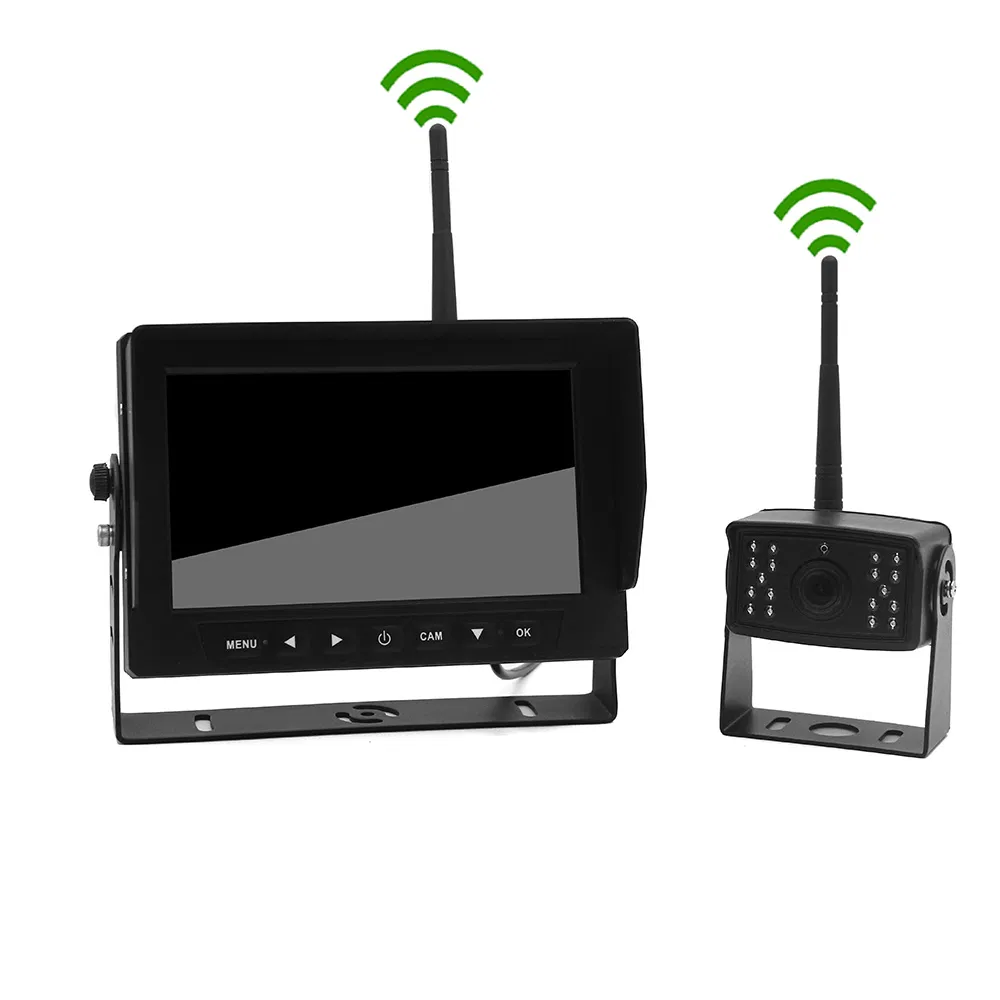

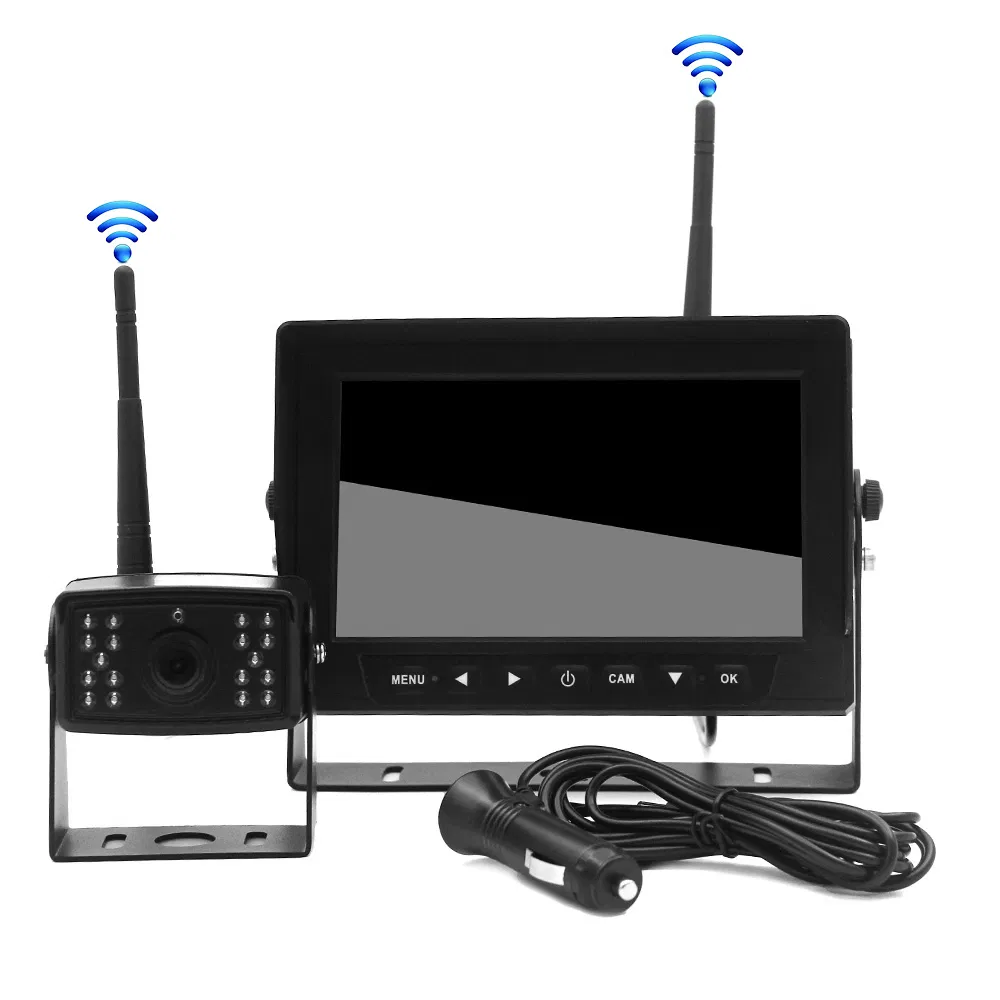

DC12-24V Semi-trailer 7" Waterproof Wireless Observation Camera System
⚙️ Technical Specifications

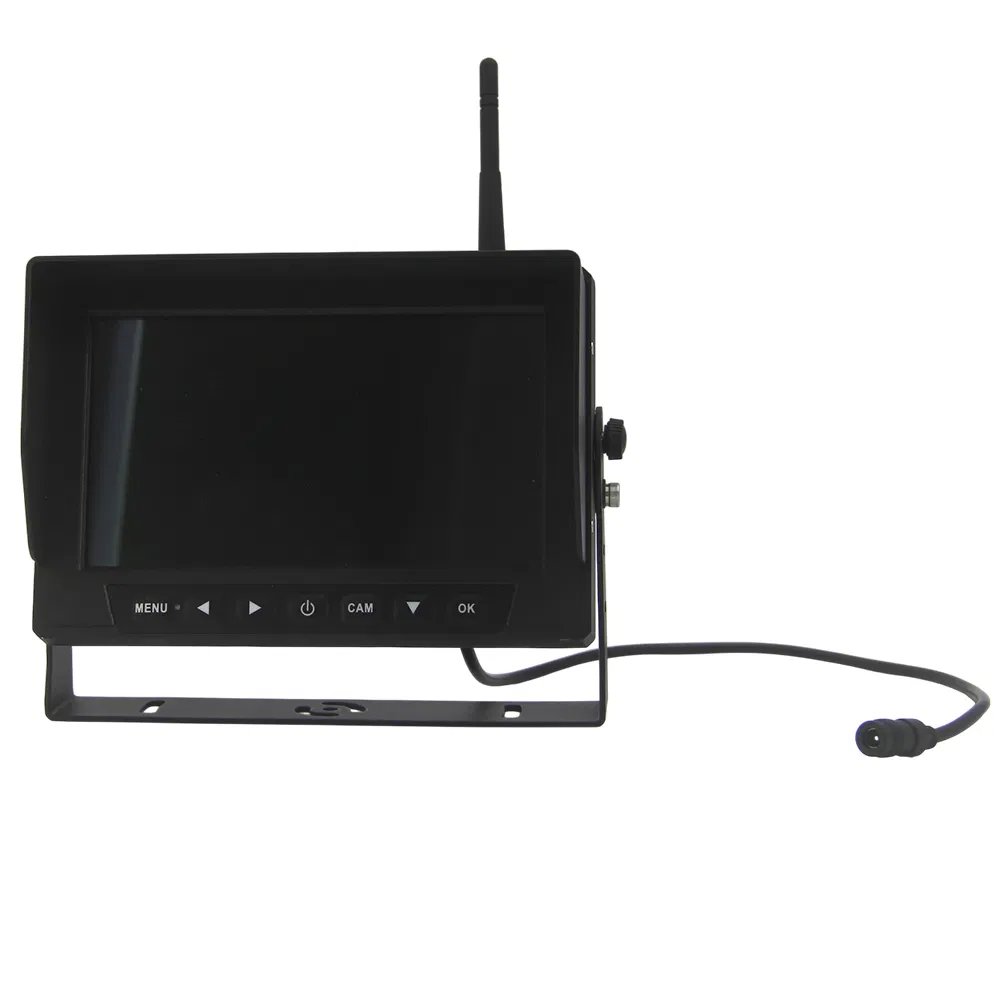

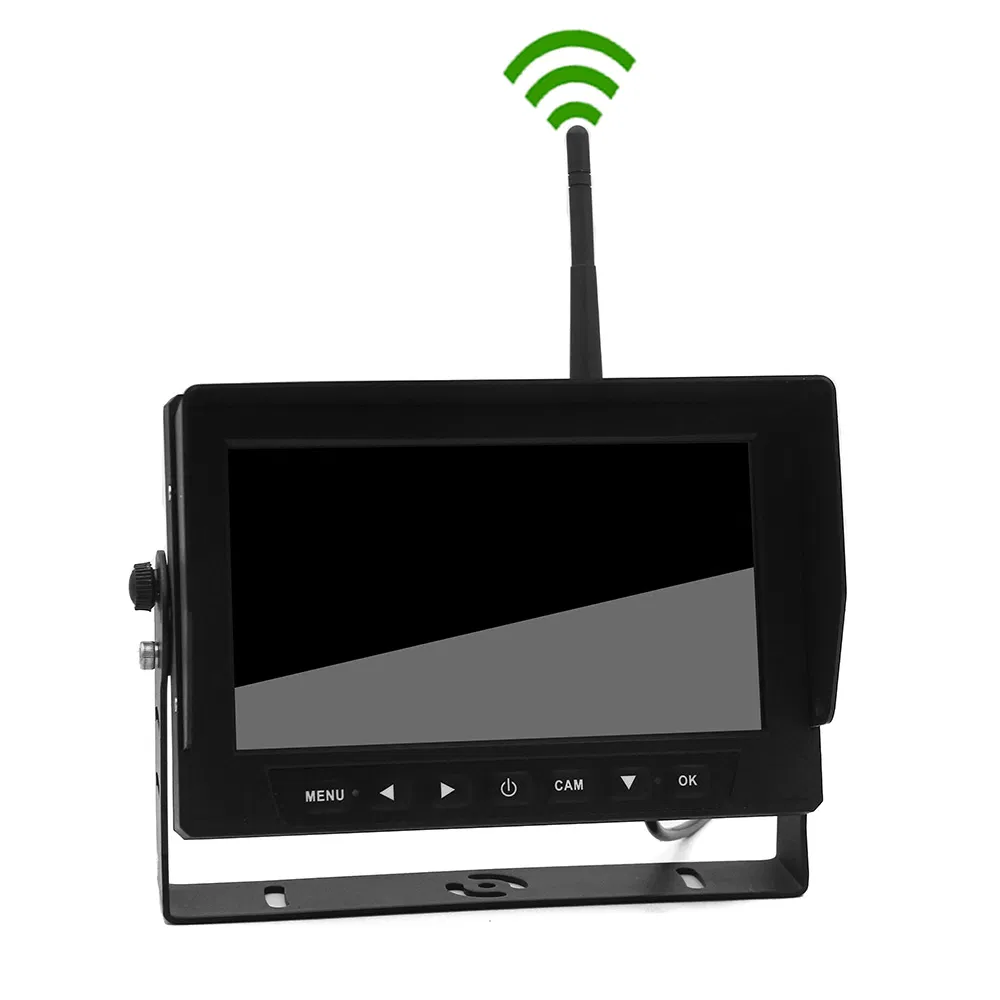

Monitor Specification (RVM-7035W):
- 7 Inch AHD 1080P Digital Wireless Rearview System
- Resolution: 1024*R.G.B*600
- Brightness: 500-650cd/m2
- Wide Viewing Angle: Hor. L/R 85°, Ver. UP/DOWN 85°
- 1 way 2.4G digital wireless signal, supports AHD 1080P
- Wireless Signal Range: 100M in open area
- Waterproof Level: IP69K
- Power Supply: DC12V-24V with Cigarette Lighter
- 1/2/4 images display adjustable (optional)
- DVR recording, supports up to 128GB (Optional)

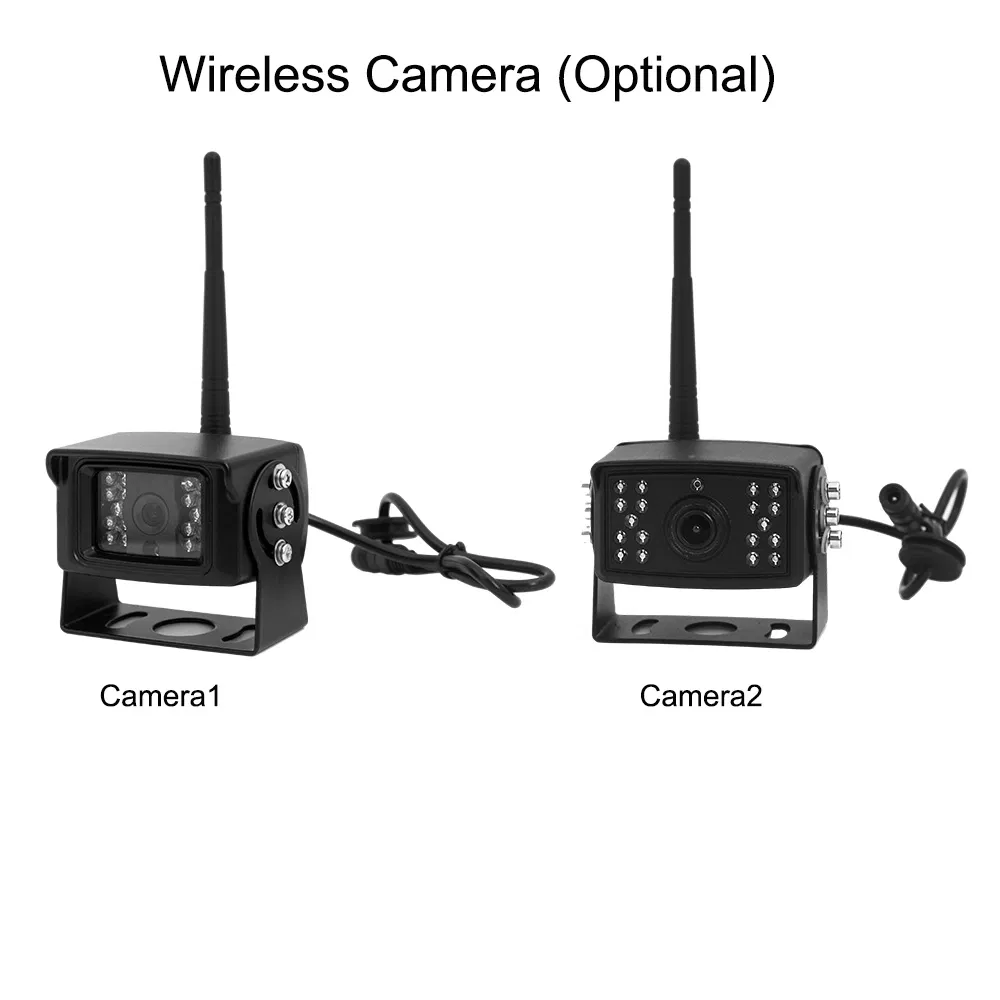

Camera Specification:
- Image sensor: 1/3" 2.0MP CMOS Sensor 2.8MM
- Effective Pixel: 1920(H)*1080(V)
- System: NTSC or PAL
- Minimum illumination: 0.5 Lux
- Waterproof Level: IP68K
- Camera Viewing Angle: 120°
- Aluminum Alloy shell with outside hanging design
- Infrared night vision (auto B/W image at night)
- Shockproof and resistance to high temperature/humidity
- Working temperature: -10ºC~70ºC

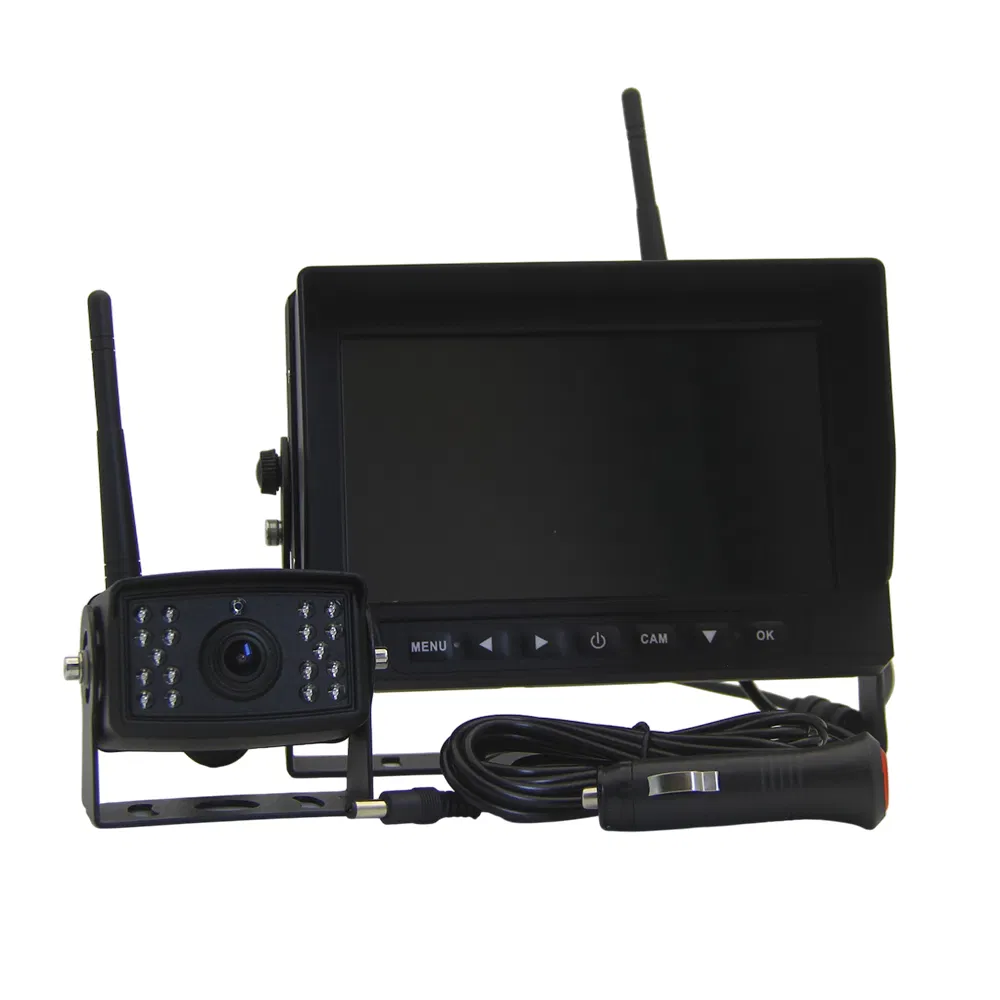

🖼️ Product Details Gallery

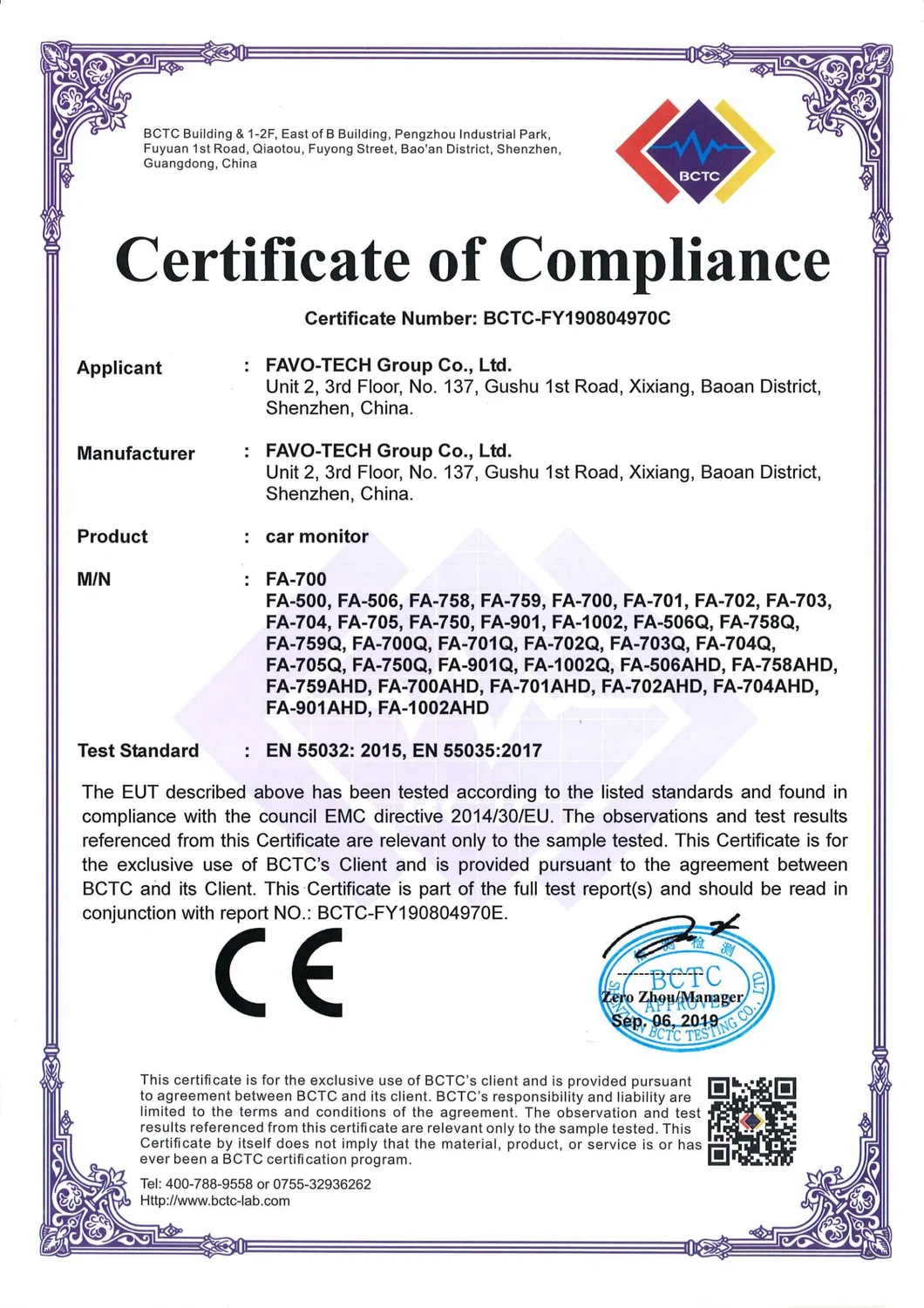

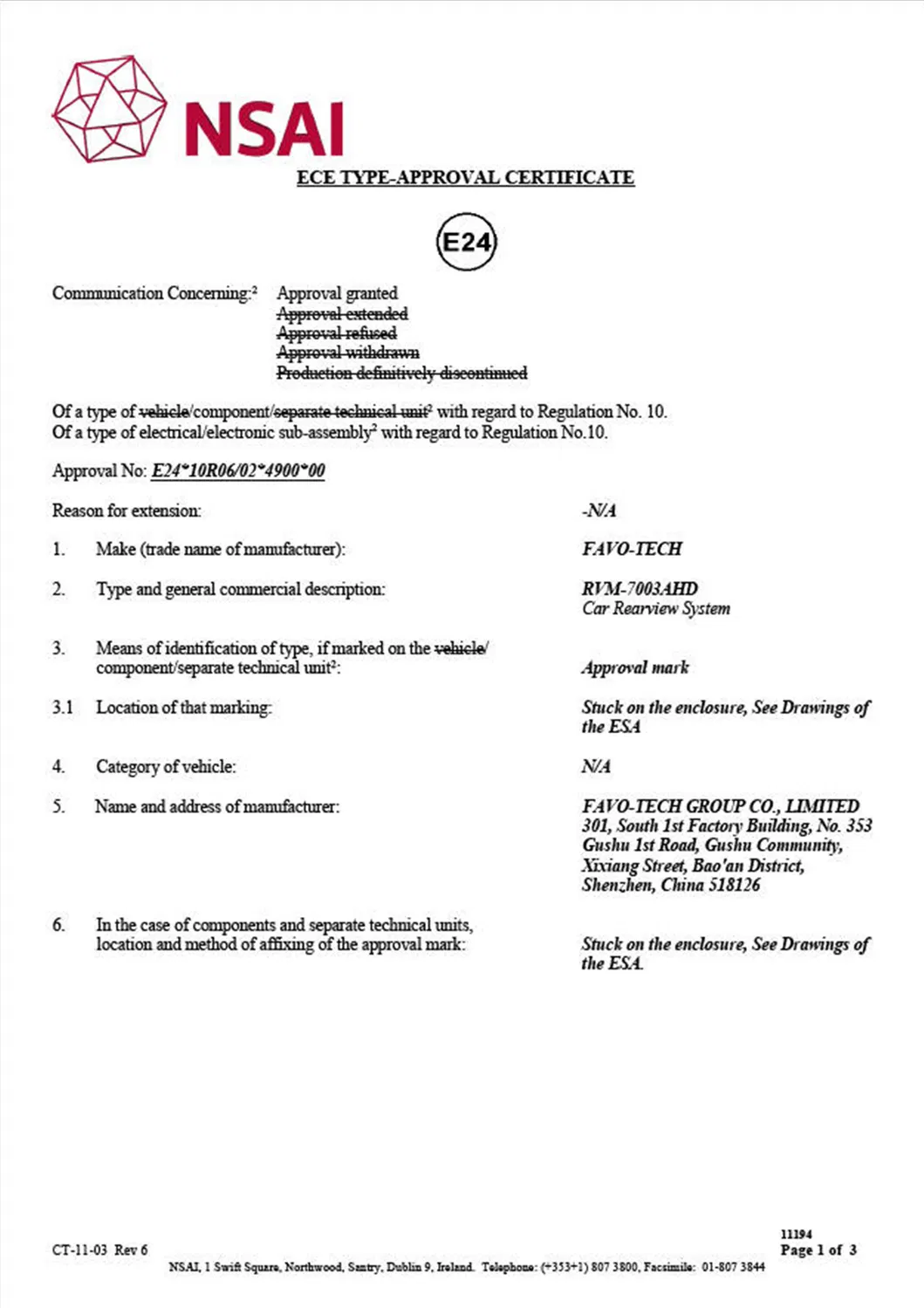

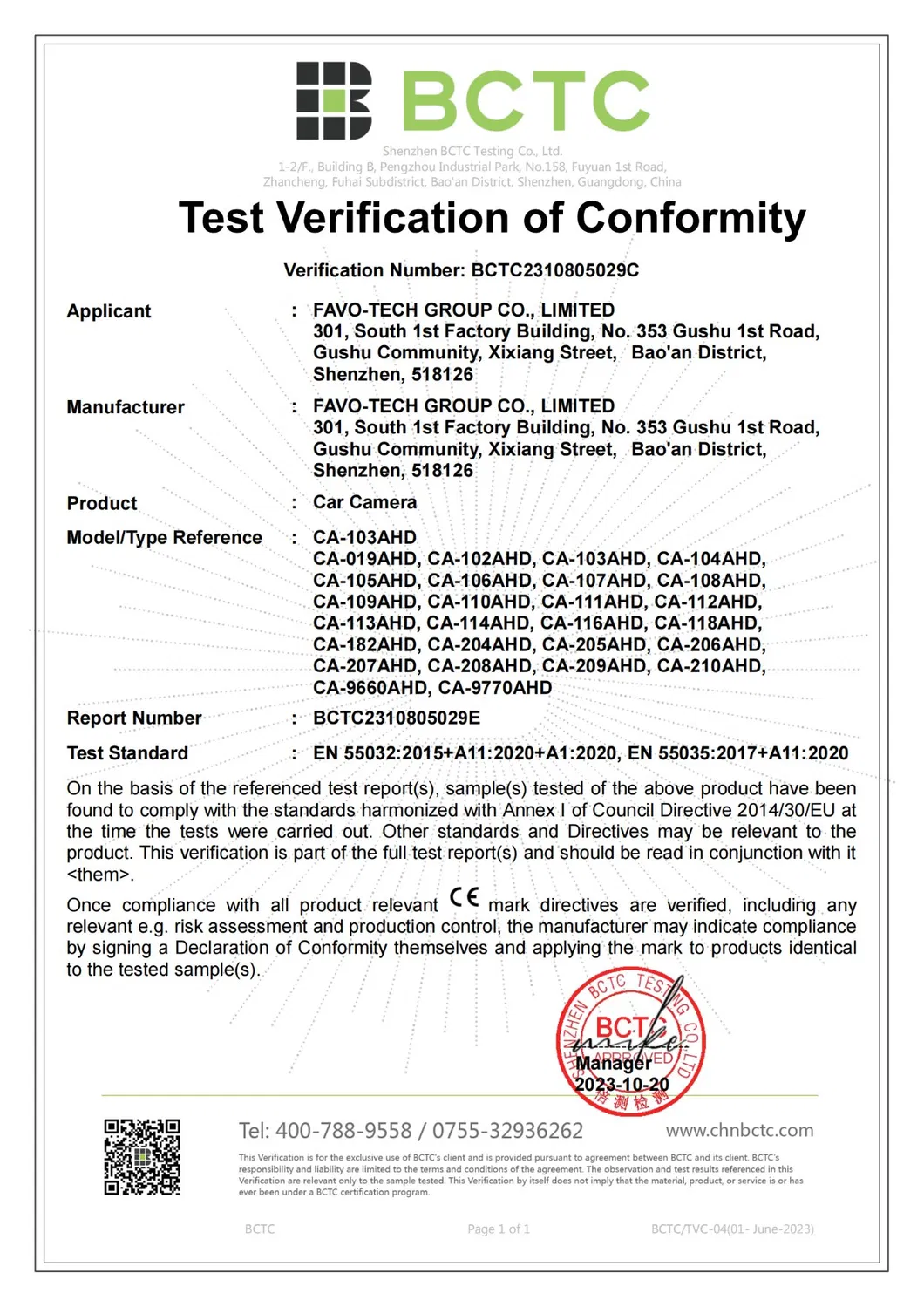

📜 Quality Certification
❓ Frequently Asked Questions
1. What is the wireless range of this system?
The digital wireless signal covers a range of up to 100 meters in an open area, making it ideal for semi-trailers and large vehicles.
2. Is the camera fully waterproof for outdoor use?
Yes, the system features an IP69K rated monitor and an IP68K rated camera, designed to withstand high-pressure water jets and extreme weather conditions.
3. Does this camera support night vision?
Absolutely. The camera has built-in infrared sensors and a CDS that automatically switches to high-clear black and white images in low-light or nighttime conditions.
4. Can I record video with this system?
The system supports an optional DVR recording function that can handle a maximum of 128GB storage for keeping driving records.
5. What is the power requirement for installation?
The system supports a wide voltage range from DC 12V to 24V, allowing it to be used in various vehicles from small cars to large heavy-duty trucks.
6. What is the warranty period for this product?
This observation system comes with a 24-month warranty covering manufacturing defects and technical reliability.
