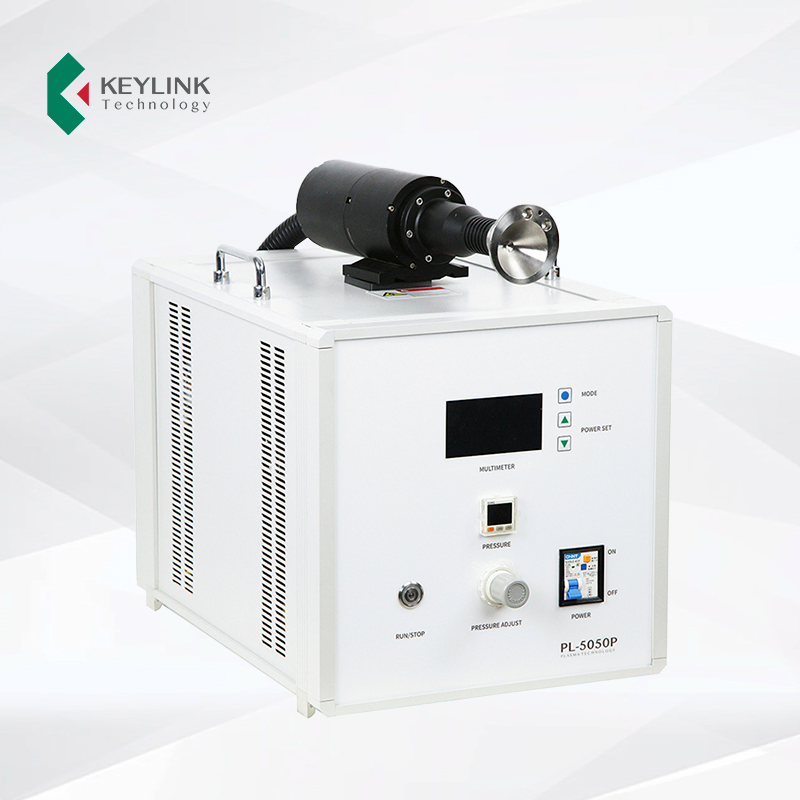

Keylink Advanced Plasma Etching System for Truck Semitrailer Surface Refinement

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	One Year

📋 Overview & Basic Info

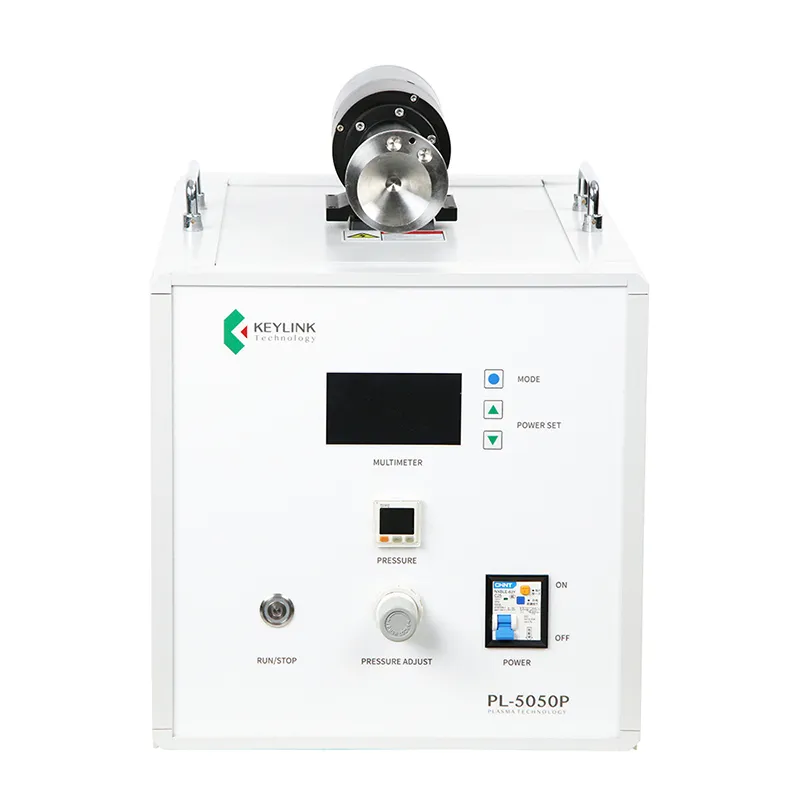

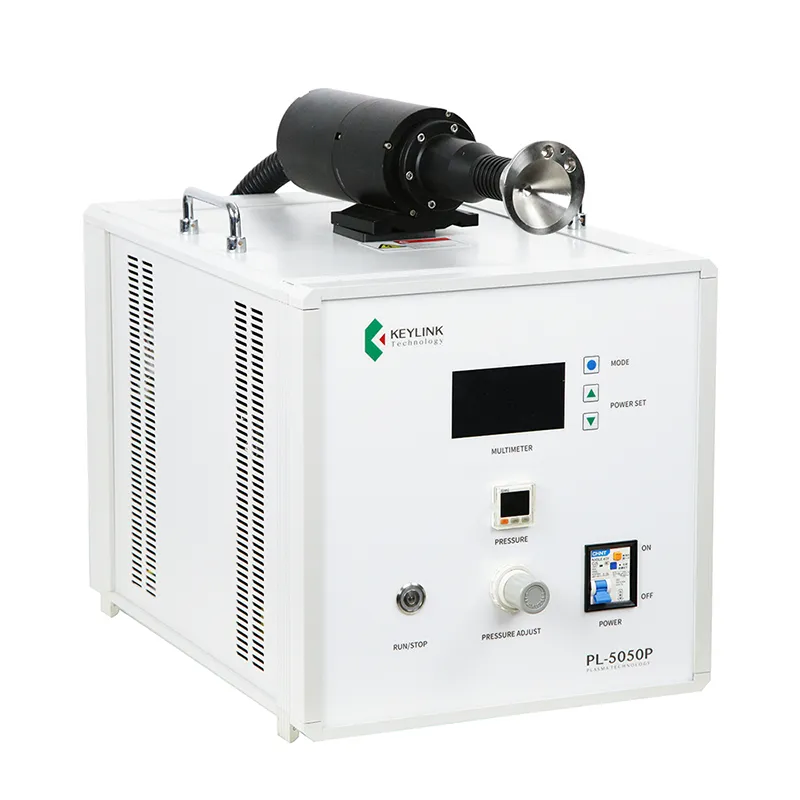

Model NO.:Pl-5050P

Type:Clean Machine

Voltage:220V

Color:White

Gun:Rotating Spray

Function:Improve Adhesion of Surface

Product Name:Plasma Surface Treater

Package Size:66.00cm * 40.00cm * 53.00cm

📊 Product Parameters

PL-5050P Technical Specification		Nozzle Type	Treatment Area
Interface Display	4.3-inch LCD Screen	R17 Rotate	16mm
Rated Voltage	AC220V ±10%	R03 Rotary	20mm
Plasma Output	750-1500W	R04 Rotary	30mm
Supply Frequency	17.3-30kHz	R21 Rotary	40mm
Air Pressure	0.1-0.3Mpa (Operating)	R05 Rotary	50mm
Cleaning Height	5-15mm	R23 Rotate	75mm
Net Weight	28kg	R20 Rotary	110mm

💡 What is Plasma?

Plasma represents the quintessential state of high-energy matter, often referred to as the fourth state of matter, beyond solid, liquid, and gas. By inputting energy, substances transition from solid and liquid to gaseous states. When additional energy is infused into the gas through a discharge process, it transforms into plasma. This dynamic and energetic state is what we know as plasma.

This system revolutionizes industries by enhancing bonding processes. It is integral in applications such as box folding-gluing, automotive headlights, household appliance assembly, and safety component bonding.

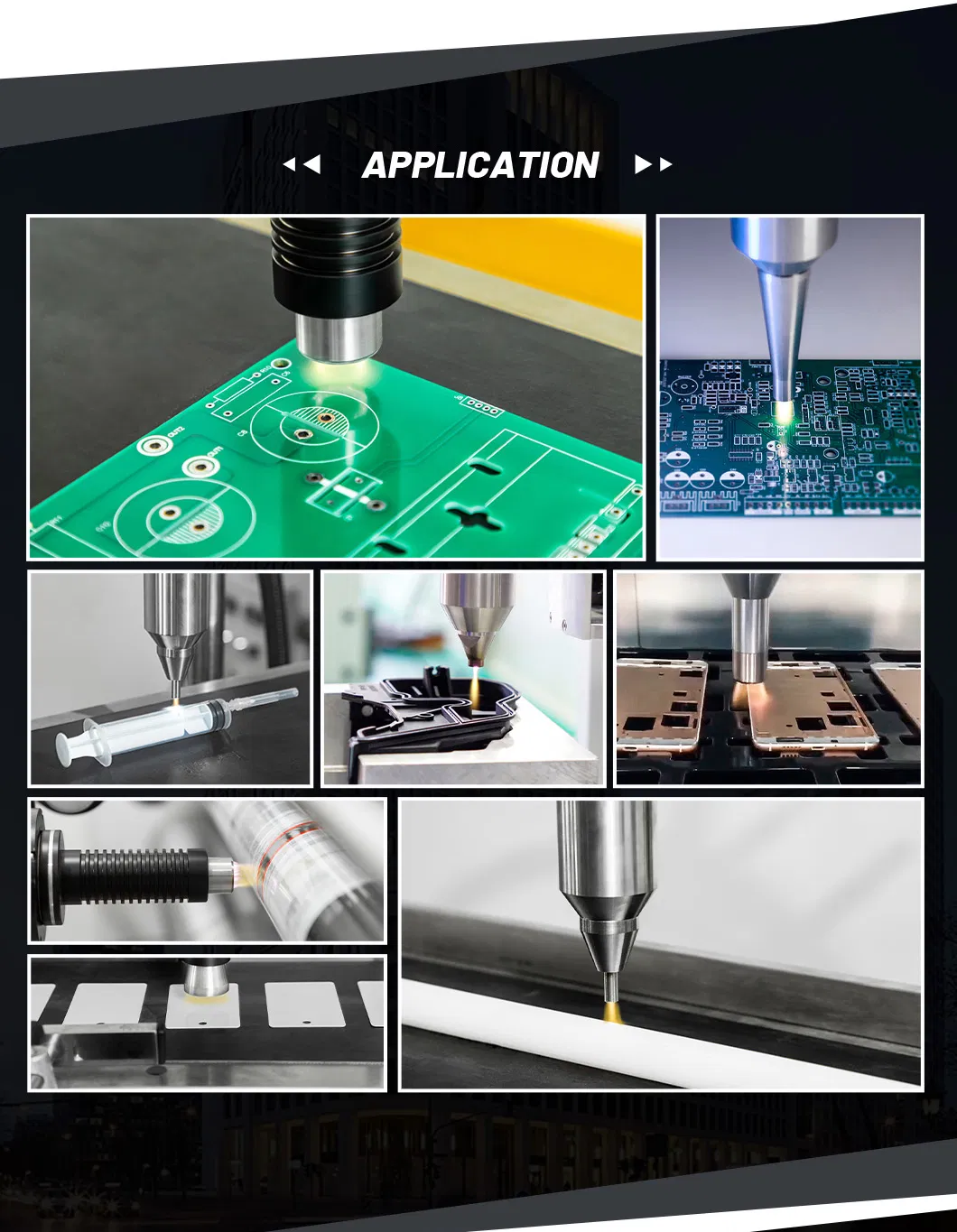

🚀 Industry Applications

Automotive & Aerospace

Headlights, EPDM profiles, control devices, tyres, motor pumps, aircraft maintenance, and truck semitrailer construction.

Electronics & Displays

Mobile phones, flat screens, microphones, loudspeakers, and charge-free micro-component assembly.

Packaging & Printing

Cardboard packaging, bottle caps, plastic films, tamper-evident seals, and wet labeling applications.

Medical & Sterilization

Infant oxygenators, operating instruments, cardiac pacemakers, and heart-lung machine components.

Consumer Goods

Solar panels, safety glass, furniture edges, textile fibers, and high-end sports equipment like golf balls/clubs.

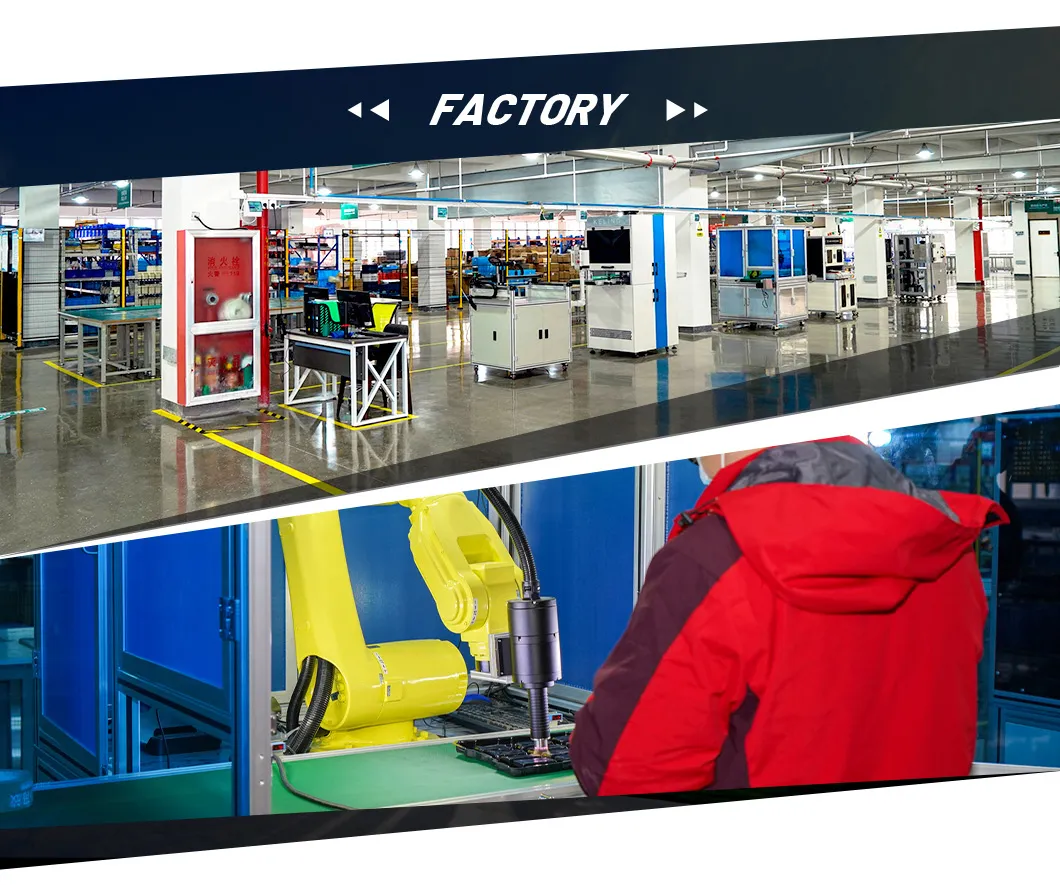

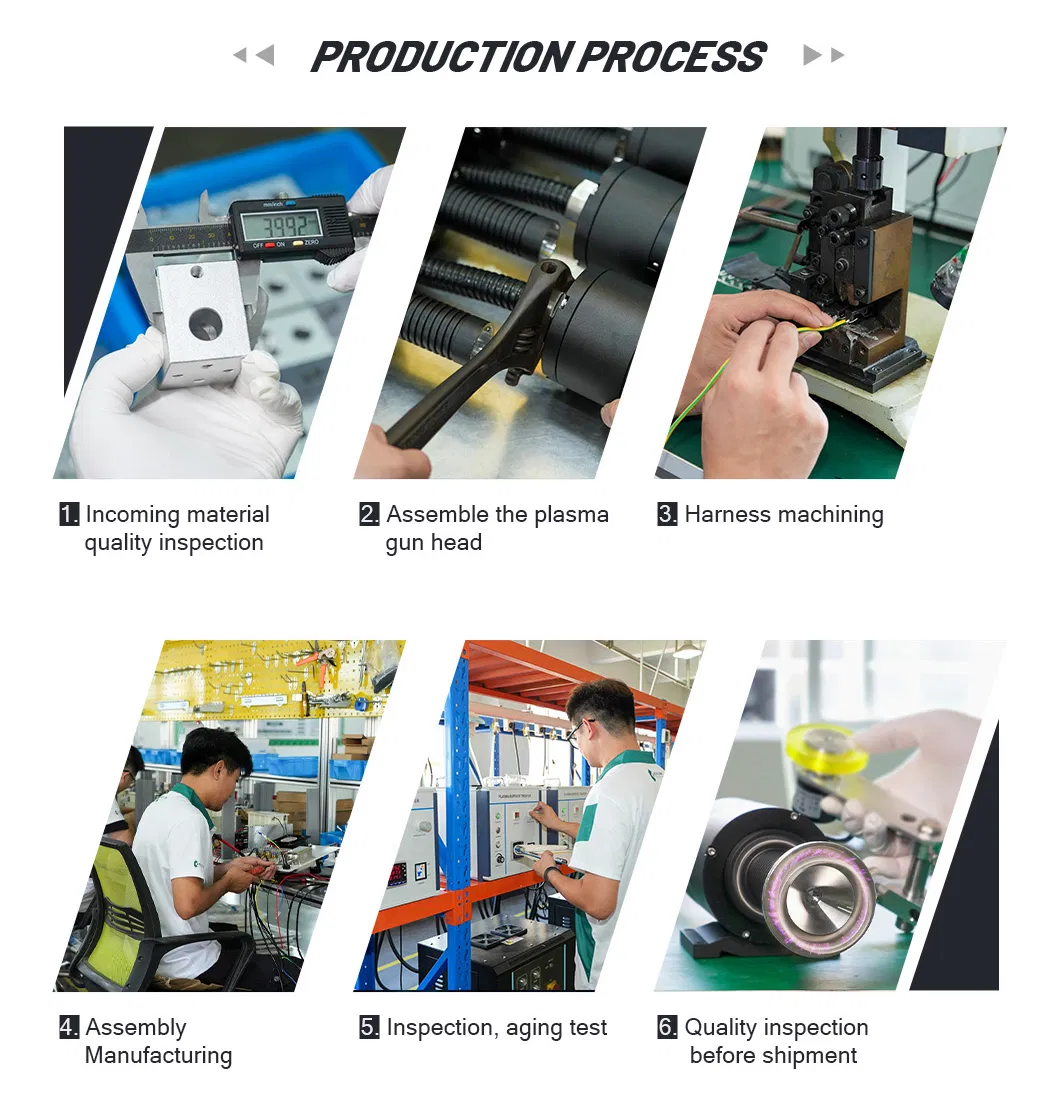

🏢 Production & Quality Control

📜 Certifications & Exhibitions

📦 Packaging & Shipping

❓ Frequently Asked Questions

1. What is the typical production lead time for orders?

For standard small to medium orders (e.g., 10-20 units), the lead time is approximately 3-4 working days. Large or custom configurations may require additional time.

2. Can the plasma machine configurations be customized?

Yes. We can tailor machine configurations, spare parts, and accessories such as nozzle types and cable lengths to meet your specific production line requirements.

3. What kind of after-sales technical support do you offer?

We provide comprehensive support including technical assistance via video calls, quick access to spare parts, and detailed documentation like maintenance guides and SOPs.

4. What are the standard payment terms?

Standard terms include a 50% deposit upon order confirmation, with the remaining balance due before shipment. Payments are typically handled via SWIFT transfer.

5. Does the system include built-in fault detection?

Yes, the system features multiple detection functions including air pressure monitoring, over-temperature detection, motor speed tracking, and driver fault alarms.

6. How is the equipment protected during international shipping?

All units are securely packed in professional wooden cases to ensure maximum protection during sea, air, or land transit to global destinations.
