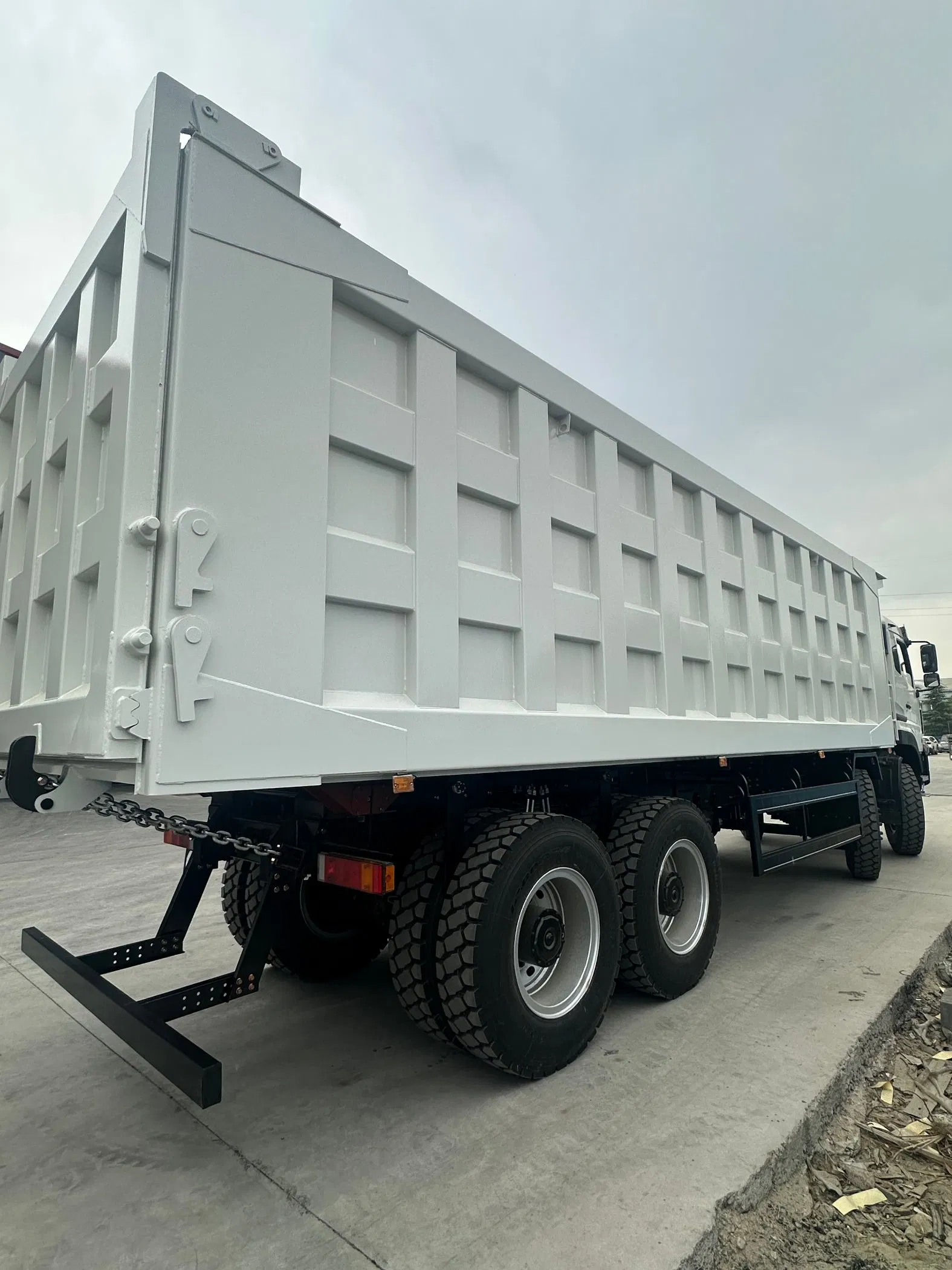

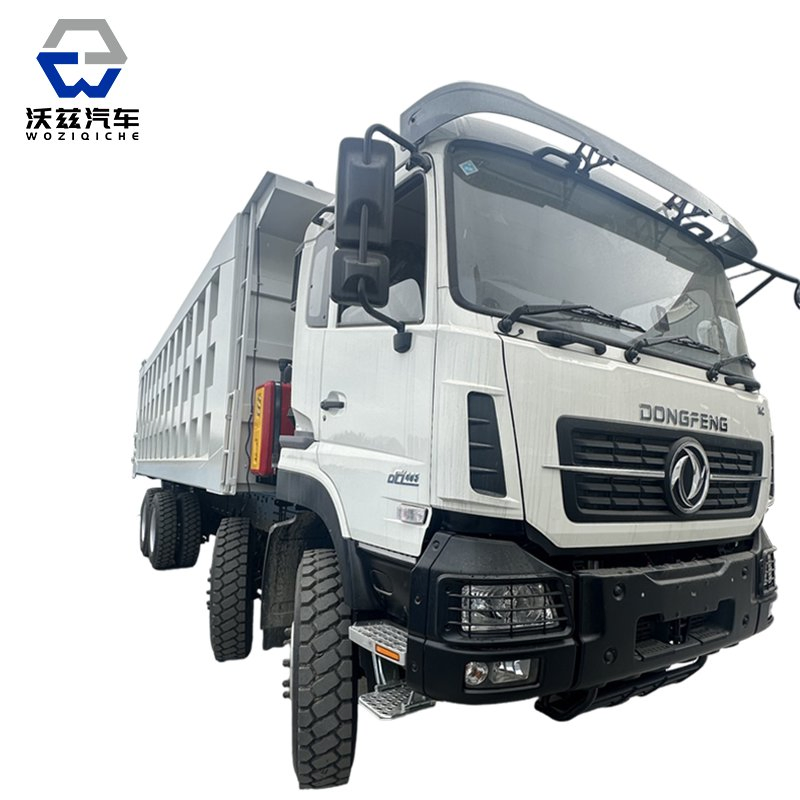

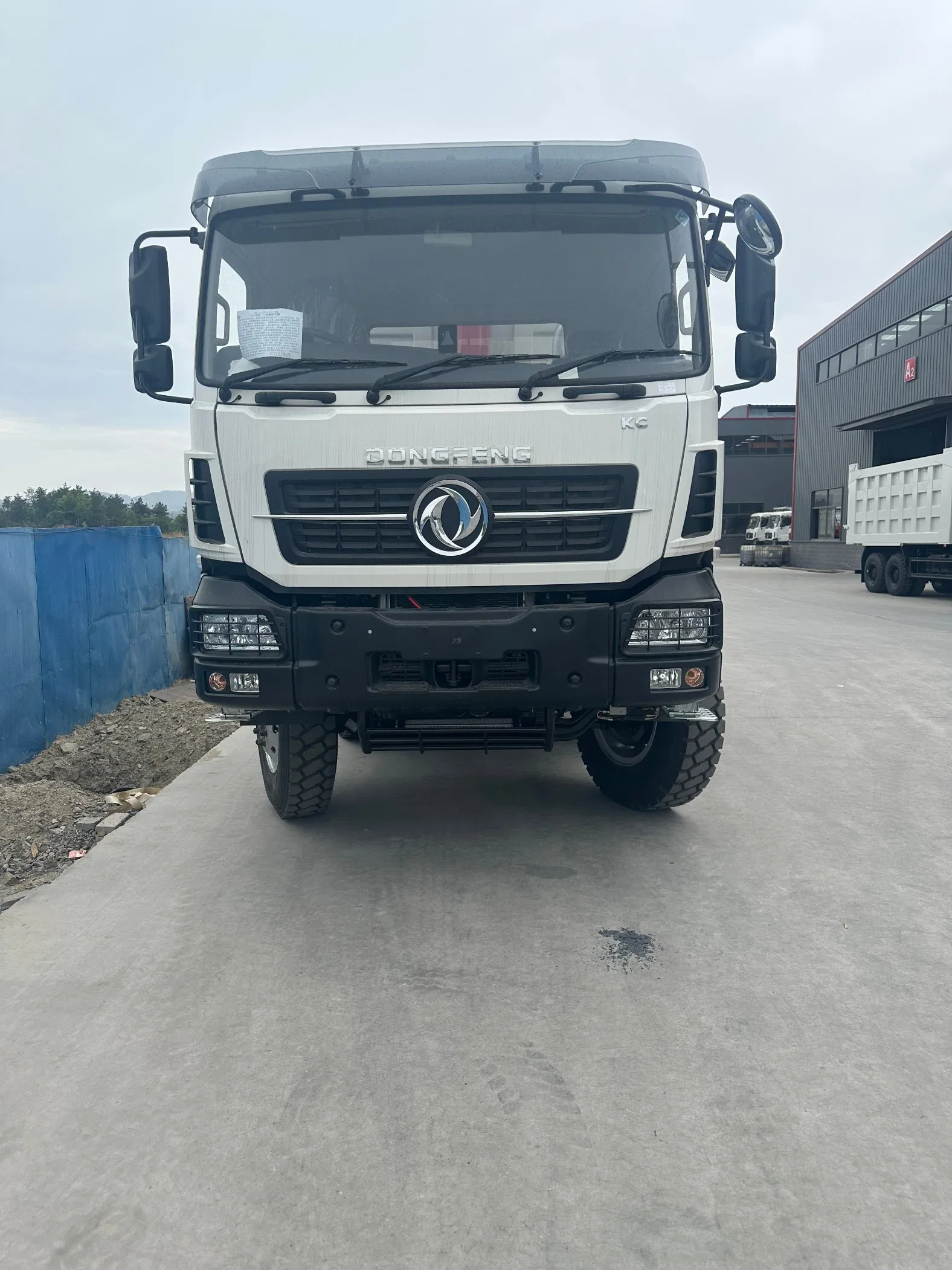

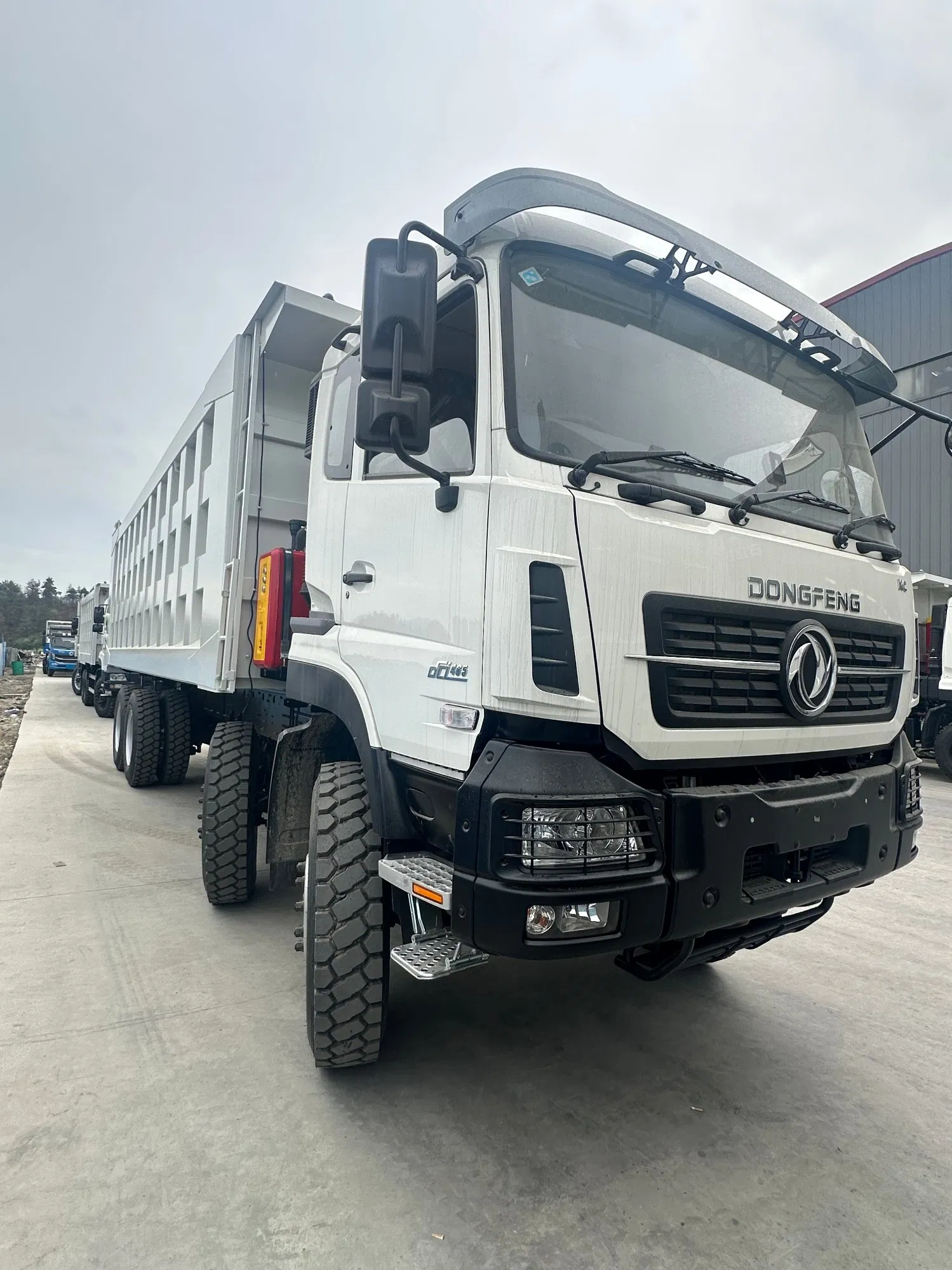

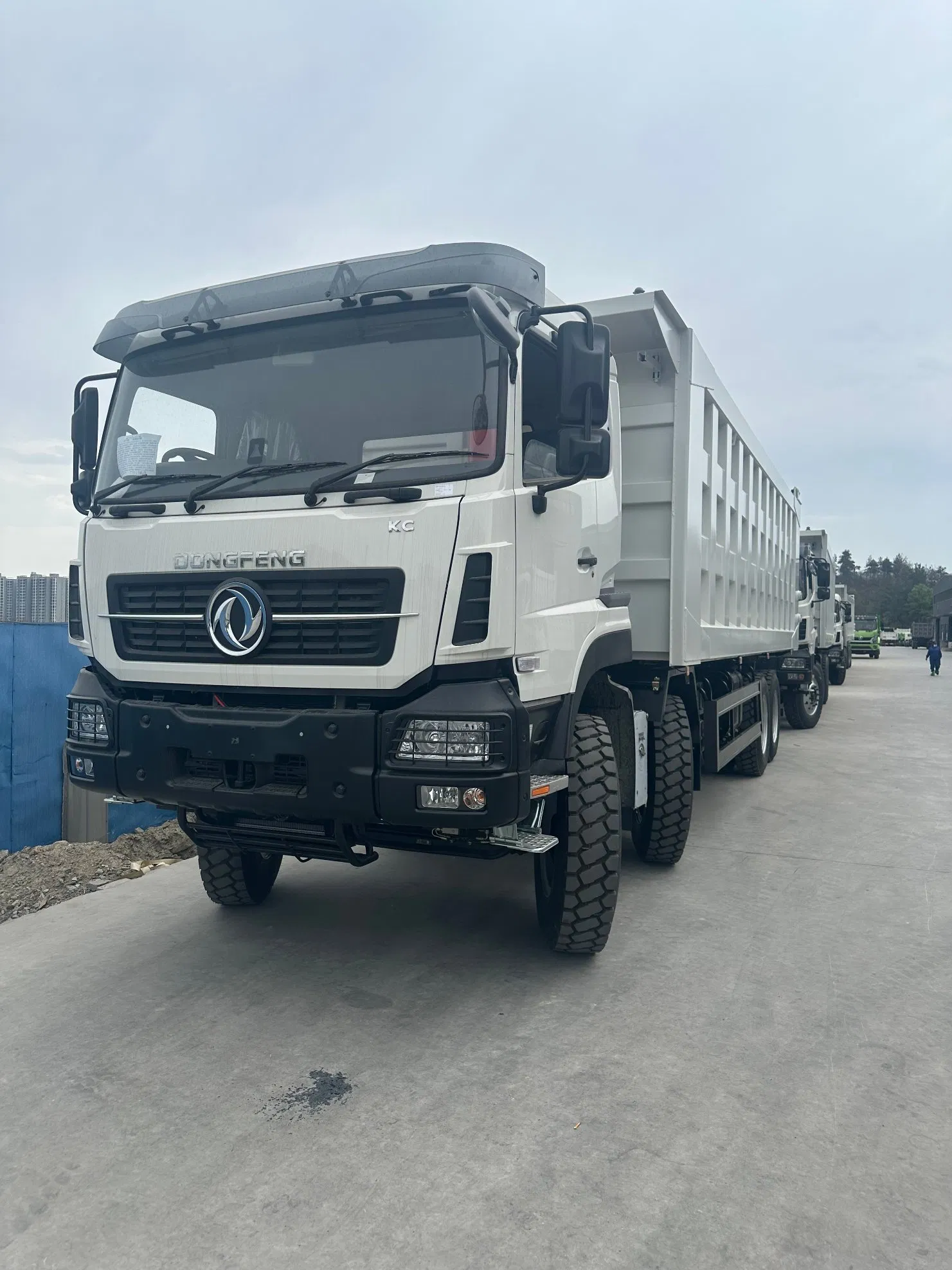

New Dongfeng 8X4 Rhd Dump Truck Tipper Truck Construction Debris Truck

After-sales Service: Available
Warranty: 12 Months
Transmission Type: Manual

Product Description

8X4 Dump Truck Overview Truck Dimensions
Basic Information
Model NO.
WOZZX0001-01
Power
Diesel
Load Capacity
11-20t
Emission Standard
Euro 3
Drive Wheel
8×4
Engine Capacity
>8L
Horsepower
351-450hp
Tire Design
Tubeless
Dumping Type
Front Lifting Style
Overall Dimensions
10280X2550X3550
Gross Vehicle Weight
31000(Kg)
Origin
China
Product Description

A dump truck is a specialized engineering vehicle designed for transporting and unloading goods. It features an automatically tilting cargo box that can quickly unload materials such as sand, gravel, and waste soil at designated locations, significantly improving work efficiency.

With a powerful engine and strong hill-climbing ability, it is suitable for working in complex terrains like construction sites and mines. The cargo box is well-sealed to prevent spillage of materials and reduce environmental pollution. This dump truck is an essential piece of equipment in construction projects, providing an efficient and convenient solution for material transportation.

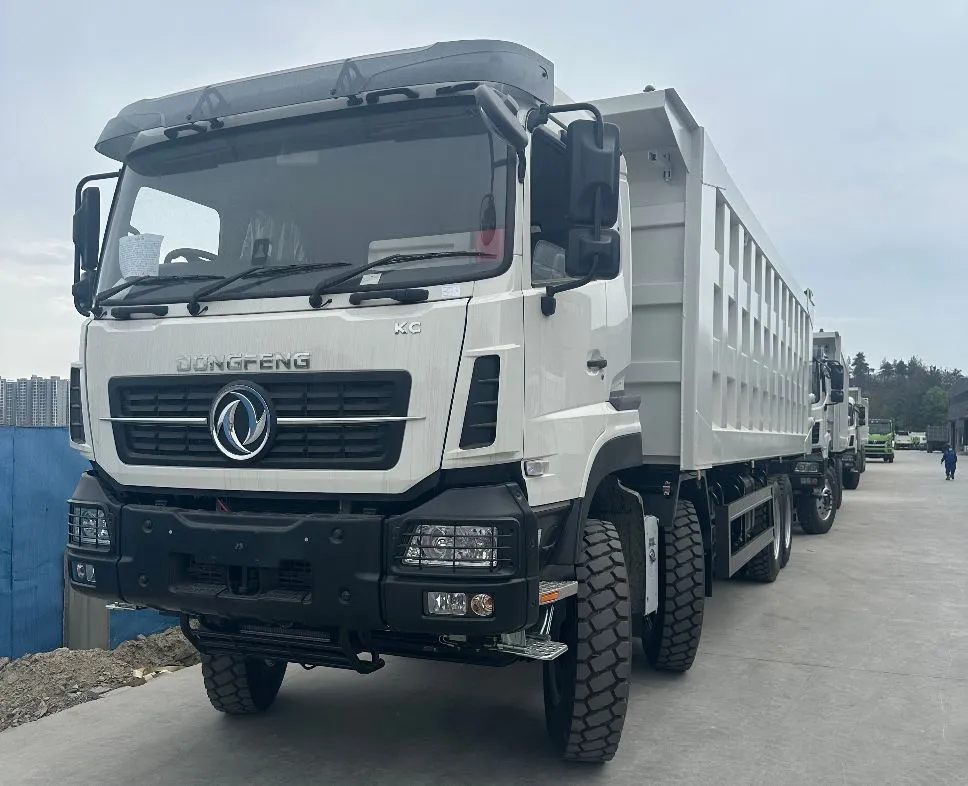

Dump Truck Operation
Technical Specifications
Parameters Details Parameters Details
Overall Dimensions 10280×2550×3550 (mm) Rated Load Capacity 18600, 18000, 17400 (Kg)
Gross Vehicle Weight 31000 (Kg) ABS System Standard Configuration
Curb Weight 12205, 12805, 13405 (Kg) Maximum Speed 90 (km/h)
Wheelbase 1850+2800+1350 (mm) Number of Tires 12
Tire Size 11.00R20 18PR / 12R22.5 Axle Load 6500/6500/18000
Engine Configuration Options
Engine Model Displacement (ML) Power (kw/PS) Fuel Type
YC6-375-30 10338 276/375 Diesel
YC6-460-30 12155 338/460 Diesel
WP12.420E32 11596 309/420 Diesel
Additional Features: 1. Rear unloading mode. 2. Protective device material: Q235 with bolt connection. 3. Optional cab types and side plate structures. 4. Equipped with driving recorder and satellite positioning. 5. ETC compatible.
Manufacturing and Quality Control

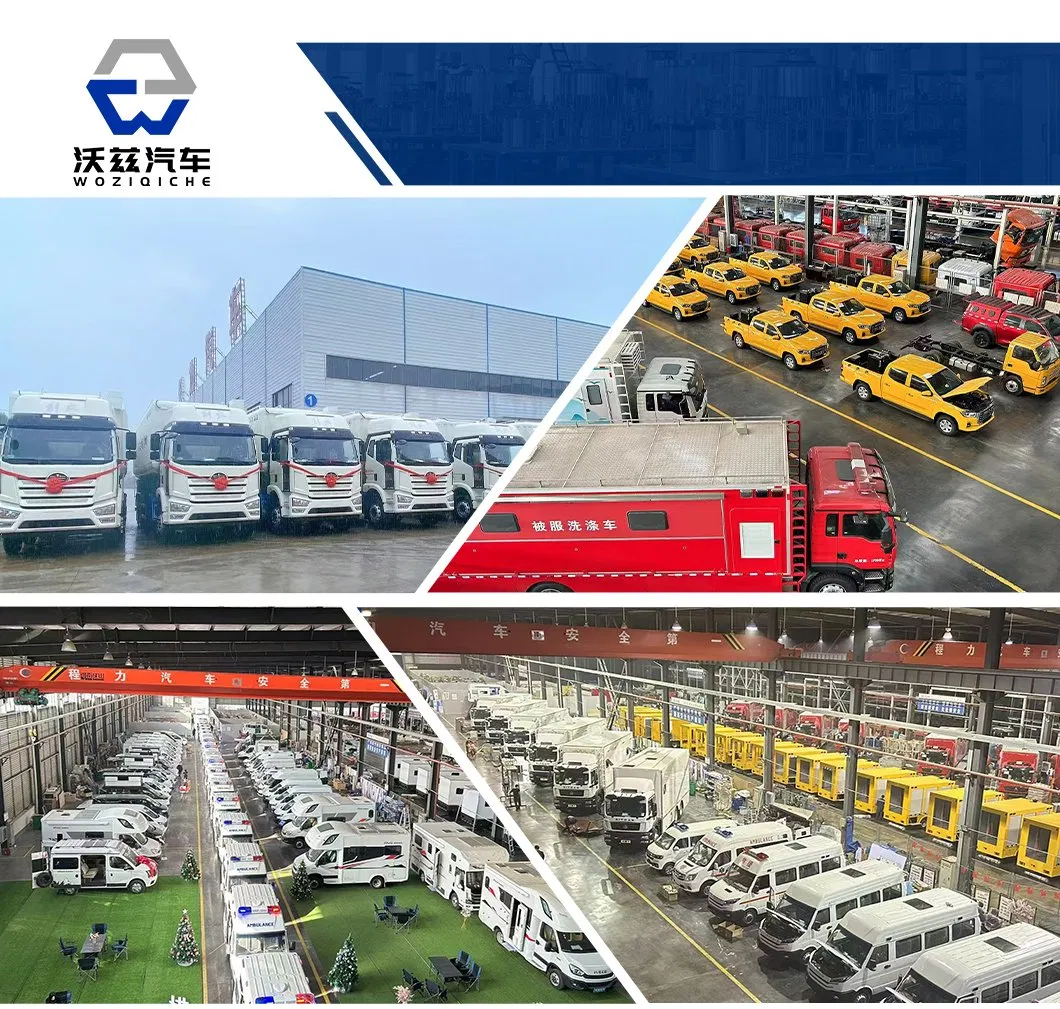

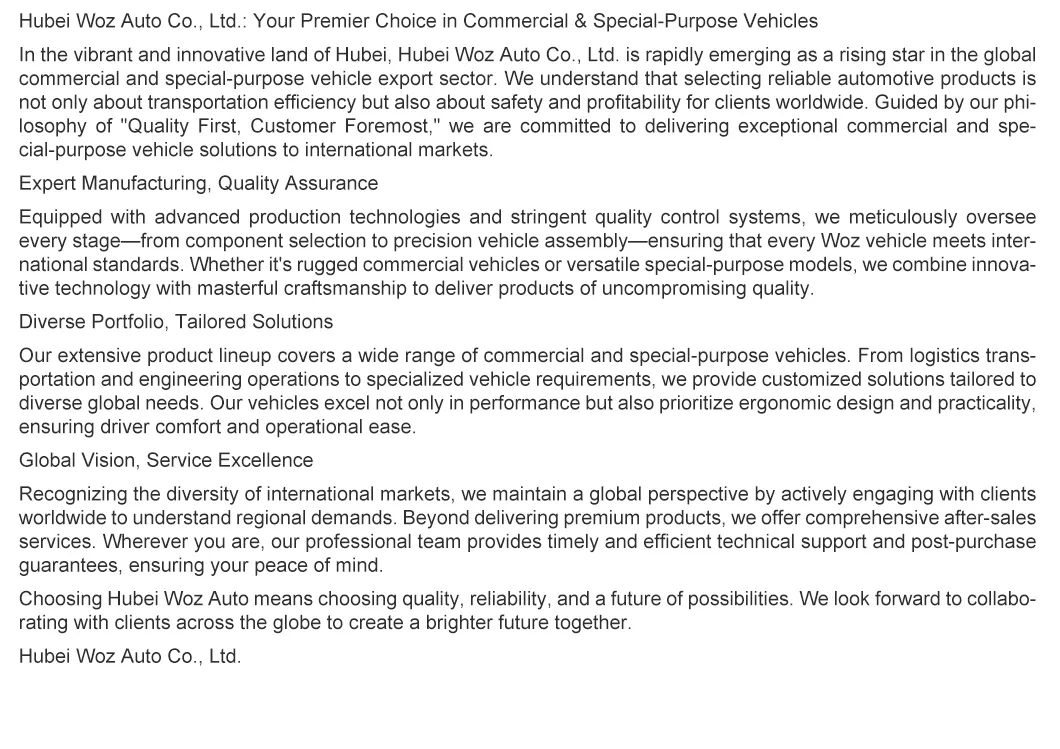

Manufacturing Process 1 Manufacturing Process 2 Manufacturing Process 3 Quality Inspection

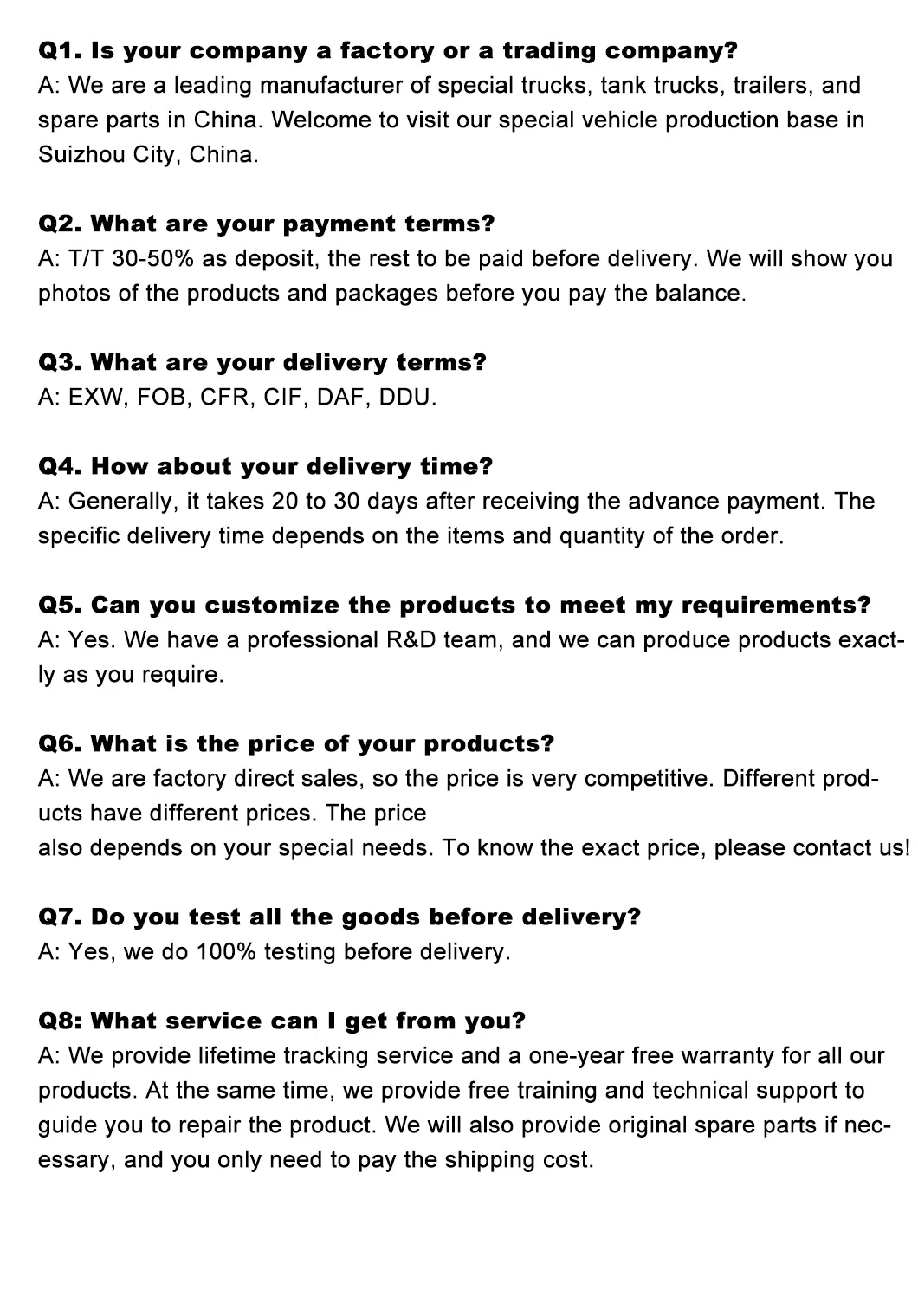

Process Detail Final Assembly
Frequently Asked Questions
What is the primary use for this 8x4 dump truck?
This truck is designed for heavy-duty engineering tasks, including transporting and unloading materials like sand, gravel, and construction debris in mines or building sites.
What are the engine options available?
The truck offers multiple diesel engine configurations, including the YC6 and WP12 models, with horsepower ranging from 375hp to 460hp.
What safety features are included as standard?
The vehicle comes standard with an ABS system (Model: 3631010-C2000) and a driving recorder equipped with satellite positioning functions.
What is the maximum load capacity of the vehicle?
The Gross Vehicle Weight (GVW) is 31,000 kg, with rated load capacities varying between 17,400 kg and 18,665 kg depending on the specific configuration.
Can the truck be customized for specific environmental needs?
Yes, options such as environmental protection covers, different box side plate structures, and various cab styles are available to meet specific operational requirements.
What is the maximum speed and tire configuration?
The truck can reach a maximum speed of 90 km/h and is equipped with 12 tubeless tires (11.00R20 or 12R22.5 specifications).
