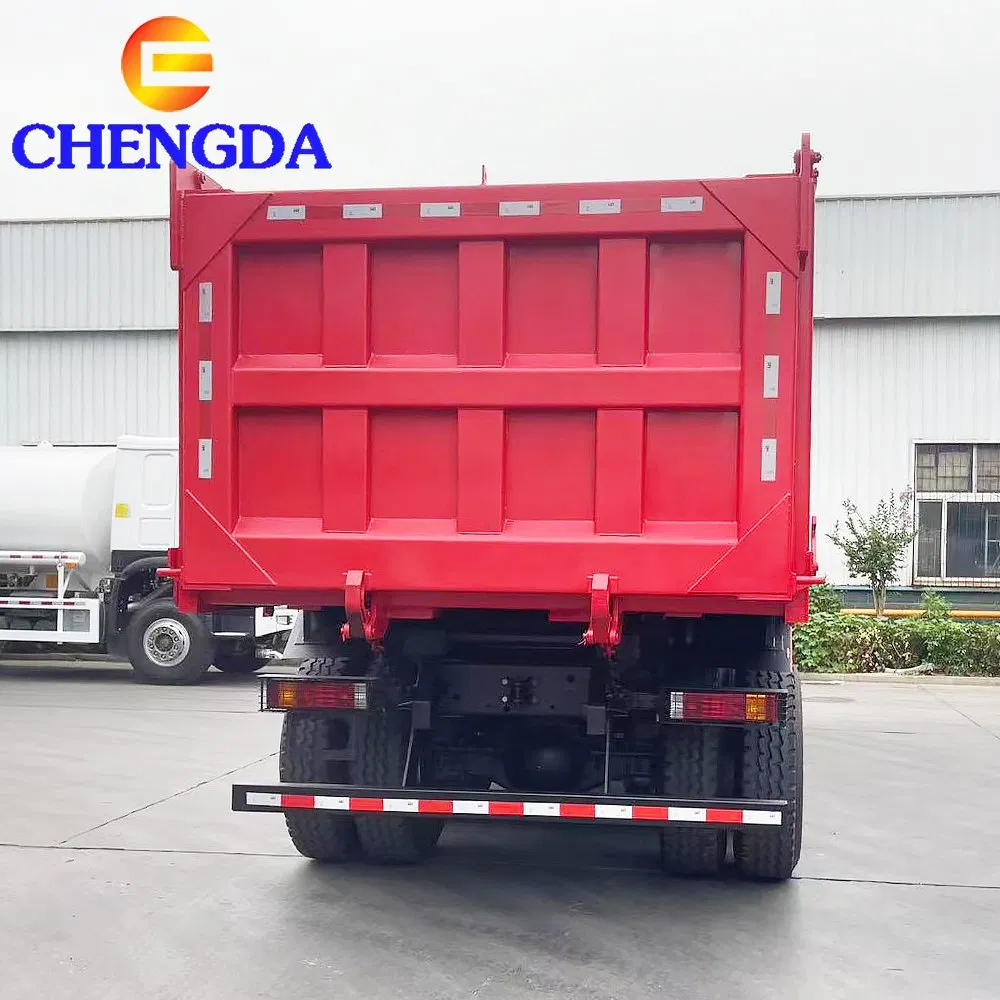

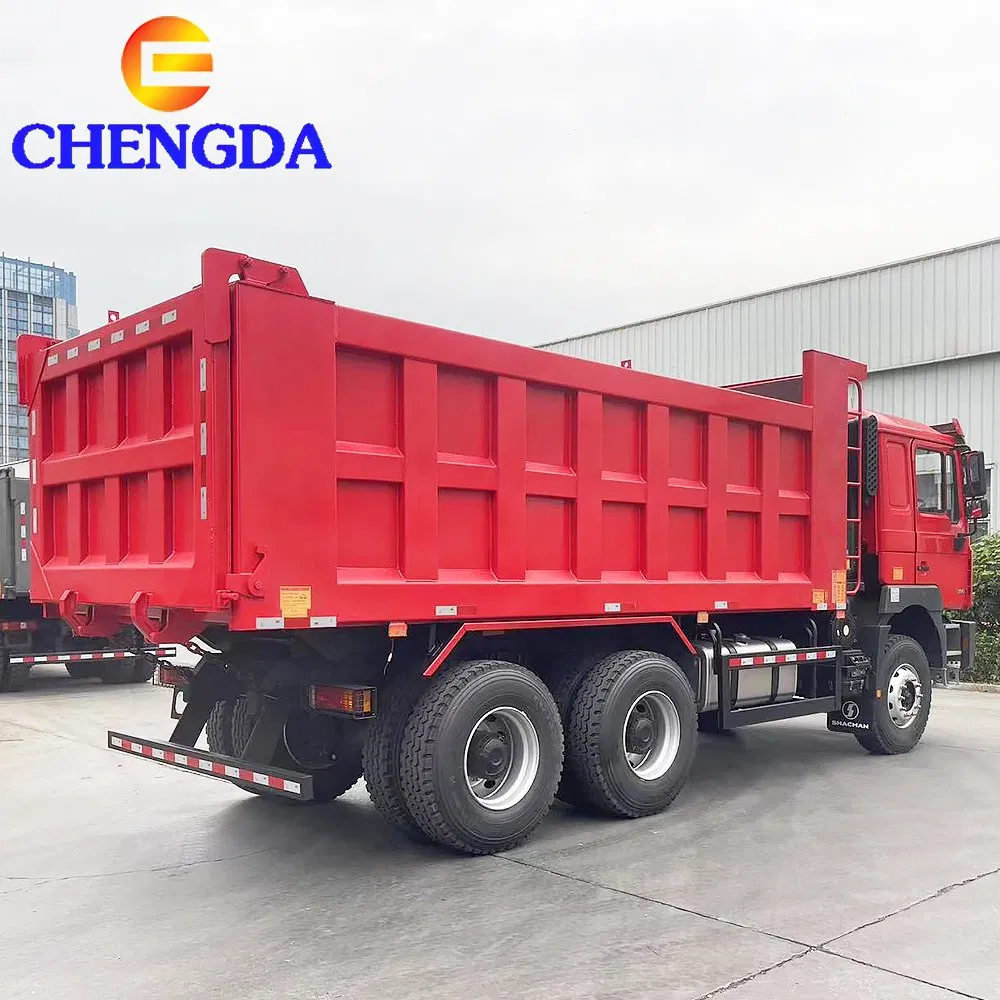

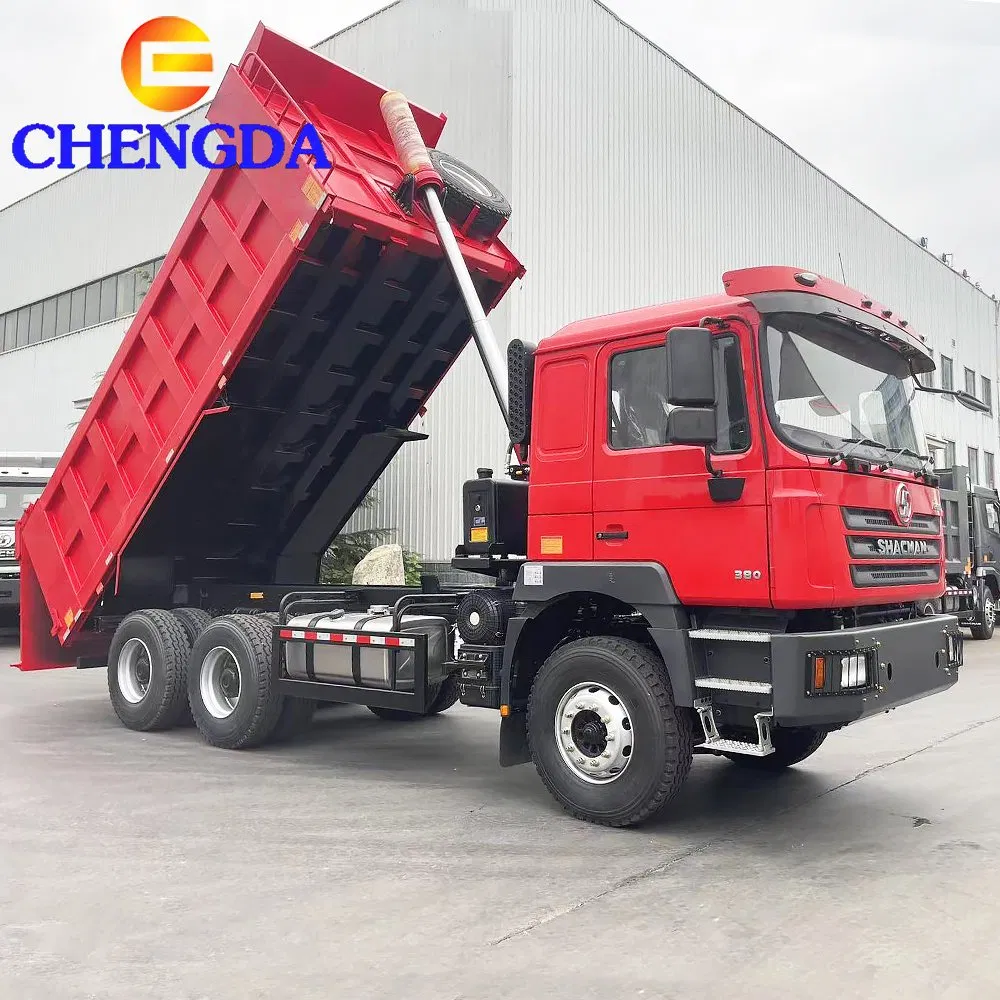

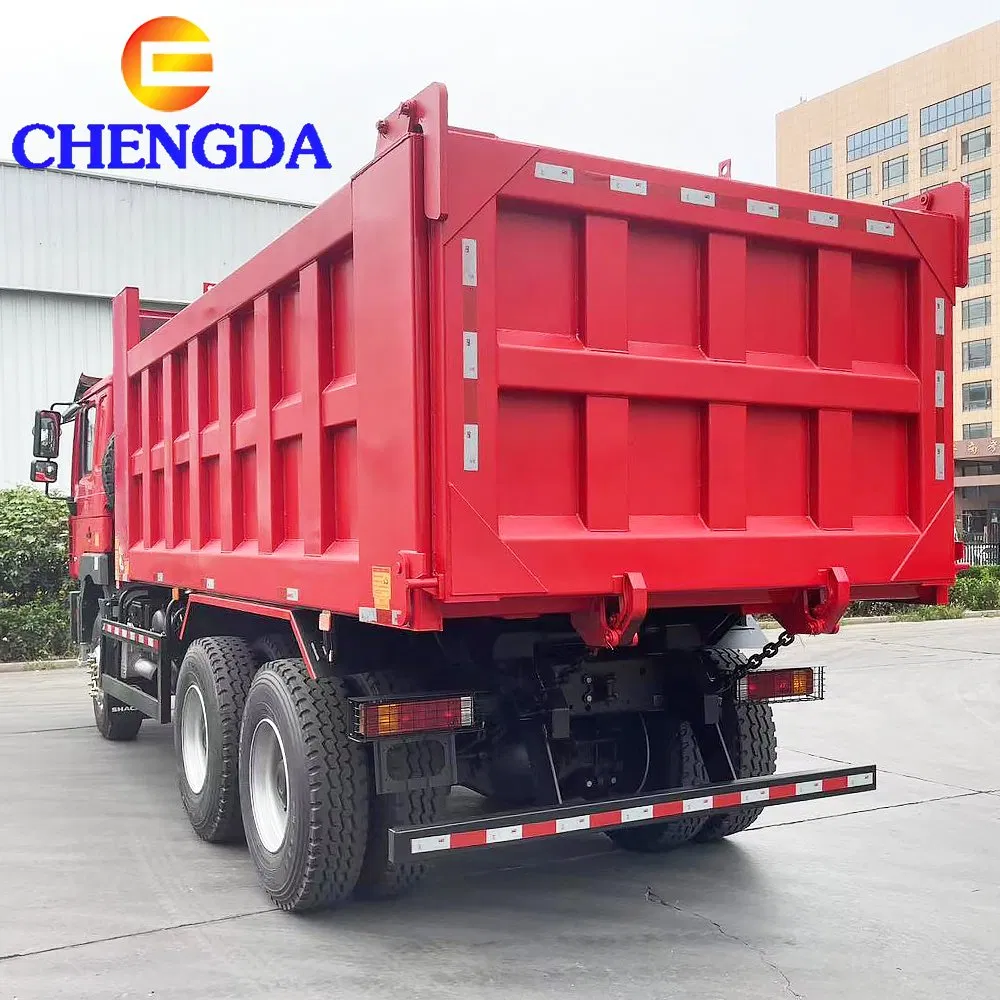

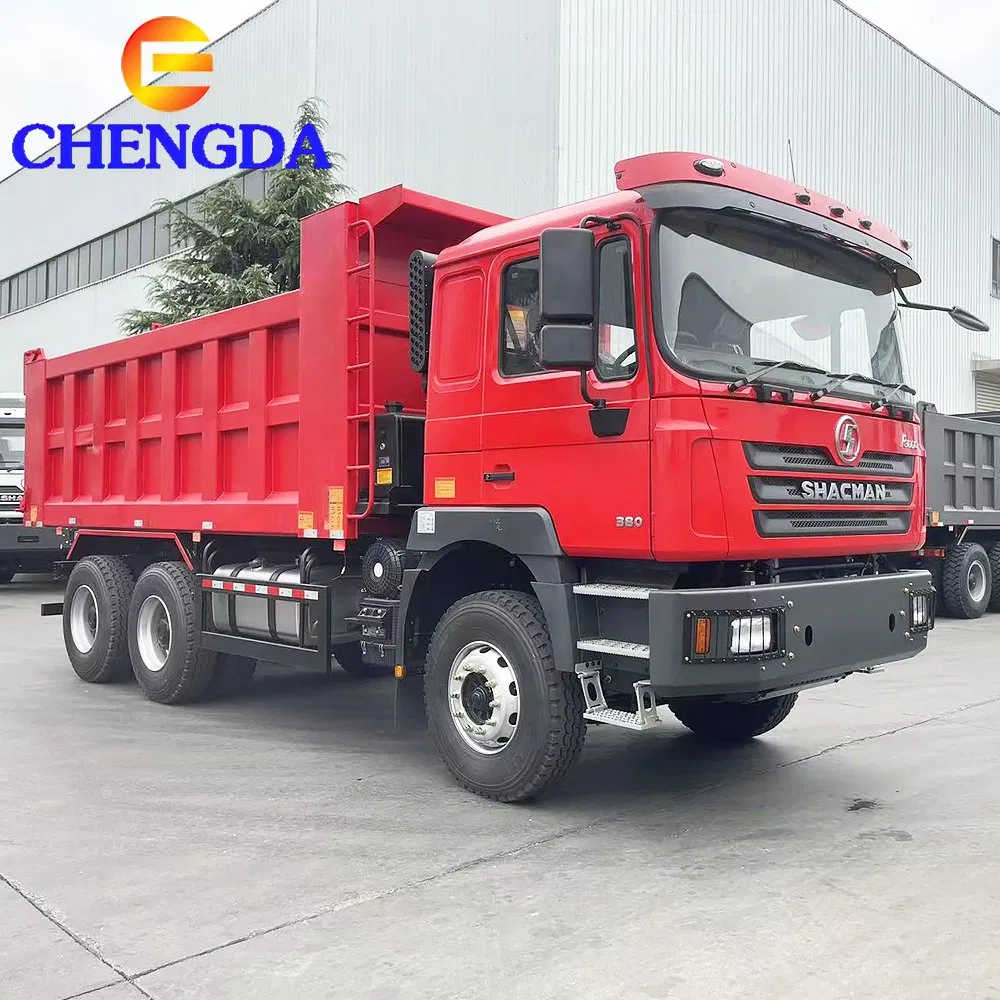

Shacman F3000 6X4 Heavy-Duty Dump Truck for Construction

Basic Specifications

Model:F3000

Drive Wheel:6×4

Horsepower:351-450hp

Transmission:Manual (12jsd180t)

Load Capacity:41-50t

Emission Standard:Euro 3

Fuel Type:Diesel

Box Dimension:5600*2300*1500mm

Product Description

⭐ Key Selling Points

The F3000 6×4 Dump Truck is optimized for mining, construction, and heavy-duty earthmoving tasks.

Extreme Durability: Reinforced high-strength steel frame (850×300mm) with double layer 8+7mm construction.
Heavy-Duty Axles: MAN 16T double reduction rear axles with a 5.262 ratio.
Advanced Suspension: Upgraded multi-leaf springs and 20mm thick U-bolts for superior stability under max loads.
High-Strength Tipper Body: T700 steel construction (Bottom 8mm / Sides 6mm) for abrasion and impact resistance.
Power Performance: Equipped with Weichai WP10 diesel engine delivering high torque at low RPM.

Technical Parameters

Drive System	6X4
Wheelbase (mm)	3775 + 1400
Engine Model	ISME / Weichai WP10
Horsepower	350-450 HP
Gearbox	12JSD180T + QH50 Spline
GVW	≤50 Tons
Upper Body Size	5600 x 2300 x 1500 mm (10mm bottom, 8mm sides)
Front Axle	HD 9.5T
Rear Axle	16T HD Two-stage Cast Bridge 5.92
Tire Specification	12.00R20 Mixed Pattern
Fuel Tank	400L Iron Tank
Cab Features	Long flat roof, hydraulic main seat, auto-temp air conditioning, 165Ah maintenance-free battery.

Manufacturing & Logistics

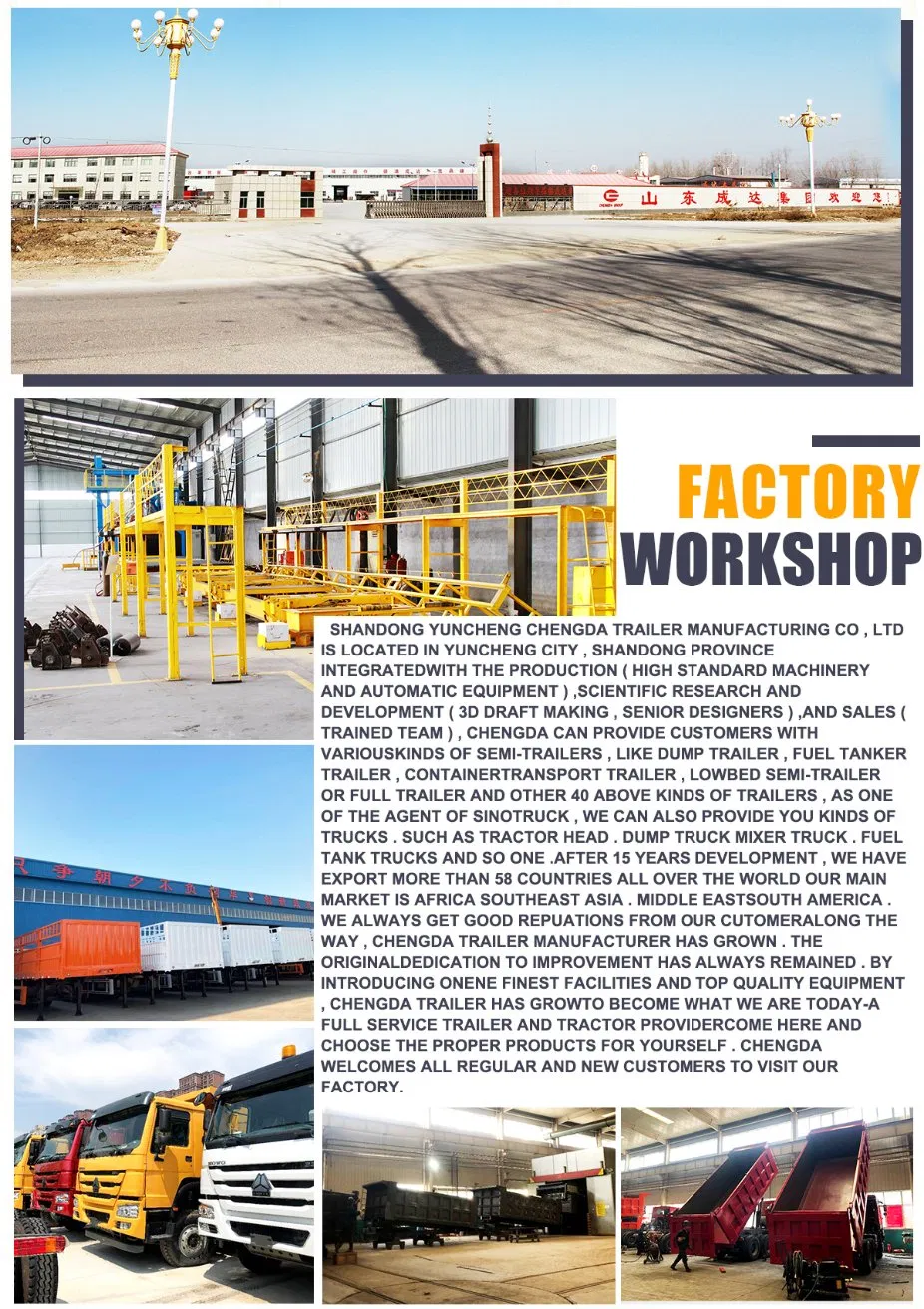

Professional manufacturing expertise spanning over 18 years in the heavy vehicle field. Every production link, from frame welding to cabin assembly, is strictly supervised to ensure premium quality.

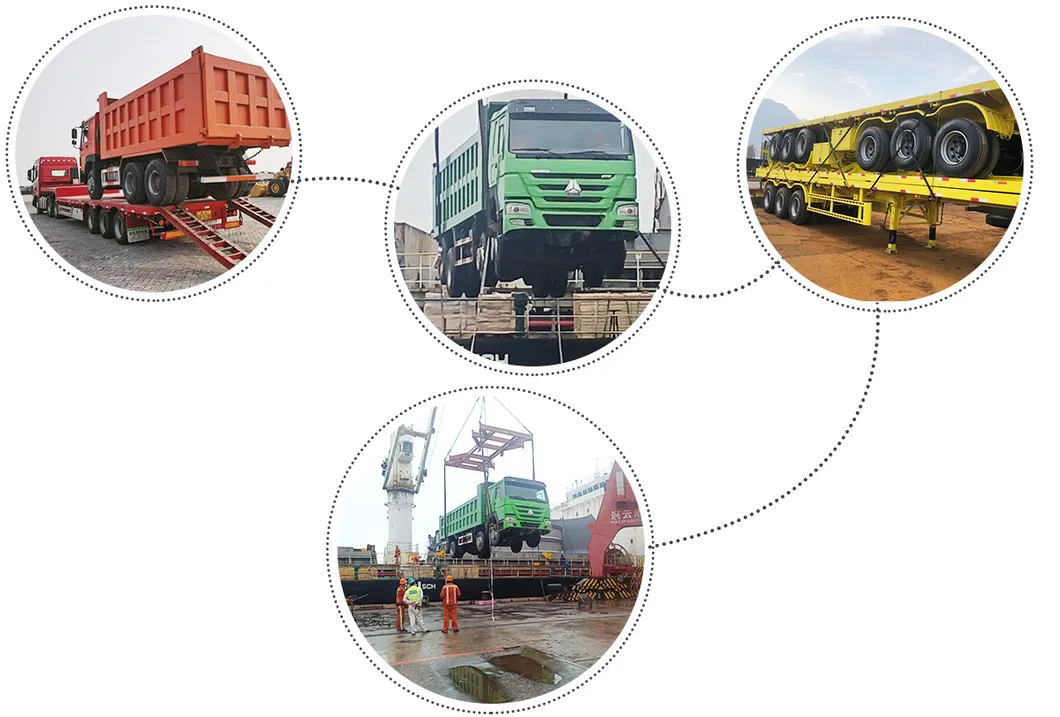

Shipping Methods: RO-RO transportation, land border delivery, and containerized shipping are provided to ensure the equipment reaches the destination safely and efficiently.

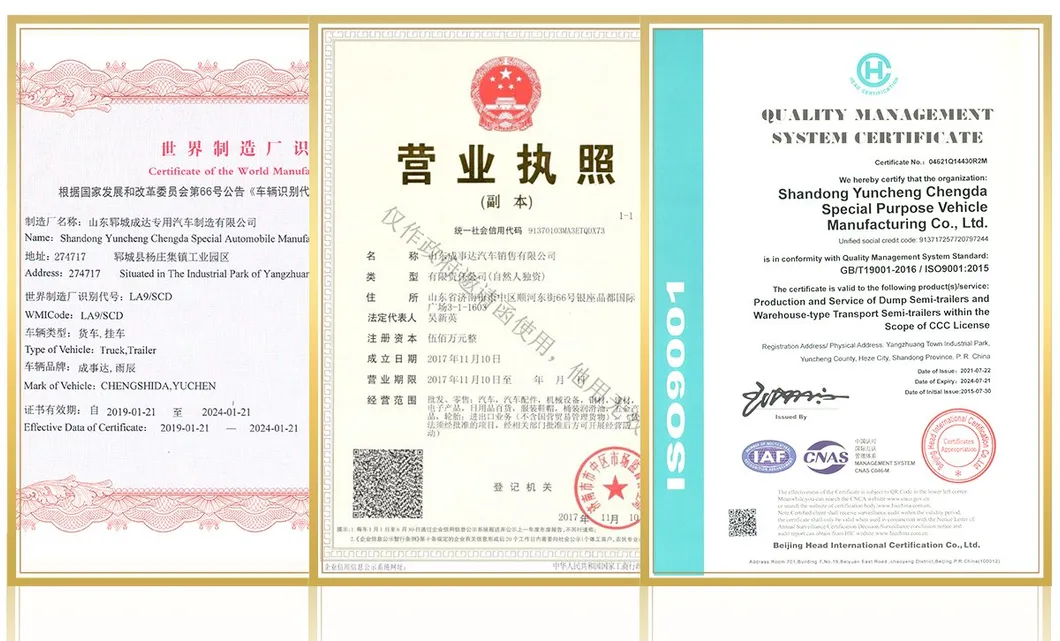

Quality Certifications

Full compliance with international export standards.
Extensive foreign trade experience in the automotive field.
Professional after-sales support system and spare parts availability.

Frequently Asked Questions

1. What is the maximum payload of the F3000 dump truck?

The F3000 6x4 model is designed for heavy-duty applications with a load capacity ranging between 41 to 50 tons, depending on the specific box configuration.

2. Is the cabin comfortable for long shifts?

Yes, the F3000 features a spacious flat-roof cab with a 4-point suspension system, an air-suspension driver's seat, and automatic temperature control air conditioning to reduce driver fatigue.

3. Can this truck handle off-road mining conditions?

Absolutely. It is built with a high-strength double-layer steel frame, 16T double reduction rear axles, and specialized off-road tires (12.00R20), making it ideal for mines and rough construction sites.

4. What engine options are available?

The truck typically comes equipped with Weichai WP10 or Cummins ISME diesel engines, offering a power range of 350 to 450 HP for high torque and climbing capability.

5. Are spare parts easy to find for maintenance?

Yes, the truck utilizes a proven, simple design with high global spare part compatibility. Major components like Weichai engines and FAST transmissions have service centers worldwide.

6. Do you support both Left-Hand Drive and Right-Hand Drive?

Yes, we can provide both Left-Hand Drive (LHD) and Right-Hand Drive (RHD) configurations to suit the legal requirements of your specific market.
