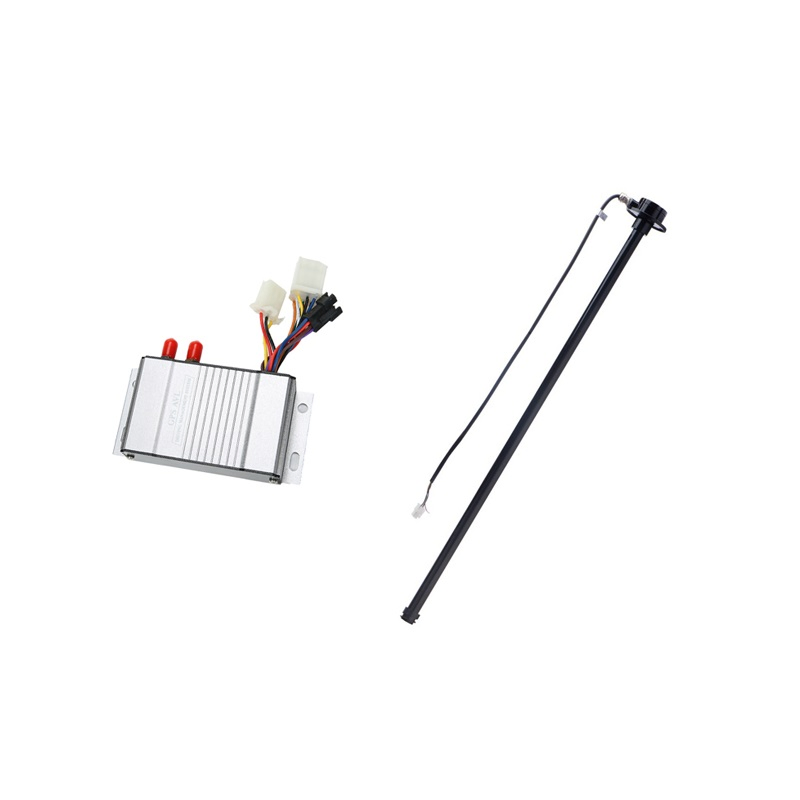

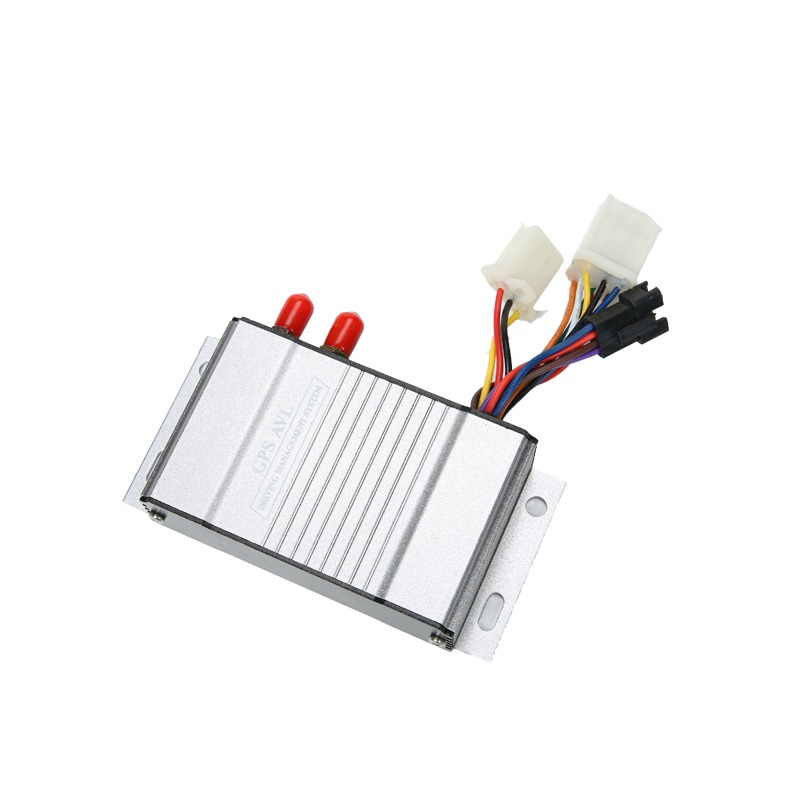

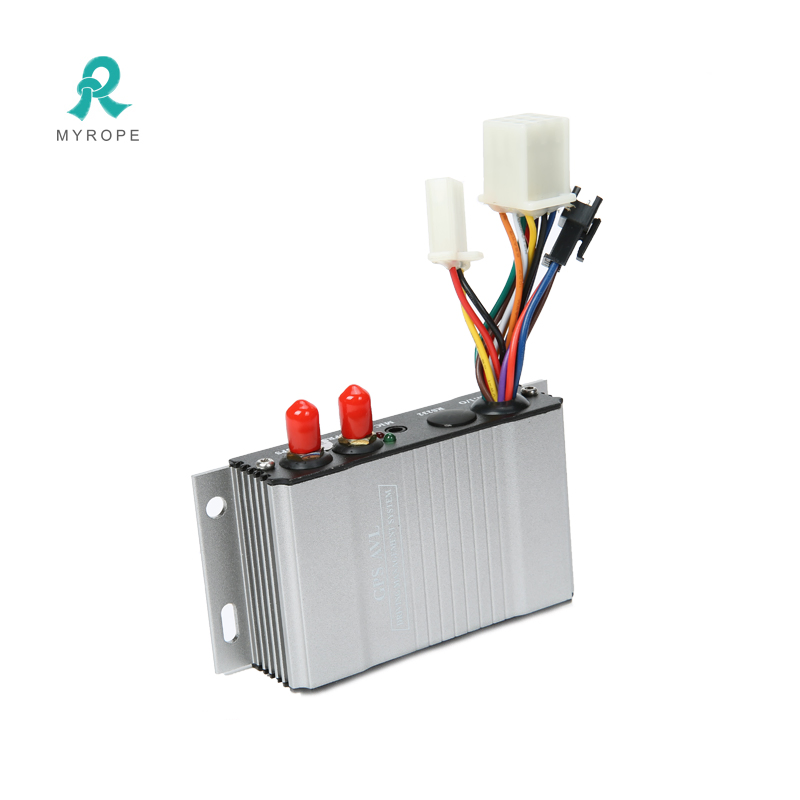

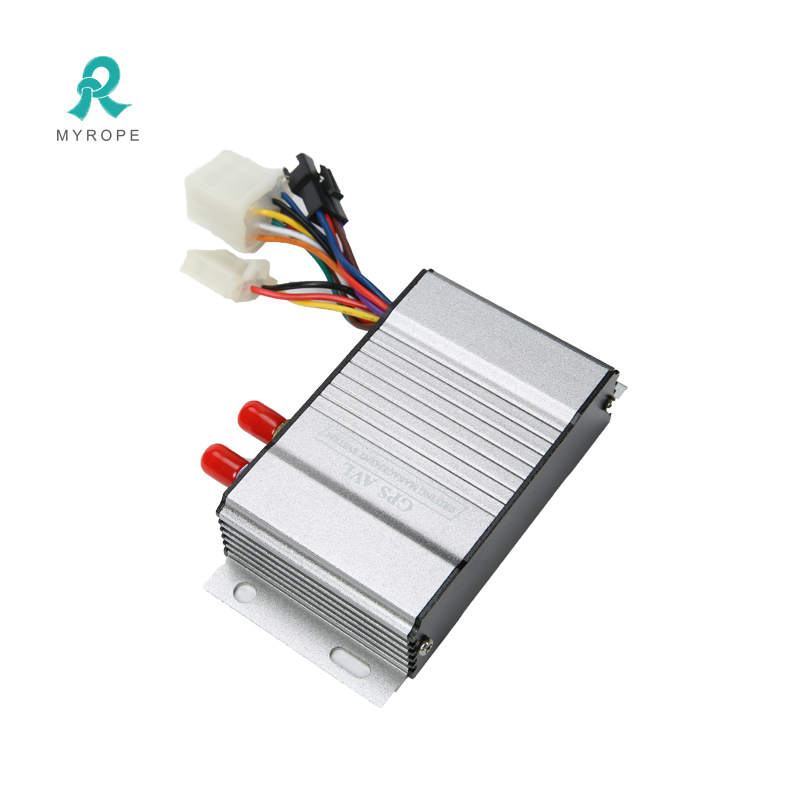

Automotive Shut off Engine Tractor GPS Car Tracker Cut Engine Vehicle Tracking System with Fuel Monitoring for Trucks
Automotive Shut off Engine Tractor GPS Car Tracker Cut Engine Vehicle Tracking System with Fuel Monitoring for Trucks
Automotive Shut off Engine Tractor GPS Car Tracker Cut Engine Vehicle Tracking System with Fuel Monitoring for Trucks
Automotive Shut off Engine Tractor GPS Car Tracker Cut Engine Vehicle Tracking System with Fuel Monitoring for Trucks
Automotive Shut off Engine Tractor GPS Car Tracker Cut Engine Vehicle Tracking System with Fuel Monitoring for Trucks
1 / 5
Automotive Shut off Engine Tractor GPS Car Tracker Cut Engine Vehicle Tracking System with Fuel Monitoring for Trucks
Automotive Shut off Engine Tractor GPS Car Tracker Cut Engine Vehicle Tracking System with Fuel Monitoring for Trucks
Automotive Shut off Engine Tractor GPS Car Tracker Cut Engine Vehicle Tracking System with Fuel Monitoring for Trucks
Automotive Shut off Engine Tractor GPS Car Tracker Cut Engine Vehicle Tracking System with Fuel Monitoring for Trucks
Automotive Shut off Engine Tractor GPS Car Tracker Cut Engine Vehicle Tracking System with Fuel Monitoring for Trucks

Automotive Shut off Engine Tractor GPS Car Tracker Cut Engine Vehicle Tracking System with Fuel Monitoring for Trucks

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
M528S
Certification
RoHS, ISO2000, FCC, CE
3G Module
Quectel UC15
GPS Chipset
U-Blox 7020
3G Frequency
WCDMA 2100MHz
Platform
Web Based Platform and APP
GPS Frequency
L1, 1575.42 MHz
GPS Accuracy
5m
Application
Vehicle Tracking, Fleet Management, Team Security
Dimensions
101mm*50mm*24mm
Production Capacity
100000 PCS/Month

Product Overview

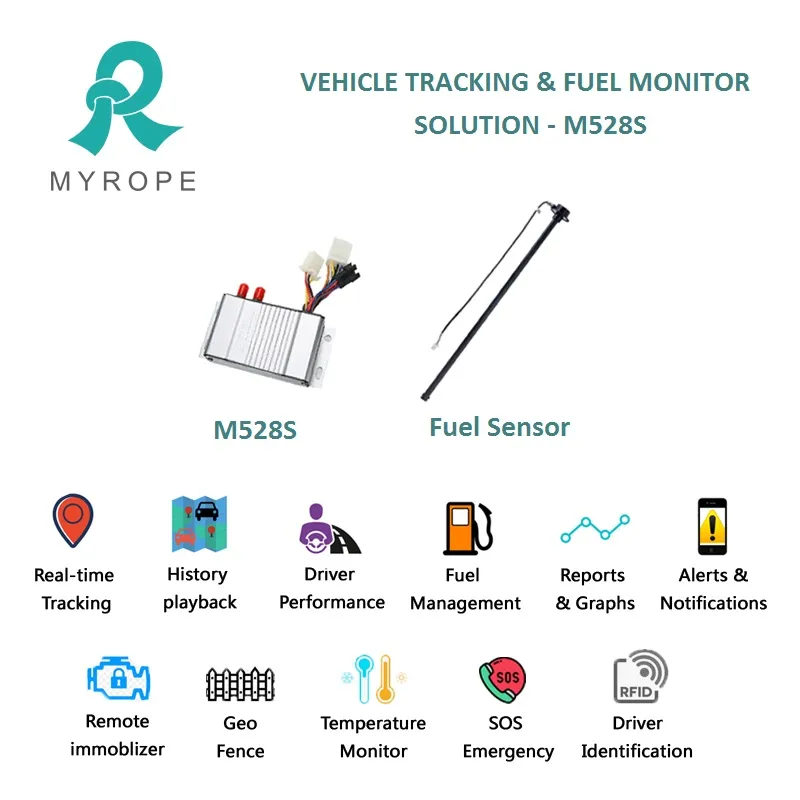

GPS Tracking Device With Fuel Level Sensor For Real Time Fuel Management Vehicle GPS Tracker

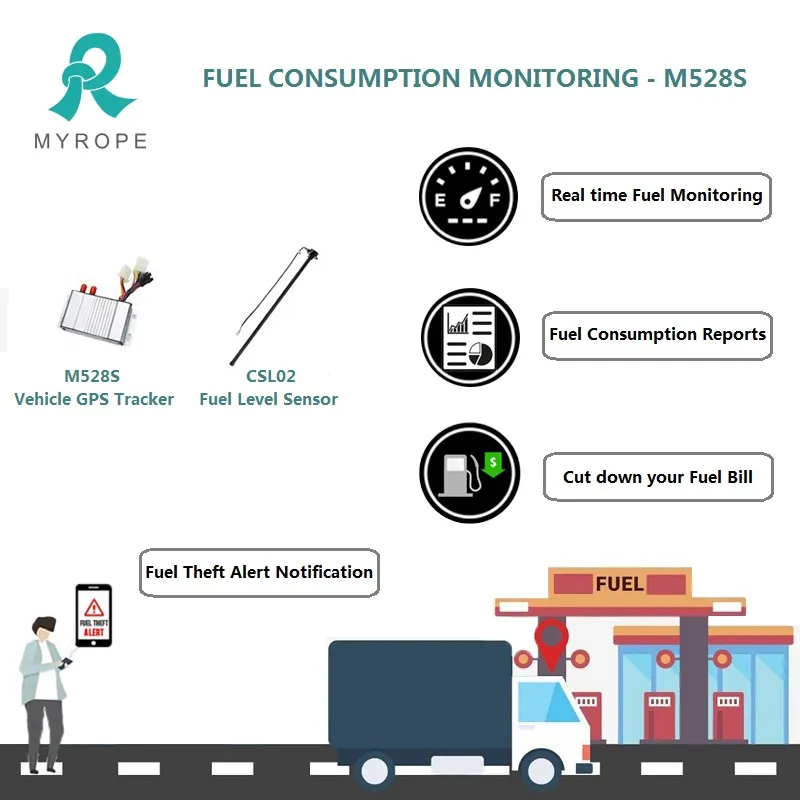

GPS Tracker Main View

Main Functions

  • Metal cover
  • External antenna
  • Track by SMS or GPRS
  • Real time tracking at intervals
  • Remote engine immobilization
  • Data resend from signal dead zone
  • Voice monitoring
  • SOS alarm
  • Low power alarm
  • Overspeed alarm
  • Geo-fence alarm
  • Illegal start alarm
  • Parking alarm
  • Idling alarm
  • Tired driving alarm

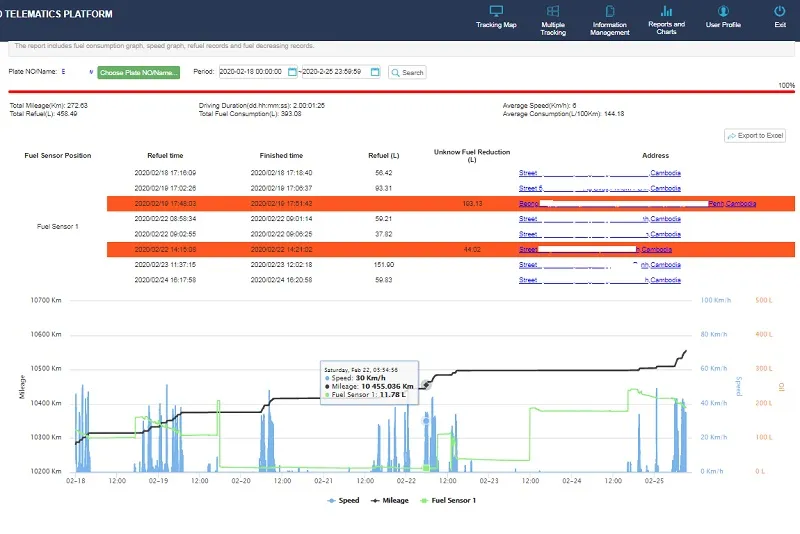

  • Fuel and temperature monitoring
  • RS232 port for camera/RFID/Fuel sensor
  • History playback
  • Mileage statistics
  • Report statistics
  • Remote firmware update

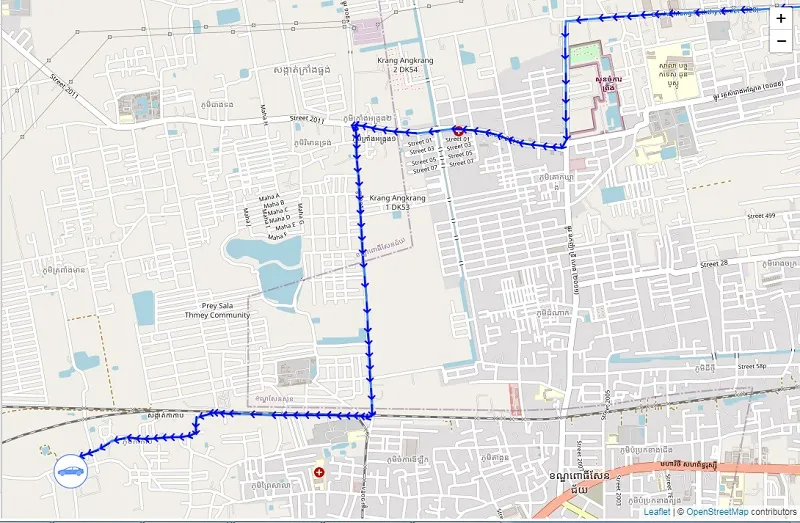

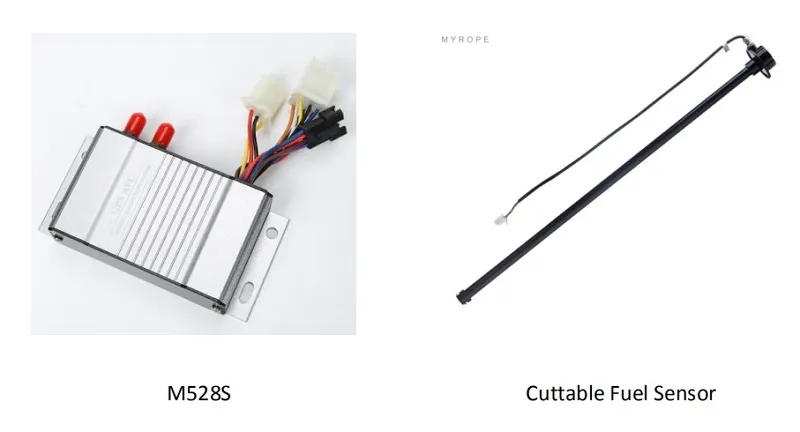

Vehicle Tracking Feature 1 Vehicle Tracking Feature 2 Vehicle Tracking Feature 3

Technical Specifications

Work Voltage8VDC~36VDC
Work Current50mA~160mA
GSM ModuleFour Band: GSM 850/900/1800/1900Mhz
Communication ProtocolUDP/TCP (Customizable)
GPS ModuleUblox Chipset
GPS Sensitivity-159dBm
GPS FrequencyL1, 1575.42 MHz
Position Accuracy10 meter, 2D RMS
Speed Accuracy0.1 meter/second
Work Temperature-20° to 70° C
Terminal Size101 mm × 50mm × 24mm
Internal BatteryMin. 4 hours continuous work

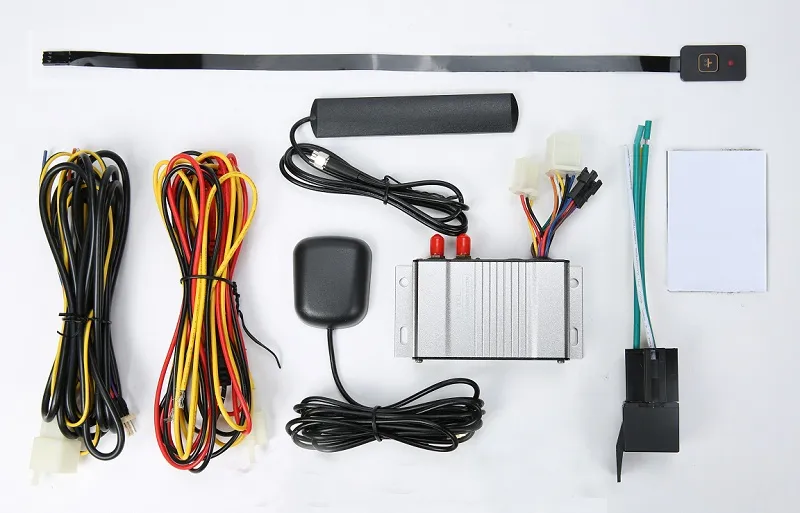

Installation Diagram

Manufacturing & Quality Control

Strict QC Standards: Every unit undergoes rigorous testing and inspection one by one before delivery to ensure 100% quality assurance for all clients.

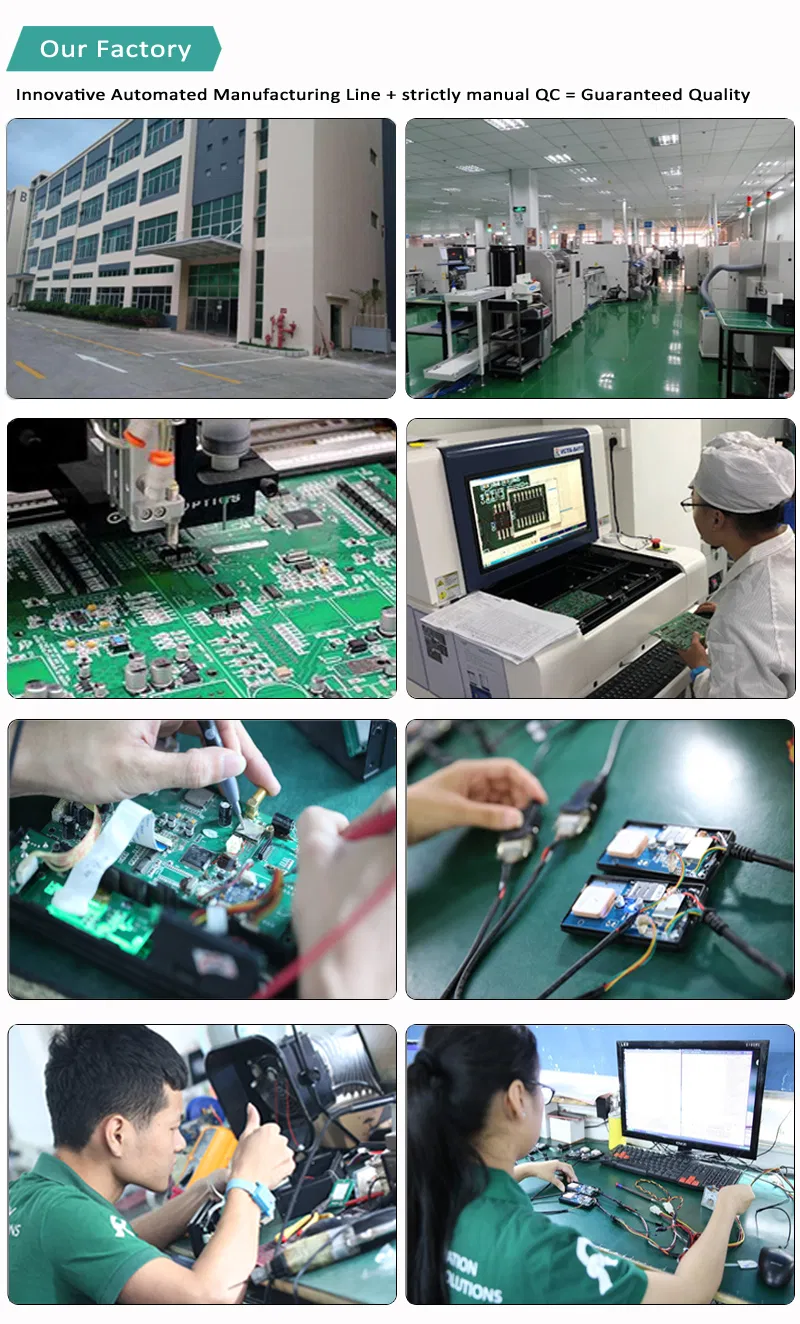

Production Facility 1 Production Facility 2 Testing Equipment
Quality Inspection 1 Quality Inspection 2 Client Feedback

Web Platform & Mobile APP

Cloud Cluster Server Infrastructure: Our platform is hosted on a high-availability cloud cluster for maximum stability.

  • Unlimited device hosting capacity.
  • Redundant backup servers to ensure zero downtime.
  • High-speed response and real-time data processing.
  • Support for customized reports and specific management functions.

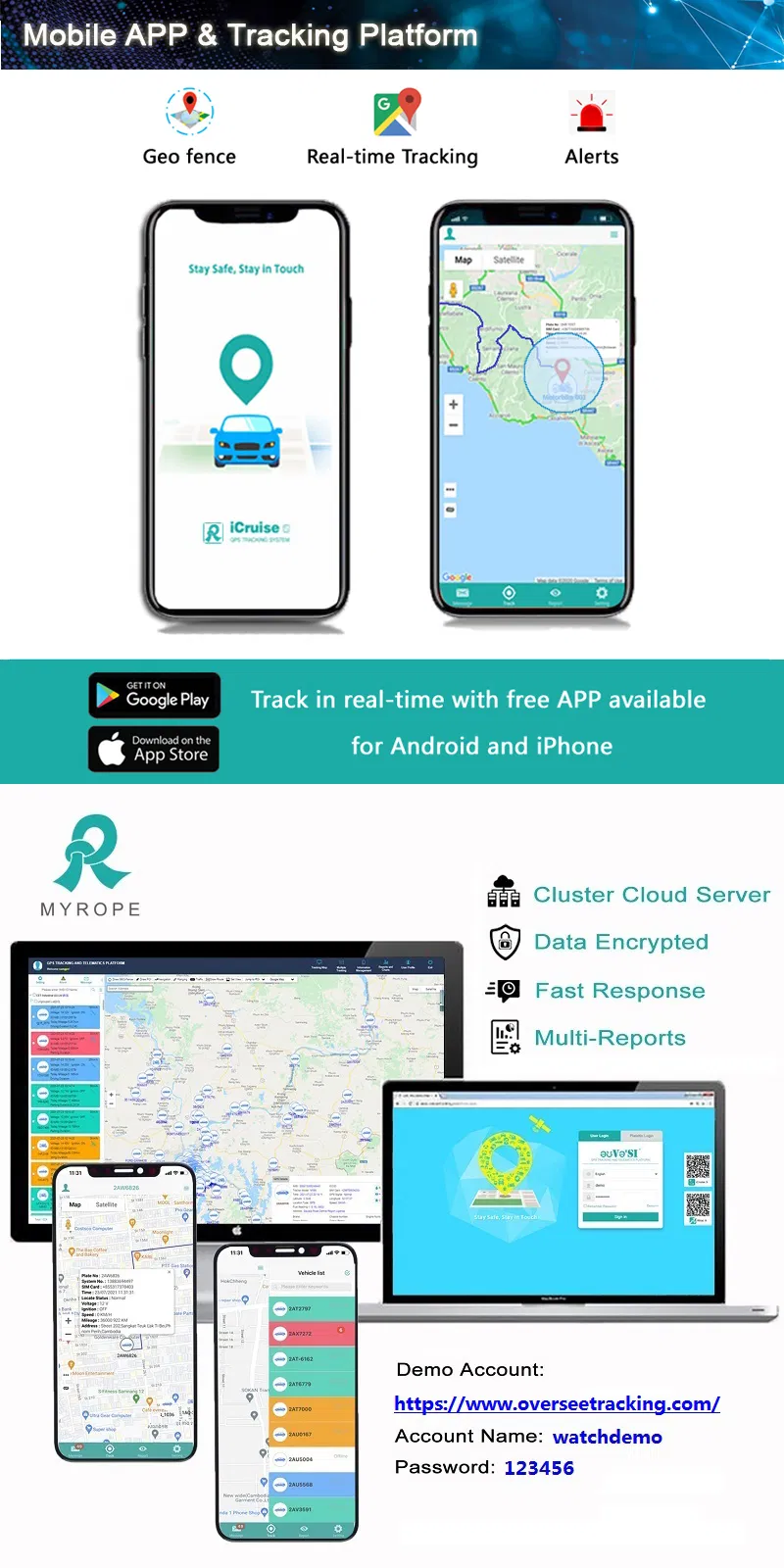

Tracking Interface

Frequently Asked Questions

1. How does the remote engine immobilization work?
The device allows you to cut off the vehicle's engine remotely via SMS or the tracking platform, providing an essential security layer against theft.
2. Can the device monitor fuel levels in real-time?
Yes, the device features an RS232 port that supports fuel level sensors, enabling detailed fuel consumption monitoring and management.
3. What happens if the vehicle enters an area with no signal?
The M528S includes a data buffer function that stores tracking information in dead zones and automatically resends it once signal is restored.
4. What kind of alerts can this GPS tracker provide?
It supports various alarms including SOS, low power, overspeed, geo-fence, illegal start, parking, idling, and tired driving alerts.
5. Does the device support mobile applications?
Yes, tracking is available through both a professional web-based platform and a dedicated mobile APP for real-time monitoring on the go.
6. How accurate is the GPS positioning?
The device utilizes high-performance U-Blox chipsets, offering a positioning accuracy within 5 to 10 meters.
