■ Basic Information
| Model NO. |
front end |
| Work Temperature |
Normal Temperature |
| Acting Way |
Single Acting |
| Working Method |
Straight Trip |
| Adjusted Form |
Switching Type |
| Structure |
Multistage Hydraulic Cylinder |
| Material |
27simn Steel |
| Color |
Red, Green, Blue, Black |
| Stage |
3-4-5-6 |
| Rated Pressure |
22 MPa |
| Cylinder Diameter |
129-240 mm |
| Transport Package |
on Pallet |
| HS Code |
8412210000 |
| Production Capacity |
36000 PCS/Year |
■ Product Description
The brand is a famous provider of front-end cylinders, offering an extensive catalogue from 5 to 100 tons with bespoke solutions. Designed for rear-end tippers and tippers trailers, these front-end telescopic cylinders are known for their durability, reliability in all conditions and value for money.
We believe in delivering a solution that can rapidly and successfully meet your requirements in demanding industries such as transportation, construction and mining. With high payload and longer service intervals for increased operating time, these front-end cylinders are also environmentally friendly solutions with lower oil & fuel consumption.

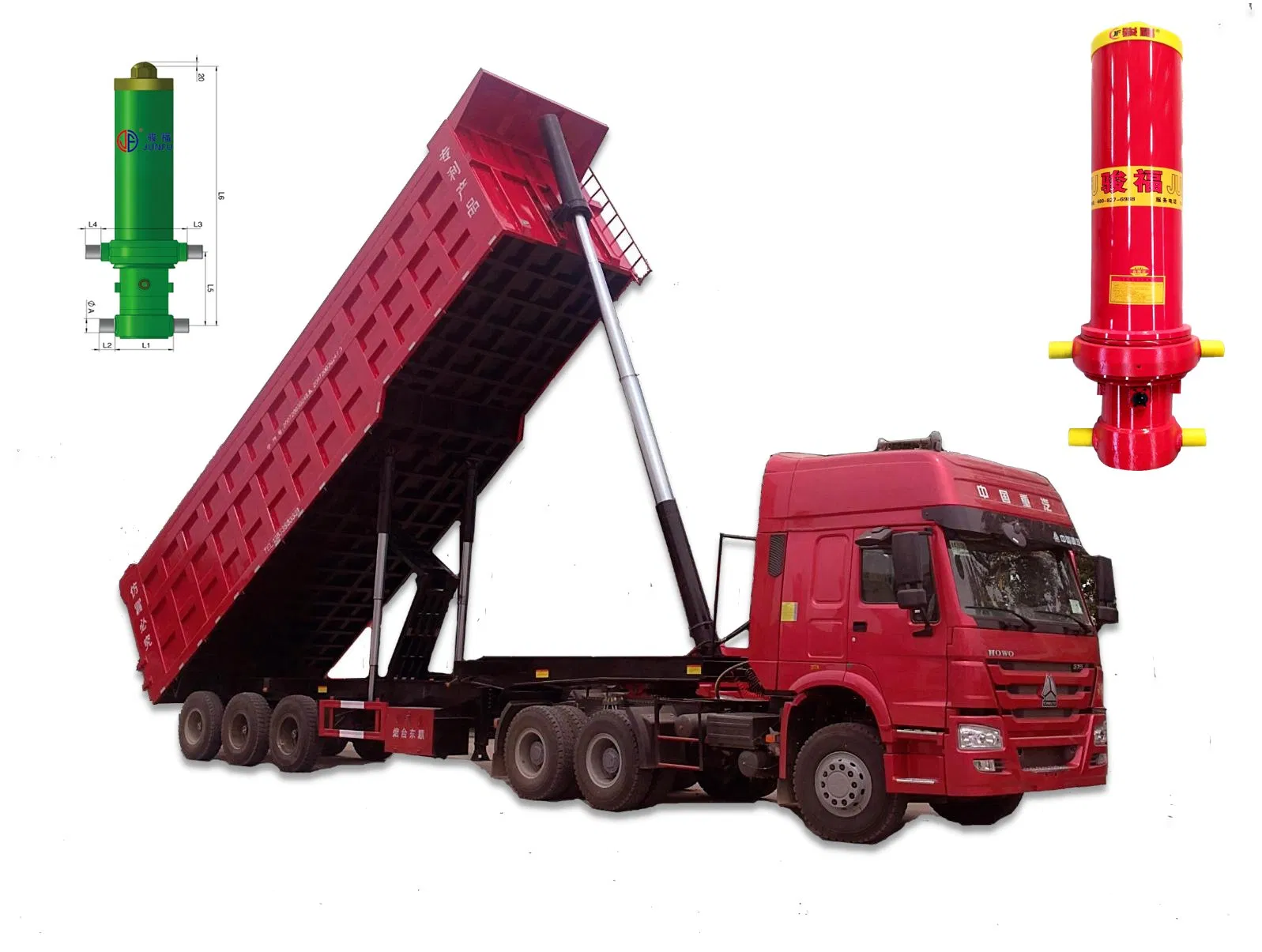

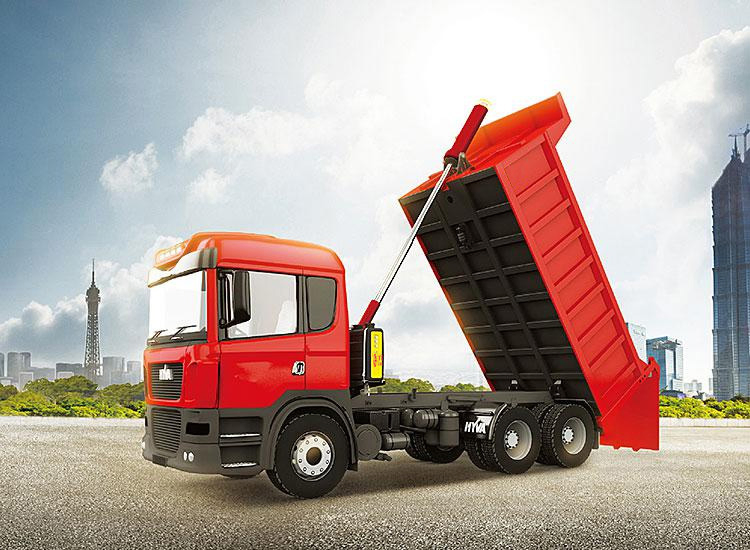

FC telescopic front-end cylinders are primarily designed for straight headboard dump trucks with a capacity range of over 100 tons tipping weight. Our trunnion type FC cylinder is lightweight, strong, maintenance free and offers the most added stability to the tipper. These tipping cylinders have earned a reputation for their reliability and value for money over many years.

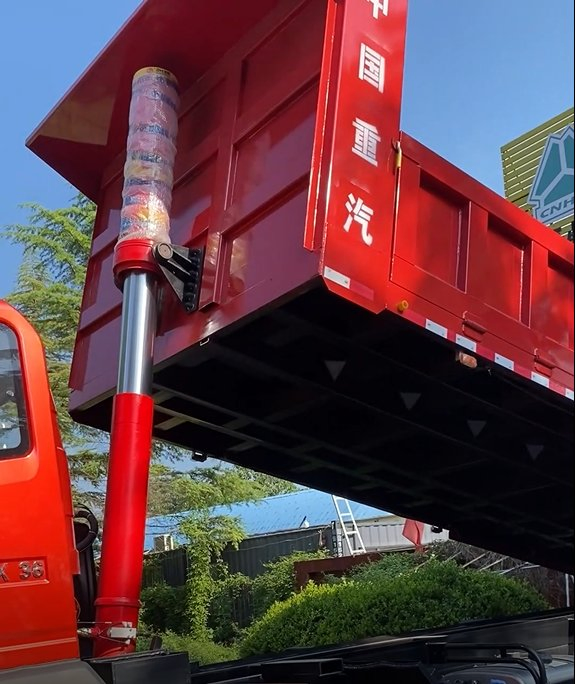

Designed for Dump Truck applications, the FC series cylinder with 3-6 stages is capable of lifting more weight, which in return allows trucks to be equipped with smaller cylinders reducing space and saving weight. This Alpha series cylinder is mostly used in combination with a Straight Headboard Type and Trunnion Type Body Connection.

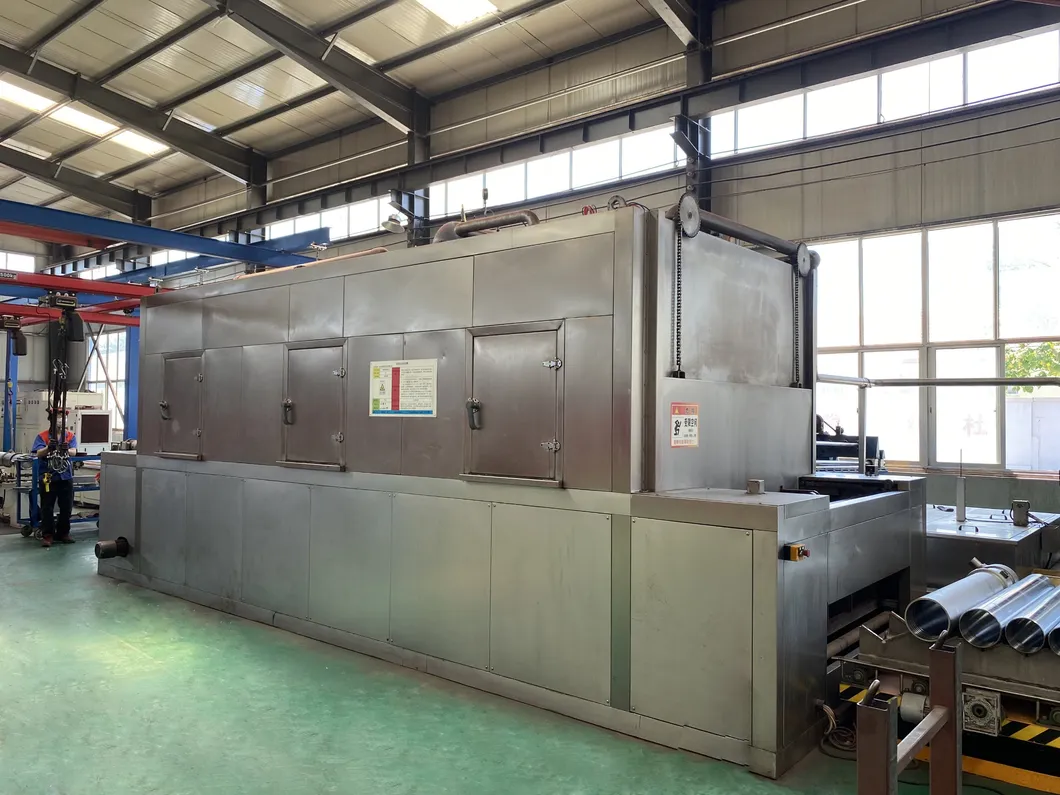

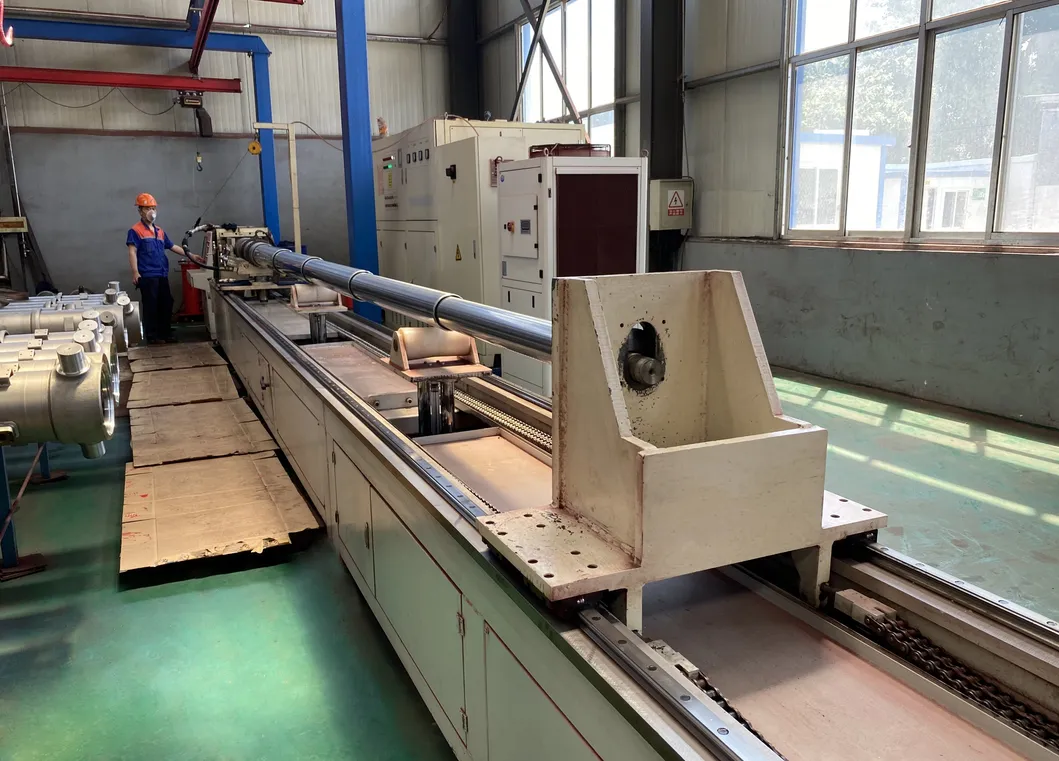

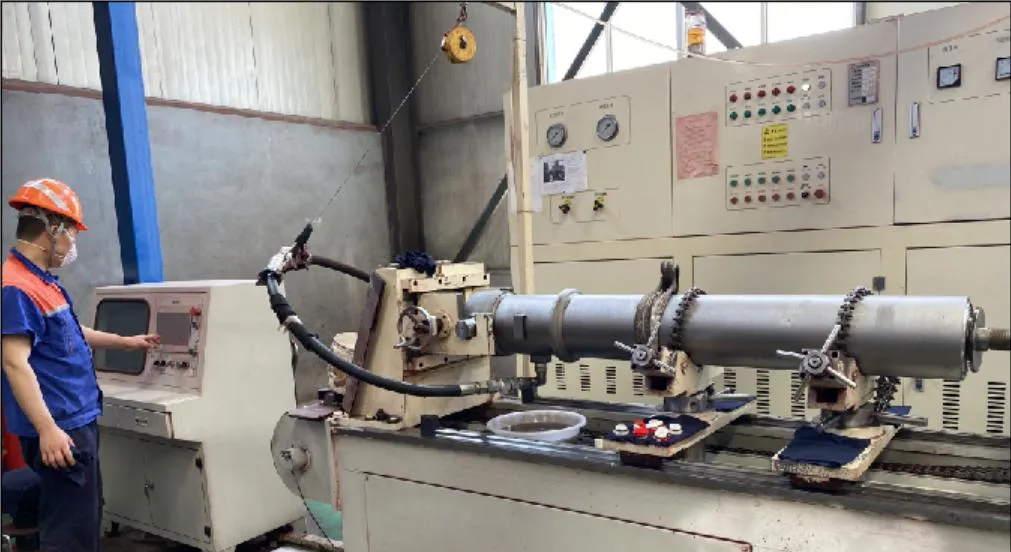

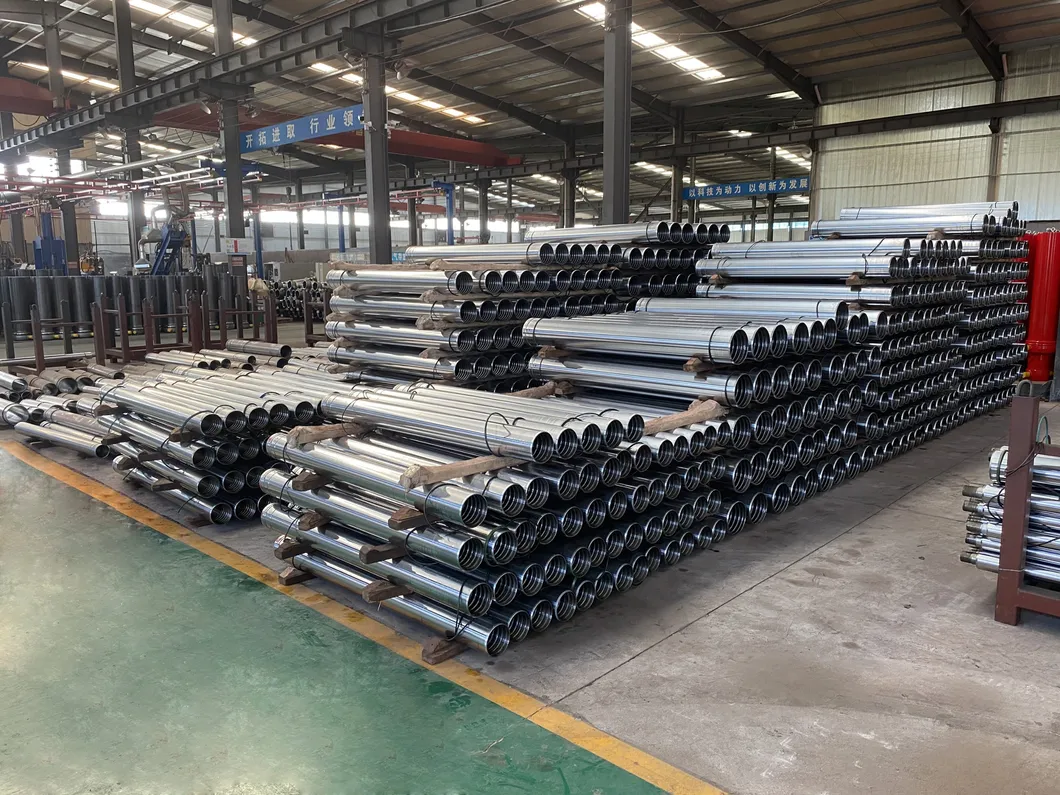

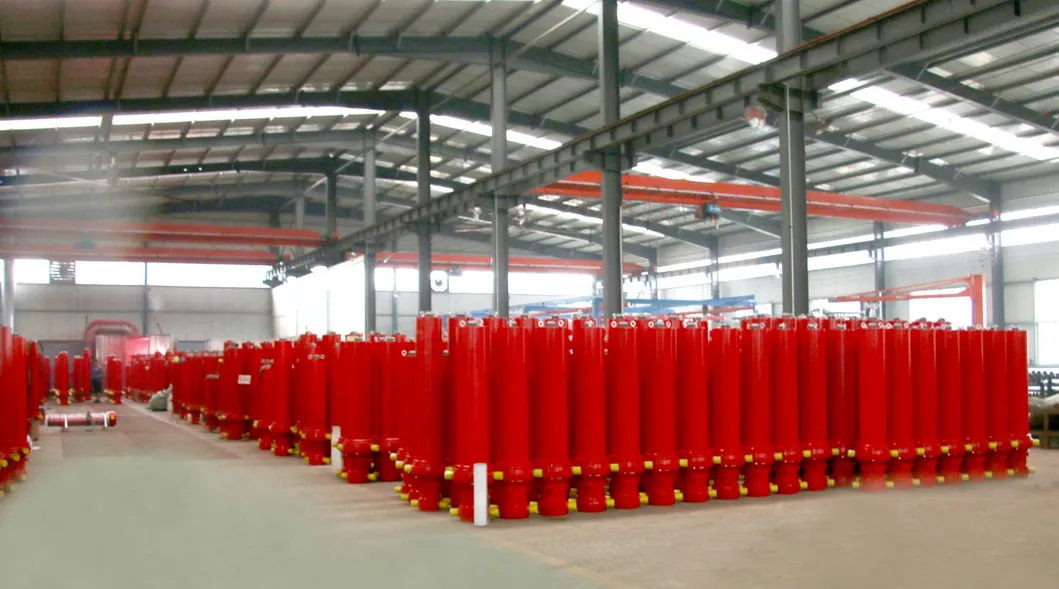

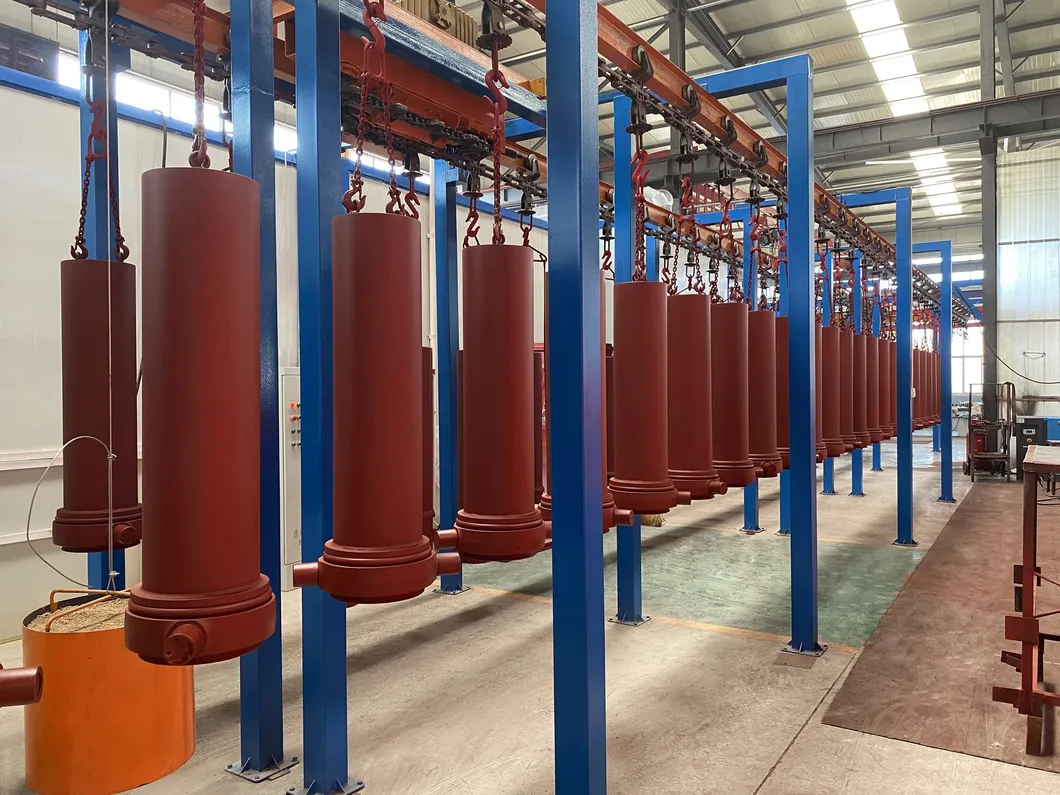

■ Workshop & Advanced Equipment
■ Certificates
Authorized with ISO9001, IATF 16949:2016, and CE certifications.
■ Frequently Asked Questions
Q1: How do your cylinders compare with HYVA cylinders?
Our cylinders can replace HYVA cylinders effectively, maintaining the same technical details and mounting sizes.
Q2: What are the main advantages of your cylinders?
The cylinders are manufactured using advanced equipment under strict quality control. We use high-quality quenched and tempered steel from world-famous suppliers, ensuring premium quality at a competitive price.
Q3: How long has the factory been established?
Our factory was established in 2002 and has been a professional manufacturer of hydraulic cylinders for over 20 years.
Q4: What is the typical delivery time?
The approximate delivery time is 15 days.
Q5: What is the quality guarantee period?
We provide a one-year quality guarantee for our cylinders.
Q6: Which quality systems do you follow?
We have passed the IATF 16949:2016 quality control system, ISO9001, and CE certifications.
