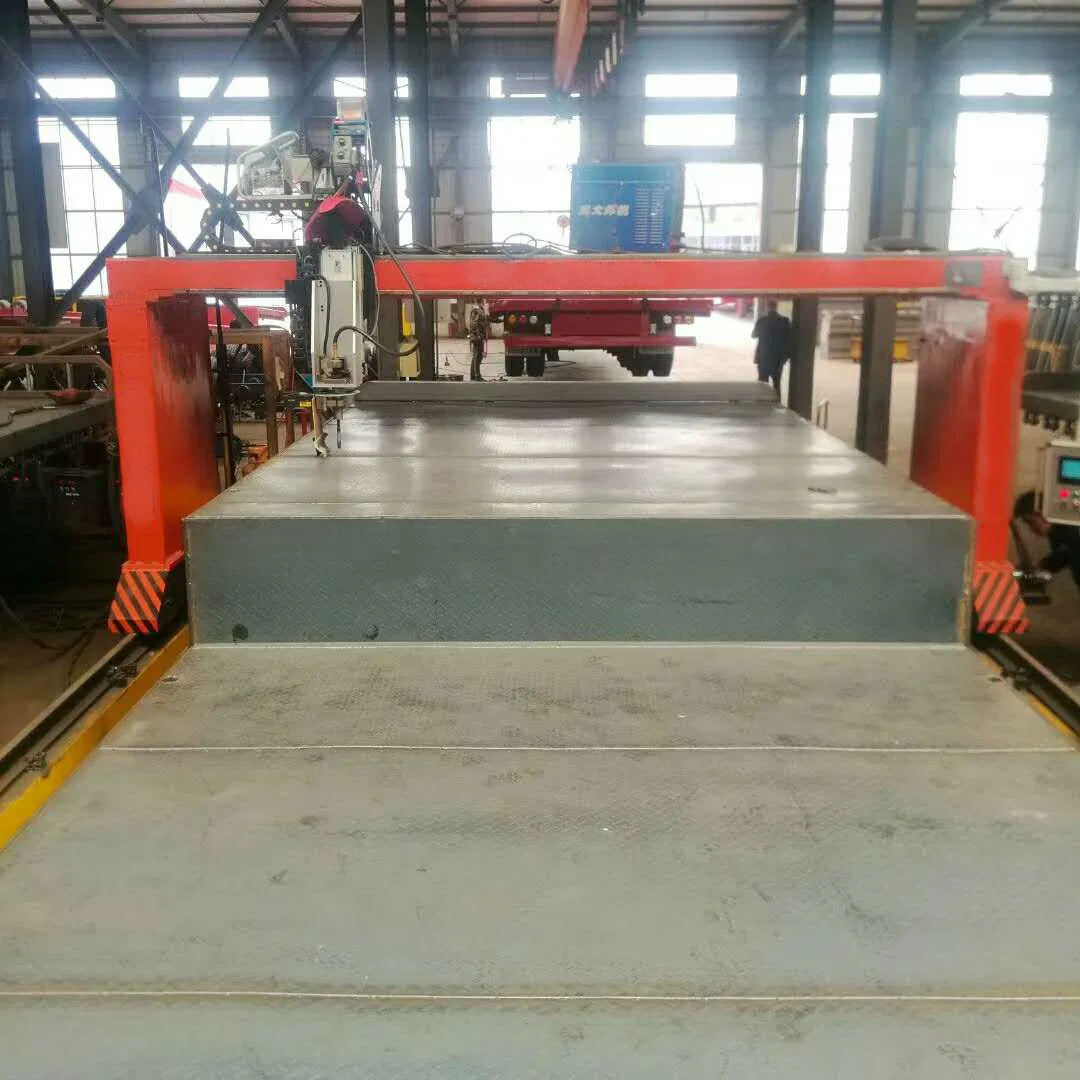

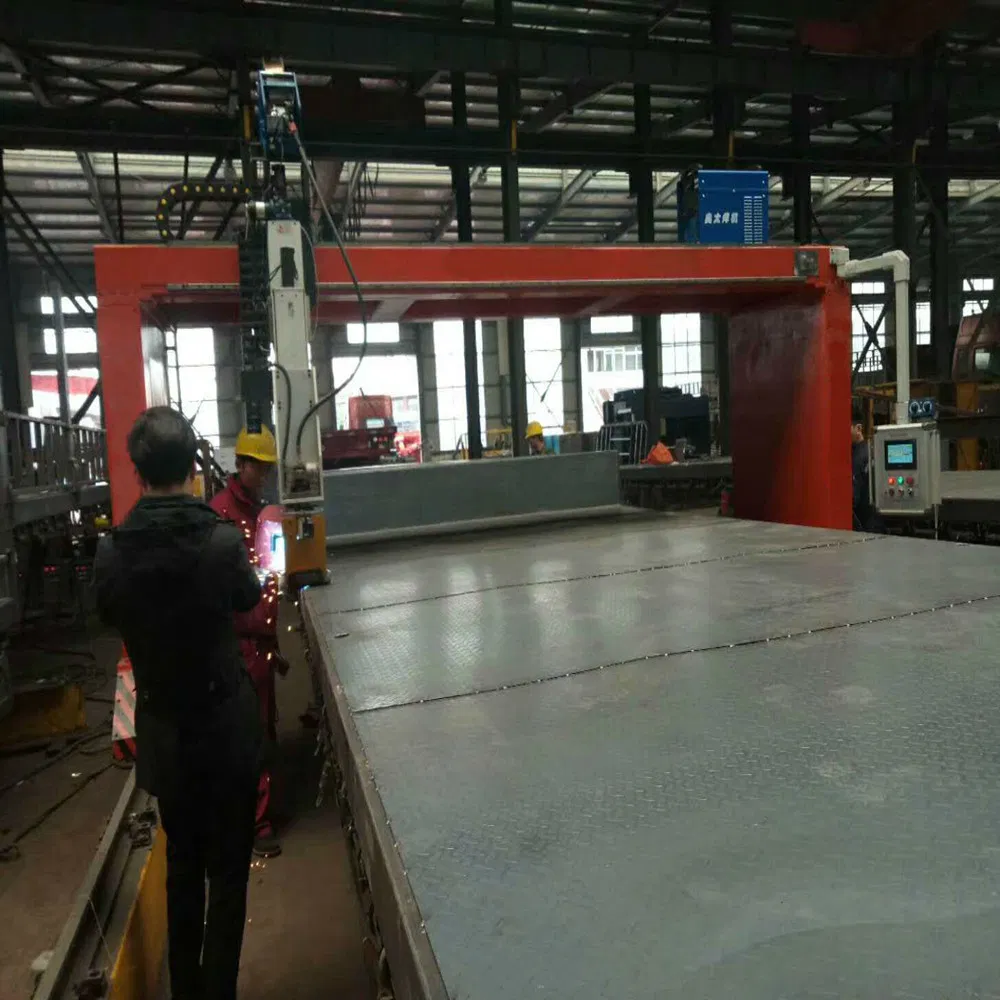

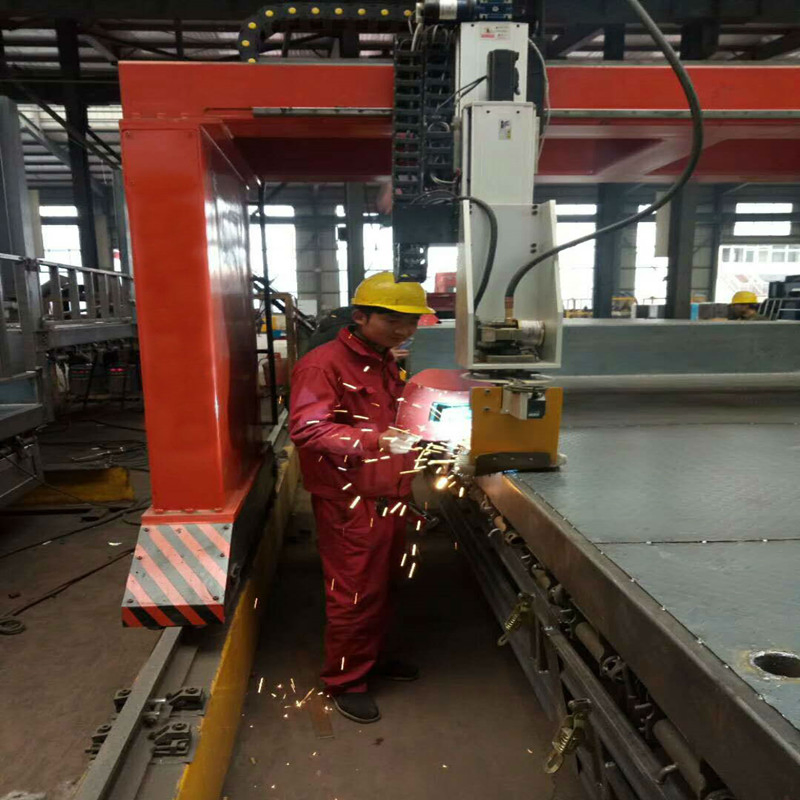

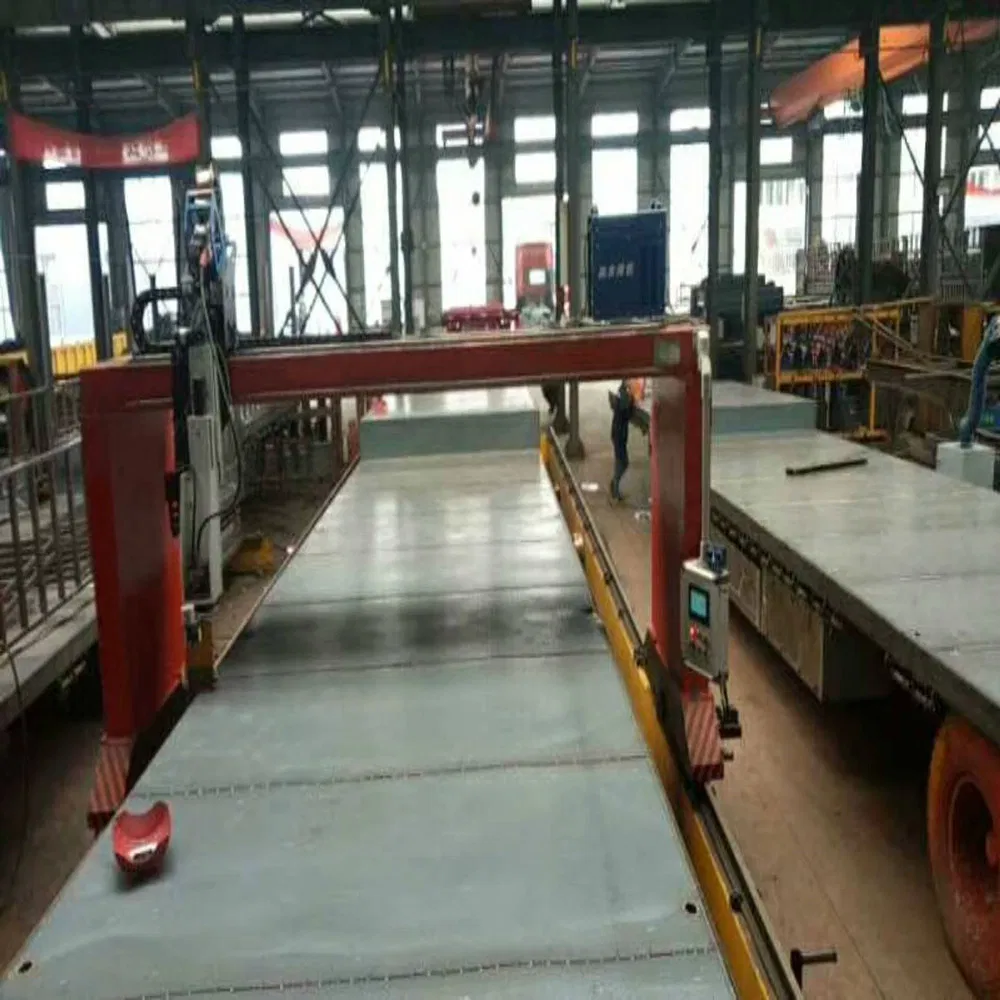

Low Price Electric Automatic Trailer Arc MIG Welding System for Truck Factory
Low Price Electric Automatic Trailer Arc MIG Welding System for Truck Factory
Low Price Electric Automatic Trailer Arc MIG Welding System for Truck Factory
Low Price Electric Automatic Trailer Arc MIG Welding System for Truck Factory
Low Price Electric Automatic Trailer Arc MIG Welding System for Truck Factory
1 / 5
Low Price Electric Automatic Trailer Arc MIG Welding System for Truck Factory
Low Price Electric Automatic Trailer Arc MIG Welding System for Truck Factory
Low Price Electric Automatic Trailer Arc MIG Welding System for Truck Factory
Low Price Electric Automatic Trailer Arc MIG Welding System for Truck Factory
Low Price Electric Automatic Trailer Arc MIG Welding System for Truck Factory

Low Price Electric Automatic Trailer Arc MIG Welding System for Truck Factory

Customization: Available
Type: Semi Automatic
Control Mode: CNC
Send Inquiry

Product Description

📊
Basic Information
Model NO.
QTTW-2500
Voltage
380V or Customized
Weight (Kg)
2600
Power Supply
AC 380V 3 Phase
Warranty
1 Year
Function
Trailer Platform Welding
Welding Mode
MIG/TIG
Welding Speed
1200-1500mm/Min
Machine Type
Welding Robot
Capacity
100kVA*2
Material
Welding Wire
Production
10 Sets/Month
⚙️
Product Description

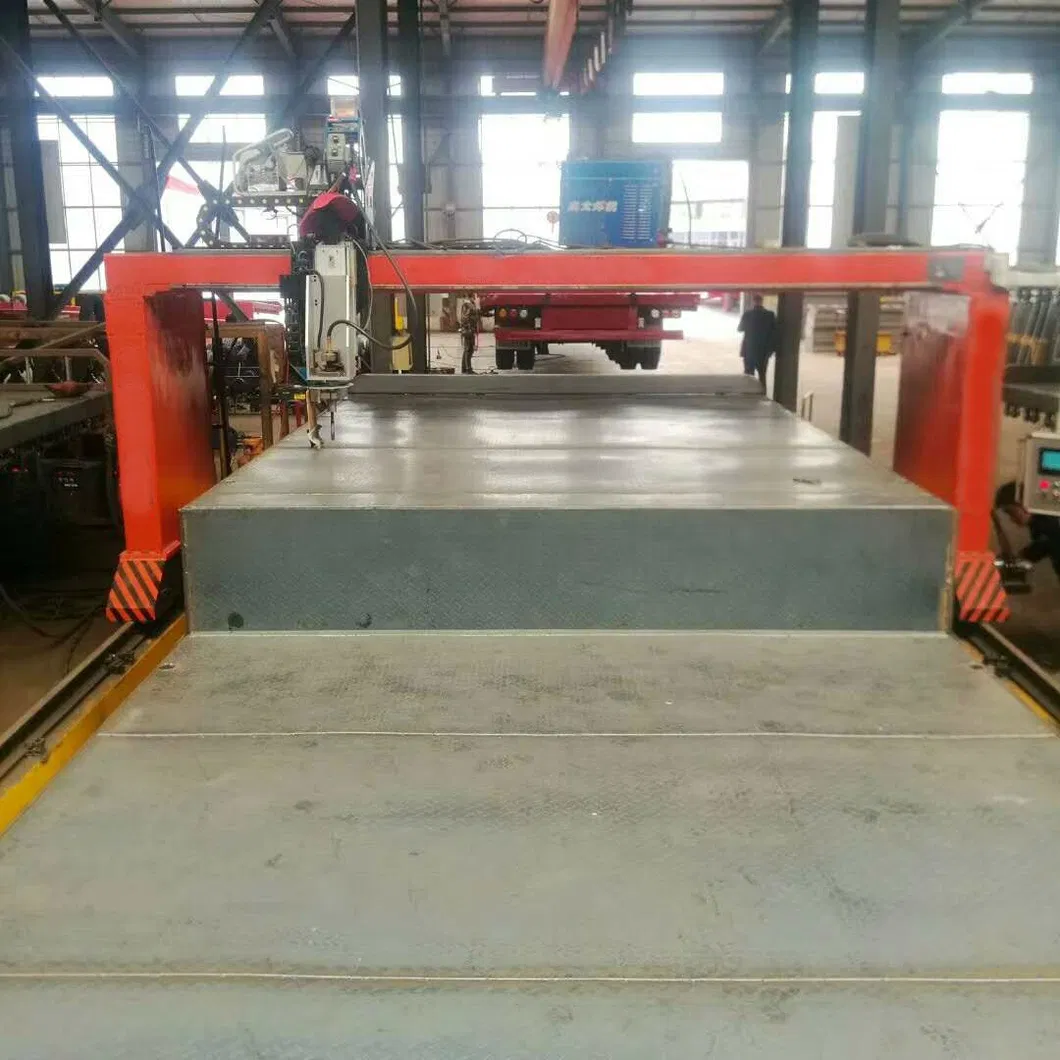

Trailer Arc MIG Welding System

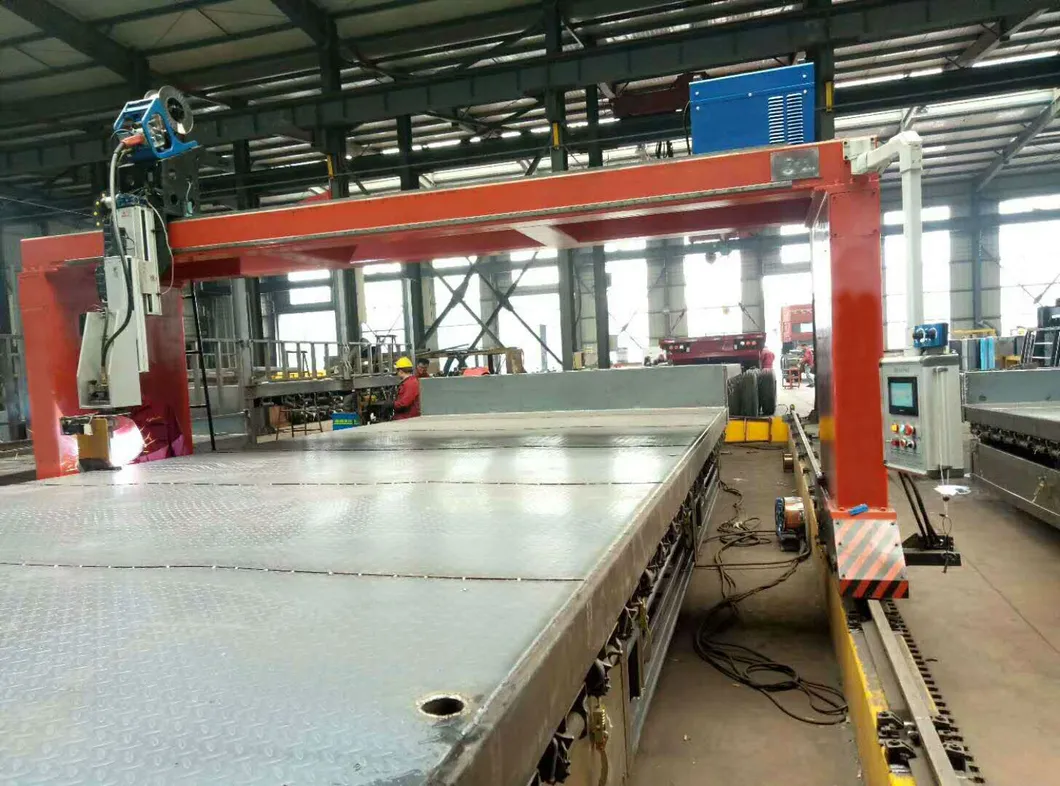

Automatic Trailer Welding

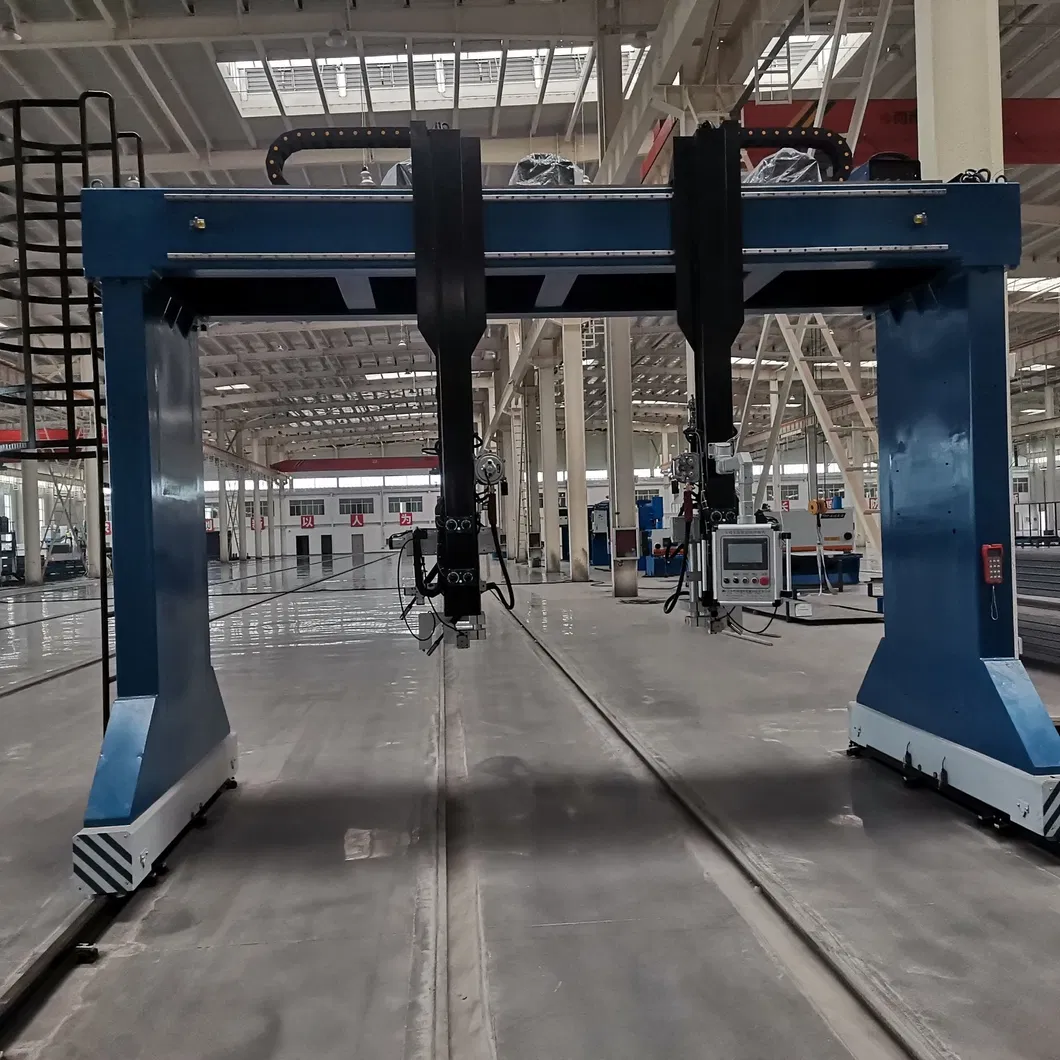

Electric Trailer Welding
WELDING LINES

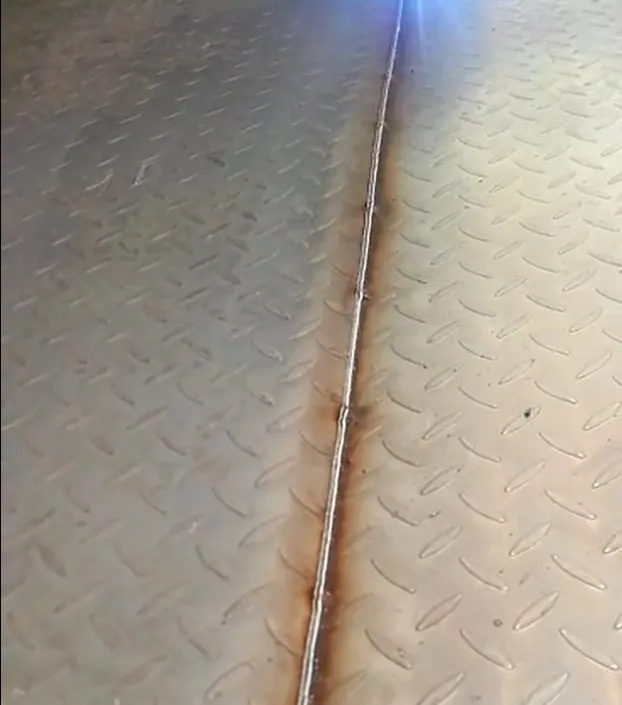

Welding Line Setup
Technical Parameters
NO ITEM PARAMETER
1ModelQTTW-2500
2Thickness of workpiece5-8mm
3Length of rail22m
4Max effective welding length20m
5Gantry width3500mm
6Max effective welding width2500mm
7Height of workpiece1000mm-1300mm above ground
8Longitudinal drive modeGears, racks + servo motors
9Landscape drive modeGears, racks + servo motors
10Vertical drive modeSlide table
11Welding torch rotationStepper motor
12Welding modeMIG
13Welding wire diameterΦ0.8mm-φ1.2mm
14Welding positionFlat
15Welding speed1.2-1.5m/min
16Tracking modeLaser tracking X\Y\Z axis
17VoltageAC380V 50HZ
📦
Packaging & Shipping
Packaging Process
Shipping Logistics
🏢
Company Profile
Company Banner
As a modern enterprise specialized in manufacturing cutting and welding machines since 2008, we are located near major transport hubs, ensuring convenient logistics for global distribution.
Our focus remains on supplying high-quality products including tank welding machines, H-beam welding machines, trailer welding machines, and various cutting equipment. Our advanced equipment, competitive design, and strict quality control allow us to meet diverse industrial requirements.
With products exported to more than 200 countries and regions—including North America, Europe, and Asia—our brand is recognized globally for reliability and performance.
Related Industrial Solutions:

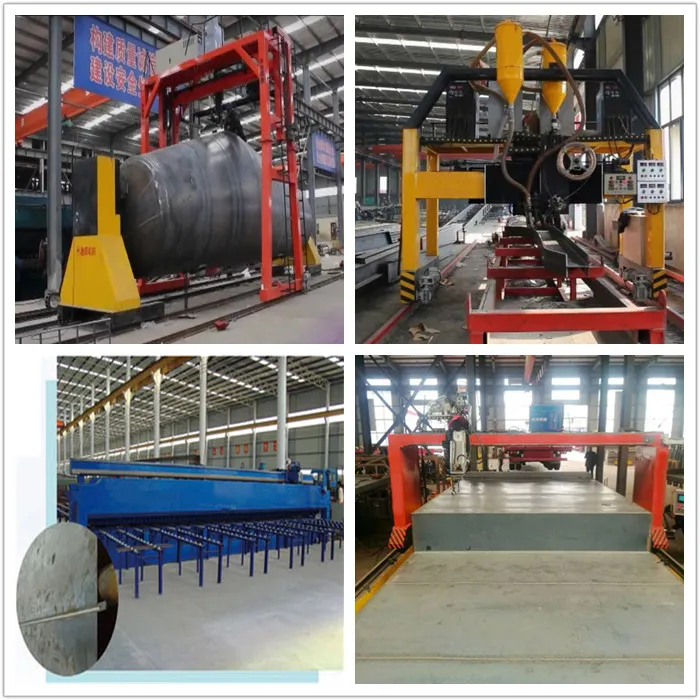

Welding Machine

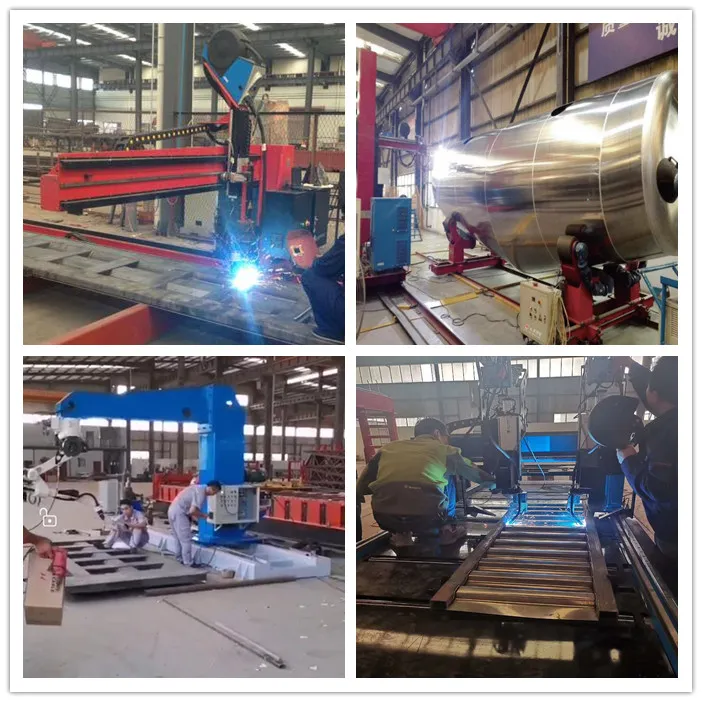

Advanced Welding Equipment

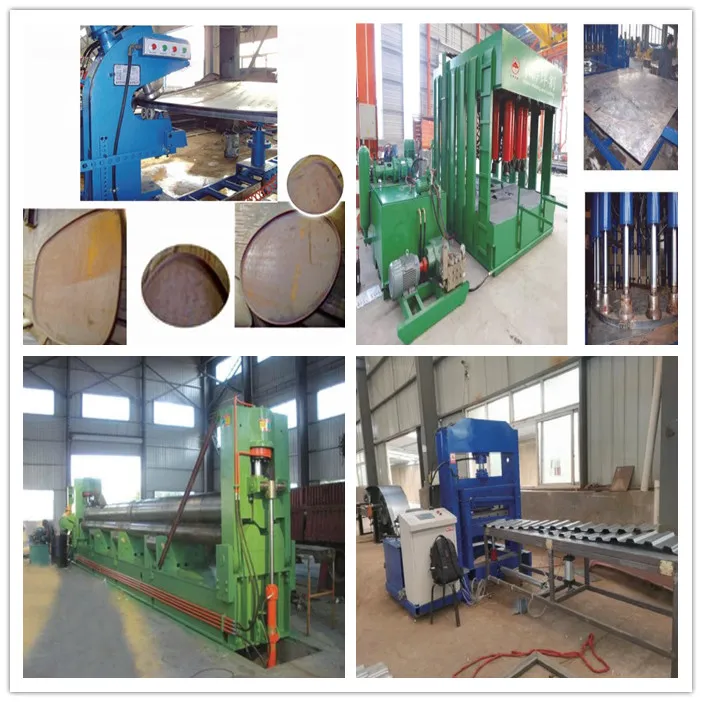

Press Machine

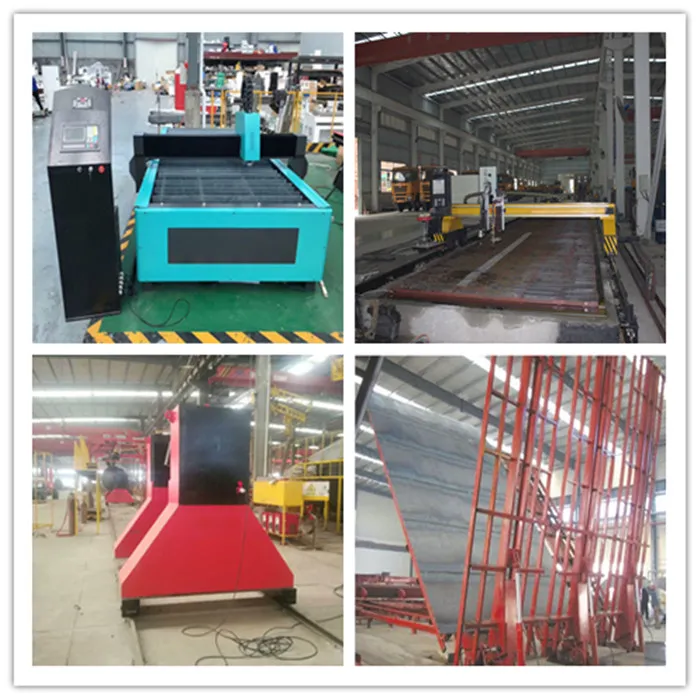

Cutting Machine

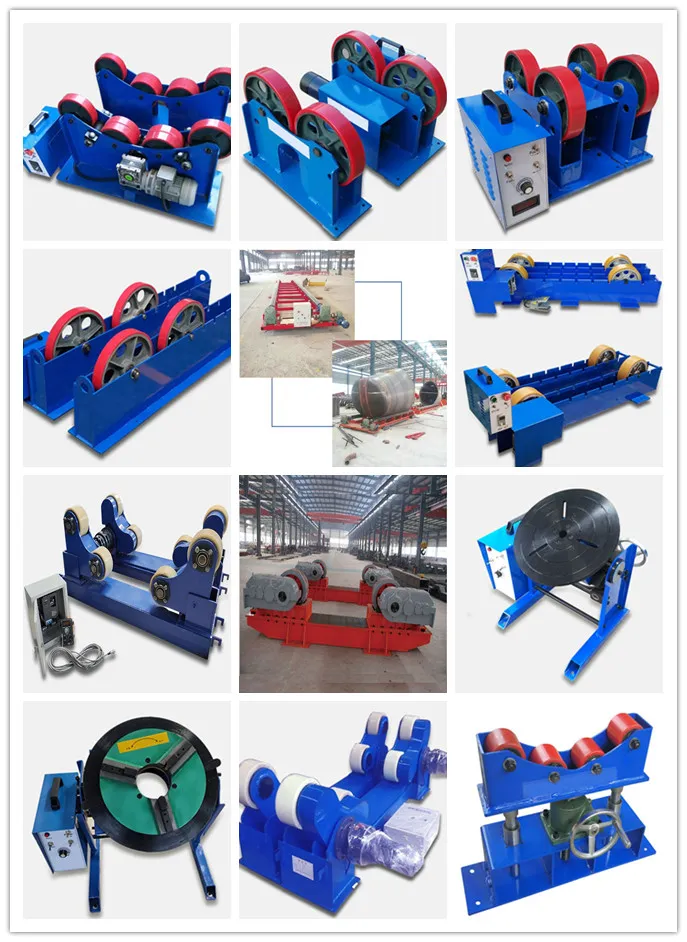

Rolling Machine
❓
Frequently Asked Questions
What is the standard packaging for the machinery?
We use a combination of plastic film and a robust steel structure. Custom packaging designs can also be provided based on your specific requirements.
What is the Minimum Order Quantity (MOQ)?
The minimum order quantity is 1 set.
Do you provide installation and setup services?
Yes, we can arrange for professional installation and technical setup upon request.
What is the typical delivery timeframe?
Production follows the order sequence. For standard orders, the typical delivery time is approximately 45 days.
Do you offer OEM or ODM services?
Yes, we provide both OEM and ODM services. Please share your specific welding and cutting requirements, and our team will provide a tailored solution.
What welding modes are supported by this equipment?
This system primarily supports MIG and TIG welding modes, suitable for various industrial carbon steel applications.
