Basic Information
Function
Mute Anti-theft, Tracking and Monitoring, Fleet Management
Application
Car/Motorcycle/Truck Real Time Tracking
Software
Web Tracking Platform & Mobile APP
Product Description

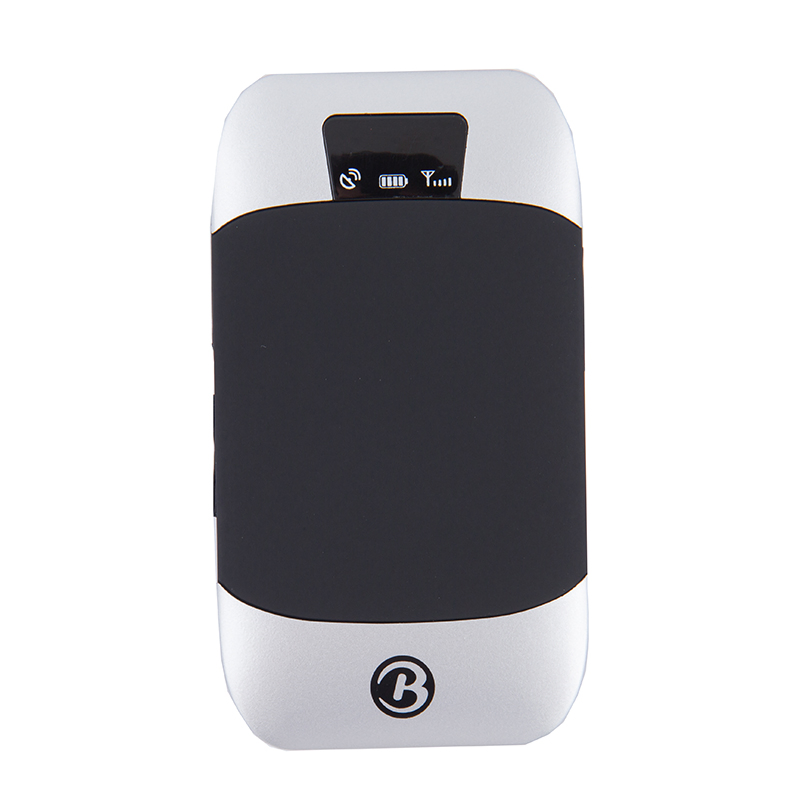

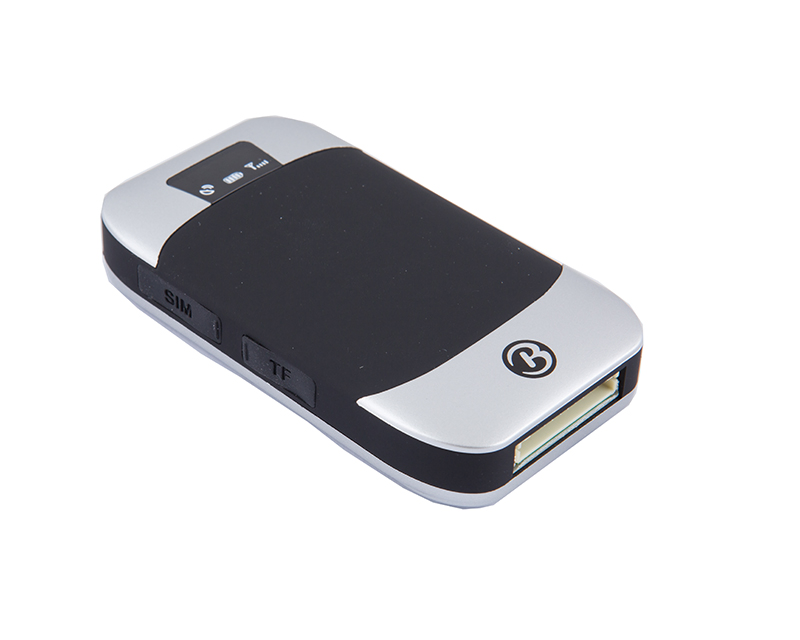

The GPS-303H tracking unit is a professional device that utilizes the Global Positioning System (GPS) to determine the precise location of a vehicle. It supports Micro SD cards and is designed for motorbikes and vehicles. The recorded location data can be stored locally or transmitted to a central database via cellular (GPRS or SMS) networks, allowing for real-time map tracking and historical path analysis.
Core Functionality:
- GPS + LBS double solution for exact street addresses
- Continuous auto-tracking (Time/Distance intervals)
- Automatic turning points update
- GPS drift suppression and data logging
- Voice Surveillance & Monitor modes
- Cut off Oil and Power system remotely
- Built-in Acceleration Sensor Alarm
- Multiple Alarms: SOS, Geo-fence, Overspeed, Movement, Low battery
Key Applications
1. Live Fleet Tracking: View company vehicles in real-time with comprehensive reports on mileage, speed, and travel direction.
2. Efficiency Optimization: Evaluate employee driving activity and eliminate excessive idling to boost profit and service quality.
3. Auto Theft Security: Protect mobile assets with geo-fences and instant text notifications if a vehicle leaves a safe zone.
Technical Specifications
| Content |
Specification |
| Dimensions |
9.6×5.3×1.6cm |
| Weight |
70g |
| Band |
850/900/1800/1900Mhz |
| GPS Sensitivity |
-159dBm |
| GPS Accuracy |
5m |
| GPS Start Time |
Cold: 45s | Warm: 35s | Hot: 1s |
| Power Supply |
12V / 24V |
| Backup Battery |
Chargeable 3.7V 500mAh Li-ion |
| Operating Temp |
-20°C to +65°C |
Service & Support
Delivery: Samples and small orders are delivered within 2-3 working days. Large orders (500+ pcs) require 3-5 working days after payment.
Warranty: All models come with a one-year warranty. Every unit undergoes strict internal quality checks and professional packing before shipment.
Frequently Asked Questions
How accurate is the GPS303H tracking?
The device provides high precision with a GPS accuracy of within 5 meters.
Can I stop the engine remotely if the vehicle is stolen?
Yes, the system includes a function to cut off the oil and power system, allowing you to stop and resume the engine via remote commands.
Does this device work on motorcycles?
Absolutely. The GPS303H is widely used for motorcycles, cars, and trucks, supporting both 12V and 24V power systems.
What tracking methods are available?

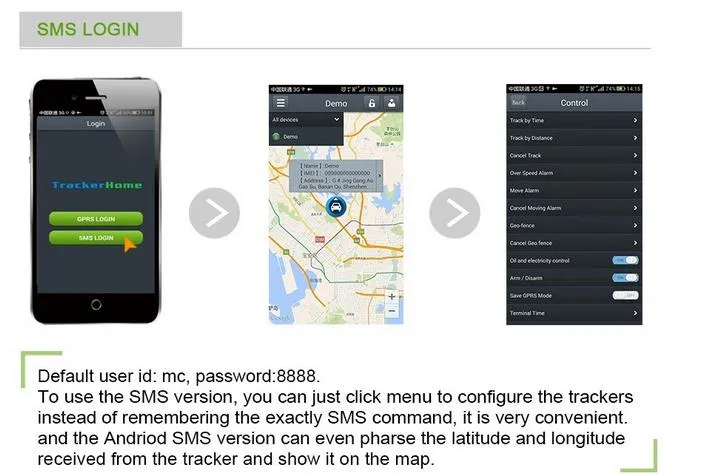

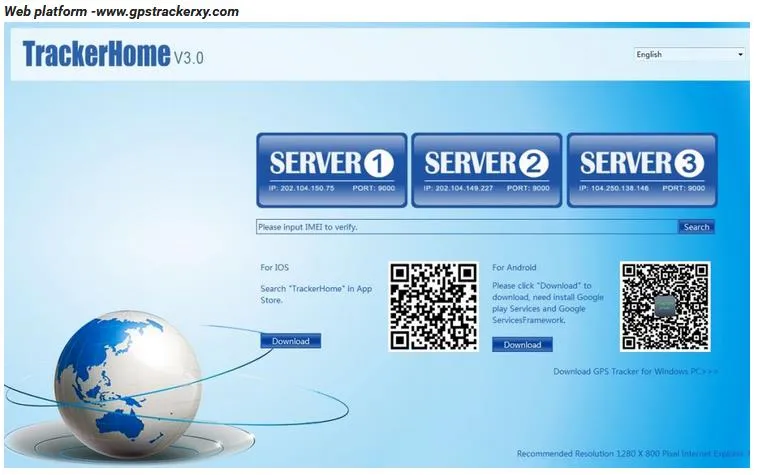

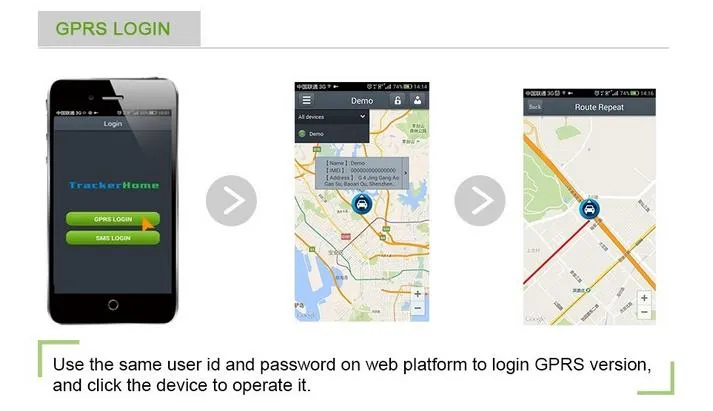

You can track your vehicle in real-time via SMS commands, the web tracking platform, or the "Tracker home" mobile application.
Does it have a backup battery?
Yes, it features a built-in chargeable 3.7V 500mAh Li-ion backup battery to ensure the device continues working even if the main power is disconnected.
Is it compatible with both GPS and LBS?
Yes, it uses a double solution of GPS and LBS (Location Based Services) to provide exact positioning even in areas with weak GPS signals.
