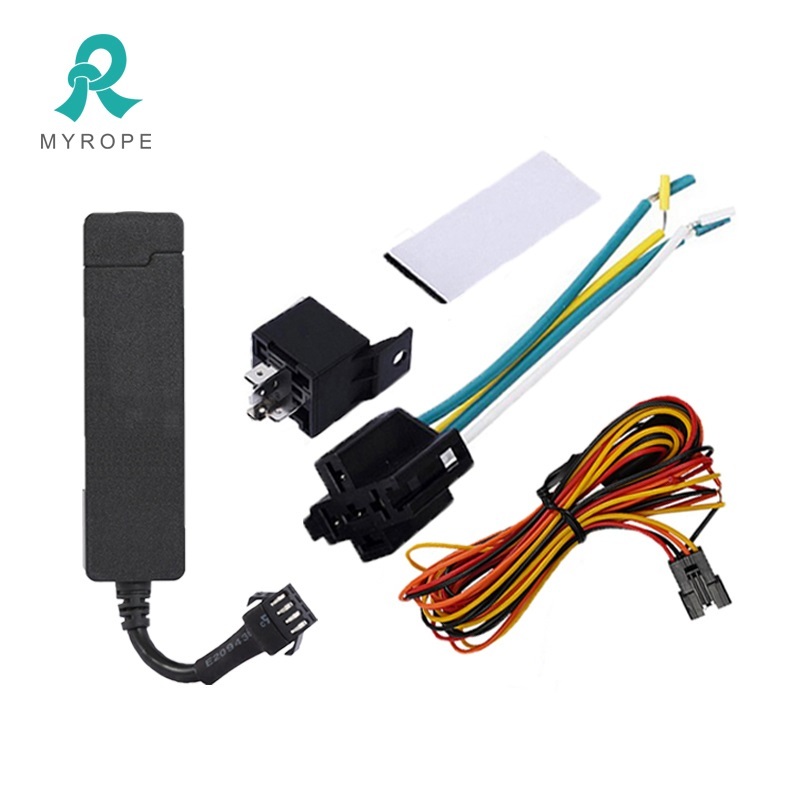

Real Time Google Map GPS Location GPS Tracking System M558g

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.M558G-V2
Warranty1 Year
GPS ModuleU-7020
GPS Accuracy5 Meters
Back up BatterySupport
GSM Frequency850/900/1800/1900MHz
ApplicationsTruck, Taxi, Fleet Management
Technical Support7/24
ServerCloud Cluster Server
Production Capacity100000 PCS/Month

Real Time Google Map GPS Tracking System

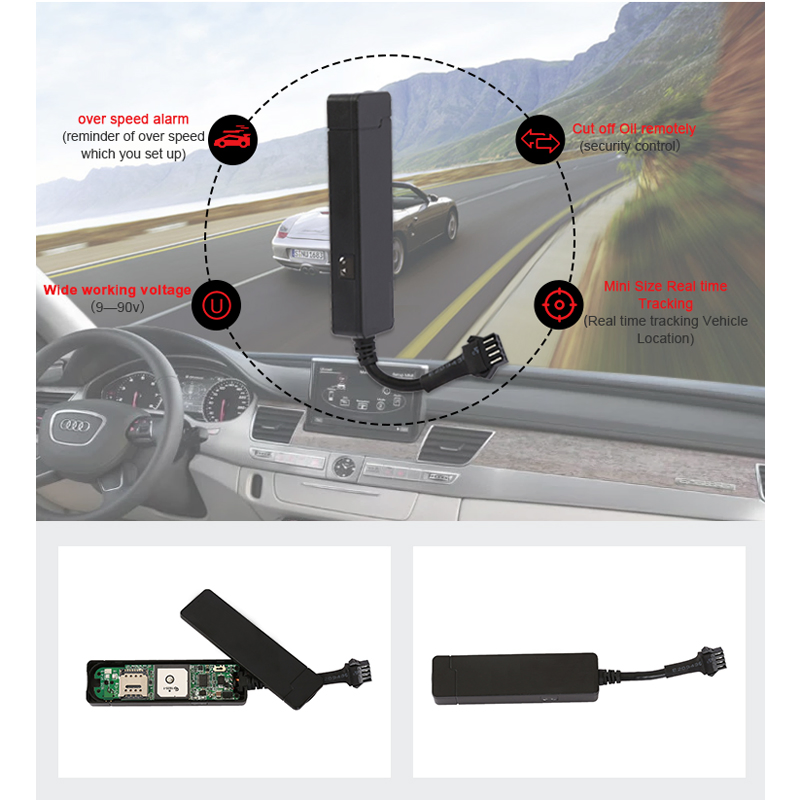

M558G-V2 is a super mini size anti-theft GPS tracking device specialized designed for motor/E-bike with stable quality and competitive price. Its size is as small as a lighter, making it easy to hide for maximum security.

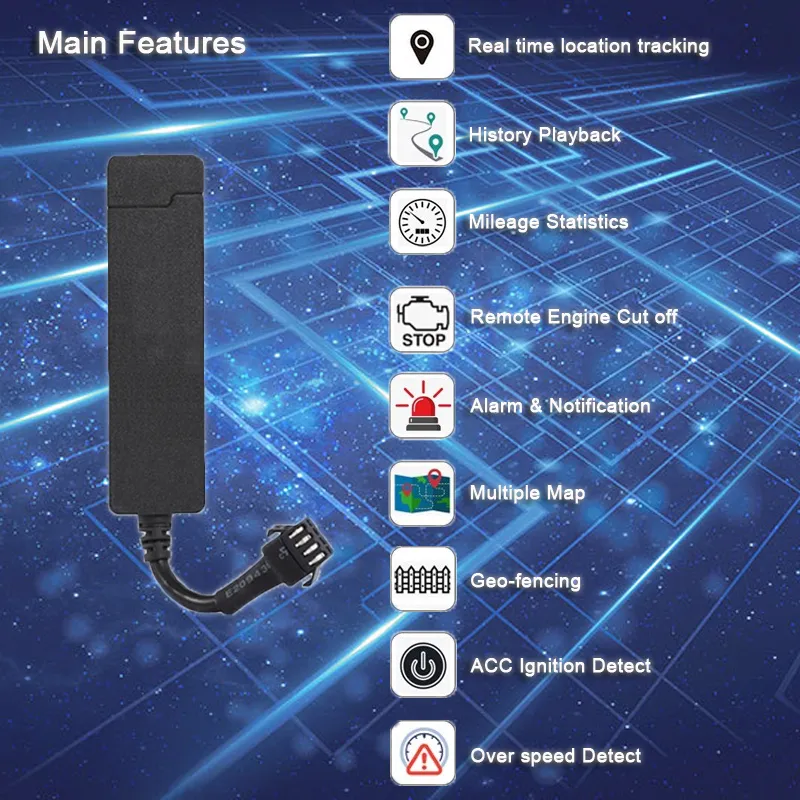

GPS Tracker Design

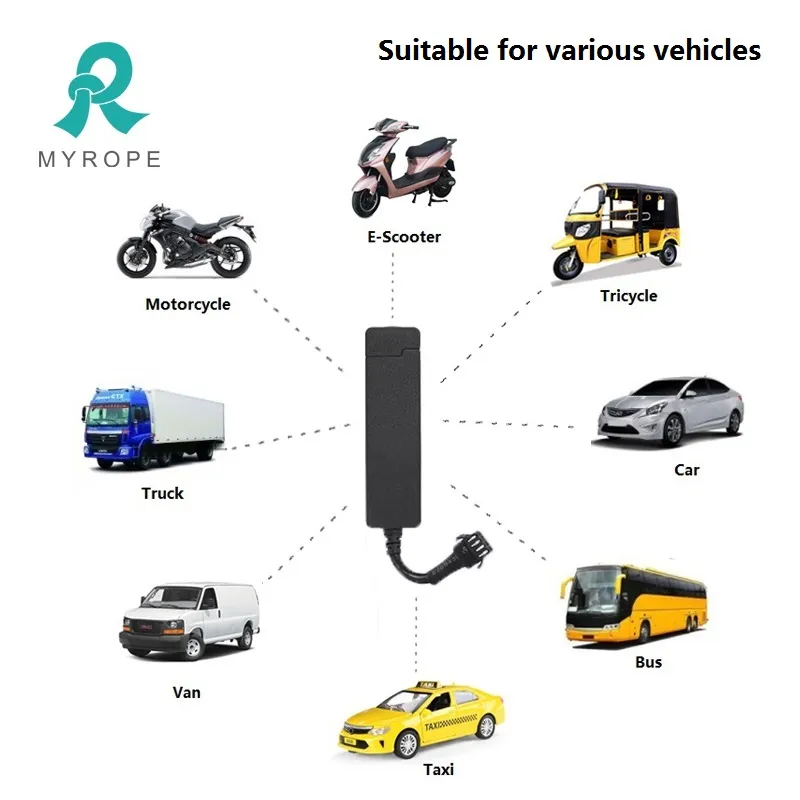

GPS Tracker Size

Key Functions & Features

  • Small size with built-in antenna
  • Track by SMS or GPRS in real time
  • Remote fuel cut-off via Web platform, APP, and SMS
  • Data resend from signal dead zones
  • Multiple Alarms: Low power, Overspeed, Geo-fence, Parking, and Tired driving
  • History playback and Mileage statistics

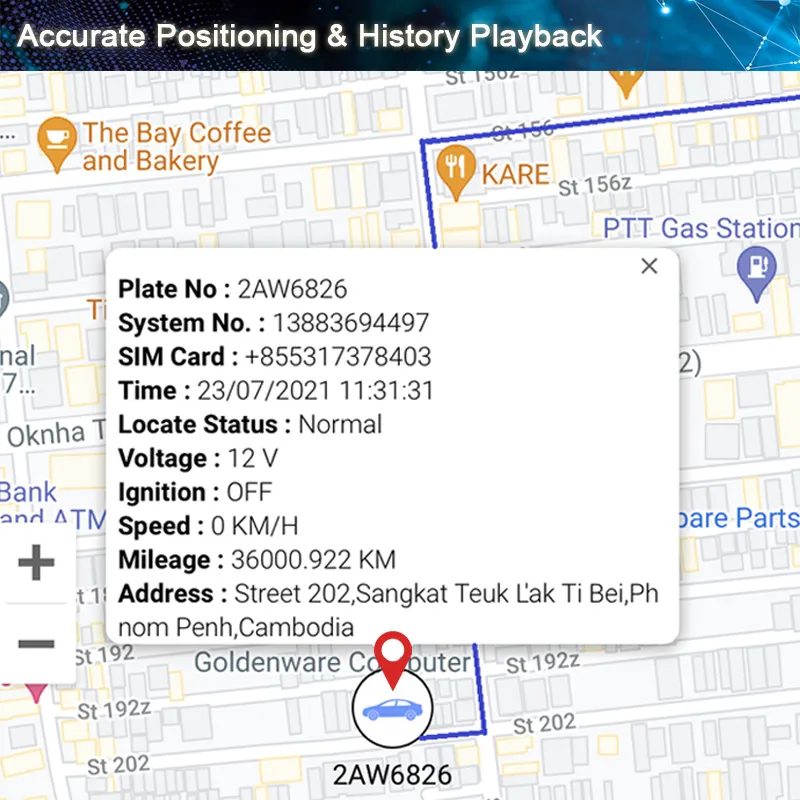

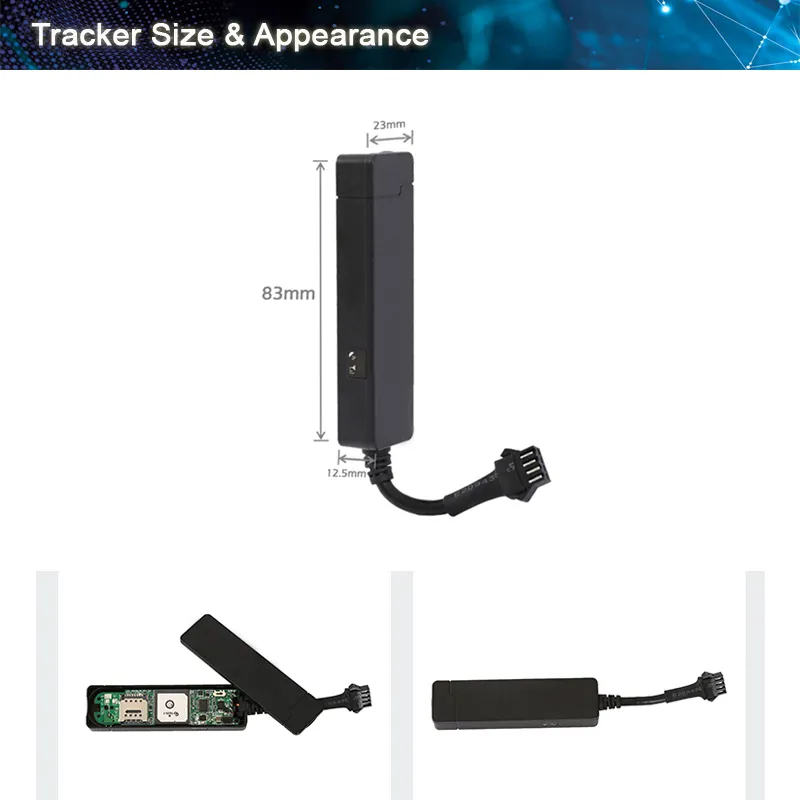

Feature 1 Feature 2 Feature 3

Technical Parameters

Items Parameters
GSM ModuleQuectel M26
GSM Frequency850/900/1800/1900 MHZ
LBS Positioning Accuracy100-500m
GPS ChipsetU-7020
GPS Positioning Accuracy5-10m
Working Voltage9VDC ~ 90VDC
Operating Temperature-20ºC - 70ºC

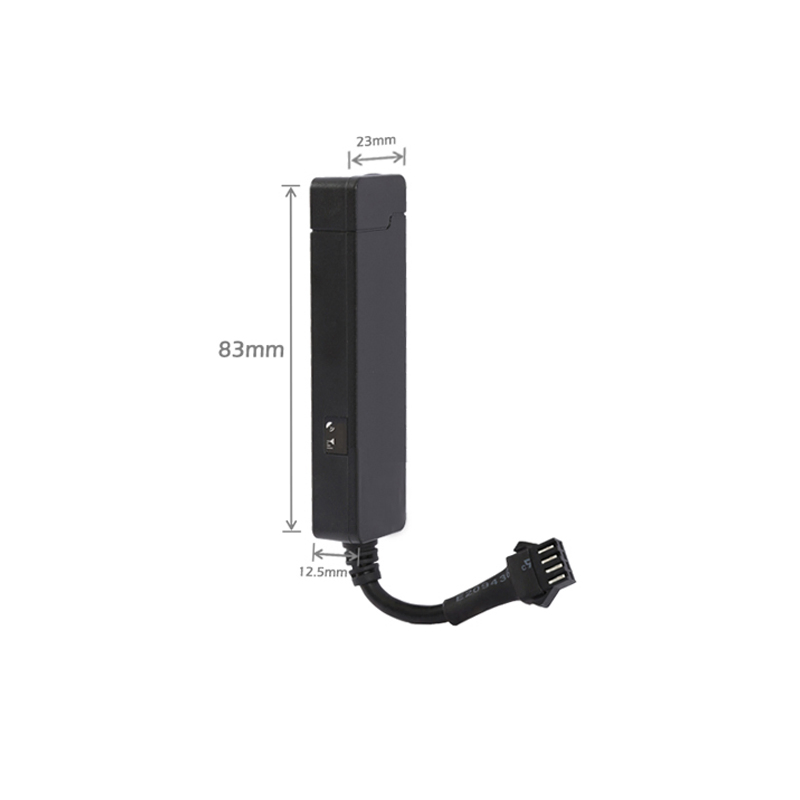

Size75mm × 23mm × 12mm
Battery50mAh Rechargeable lithium polymer

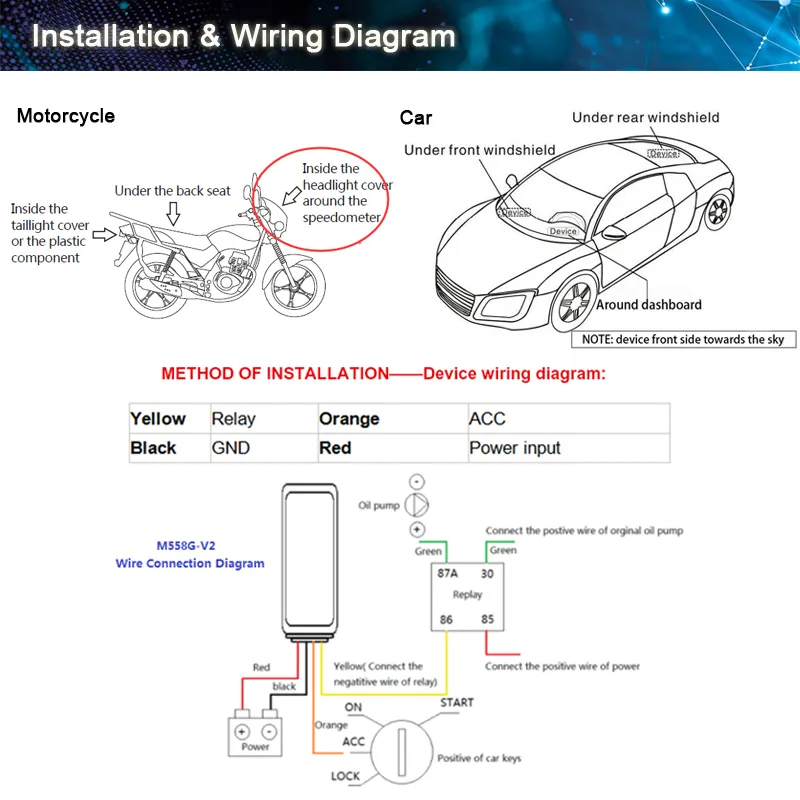

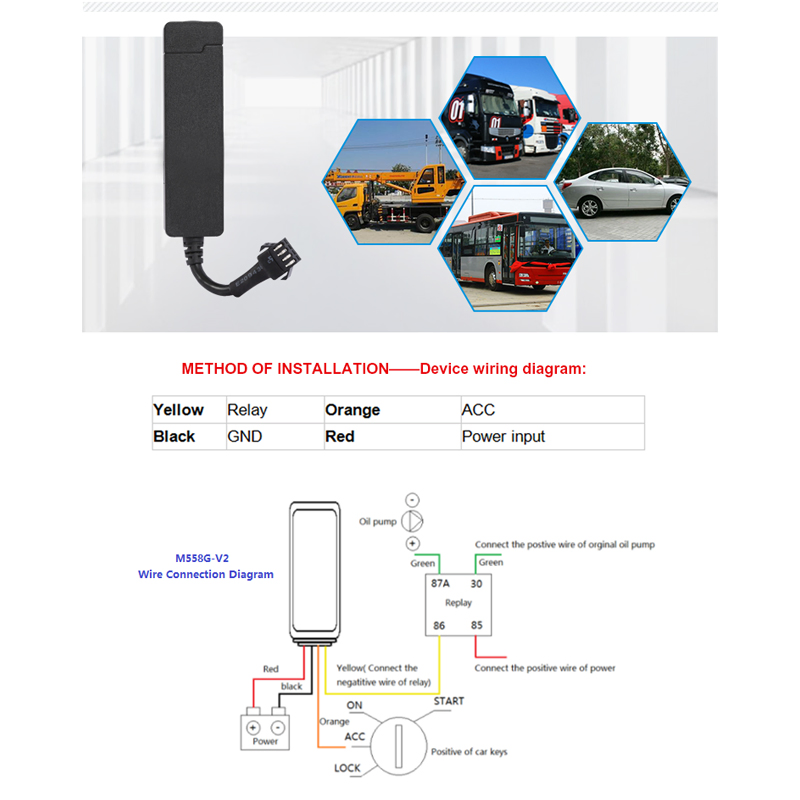

Installation Diagram

Cloud Platform & Mobile APP

We provide a comprehensive web platform and mobile application hosted on cloud cluster servers. Advantages include:

  • Unlimited device hosting capacity
  • High reliability with backup servers (no downtime)
  • Fast response times and customized reports

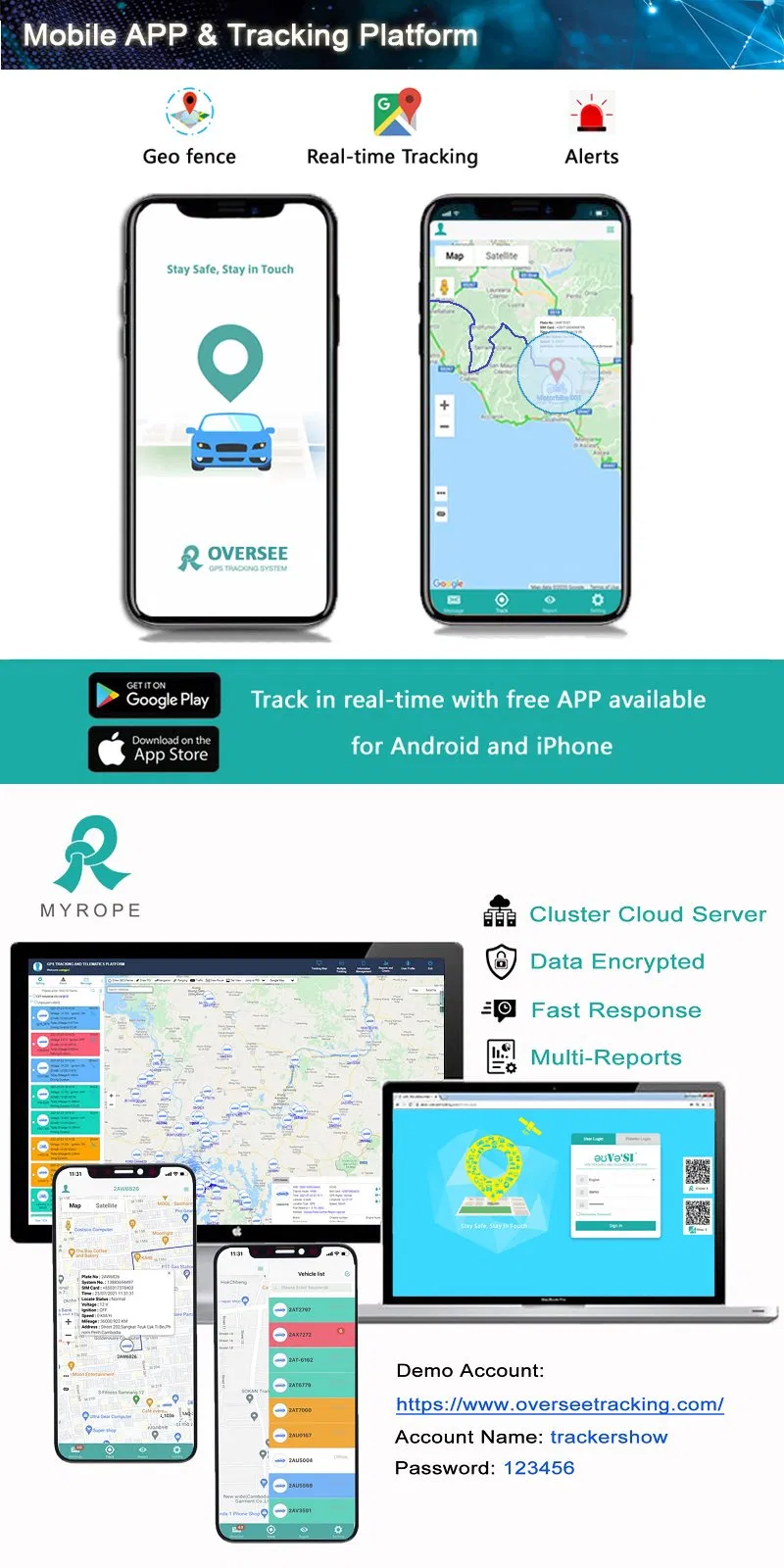

App Interface

Manufacturing & Quality Control

With over 10 years of experience in the GPS tracking industry, we operate a large manufacturing base including molding, SMT, and full production lines. All products undergo 100% QC before delivery.

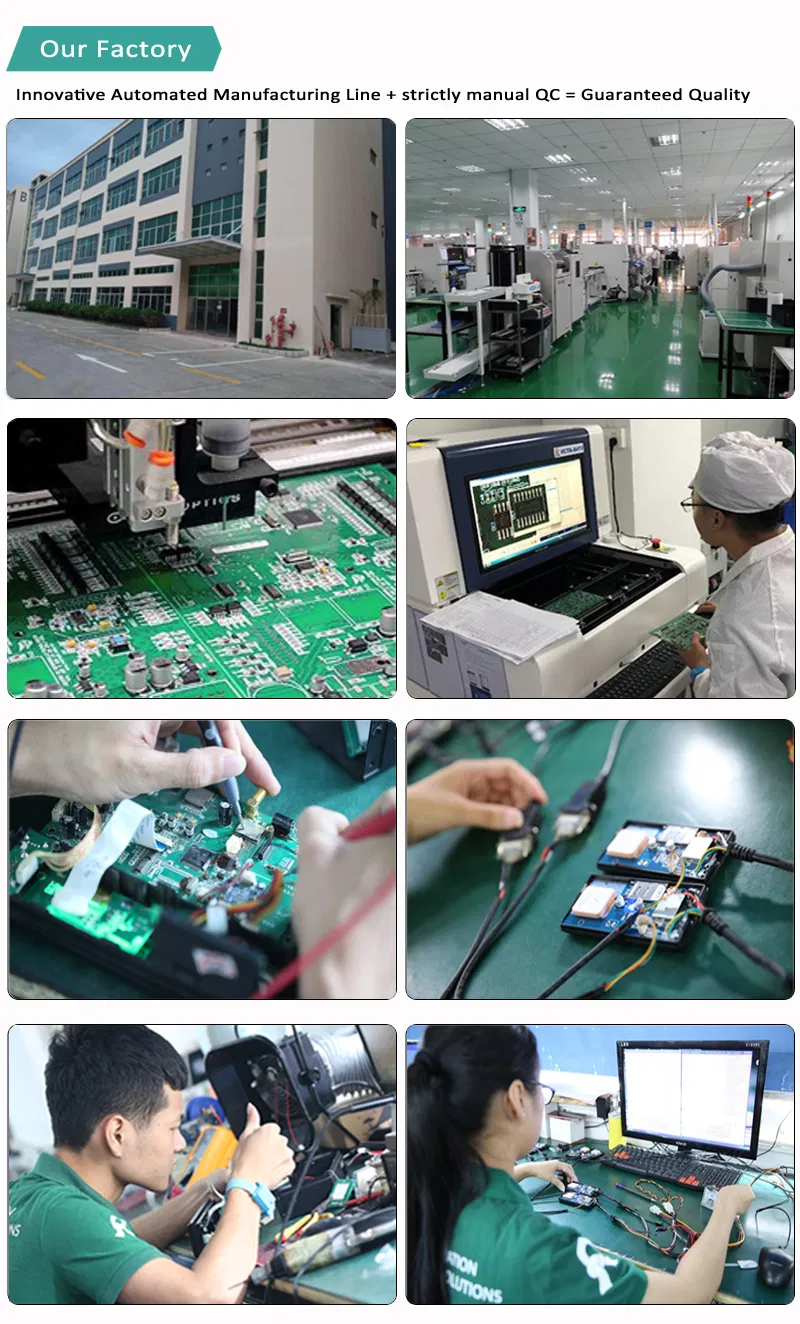

Factory Production QC

Certified Excellence

Our factory is ISO9001-2008 certified, and our products carry CE, FCC, and RoHS certifications.

Certificates Customer Feedback

Frequently Asked Questions

Are you a manufacturer?
Yes, we have been a dedicated manufacturer of GPS trackers for more than 10 years.
Do you provide platform and mobile APP?
Yes, we provide both. Our platform is deployed on cluster cloud servers for safety, speed, and stability.
Do you provide both Android and iOS APP?
Yes, we provide tracking applications for both Android and iOS platforms.
What is the warranty period?
We provide a one-year warranty for all our products.
What certificates do your products have?
Our factory is ISO9001 certified, and our products have passed CE, ROHS, and FCC standards.
What is the minimum order quantity (MOQ)?
The MOQ is 1 pc.
