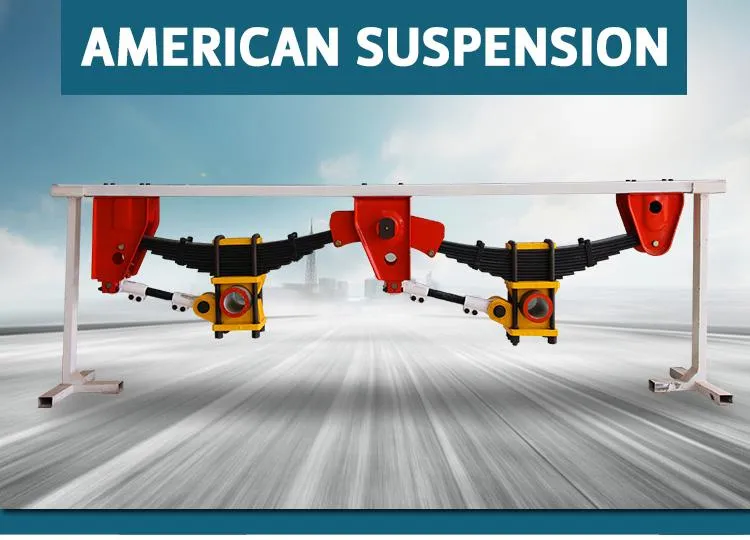

CKLER Vehicle
1 / 5

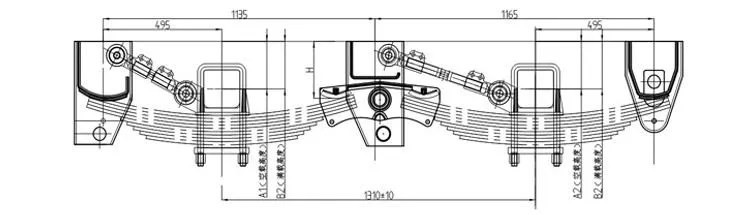

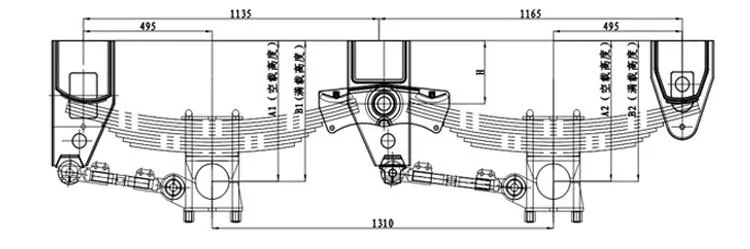

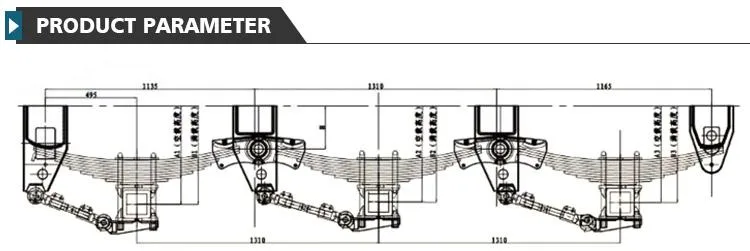

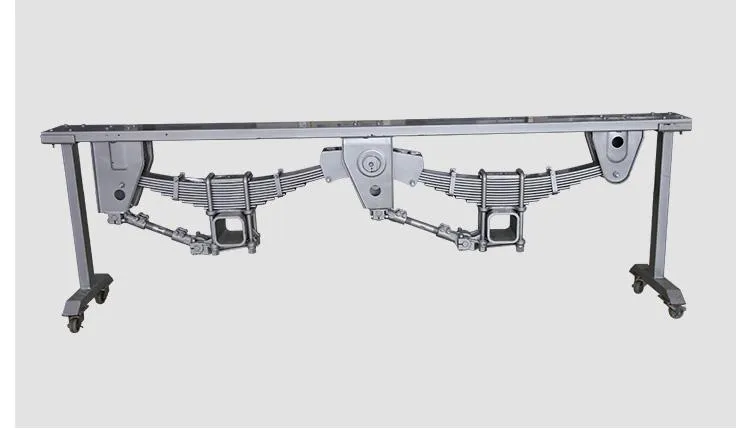

| Suspension model | H(mm) | A1(mm) | B1(mm) | A2(mm) | B2(mm) | A3(mm) | B3(mm) | Carrying capacity |
|---|---|---|---|---|---|---|---|---|
| ZY13AZ3-11 | 110 | 399 | 369 | 390 | 360 | 381 | 351 | 13000*3 |
| ZY13AZ3-13 | 130 | 419 | 389 | 410 | 380 | 401 | 371 | 13000*3 |
| ZY13AZ3-15 | 150 | 439 | 409 | 430 | 400 | 421 | 391 | 13000*3 |
| ZY13AZ3-18 | 180 | 469 | 439 | 460 | 430 | 451 | 421 | 13000*3 |
| ZY13AZ3-21 | 210 | 499 | 469 | 490 | 460 | 481 | 451 | 13000*3 |
| ZY13AZ3-23 | 230 | 519 | 489 | 510 | 480 | 501 | 471 | 13000*3 |
| ZY13AZ3-25 | 250 | 539 | 509 | 530 | 500 | 521 | 491 | 13000*3 |
| ZY13AZ3-27 | 270 | 559 | 529 | 550 | 520 | 541 | 511 | 13000*3 |
| ZY13AZ3-30 | 300 | 589 | 559 | 580 | 550 | 571 | 541 | 13000*3 |
| ZY13AZ3-32 | 320 | 609 | 579 | 600 | 570 | 591 | 561 | 13000*3 |
| ZY13AZ3-35 | 350 | 639 | 609 | 630 | 600 | 621 | 591 | 13000*3 |
For more drawings and models information, please send us an inquiry!

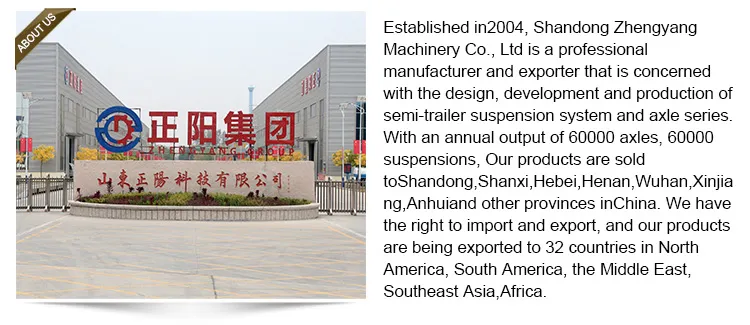

Our group was founded in 2004, focusing on the transportation special automobile industry. We provide high-end automobile parts, mainly producing special automobile axles, wheel hubs, brake drums, brake discs, calipers, suspension, and other ancillary products. As a technology-based group, we integrate production, learning, research, and sales of special automobile parts to ensure the highest quality standards.
