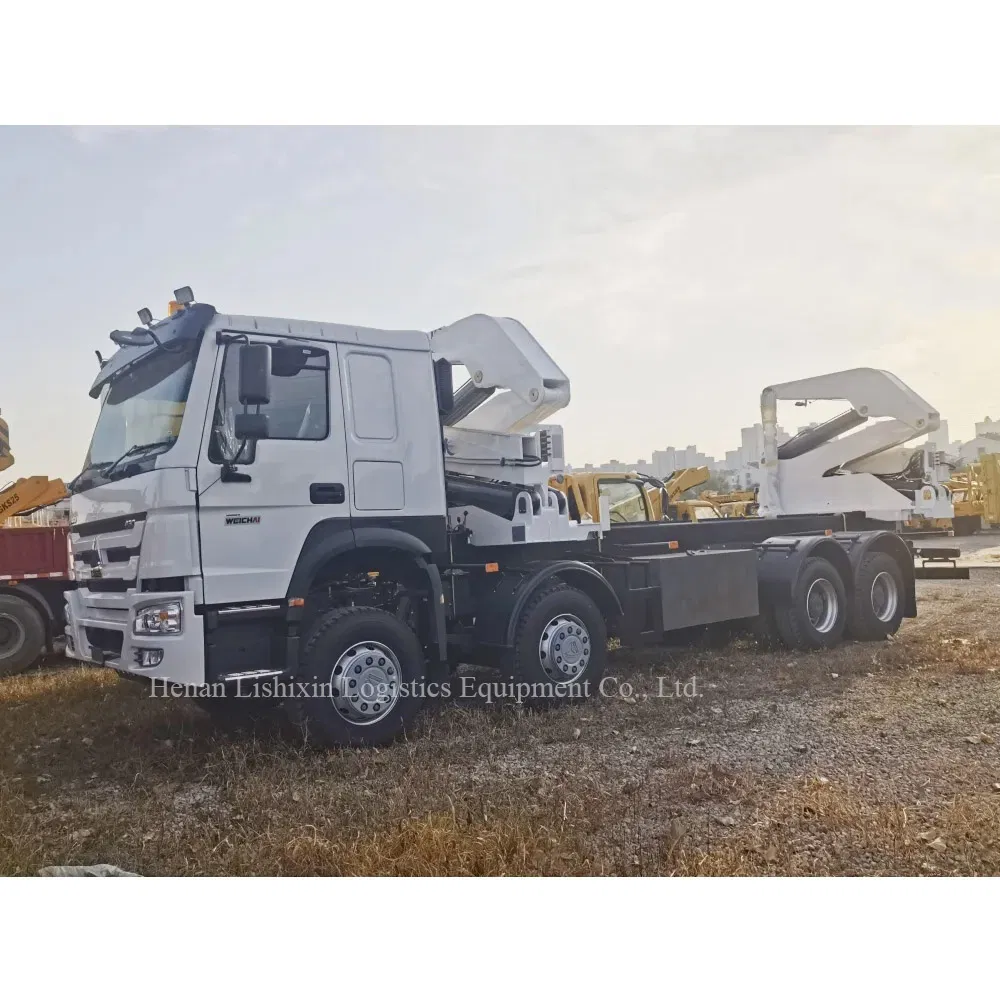

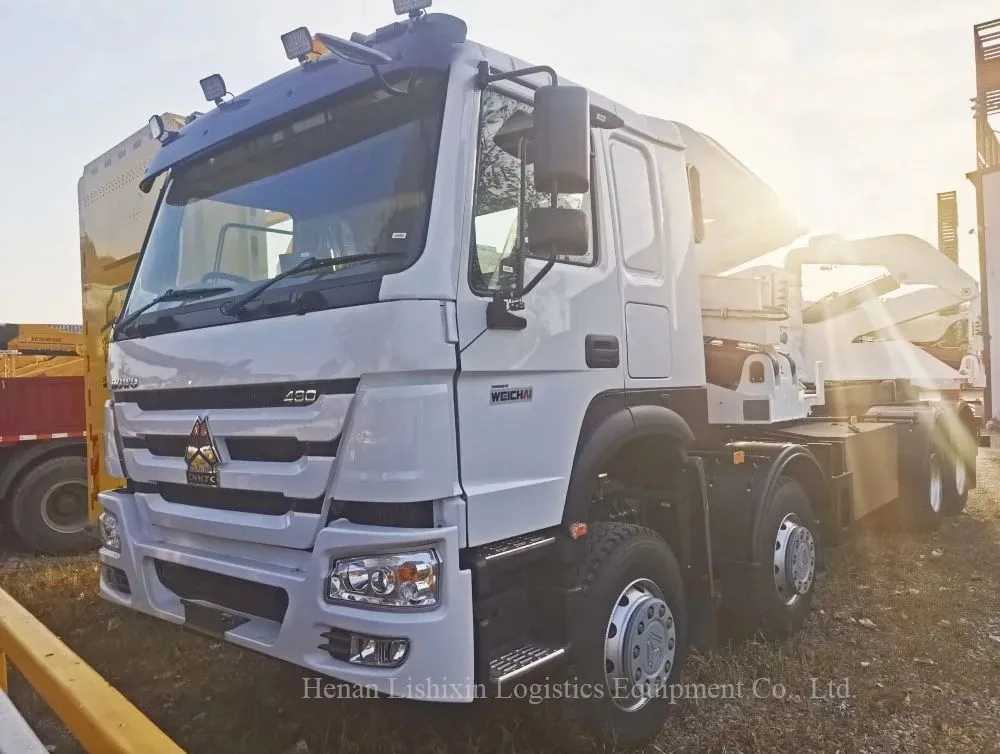

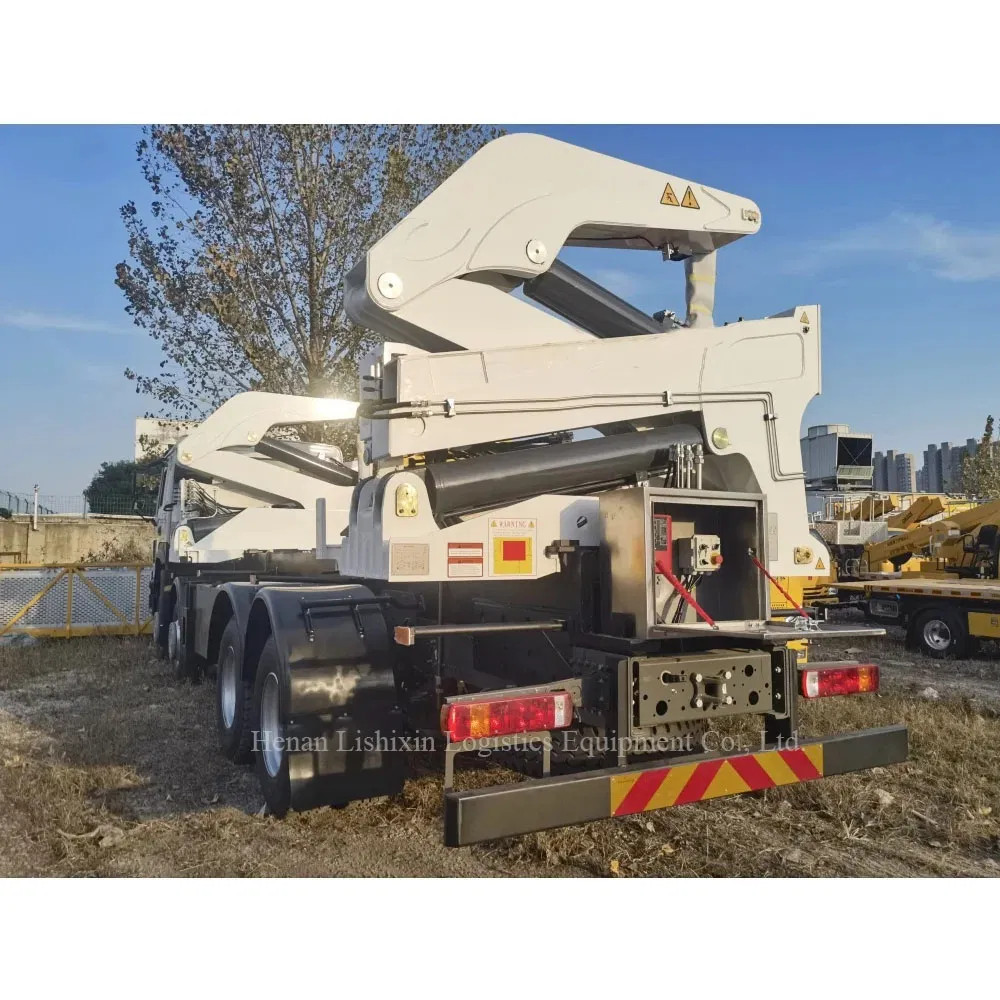

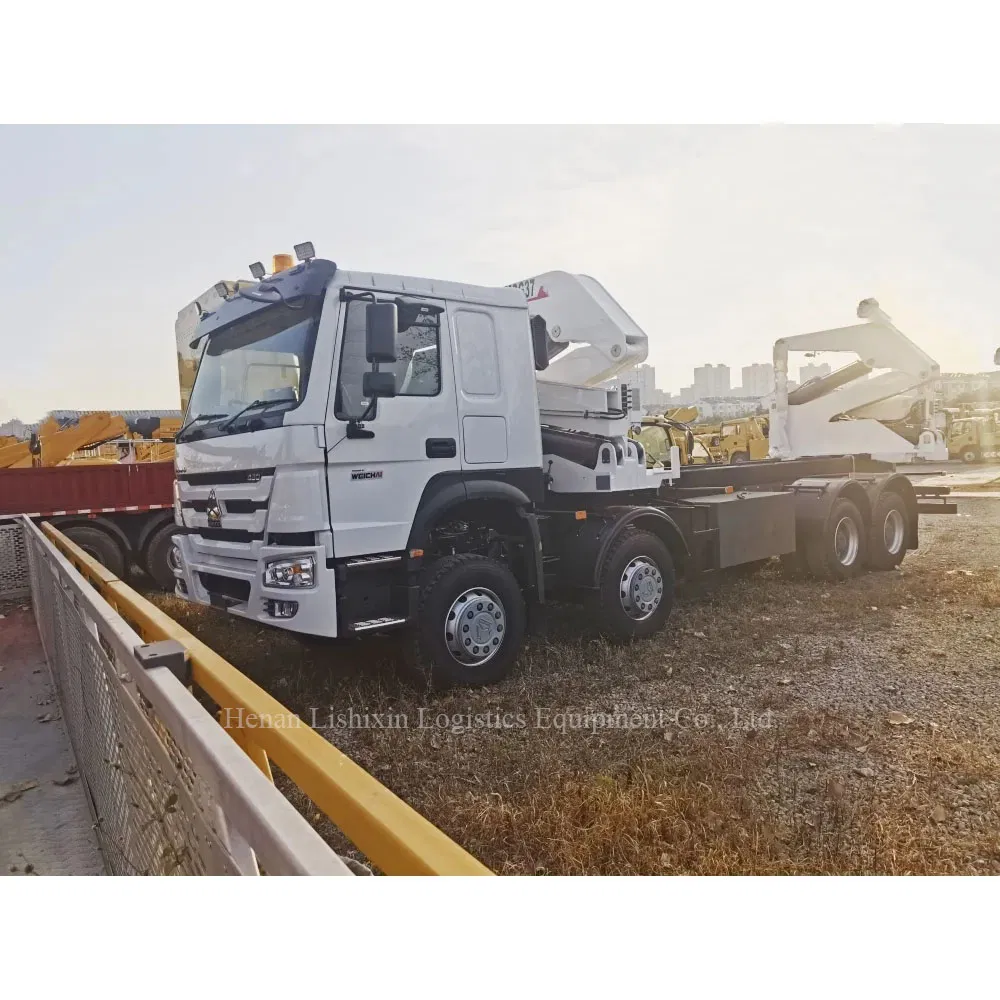

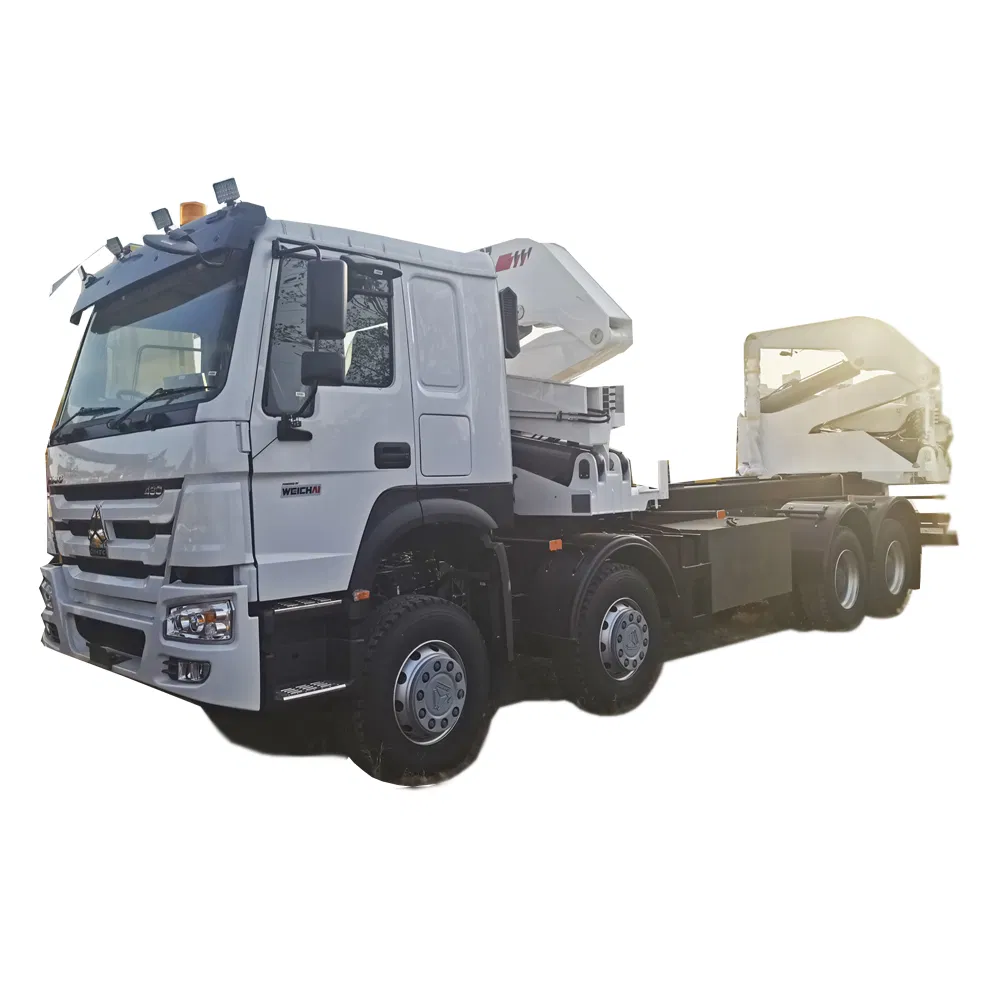

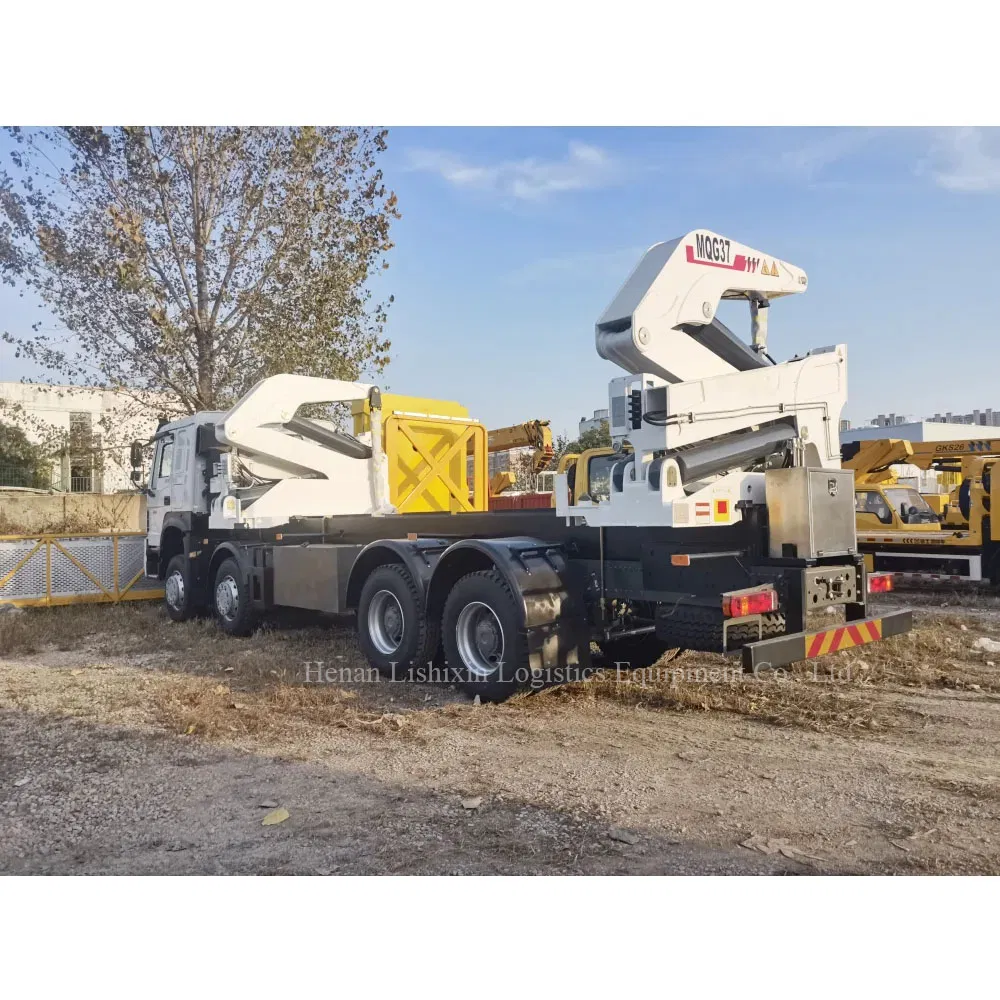

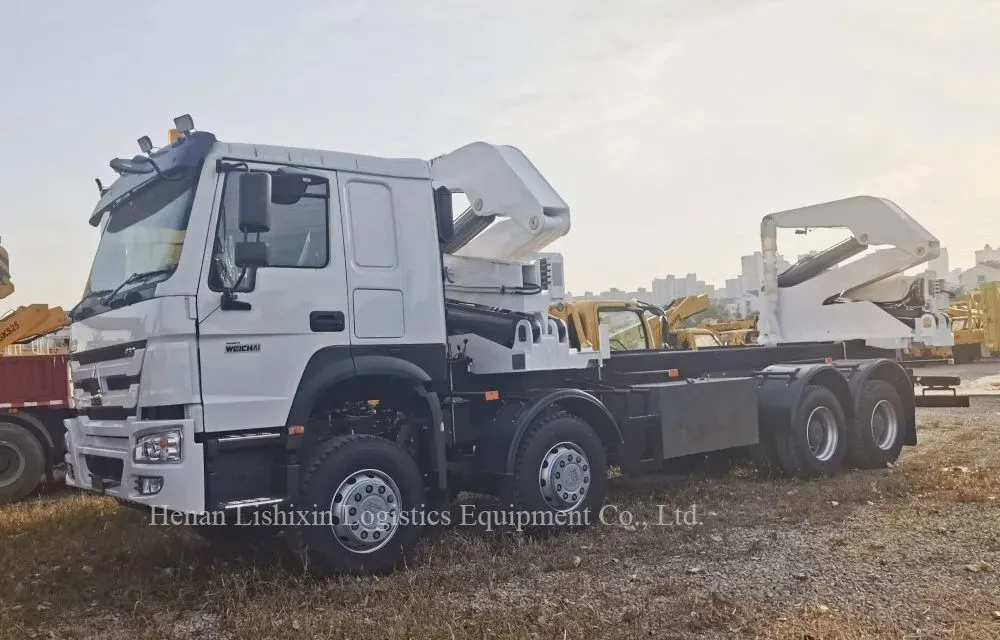

The side crane can complete multiple operation functions such as self-loading and unloading of containers and vehicle-to-vehicle transfer. It has the characteristics of large lifting capacity, long operating range, wide application range, and good versatility. It is widely used in container logistics, port freight transfer stations, railway container handling stations, and warehouses.
It can load and unload 20ft or 40ft containers through the sliding of the front and rear cranes, greatly expanding equipment utility.

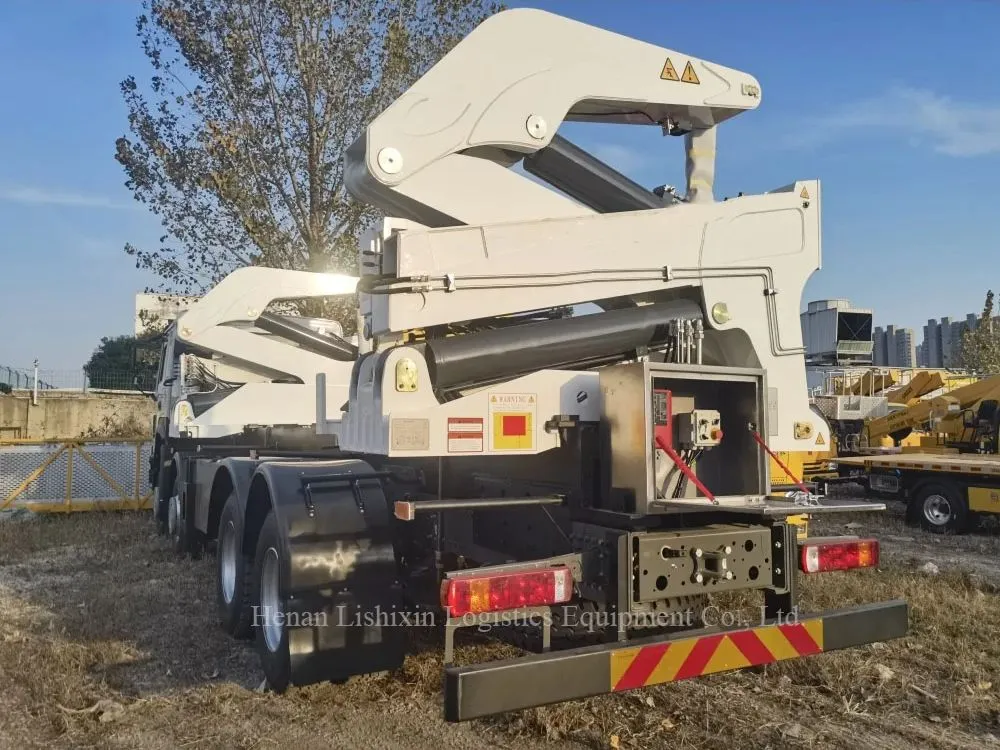

Powered by an engine with adjustable speed. The hydraulic oil output by dual pumps is sent through the converging valve group to drive actuators, ensuring stability and reliability during lifting.
Using high- and low-pressure dual pumps to achieve efficient lifting operations and economical engine power utilization.

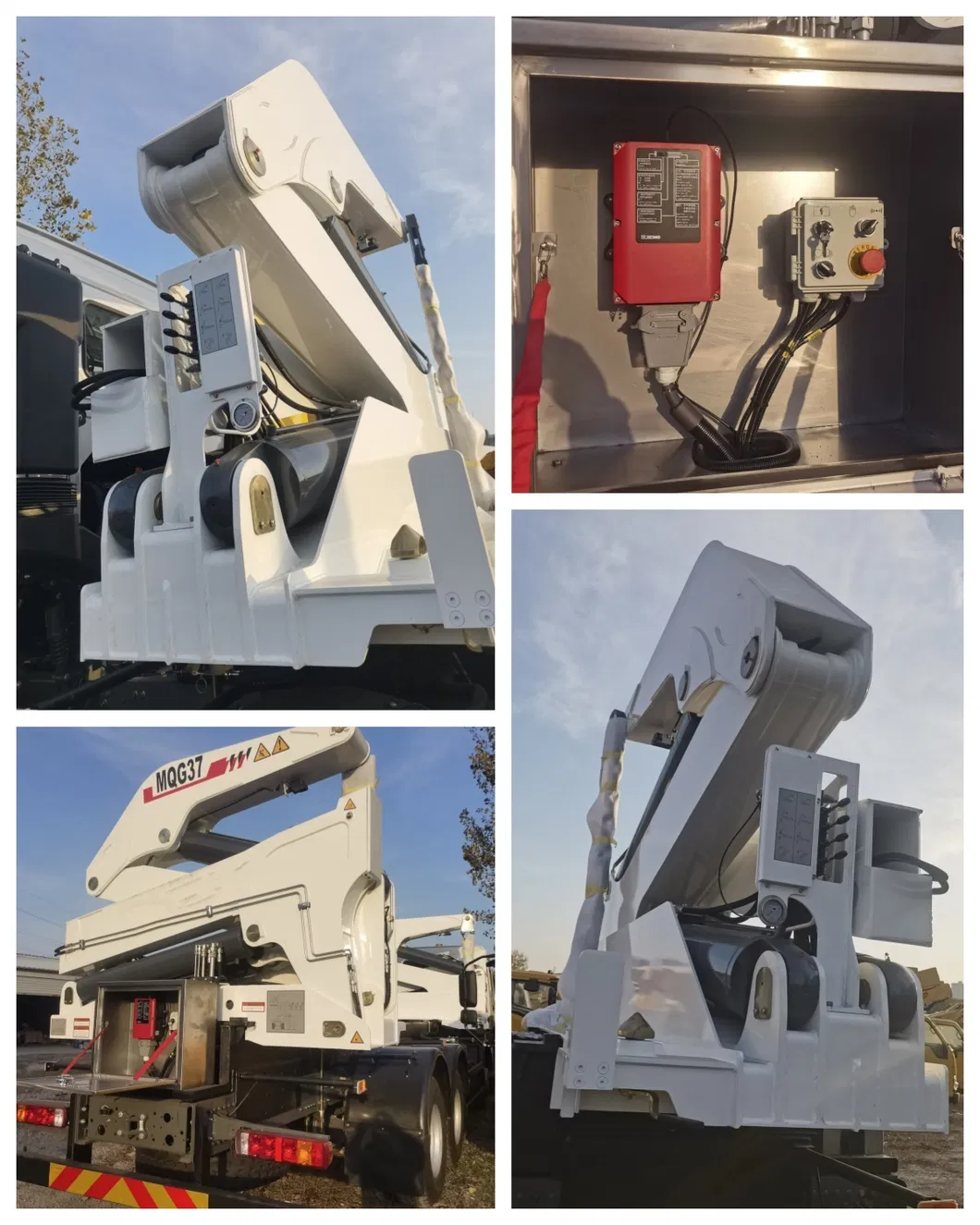

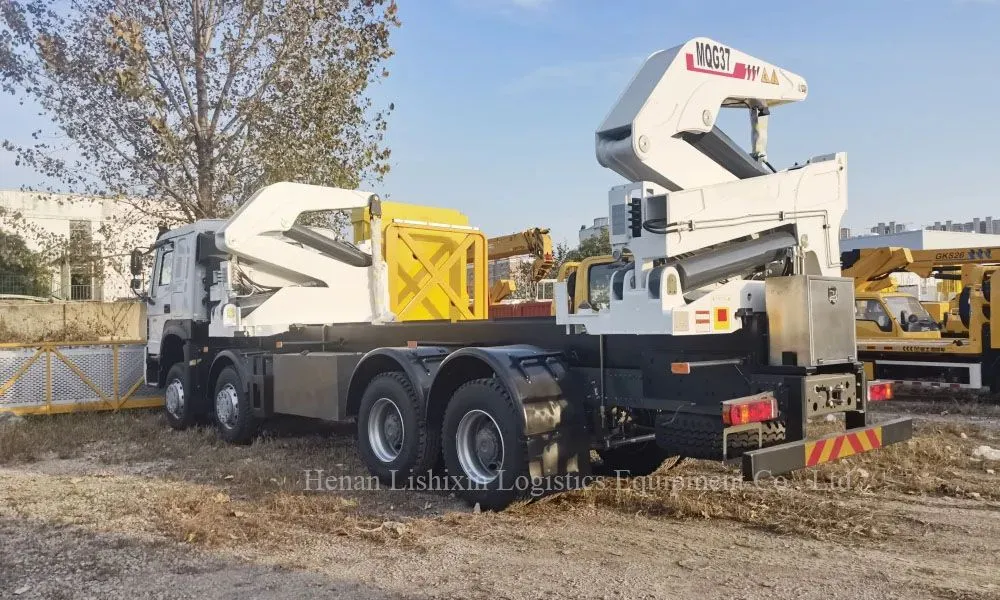

The mechanism automatically rotates and locks in the container corner, ensuring safety during operation and transportation.

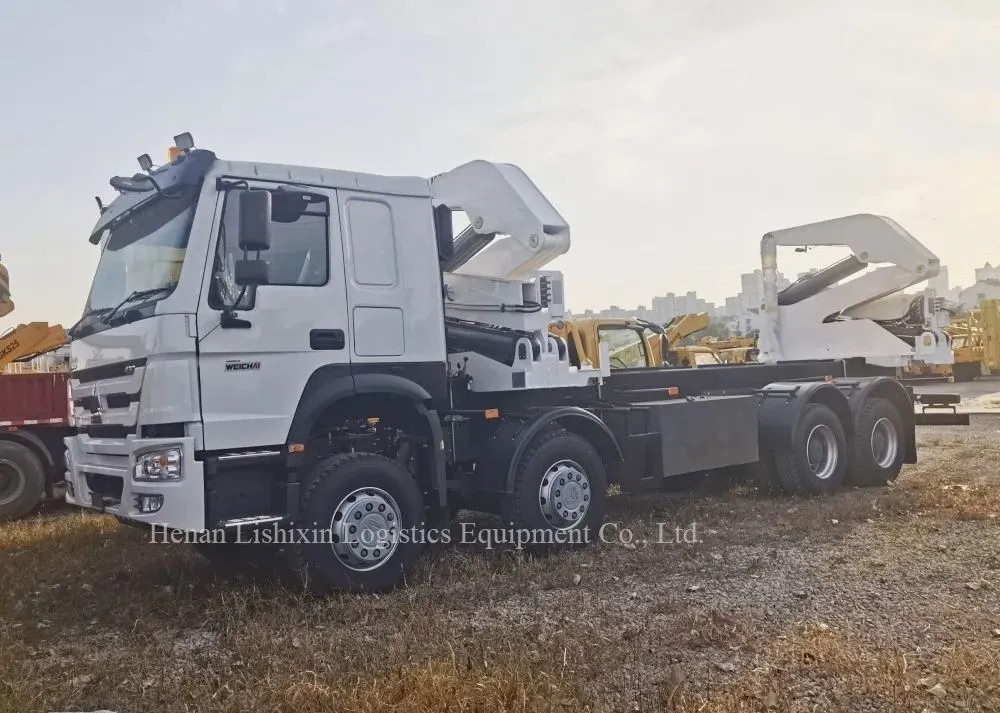

Matches remote wireless control with load-sensitive electro-hydraulic proportional multi-way valves for safe and precise movement control.
| Engine Brand | Sinotruk |
| Warranty | 1 Year |
| Core Components | Pump, Gearbox, Gear, Engine |
| Maximum Lifting Capacity | 37000kg |
| Maximum Operating Range | 4000mm |
| Maximum Outer Width | 2500mm |
| Maximum System Pressure | 28MPa |
| Tare Weight | 7000kg |
| Drive Type | 8x4 |
| Cab Type | HW76 |
