Spring Brake Chamber T30/30 Ds Semi Trailer Truck Brake System Sinotruck
Spring Brake Chamber T30/30 Ds Semi Trailer Truck Brake System Sinotruck
Spring Brake Chamber T30/30 Ds Semi Trailer Truck Brake System Sinotruck
Spring Brake Chamber T30/30 Ds Semi Trailer Truck Brake System Sinotruck
Spring Brake Chamber T30/30 Ds Semi Trailer Truck Brake System Sinotruck
1 / 5
Spring Brake Chamber T30/30 Ds Semi Trailer Truck Brake System Sinotruck
Spring Brake Chamber T30/30 Ds Semi Trailer Truck Brake System Sinotruck
Spring Brake Chamber T30/30 Ds Semi Trailer Truck Brake System Sinotruck
Spring Brake Chamber T30/30 Ds Semi Trailer Truck Brake System Sinotruck
Spring Brake Chamber T30/30 Ds Semi Trailer Truck Brake System Sinotruck

Spring Brake Chamber T30/30 Ds Semi Trailer Truck Brake System Sinotruck

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Information
Model NO.
T30/30DS
Type
Brake System
Material
Iron
Position
Rear
Certification
ISO9001
Classification
Disc
Stroke
64mm
Port Thread
3/8" or M16*1.5
Bolt Center
120.7mm
Push Rod Length
285mm
Production Capacity
5000PCS/Day
Origin
China
📦 Packaging & Delivery
Package Size
30.00cm * 30.00cm * 50.00cm
Gross Weight
10.000kg
Transport Package
Neutral Packing or Customized
🖼️ Product Gallery
Spring Brake Chamber T30/30
Spring Brake Chamber Detail

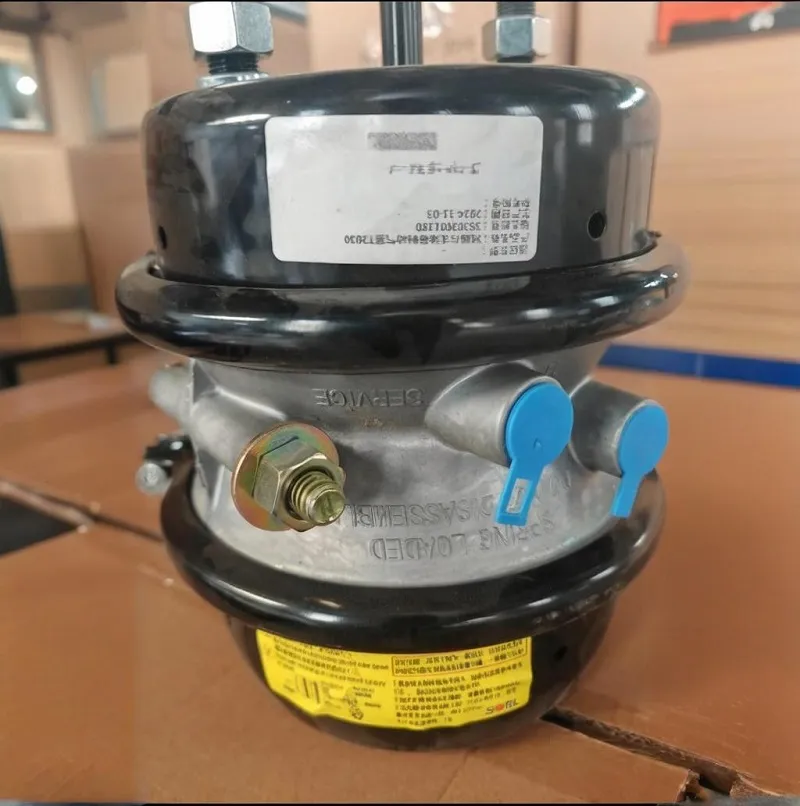

Brake System Component
Semi Trailer Brake Chamber

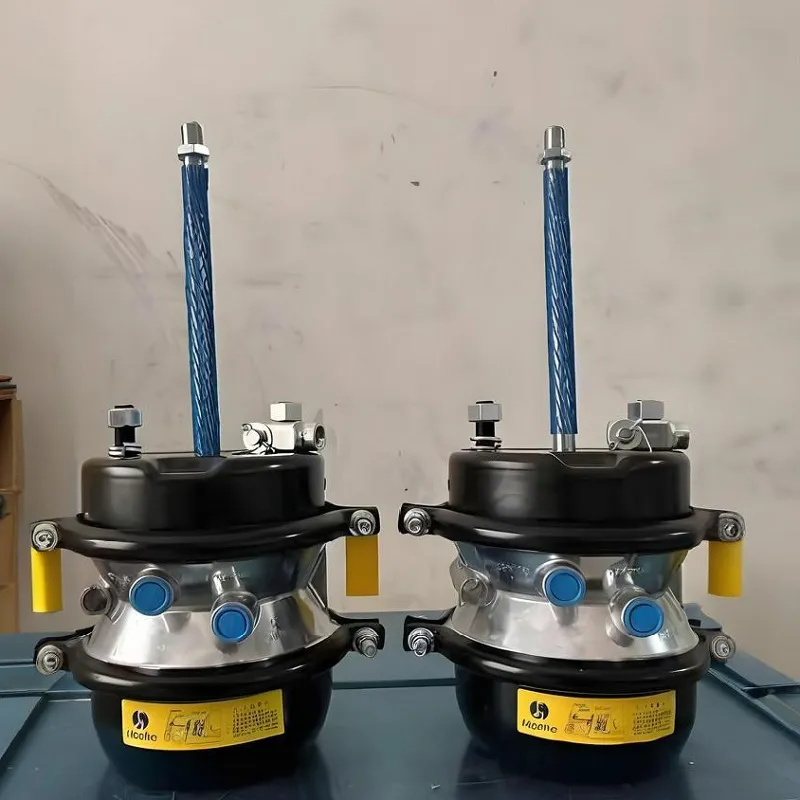

Truck Brake System
📝 Product Description

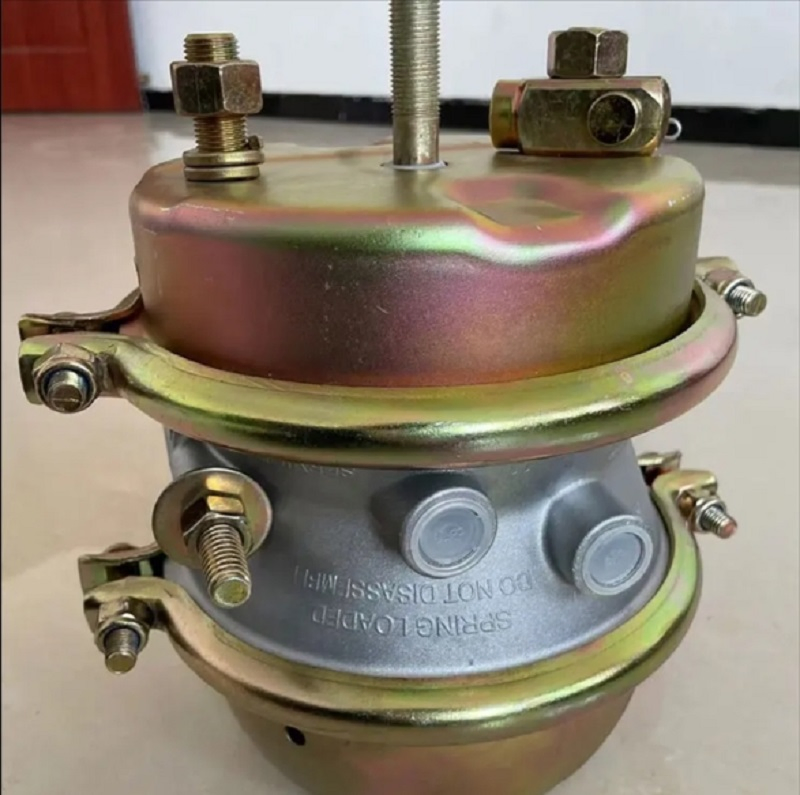

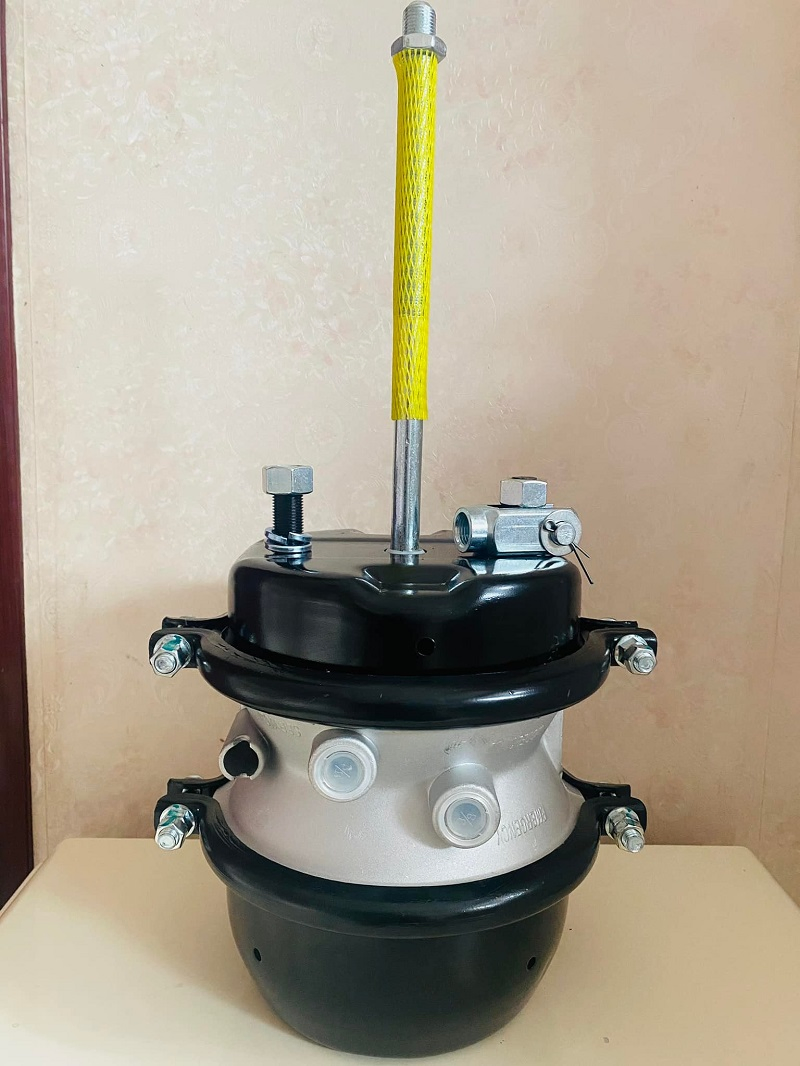

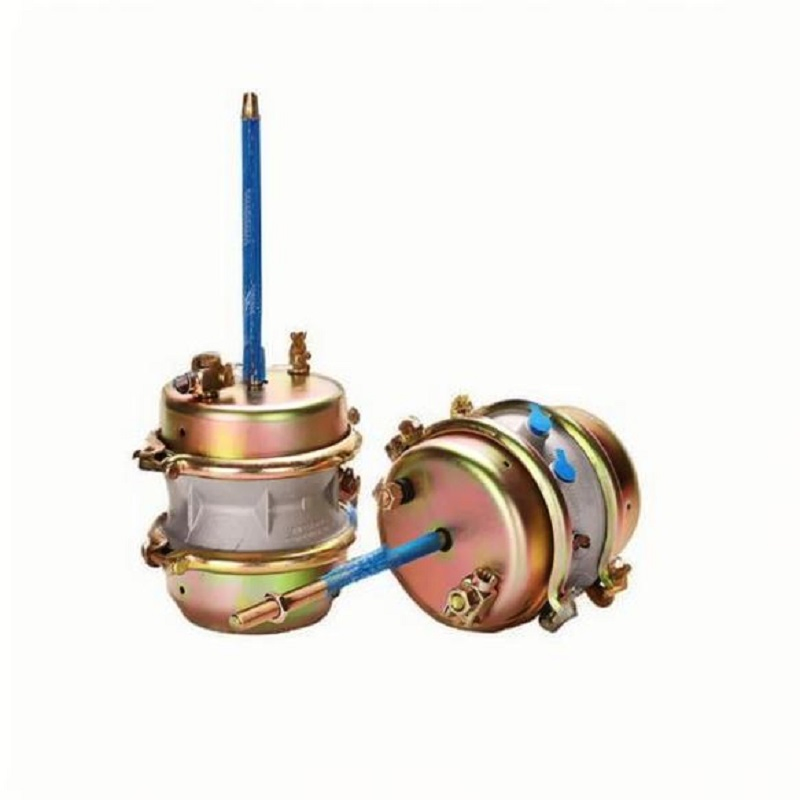

Double Air Spring Brake Chamber T30/30DS for Semi Trailer Truck Brake System Diaphragm Piston Booster Sinotruck HOWO/DONGFENG/FAW Truck Parts.
TYPE STROKE PROT THREAD BOLT THREAD BOLT CENTRE PUSH ROD THREAD PUSH ROD LENGTH
T30/30DD 64mm M16*1.5 M16*1.5 120.7mm M16*1.5 285mm
T30/30DD Sealed 64mm 3/8"-18NPT M16*1.5 120.7mm M16*1.5 285mm
T30/30 Double Sealed 64mm M16*1.5 M16*1.5 120.7mm M16*1.5 285mm
T24/30DD-E 76mm M16*1.5 M16*1.5 120.7mm M16*1.5 285mm
T24/30DD 64mm 3/8"-18NPT 5/8"-11UNC 120.7mm 5/8"-18UNF 285mm
❓ Frequently Asked Questions
What is the primary application of the T30/30DS brake chamber?
It is designed for semi-trailer truck brake systems, serving as a diaphragm piston booster compatible with major truck brands like HOWO, DONGFENG, and FAW.
What materials are used in its construction?
The main body is constructed from high-quality iron, ensuring durability and reliability in heavy-duty braking conditions.
Does the product meet international quality standards?
Yes, the production process and the product itself are ISO9001 certified, ensuring consistent quality and safety.
Can the push rod length or thread be customized?
The standard push rod length is 285mm with M16*1.5 or 5/8" threads. Further customization may be available based on production capacity.
What color options are available for the brake chamber?
The standard finish is available in either Black or Yellow coating to prevent corrosion.
What is the daily production capacity for this model?
We have a robust production capacity of approximately 5,000 pieces per day to meet large-scale industrial demands.
