📋 Basic Information
Certification
ISO9000, CCC
Bearing Capacity
Powered Mechanical
Truck type
flatbed truck with ramps
Wheels
10 wheel flatbed truck with ramps
Package Size
1098.00cm * 255.00cm * 335.00cm
🚛 Product Description

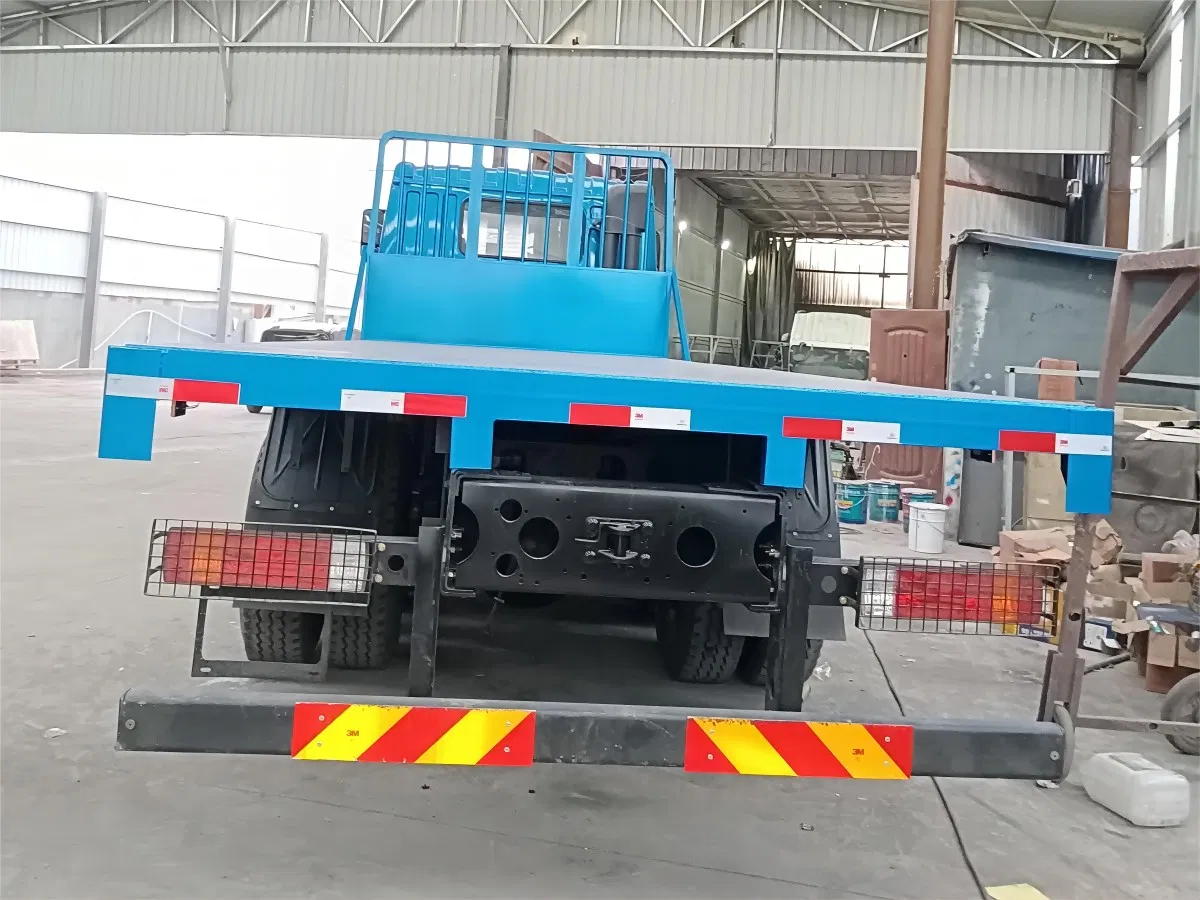

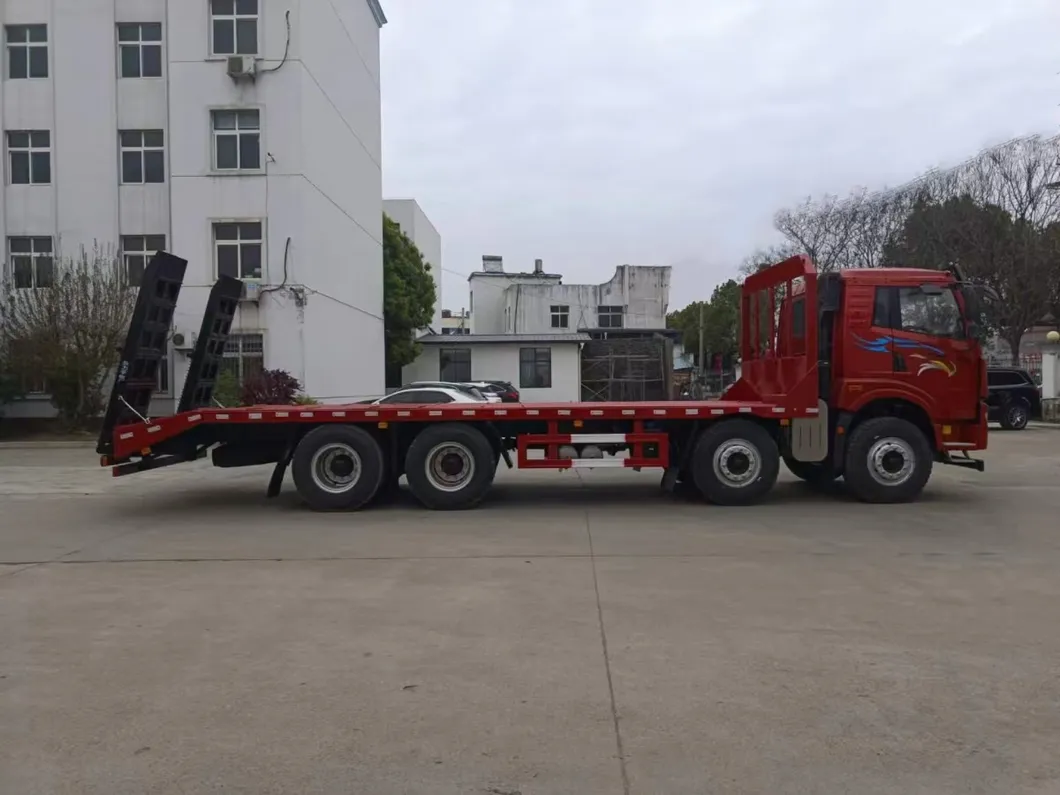

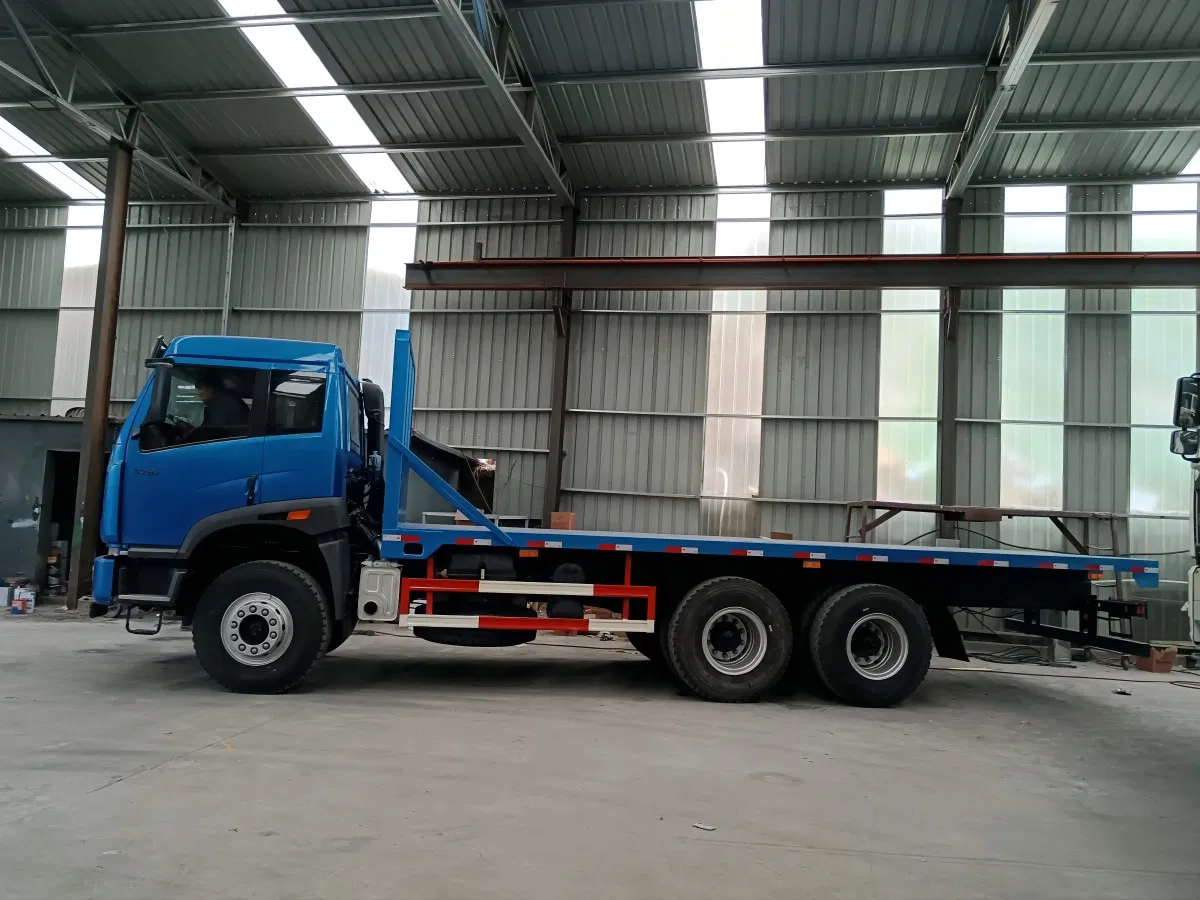

20 tons 6x4 flatbed truck for sale
A flatbed truck is a large vehicle with a flat body and no sides or roof around the bed. Typically, these types of trucks are used to transport heavy loads that won't be compromised in bad weather or on rough roads. Their unique bed design is ideal for loads that would be too wide for a truck with an enclosed body. Drivers can load them quickly and easily with use of forklifts and other like types of equipment.
Flatbed trucks have a flat rear bed in the back, making it a versatile tow truck for your hauling needs. Such as excavator, wheel loader, farm tractor, breakdown car, farm equipements, and so on. The flatbed also could be mounted container twist lock for transporting container. We supply ramp truck with 14ft-- 31ft length flatbed body.

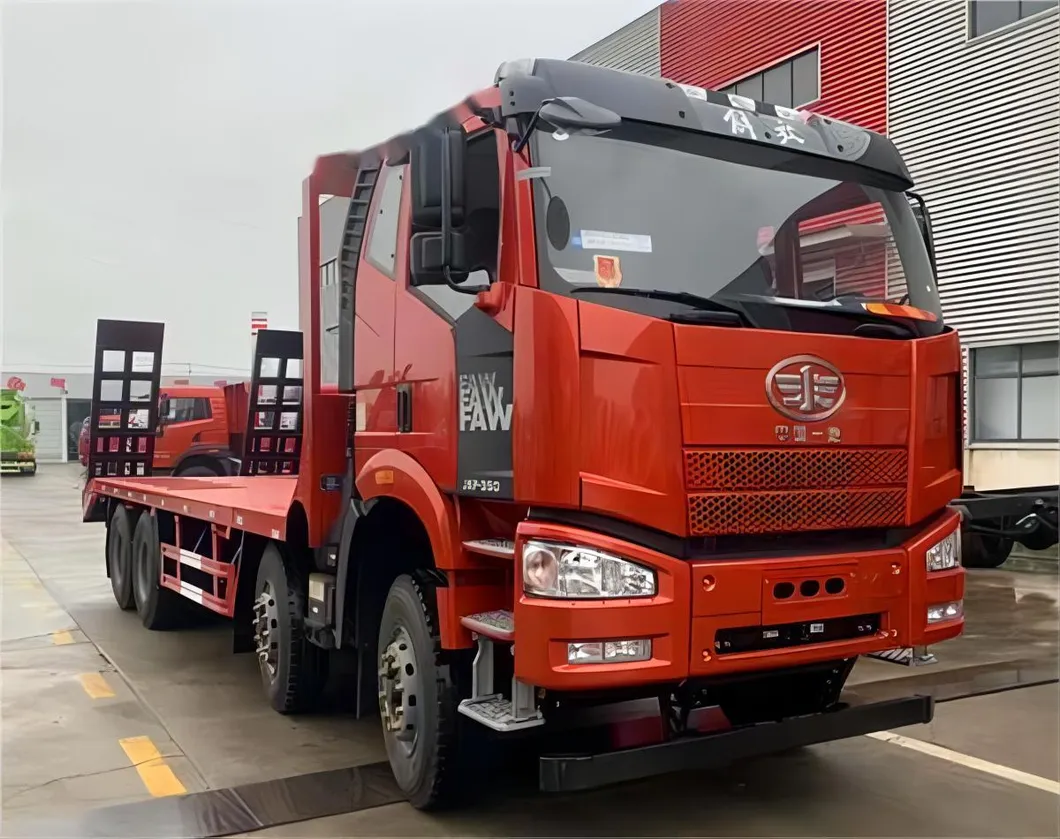

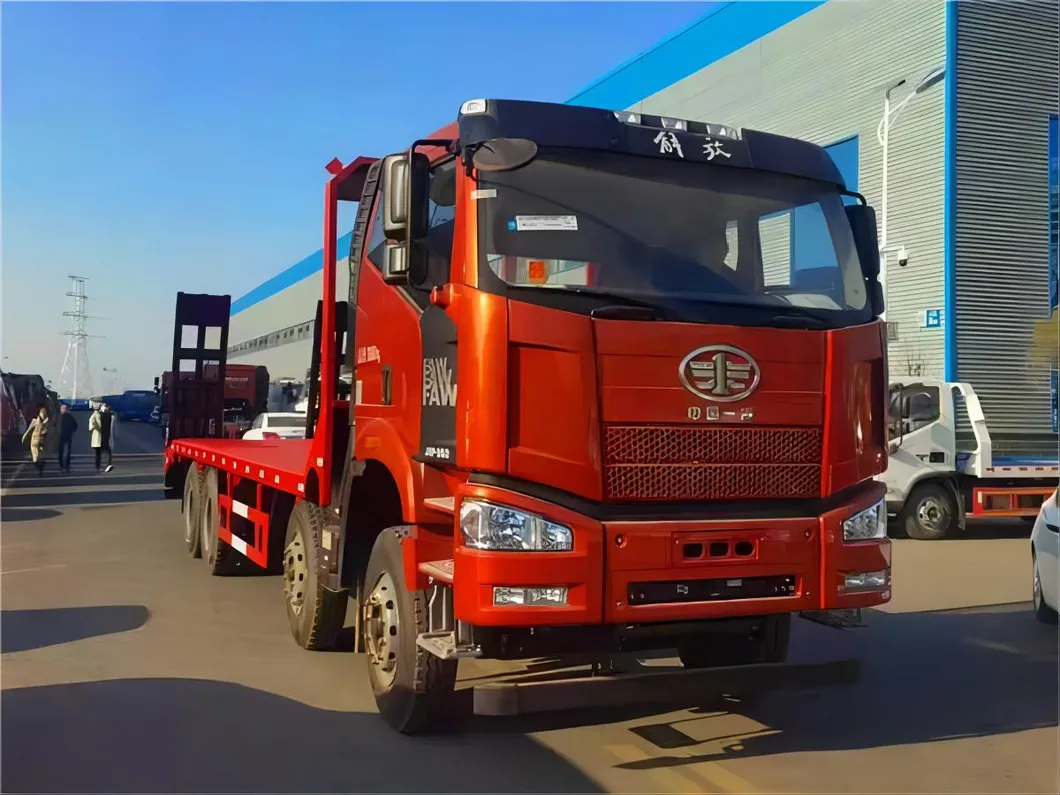

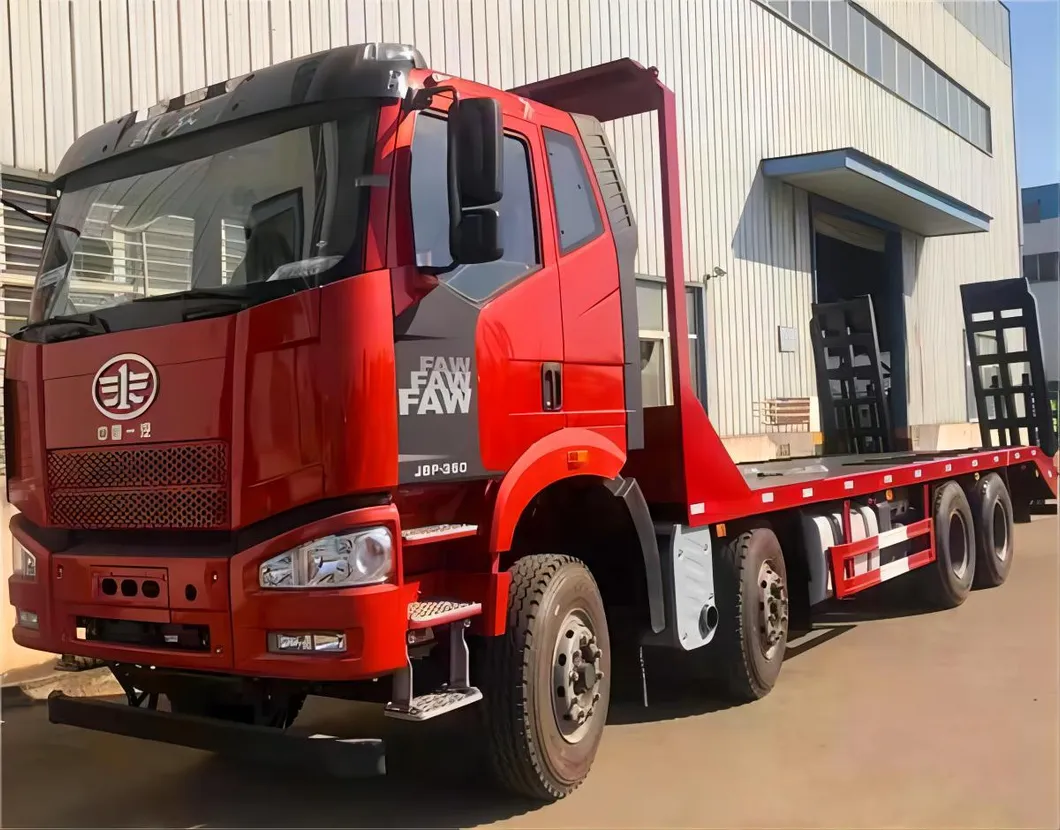

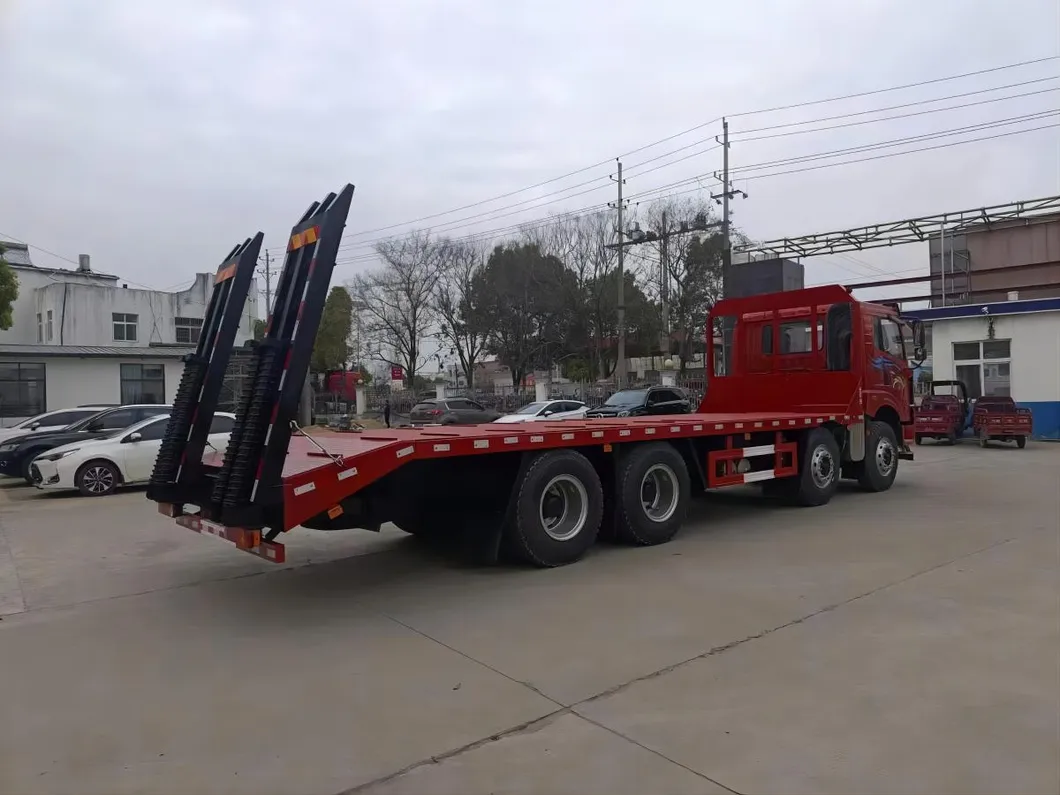

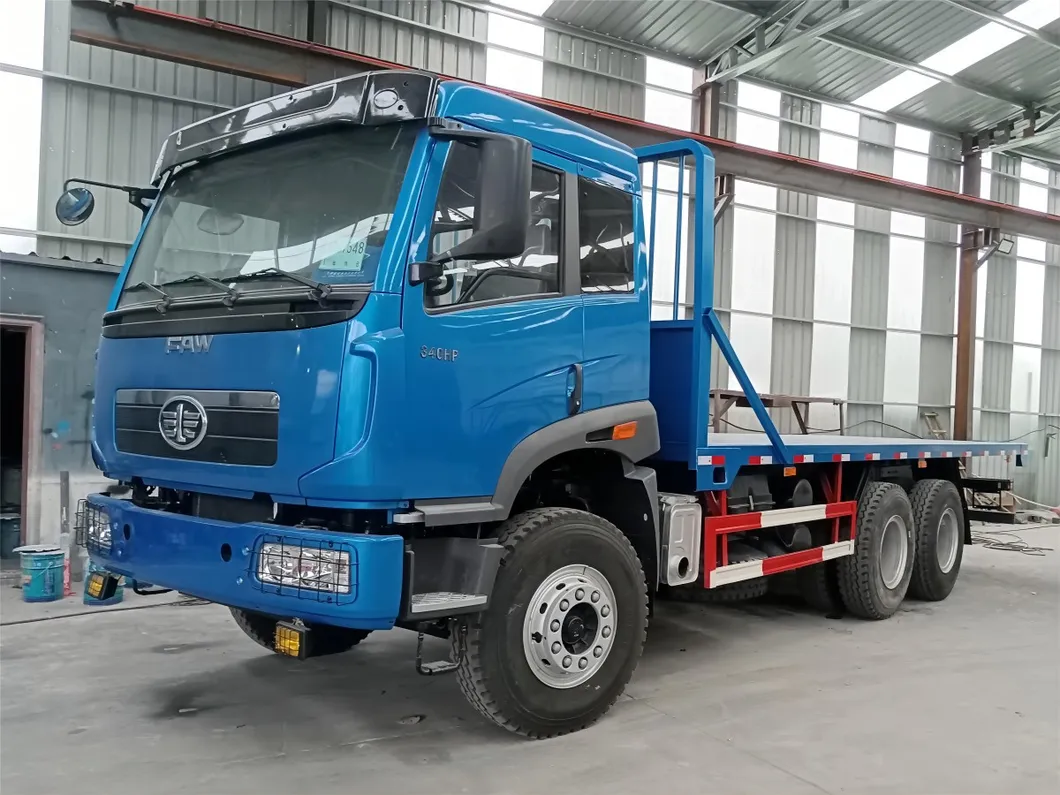

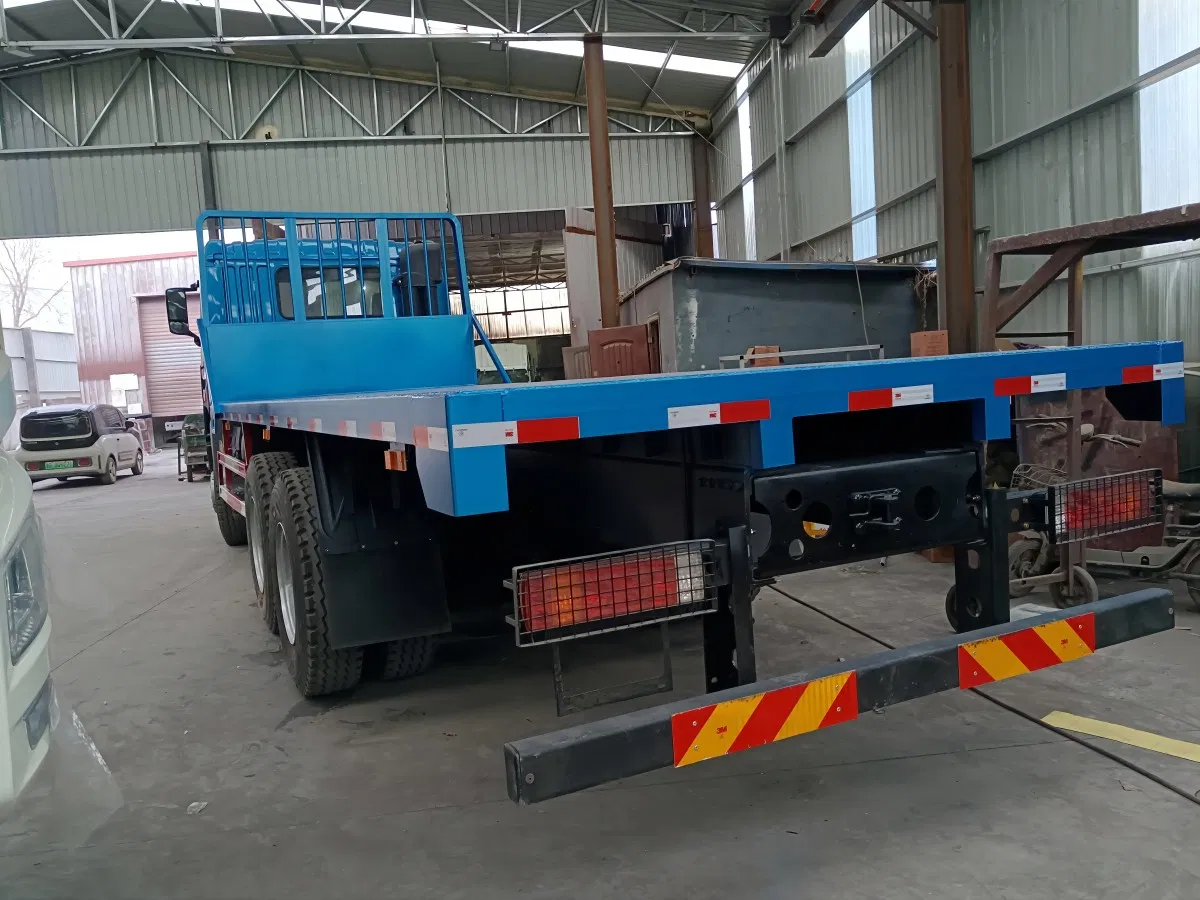

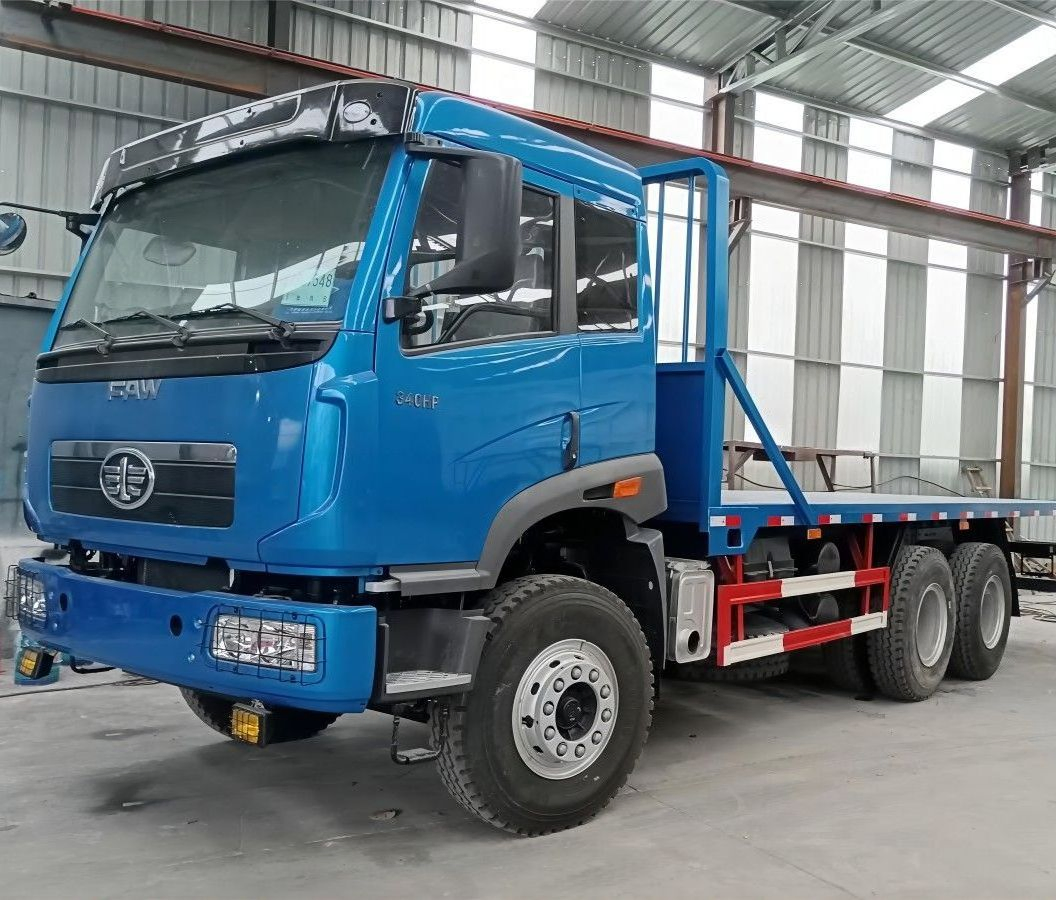

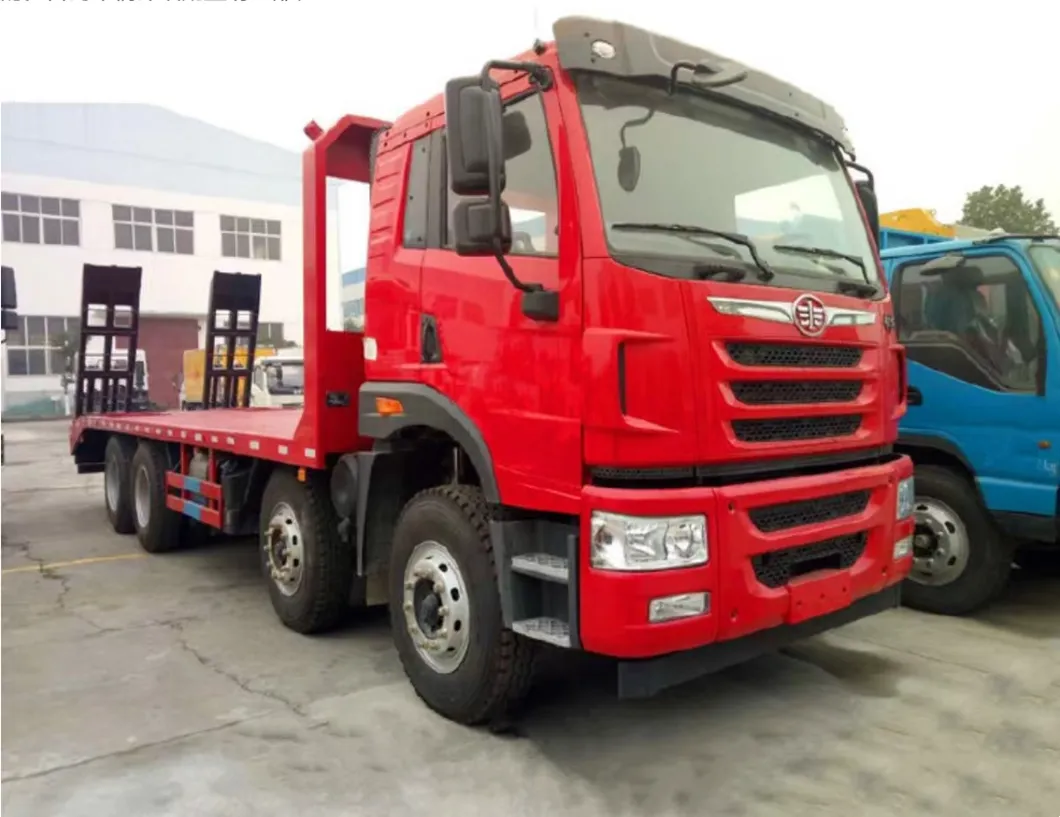

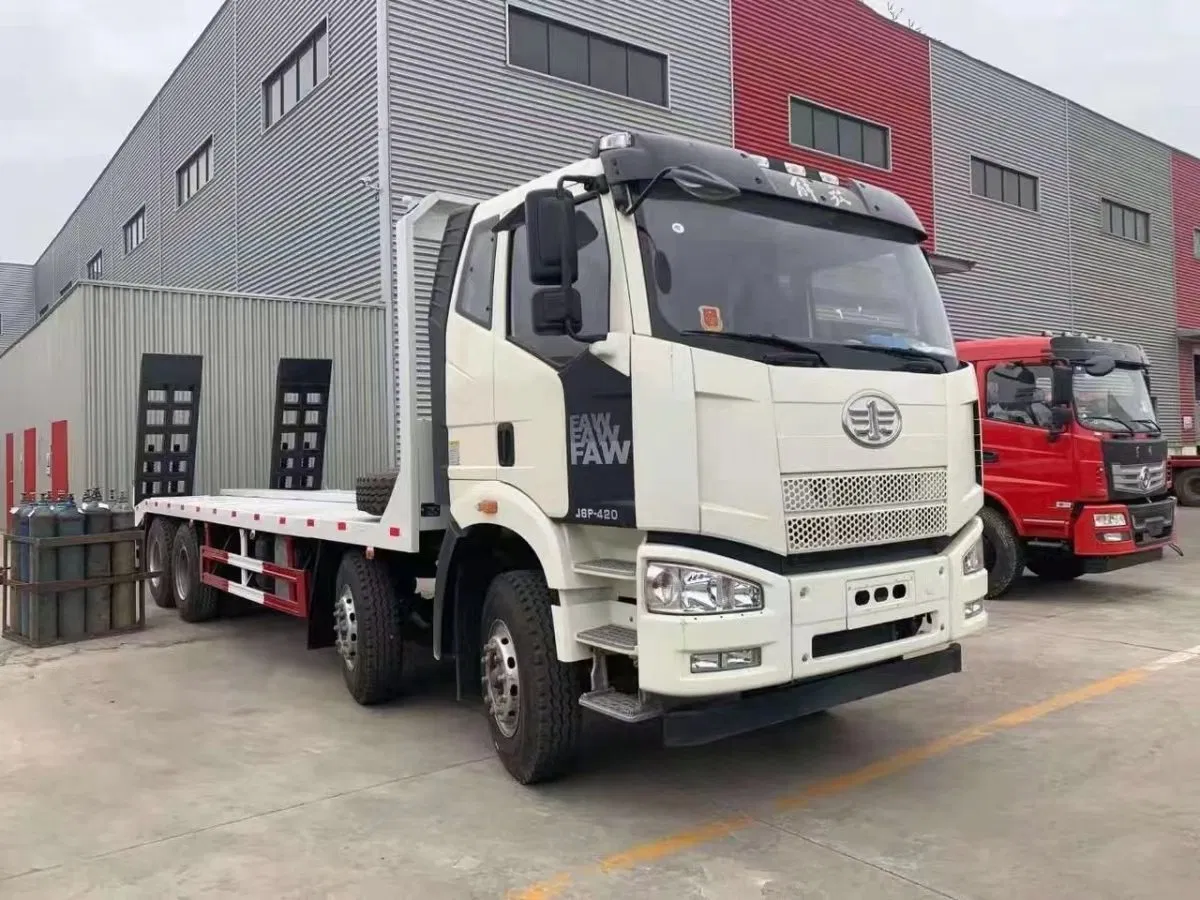

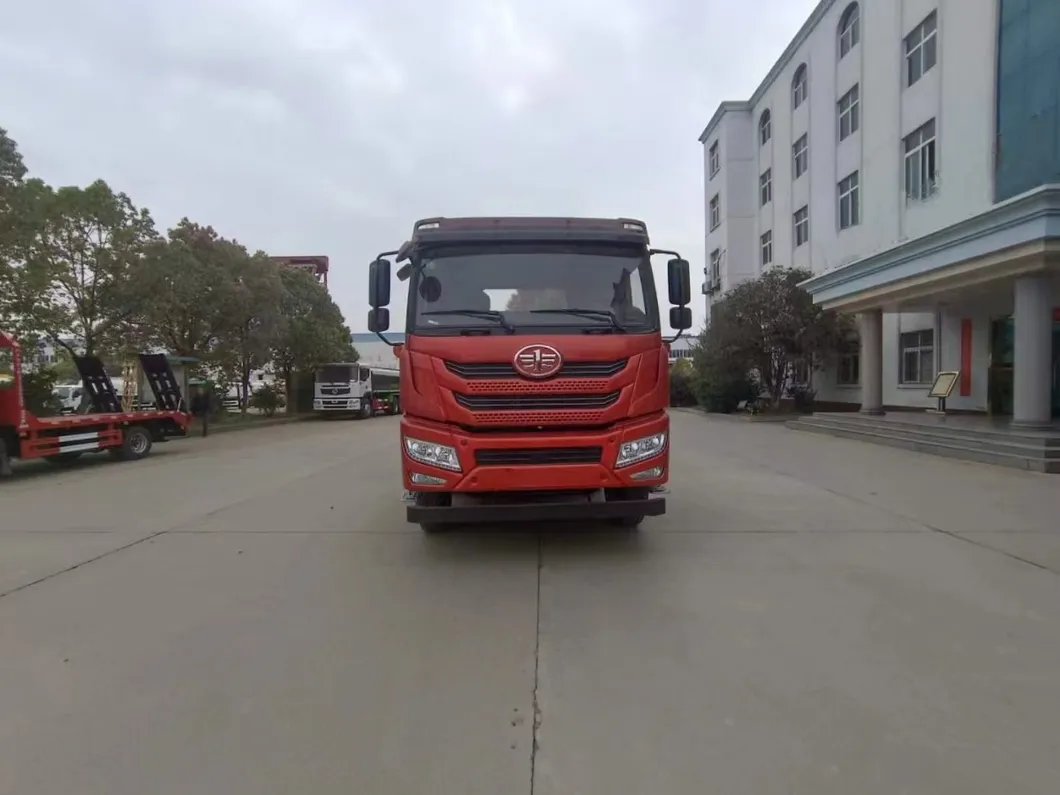

📸 Detailed Photos
⚙️ Product Parameters

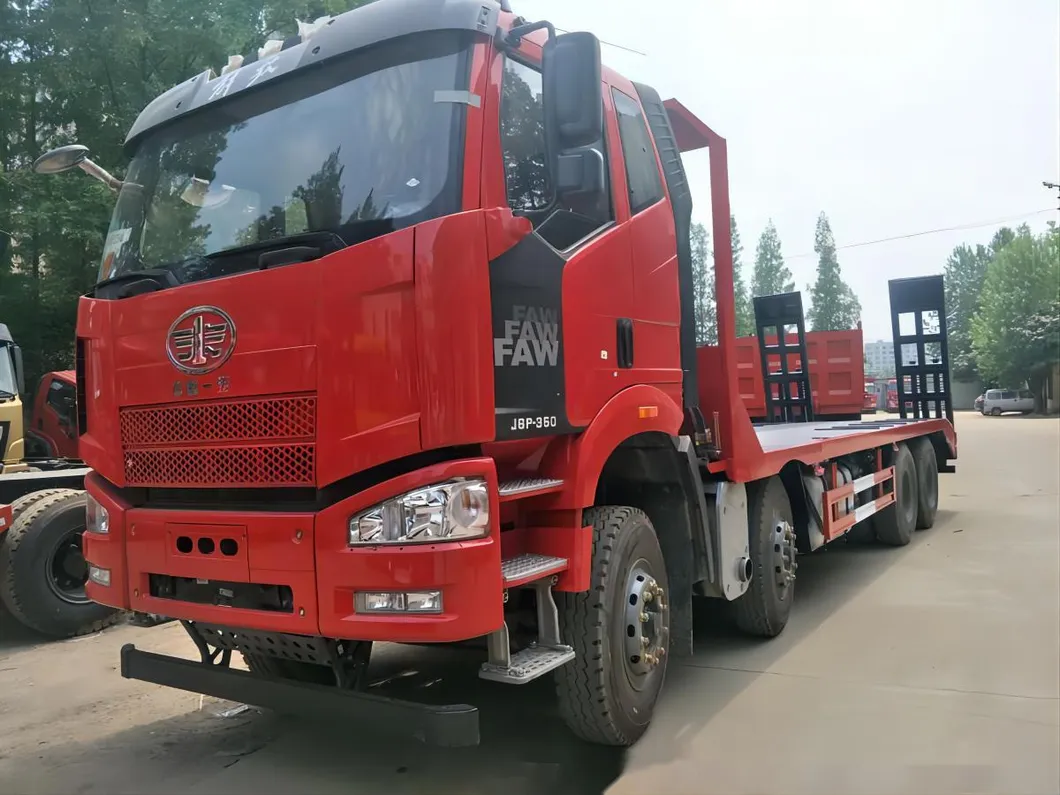

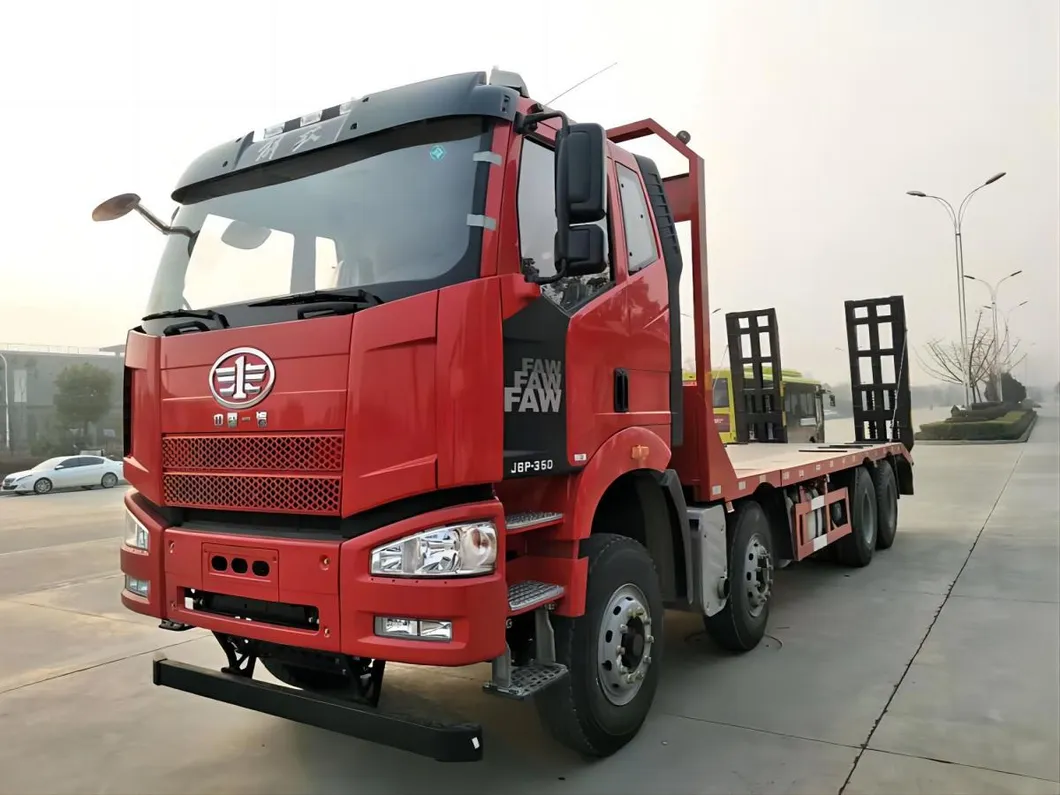

The following specifications are for a right-hand driving flatbed ramp truck. Left-hand driving, engine power, and flatbed length are optional.
| FAW Flatbed Truck Specification |
| Truck Model | CA1250P2K15L7T1EYA80 |
| Drive Wheel | 6x4 |
| Engine | Model | WP10.340E32 WEICHAI POWER |
| Maximum Output | 340HP / 250KW |
| Min. Fuel Consumption | 196g/kW.h |
| Emission Standard | Euro II |
| Transmission | CA9TB160M, Manual 9 Forward & 1 Reverse |
| Axles | Front 7 tons / Rear 16 tons (LC300) |
| Tires | 12.00R20, 18PR (10+1 pcs) |
| Overall Length | 11368mm |
| Flatbed Dimension | 9500 x 2500 mm |
| Material | Q345 Steel, 10mm Bottom Thickness |

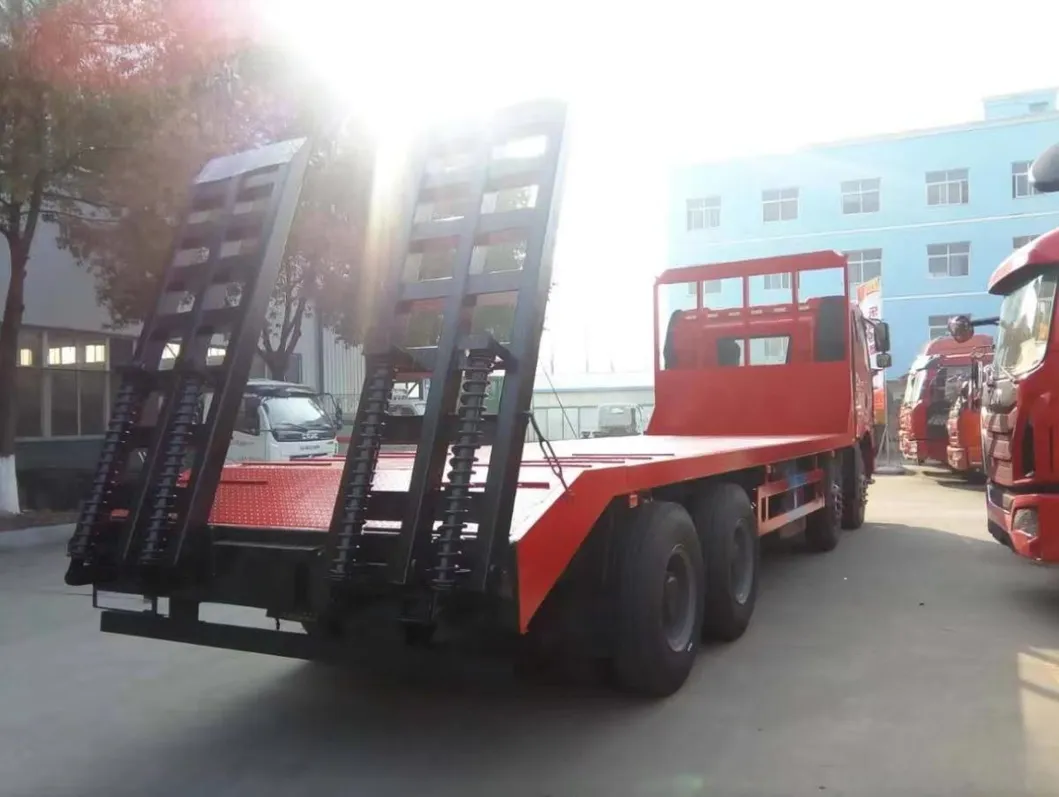

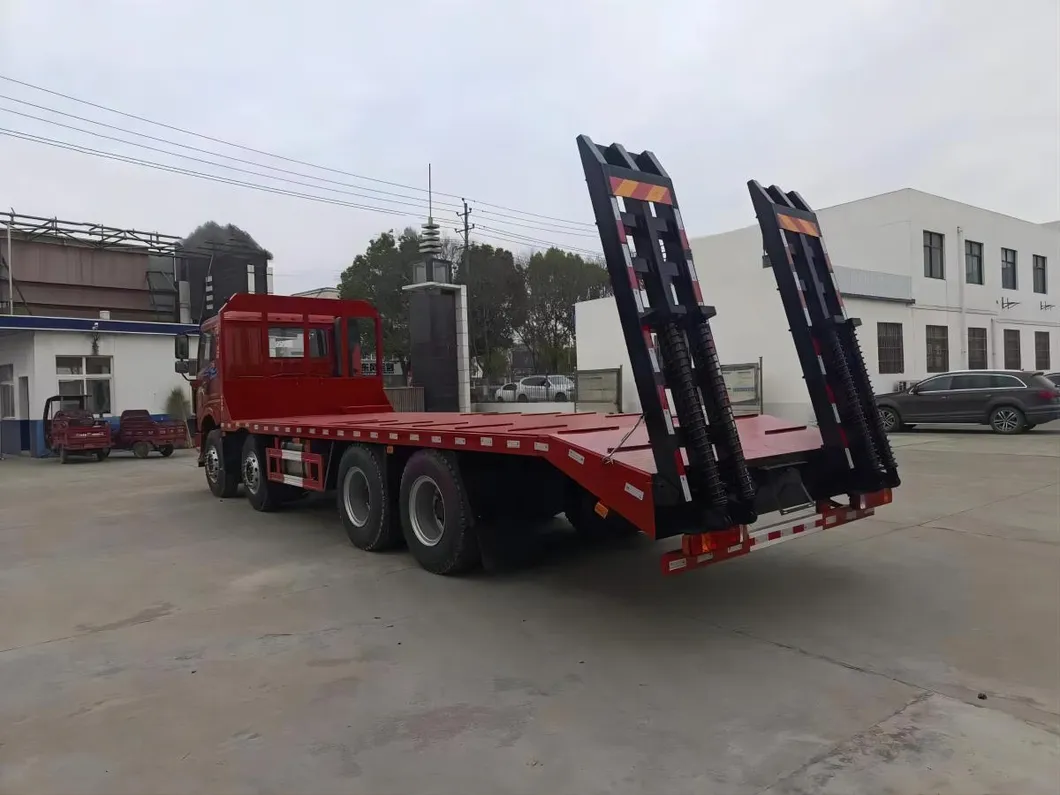

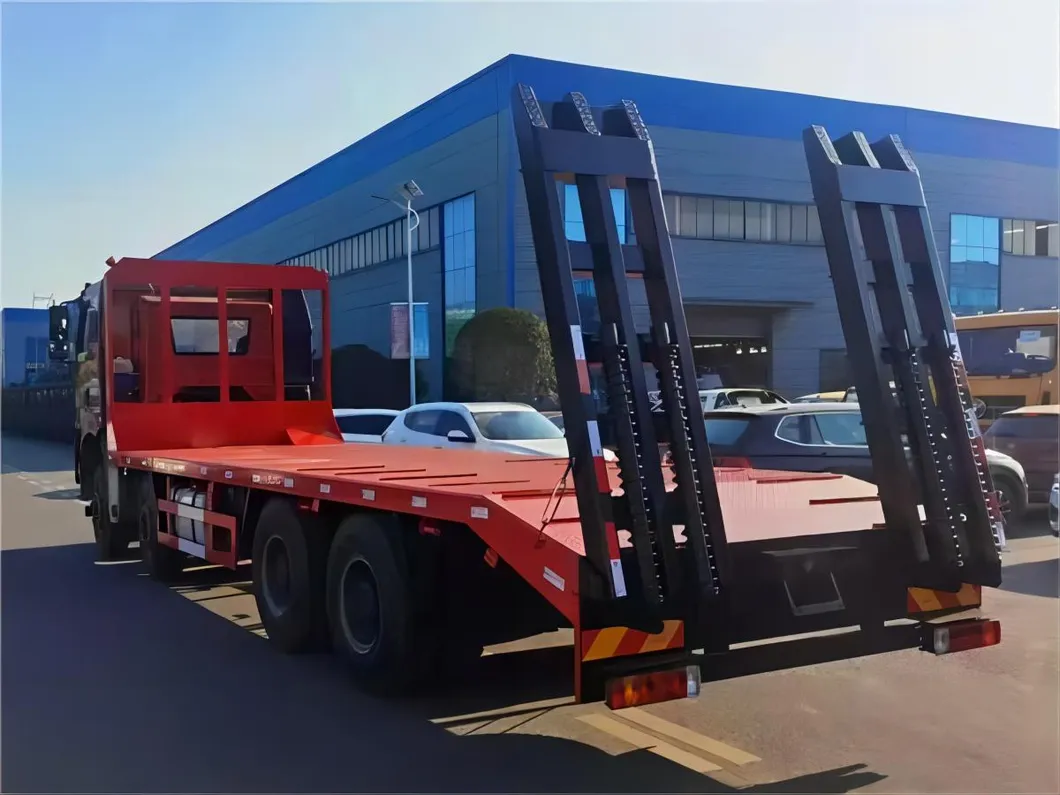

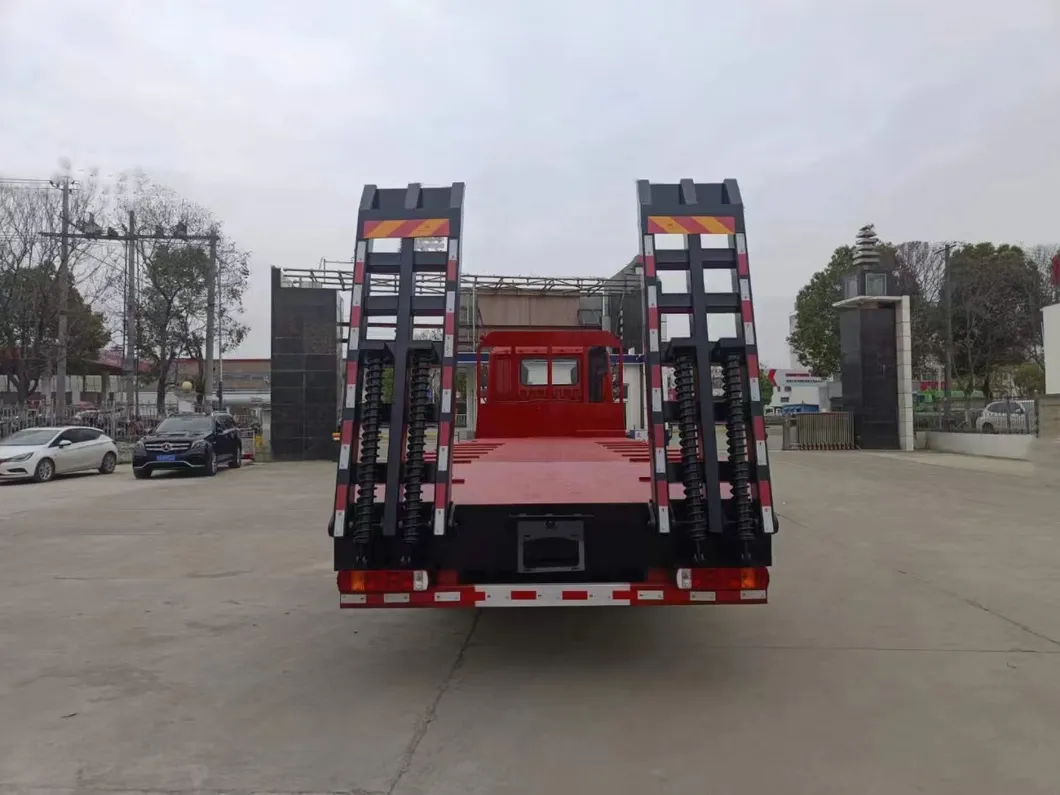

| Ramp | Mechanical with coil spring |
| Shipping | Bulk cargo vessel, Ro-Ro |
🏢 Manufacturing Capability
Specialist truck refitting and semi-trailer manufacturer in China, supplying various special purpose trucks and semi trailers. Products have been exported to more than 30 countries globally since 2005. The production process emphasizes high quality and excellent performance without reducing materials or steps.

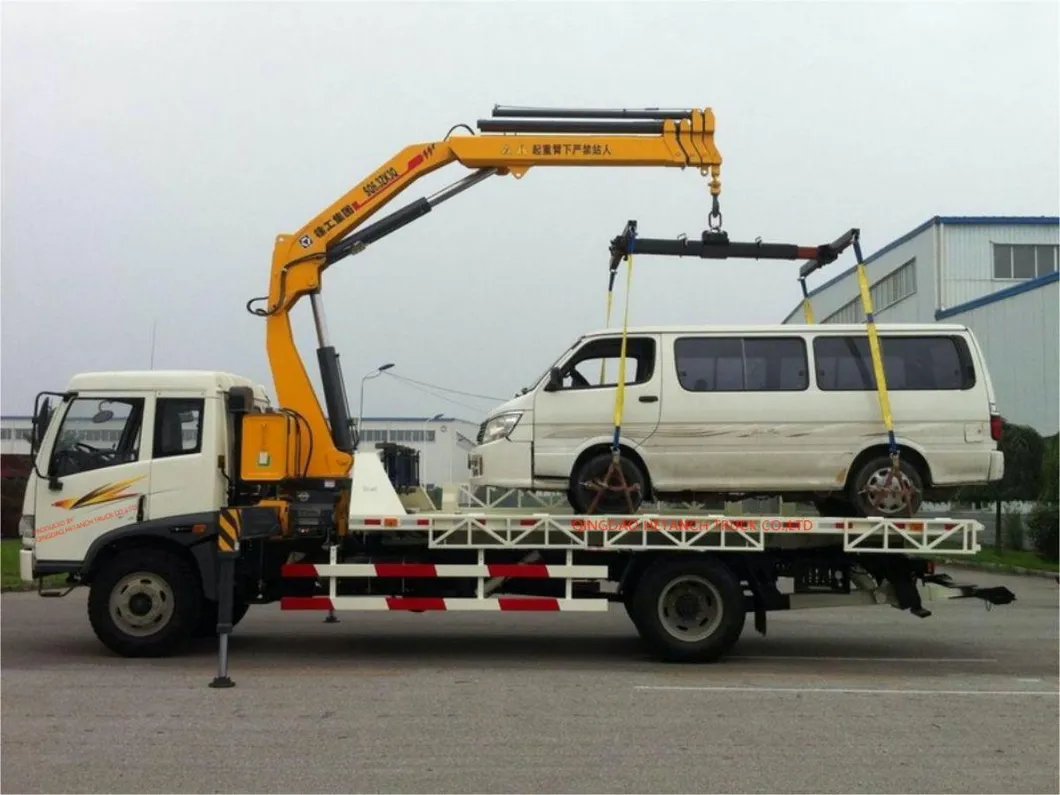

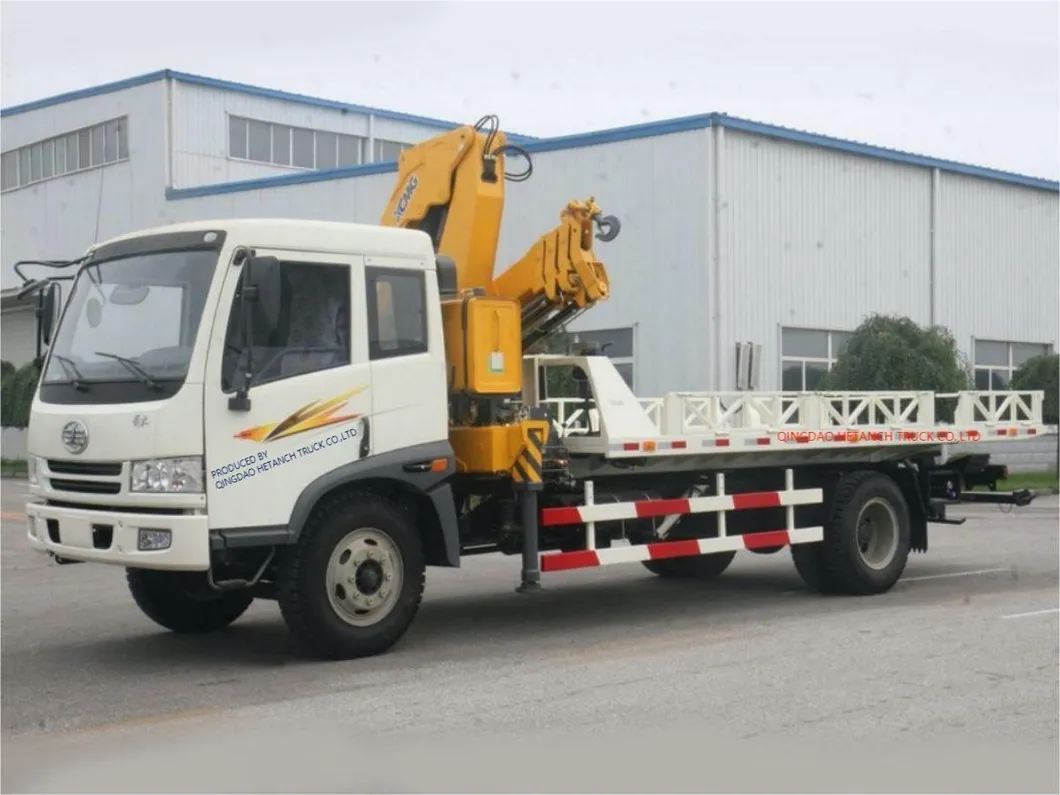

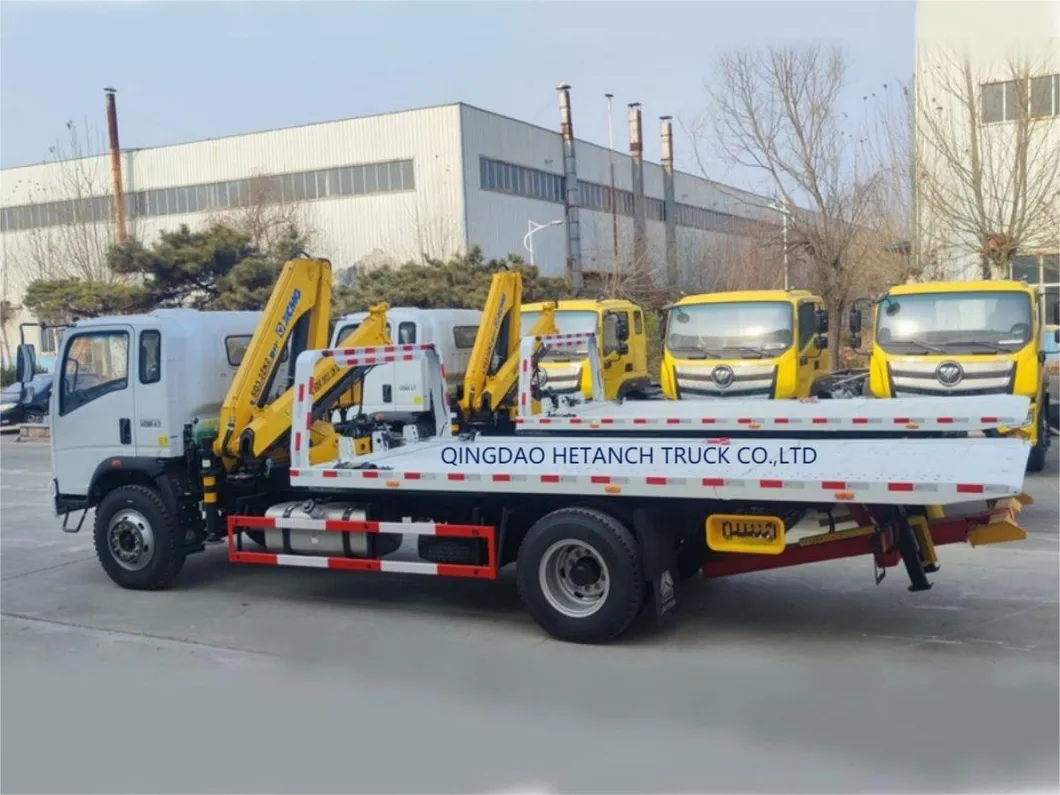

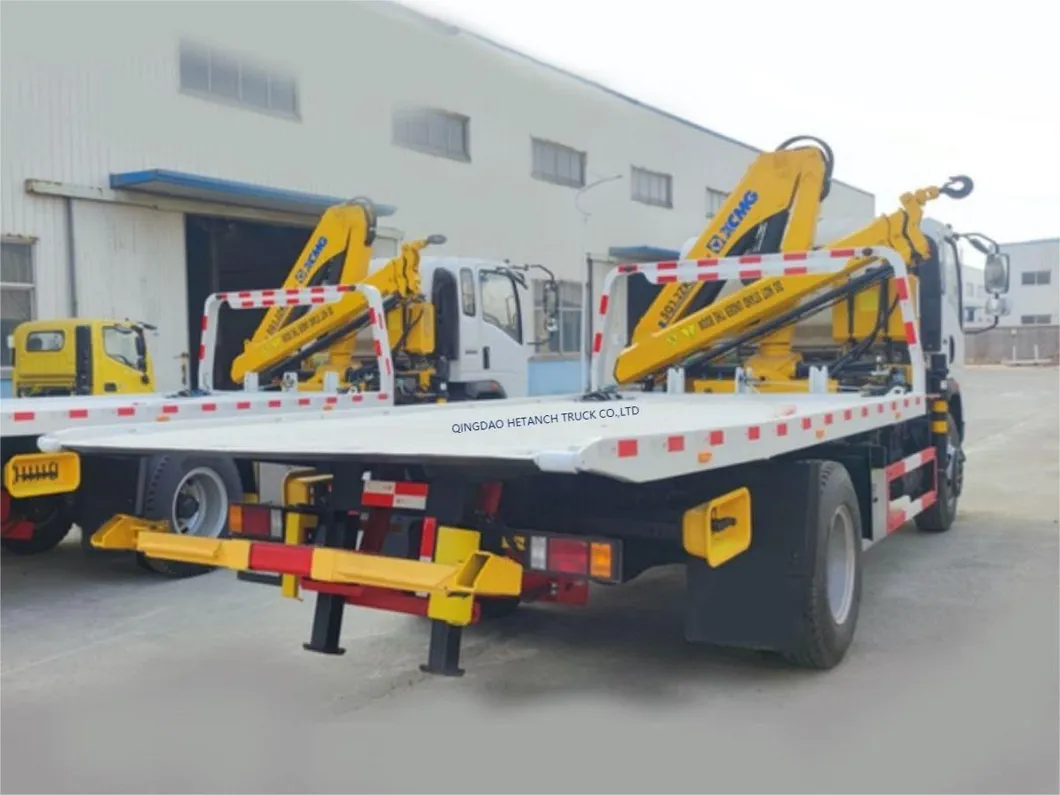

We also supply other flatbed tow trucks for recovery cars.
❓ Frequently Asked Questions
1. What are the primary uses of a flatbed ramp truck?
Flatbed ramp trucks are versatile vehicles used for hauling heavy equipment such as excavators, wheel loaders, farm tractors, breakdown cars, and other farm machinery. They can also be equipped with container twist locks.
2. What are the advantages of the flatbed design?
The unique bed design has no sides or roof, which is ideal for loads that are too wide for enclosed bodies. This allows for quick and easy loading using forklifts or other mechanical equipment.
3. Can the truck be customized for different driving needs?
Yes, we offer both 6x4 and 4x2 or 8x4 driving types. Both Right-Hand Drive (RHD) and Left-Hand Drive (LHD) configurations are available based on your requirements.
4. What materials are used for the flatbed surface?
The flatbed is constructed using Q345 high-strength steel with a 10mm thick bottom. The surface features a checkered plate with non-slip bumps to ensure load stability.
5. What is the standard loading capacity of this 6x4 truck?
This specific 6x4 model is designed for a 20-ton capacity, with a gross vehicle weight (GVW) of 25,000kg and a towing tonnage rating of 25T.
6. How are these trucks typically shipped?
For international delivery, these trucks are generally shipped via Bulk Cargo vessels or Ro-Ro (Roll-on/Roll-off) shipping to ensure safe and efficient transport.
