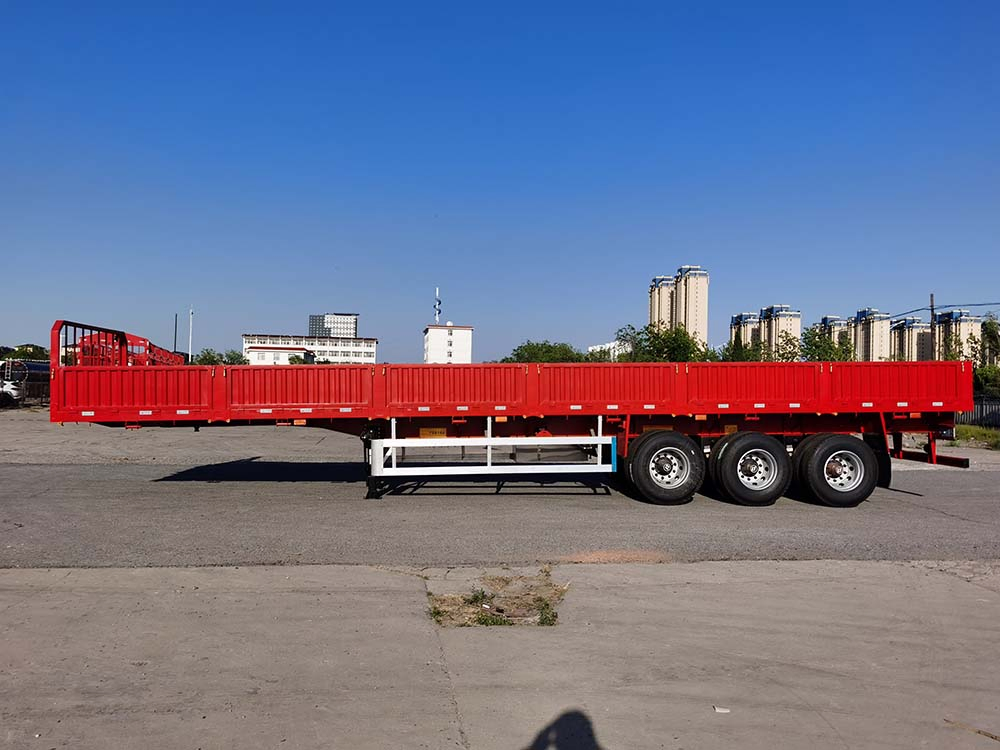

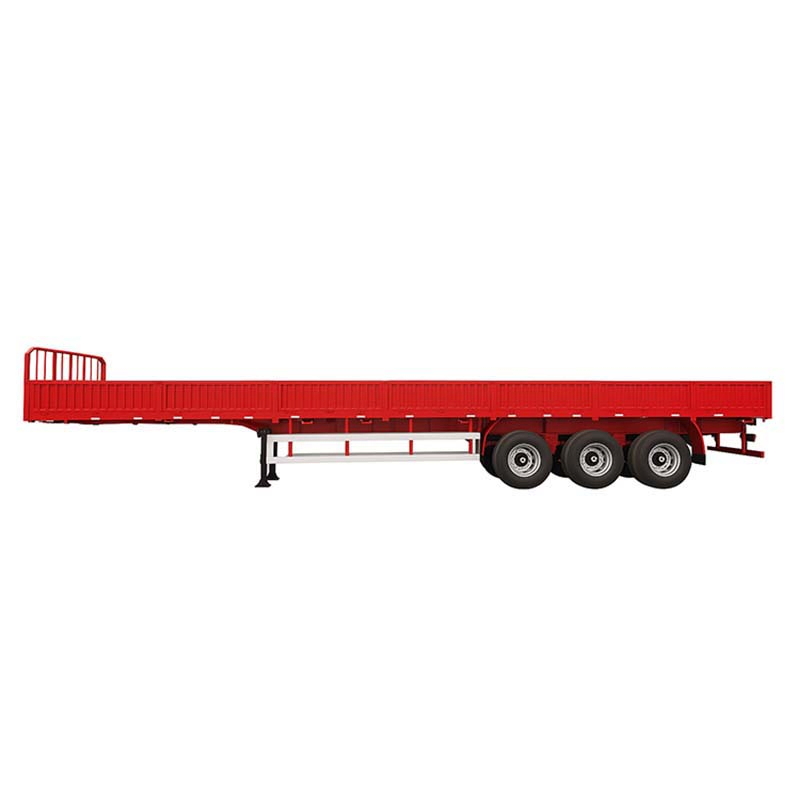

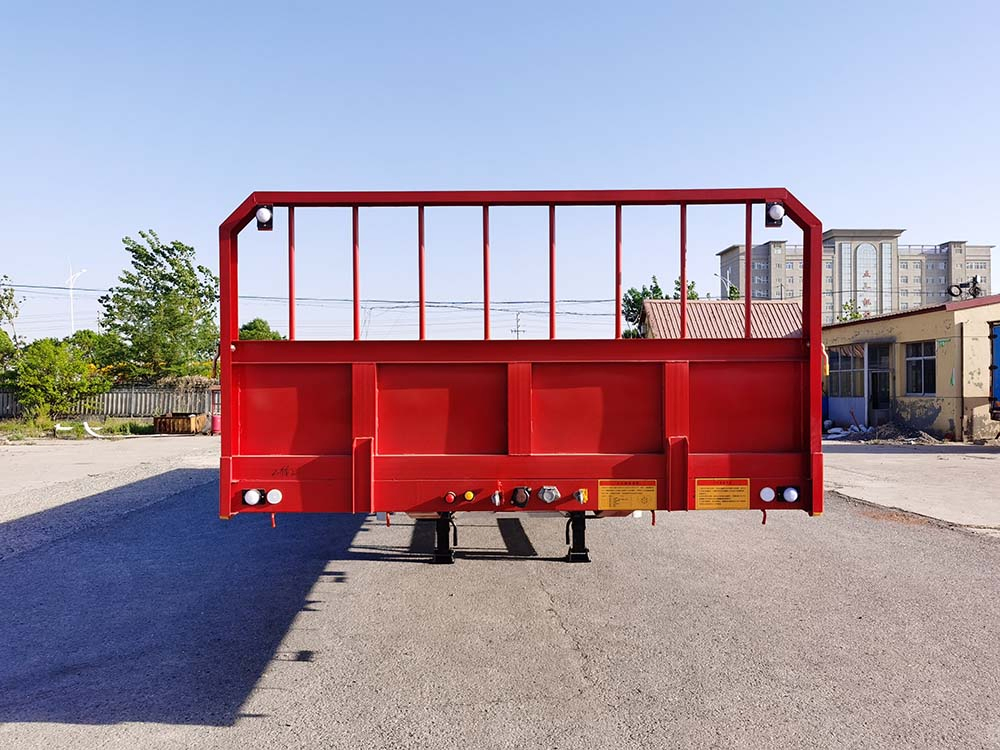

2/3/4 Axles 20FT/40FT/45FT 40tons 60tons Flatbed/Platform Container Cargo Transport Semi Truck Tanker Trailer
2/3/4 Axles 20FT/40FT/45FT 40tons 60tons Flatbed/Platform Container Cargo Transport Semi Truck Tanker Trailer
2/3/4 Axles 20FT/40FT/45FT 40tons 60tons Flatbed/Platform Container Cargo Transport Semi Truck Tanker Trailer
2/3/4 Axles 20FT/40FT/45FT 40tons 60tons Flatbed/Platform Container Cargo Transport Semi Truck Tanker Trailer
2/3/4 Axles 20FT/40FT/45FT 40tons 60tons Flatbed/Platform Container Cargo Transport Semi Truck Tanker Trailer
1 / 5
2/3/4 Axles 20FT/40FT/45FT 40tons 60tons Flatbed/Platform Container Cargo Transport Semi Truck Tanker Trailer
2/3/4 Axles 20FT/40FT/45FT 40tons 60tons Flatbed/Platform Container Cargo Transport Semi Truck Tanker Trailer
2/3/4 Axles 20FT/40FT/45FT 40tons 60tons Flatbed/Platform Container Cargo Transport Semi Truck Tanker Trailer
2/3/4 Axles 20FT/40FT/45FT 40tons 60tons Flatbed/Platform Container Cargo Transport Semi Truck Tanker Trailer
2/3/4 Axles 20FT/40FT/45FT 40tons 60tons Flatbed/Platform Container Cargo Transport Semi Truck Tanker Trailer

2/3/4 Axles 20FT/40FT/45FT 40tons 60tons Flatbed/Platform Container Cargo Transport Semi Truck Tanker Trailer

Customization: Available
After-sales Service: Yes
Warranty: 1 Year
Send Inquiry

Product Description

📋

Basic Information

Model NO.:
HCSVTANK021
Type:
Semi-Trailer
Load Capacity:
50T
Certification:
ECE, GCC, CE, ISO9001, DOT, CCC
Axle Number:
3
Tire Number:
12
Material:
Steel
Overall Dimension:
12800*2550*2150mm
Sidewall Board:
60cm Height & Detachable
Suspension:
Leaf Spring, 10PCS
🚛

Product Description

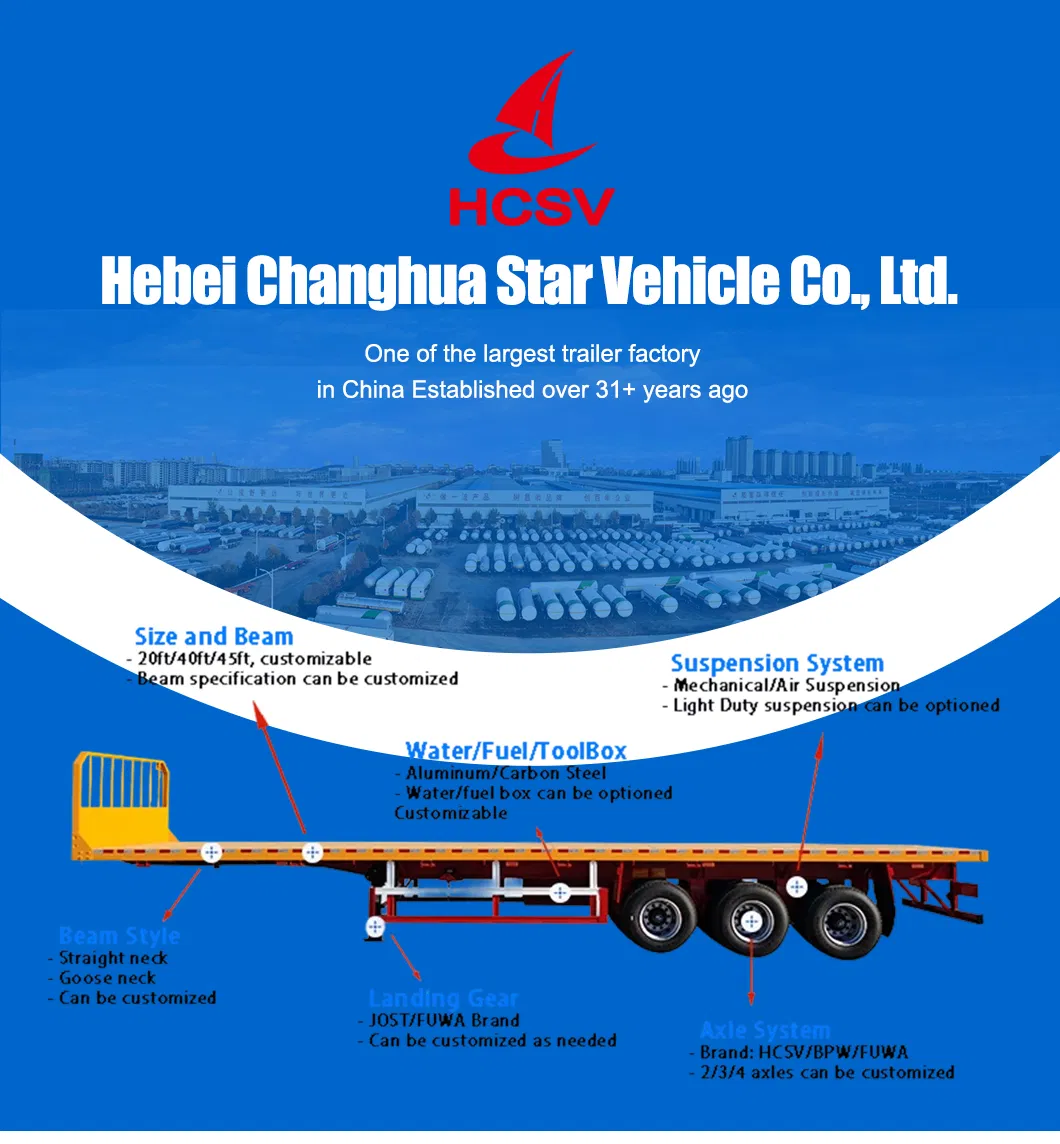

Flatbed Trailer View 1
Flatbed Trailer View 2

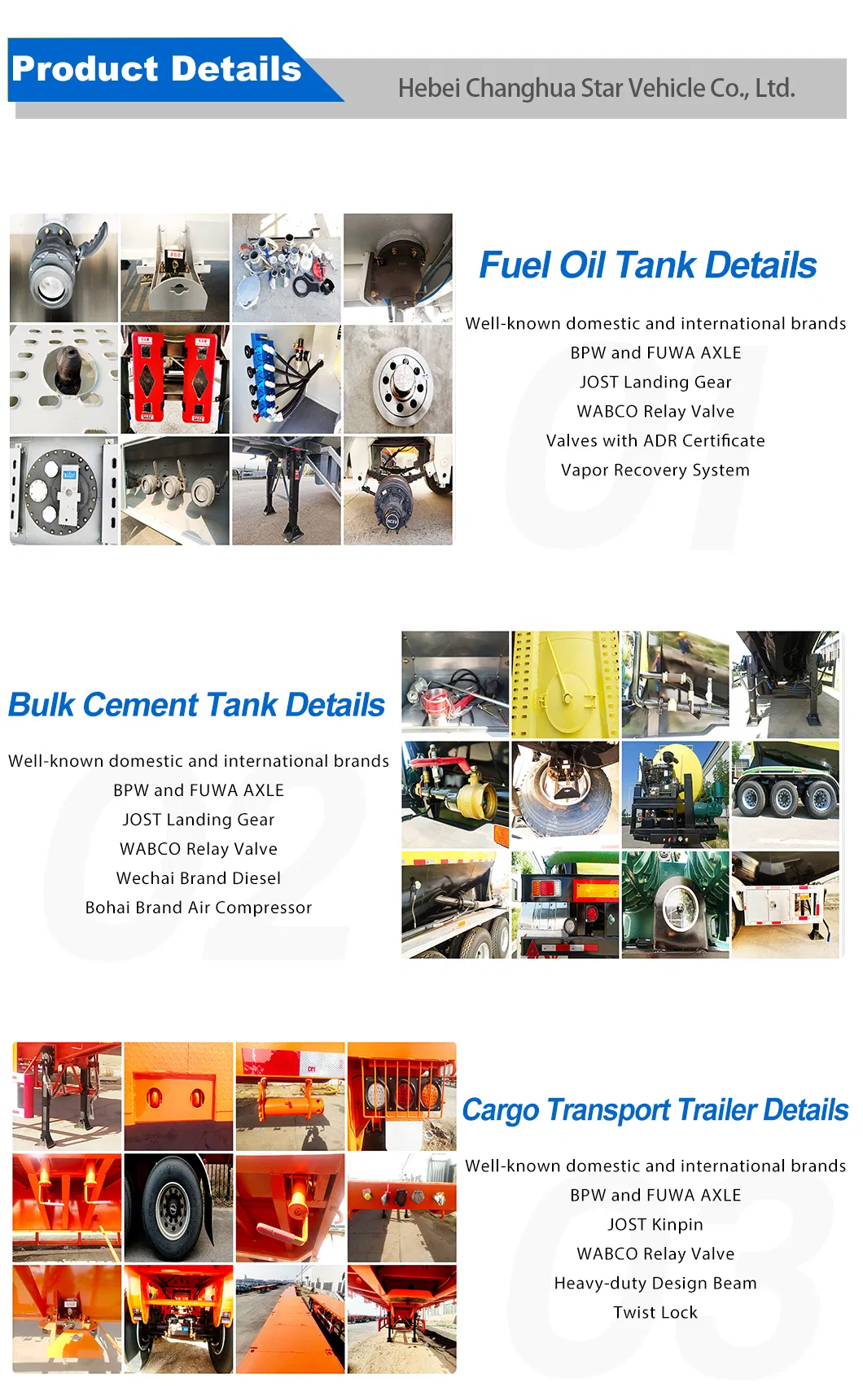

Flatbed Trailer View 3
⚙️

Detailed Specifications

Trailer Specification
FunctionTransport container, loose cargo, bagged cement, bulk rice, etc.
Overall Dimension12800*2550*2150mm (Approx)
MaterialCarbon steel, Q345B
Payload50 Tons
ChassisTop: 14mm | Middle: 8mm | Bottom: 16mm
Platform3mm thickness checkered steel plate
Main Parts Specification
SuspensionLeaf spring, 16mm*90mm*10pcs
Axle13T with ABS and automatic slack adjusters (3 units)
Tire12R22.5, 12 units (Tubeless type)
King Pin50#(2”) or 90#(3.5”) JOST brand
Landing GearJOST A300C, 28T capacity
Twist Lock12 units (for 40ft or 20ft containers)
Electric System24V, 7-pin socket, LED lights
📷

Product Gallery

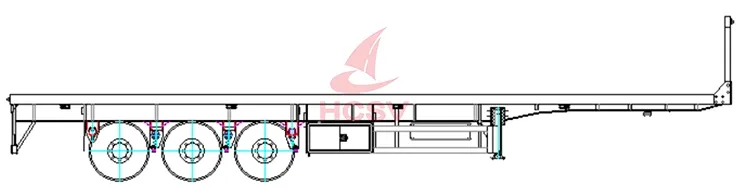

Gallery Image 1

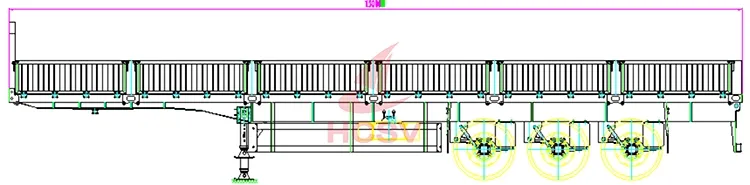

Gallery Image 2

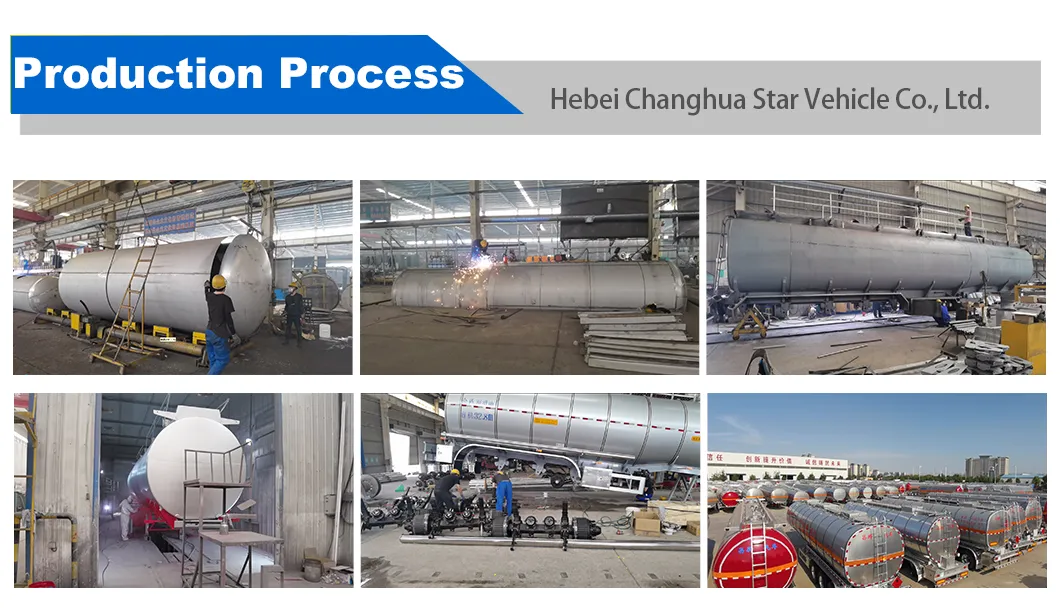

Production Process
Details View
🏢

Professional Capability

Production Facility
📜

Certifications

Certificates Display
🌟

Our Advantages

Advantage 1
Advantage 2
❓

Frequently Asked Questions

Q1: What is the maximum load capacity of this semi-trailer?
The heavy-duty design allows for a payload capacity of 50 tons.
Q2: What materials are used in the construction of the chassis?
The trailer is built using high-quality Carbon Steel (Q345B) for maximum durability and strength.
Q3: Can this trailer transport different container sizes?
Yes, it is equipped with 12 units of twist locks, making it capable of delivering both 20-foot and 40-foot containers.
Q4: Is the sidewall board removable?
Yes, the sidewall board is 60cm in height and features a detachable-type design for versatile cargo transport.
Q5: What type of braking system is installed?
The trailer comes with an ABS Anti-lock Braking System and automatic slack adjusters for enhanced safety.
Q6: How is the trailer protected against corrosion?
It undergoes a professional painting process including one coat of anti-corrosive primer and two coats of finish paint, with spray wax protection before departure.

Related Products

2/3/4 Axles 20FT/40FT/45FT 40tons 60tons Flatbed/Platform Container Cargo Transport Semi Truck Tanker Trailer

2/3/4 Axles 20FT/40FT/45FT 40tons 60tons Flatbed/Platform Container Cargo Transport Semi Truck Tanker Trailer

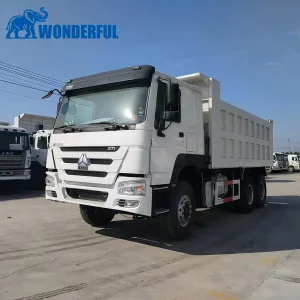

Sinotruk Homan Shacman 6X4 8X4 Wheel Drive Mini Flatbed Stake Dump Truck Garbage Nx Tx Unload Transport Spare Parts Free Euro 2 3 Hydraulic System Tractor Truck

Sinotruk Homan Shacman 6X4 8X4 Wheel Drive Mini Flatbed Stake Dump Truck Garbage Nx Tx Unload Transport Spare Parts Free Euro 2 3 Hydraulic System Tractor Truck

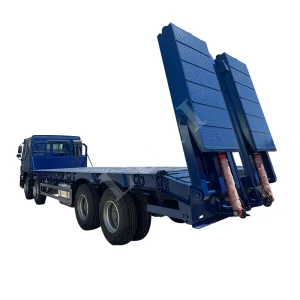

Heavy Duty 40ton 35ton HOWO Flatbed Truck 8X4 Cargo Truck Heavy Duty Excavator Transport Used Truck

Heavy Duty 40ton 35ton HOWO Flatbed Truck 8X4 Cargo Truck Heavy Duty Excavator Transport Used Truck
Tri-Ring 4X2 Flatbed Tow Truck Transport Cargo Truck for Towing Excavators and Construction Machinery

Tri-Ring 4X2 Flatbed Tow Truck Transport Cargo Truck for Towing Excavators and Construction Machinery

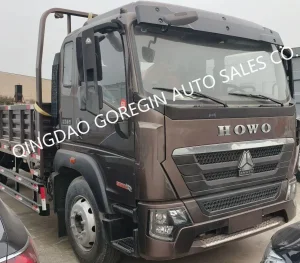

Low Price China Cheap Sinotruk HOWO 4X2 Used Second-Hand Flatbed Truck Transport Trucks Light Cargo Van Box Truck

Low Price China Cheap Sinotruk HOWO 4X2 Used Second-Hand Flatbed Truck Transport Trucks Light Cargo Van Box Truck
Low Price China Cheap Sinotruk HOWO 4X2 371HP 400HP Coal Crane Box New Small Mini Lorry Stake Flatbed 3 5 6 8ton Transport Trucks Light Cargo Van Box Truck

Low Price China Cheap Sinotruk HOWO 4X2 371HP 400HP Coal Crane Box New Small Mini Lorry Stake Flatbed 3 5 6 8ton Transport Trucks Light Cargo Van Box Truck

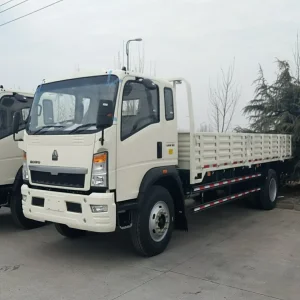

Low Price China Cheap Sinotruk HOWO 4X2 371HP 400HP Used Second-Hand New Small Mini Lorry Stake Flatbed 3 5 6 8ton Transport Trucks Light Cargo Van Box Truck
