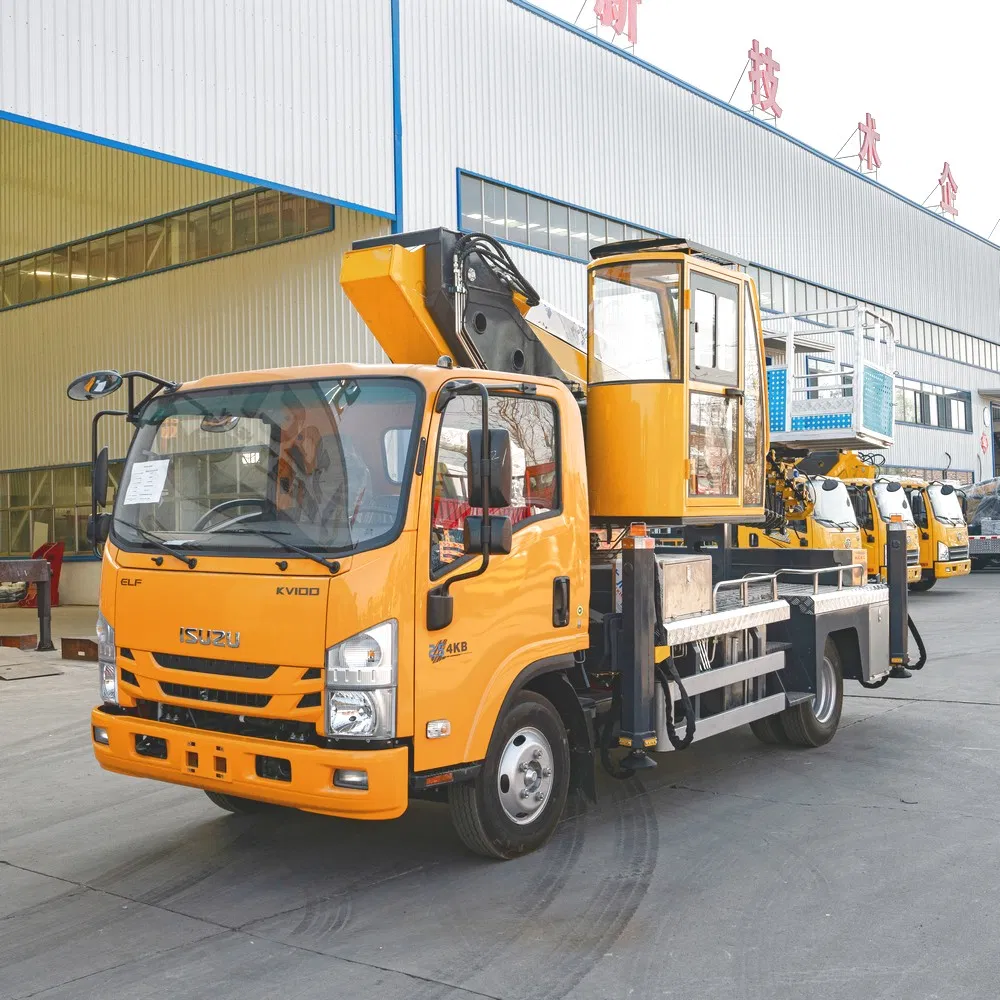

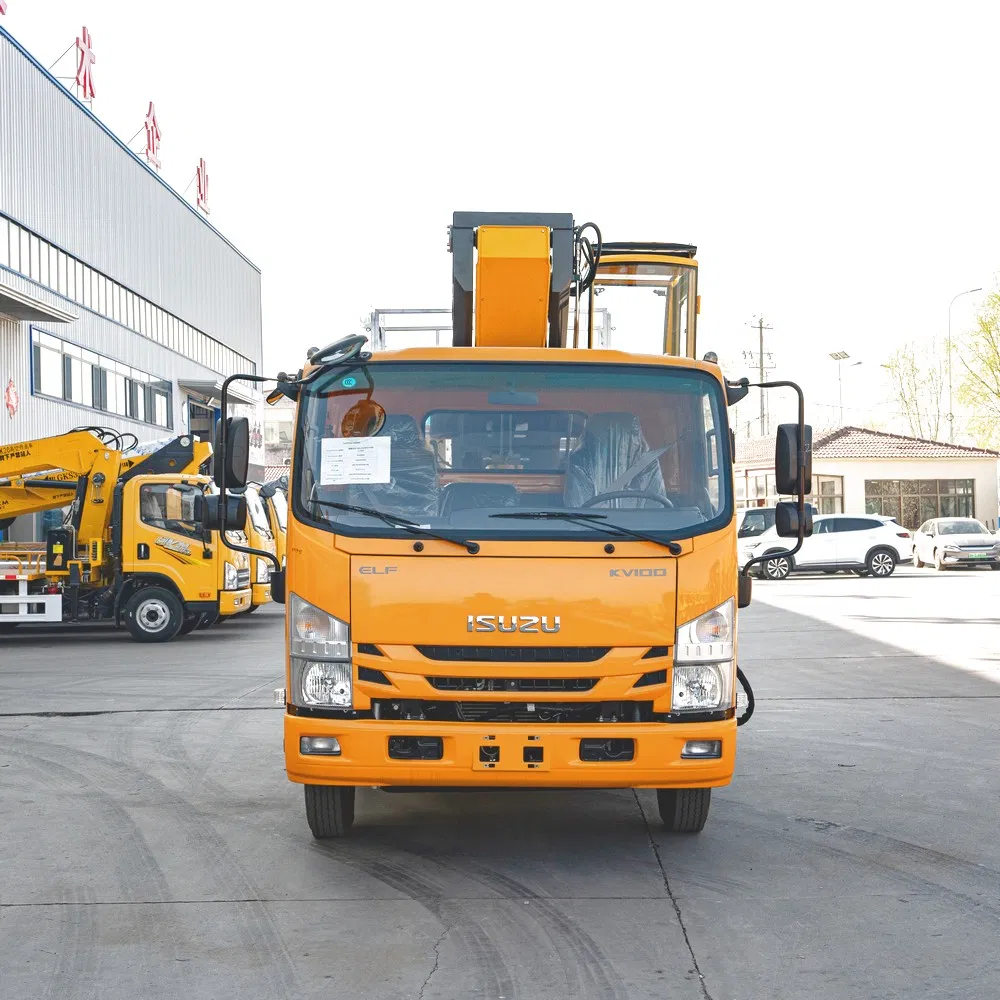

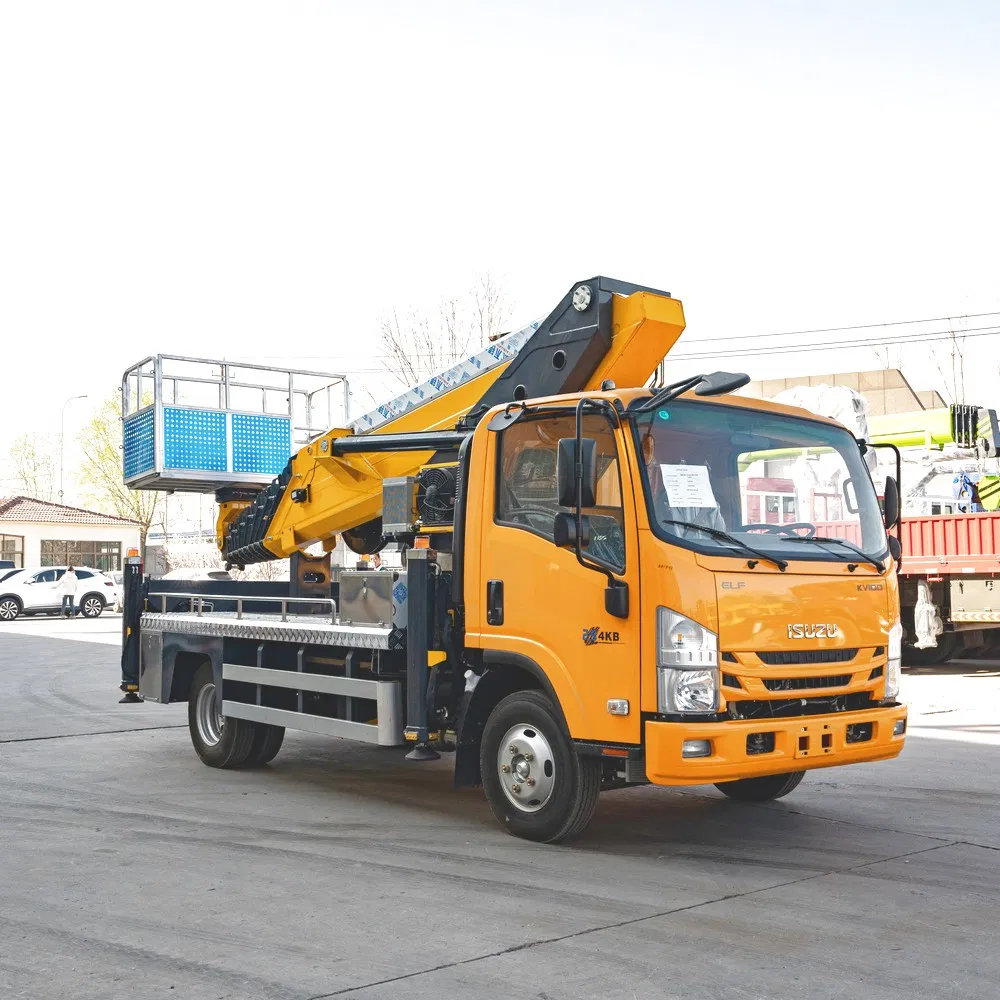

| Technical Specifications | |
|---|---|
| Model NO. | 35M Aerial Work Vehicle |
| Product Name | Aerial Work Vehicle |
| Certification | ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE |
| Emission Standard | Euro 6 |
| Horsepower | 140 HP |
| Payload | 20T |
| Fuel Type | Diesel |
| Transmission Type | Manual |
| Drive Wheel | 4x2 |
| Overall Dimensions | 5995*2000*2780mm |
| Wheelbase | 2800mm |
| Curb Weight | 4495kg |
| Max. Operating Height | 35m |
| Max. Operating Range | 16m (200kg) |
| Boom Type | 7-Section Synchronous Telescopic Boom |
| Platform Size/Capacity | 1600*700*1100mm / 200kg / Aluminum Alloy |
| Max. Driving Speed | 95km/H |
| Outrigger Span | 5472mm (Horizontal) / 5620mm (Longitudinal) |
Aerial work vehicles are the embodiment of state-of-the-art engineering, crafted with precision for endeavors at elevated heights. These remarkable machines integrate cutting-edge mechanical technologies, effortlessly raising both operators and their equipment to desired altitudes. This innovation ensures tasks such as maintenance, installations, and cleaning are executed with peak efficiency.
The unique design masterfully combines the sleek agility of a car chassis and the formidable strength of an aerial platform, epitomizing operational excellence. They seamlessly integrate multiple functionalities such as lifting, rotation, and telescopic extension, creating a symphony of high-performance operations.
Swiftly elevates personnel and equipment, reducing time and physical effort. Features telescopic arms for seamless adjustments.
Equipped with advanced safety mechanisms and a robust framework for unwavering stability during operation.
Excels in maneuverability even in confined spaces with multi-degree-of-freedom working arms.
Cutting-edge control systems for precision lifting, rotation, and automatic balancing with fault alarms.
A1: The vehicle is designed for a maximum operating height of 35 meters, making it suitable for high-altitude maintenance and construction tasks.
A2: It is widely used in construction, electrical power maintenance, telecommunications, municipal management, advertising installations, and airport facility upkeep.

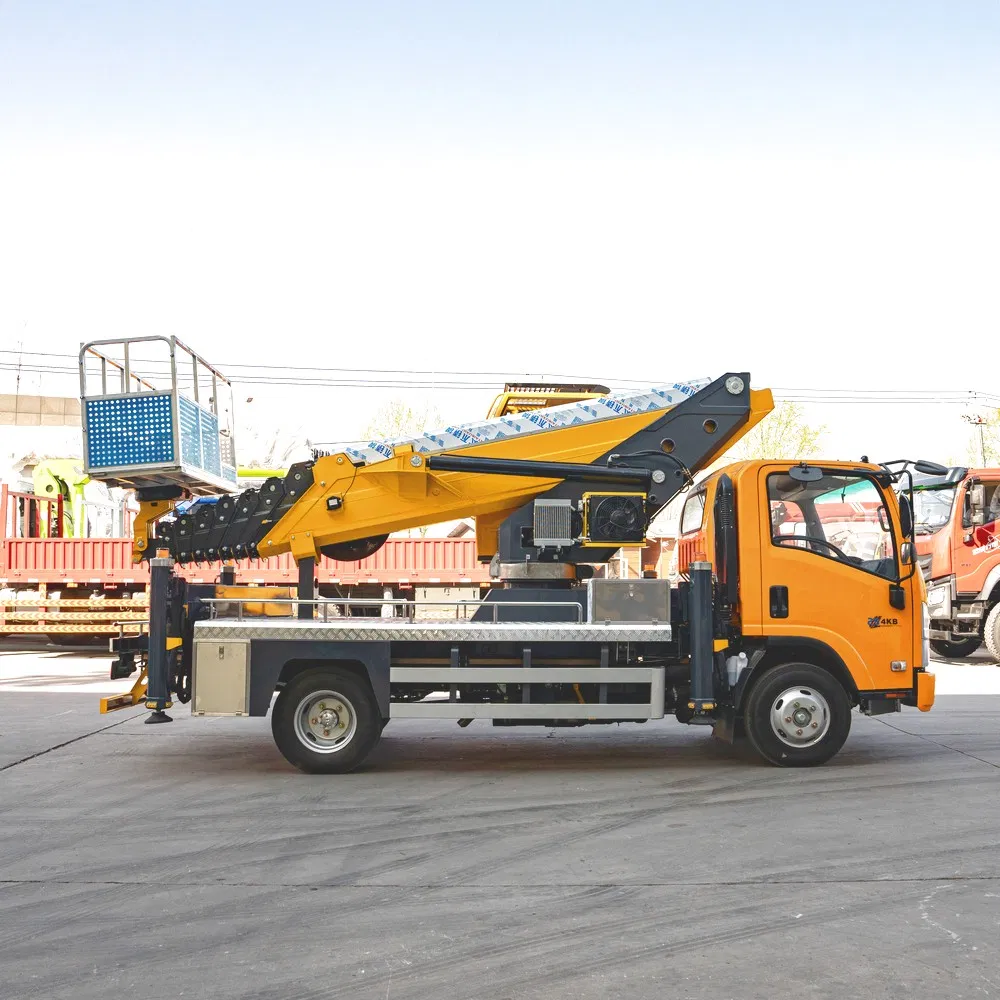

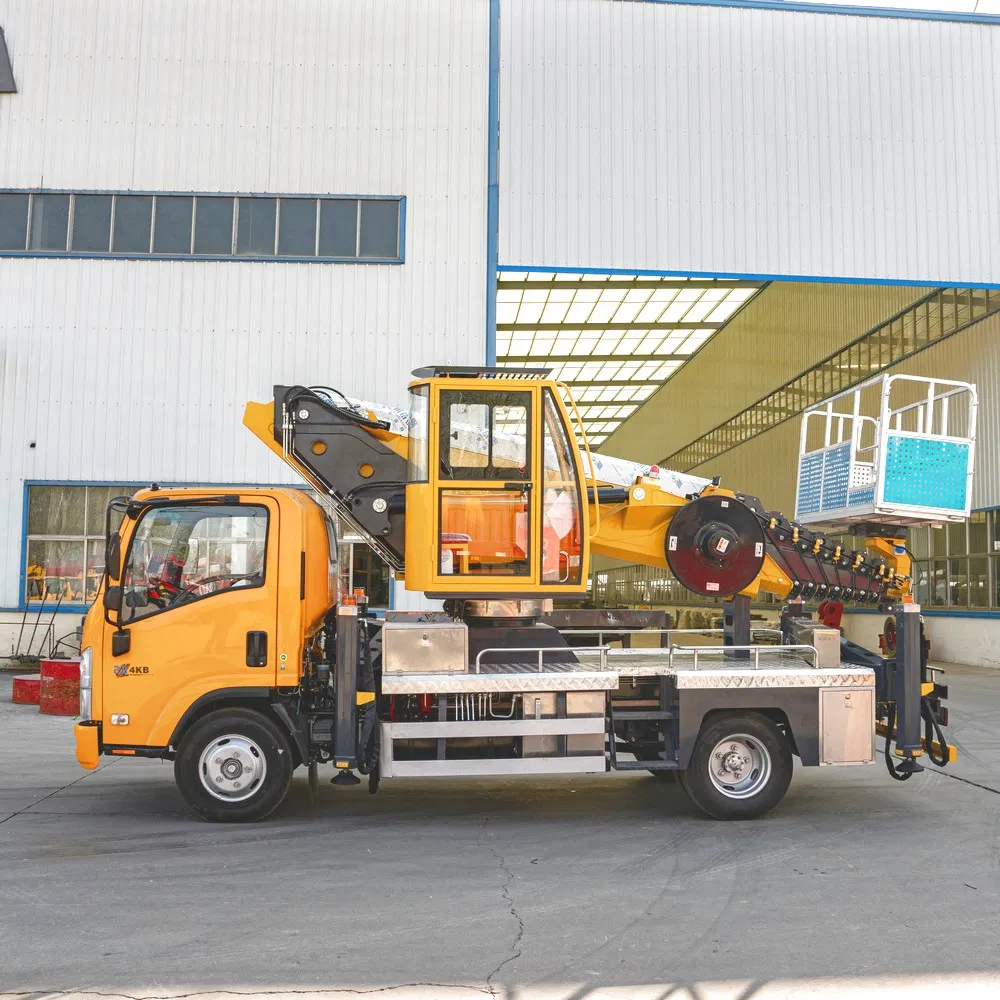

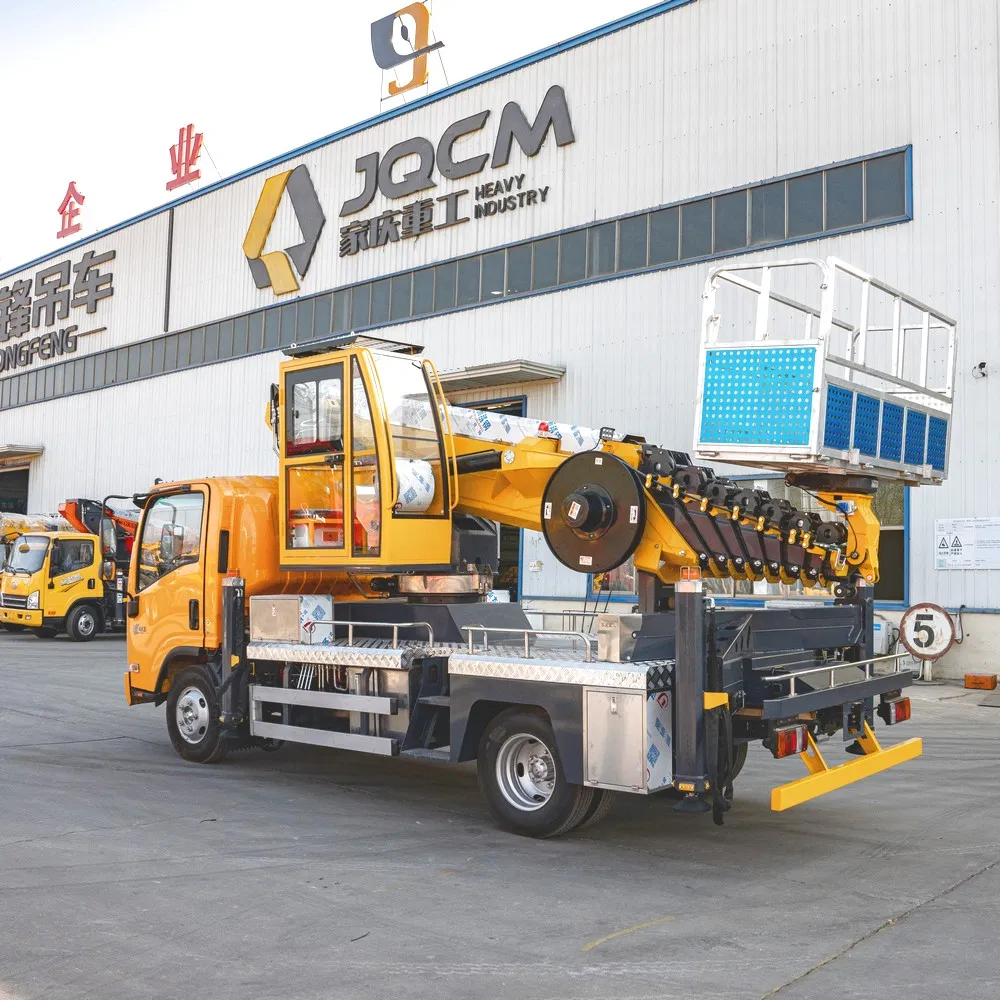

A3: It features a 7-section synchronous telescopic boom that provides smooth extension and high structural stability during operation.
A4: The aluminum alloy platform has a load capacity of 200kg, which can safely accommodate operators and their necessary tools.
A5: The vehicle is equipped with an electric-hydraulic control system, supporting stepless speed regulation, wireless remote control, and emergency manual pump operation.

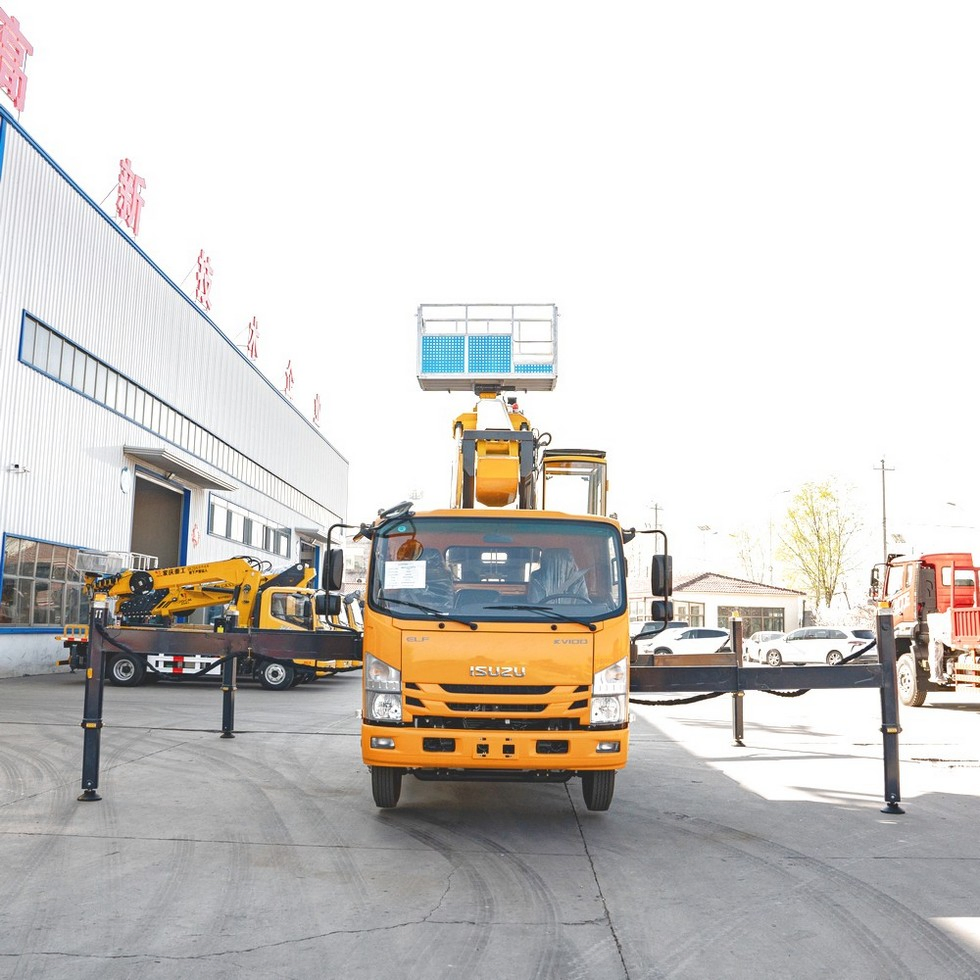

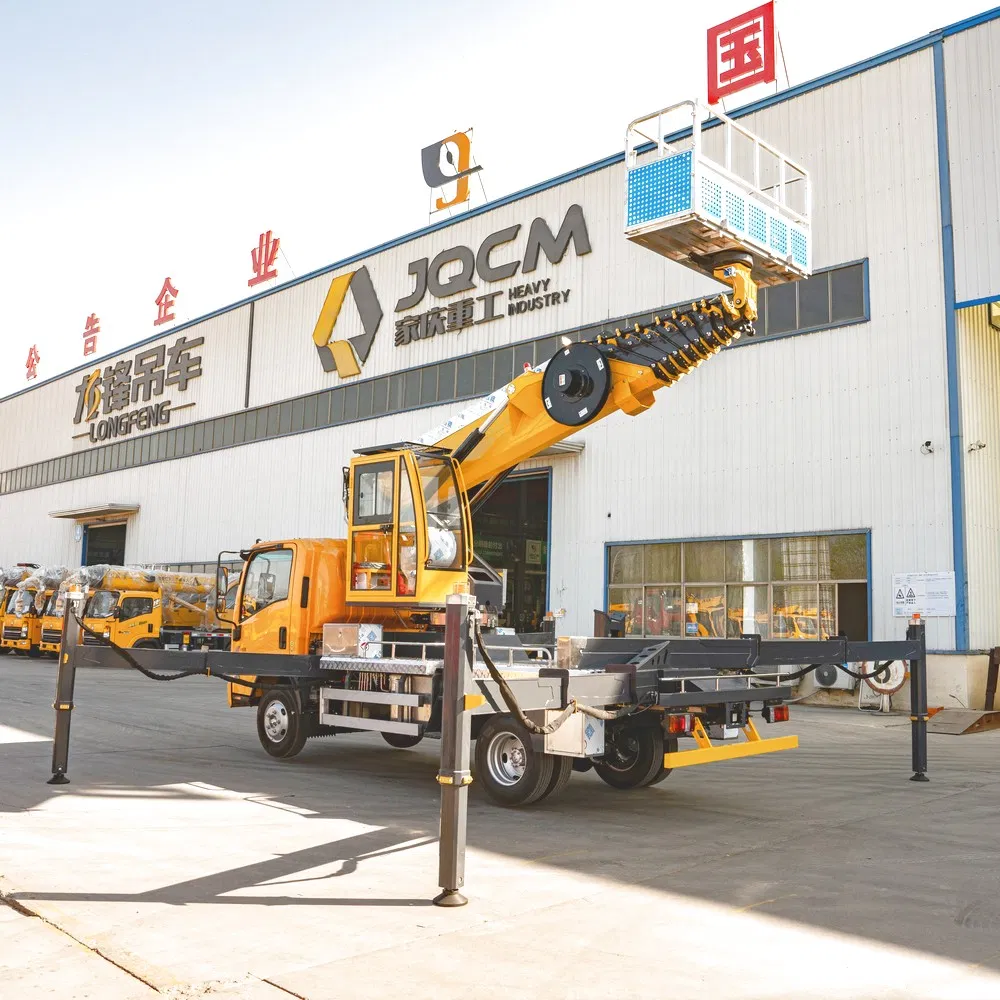

A6: Safety is ensured through a robust support framework, X-shape adjustable outriggers, automatic balancing systems, and fault alarms for secure high-altitude performance.
