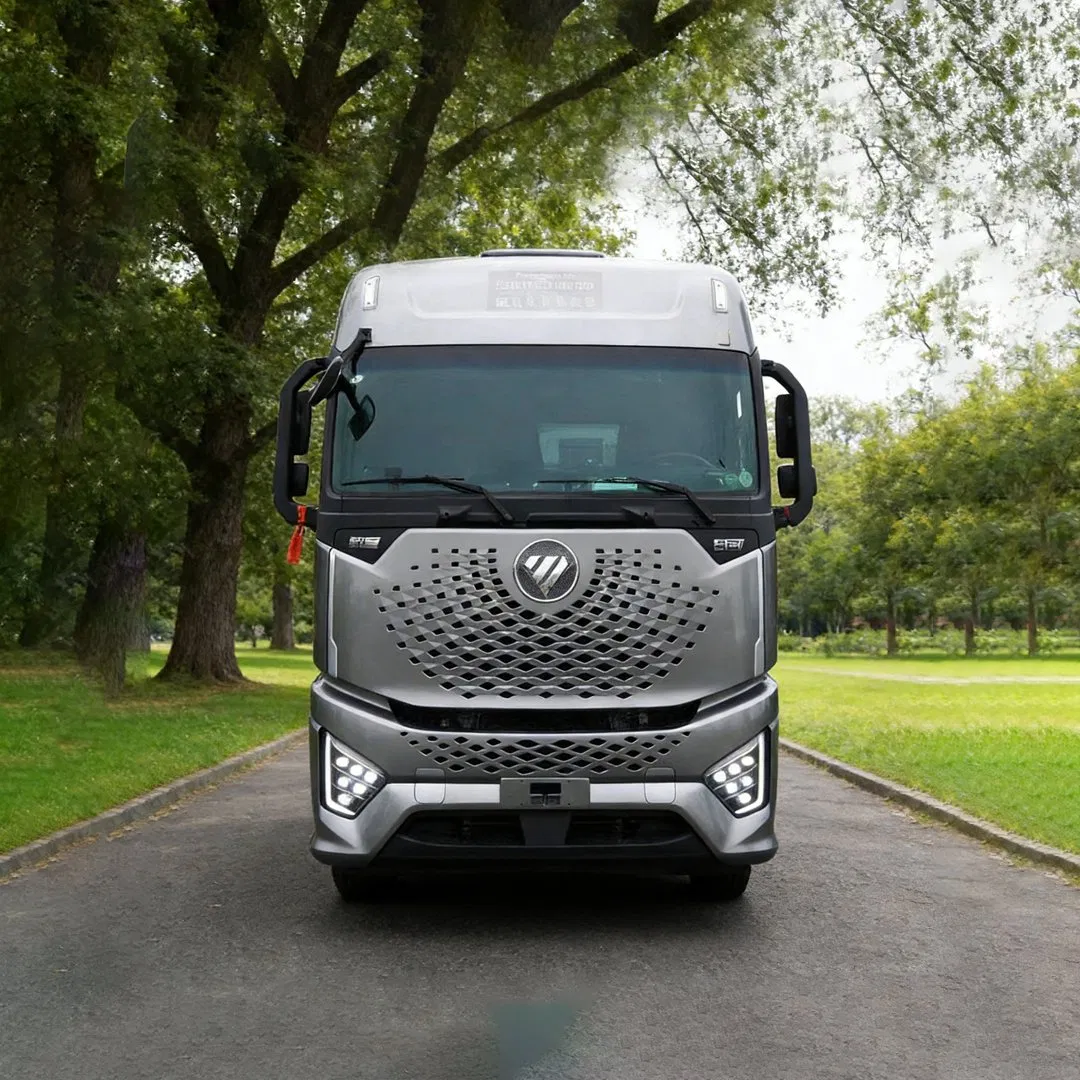

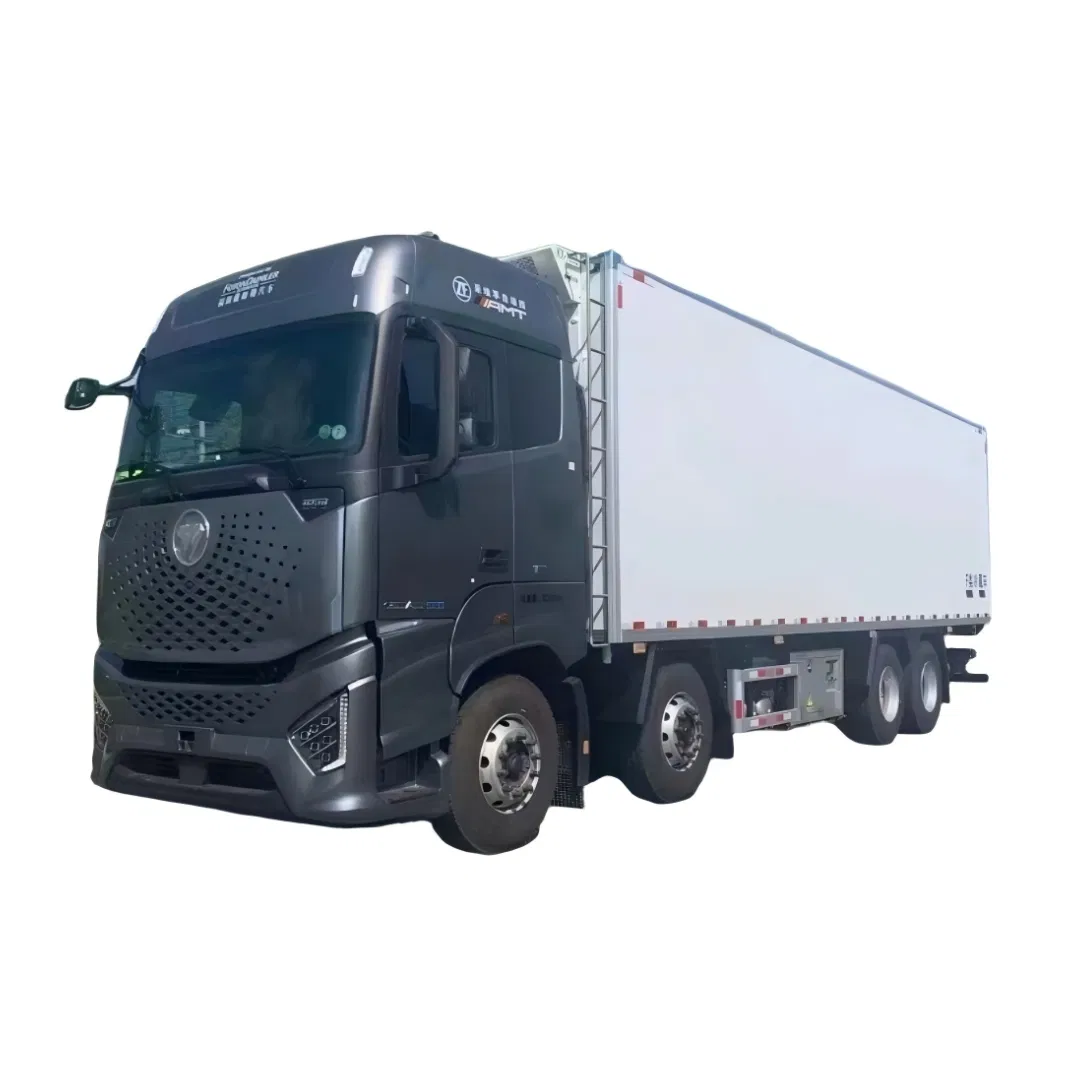

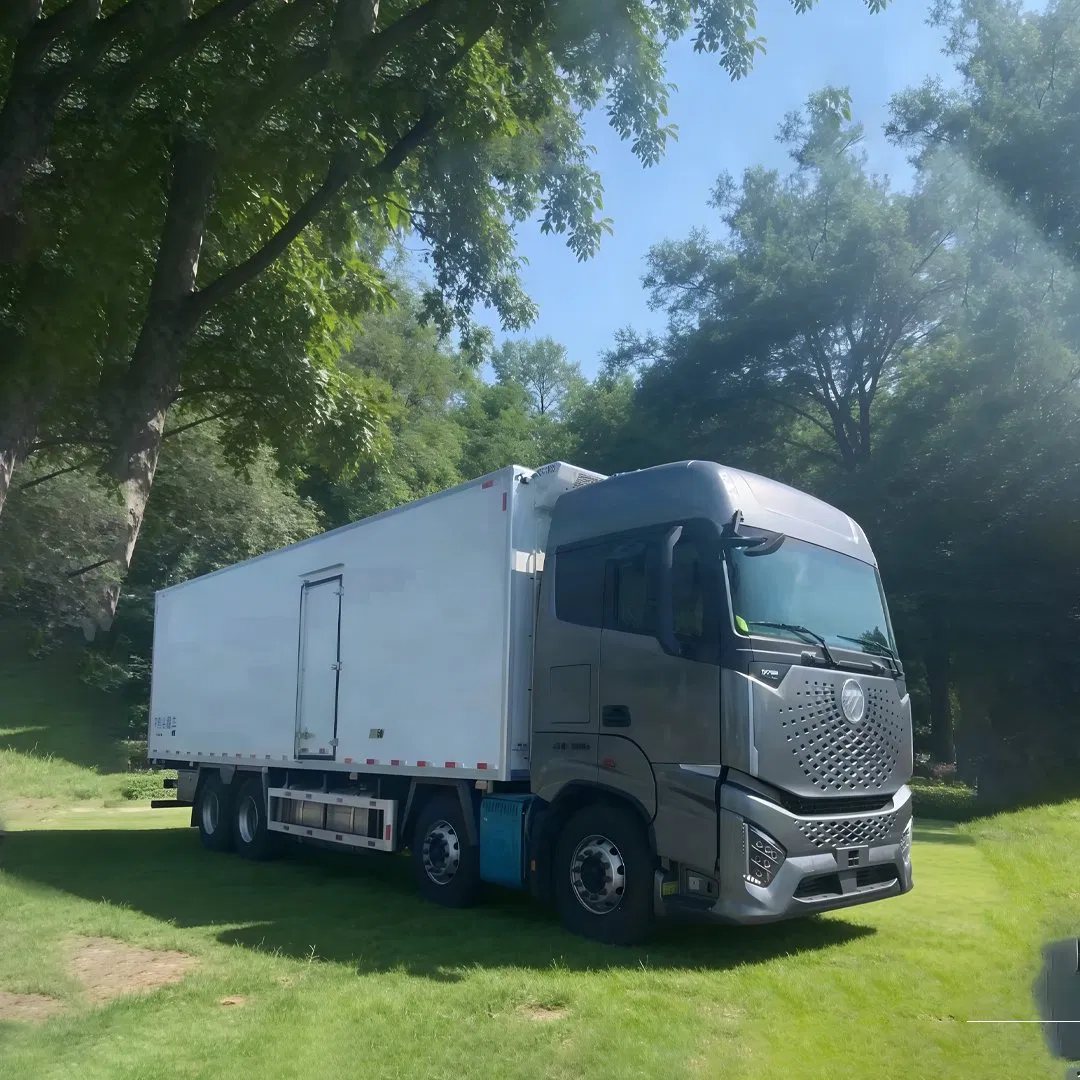

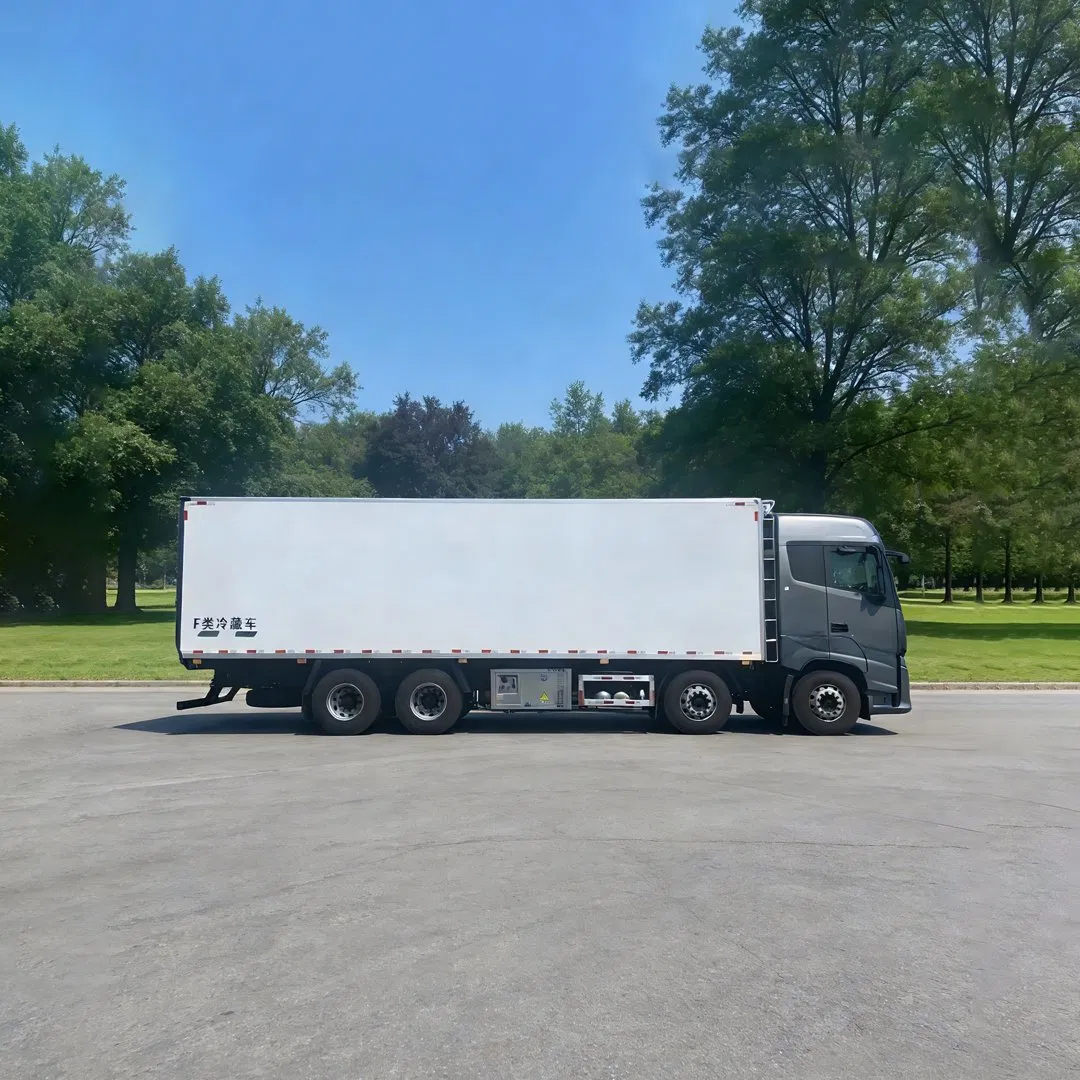

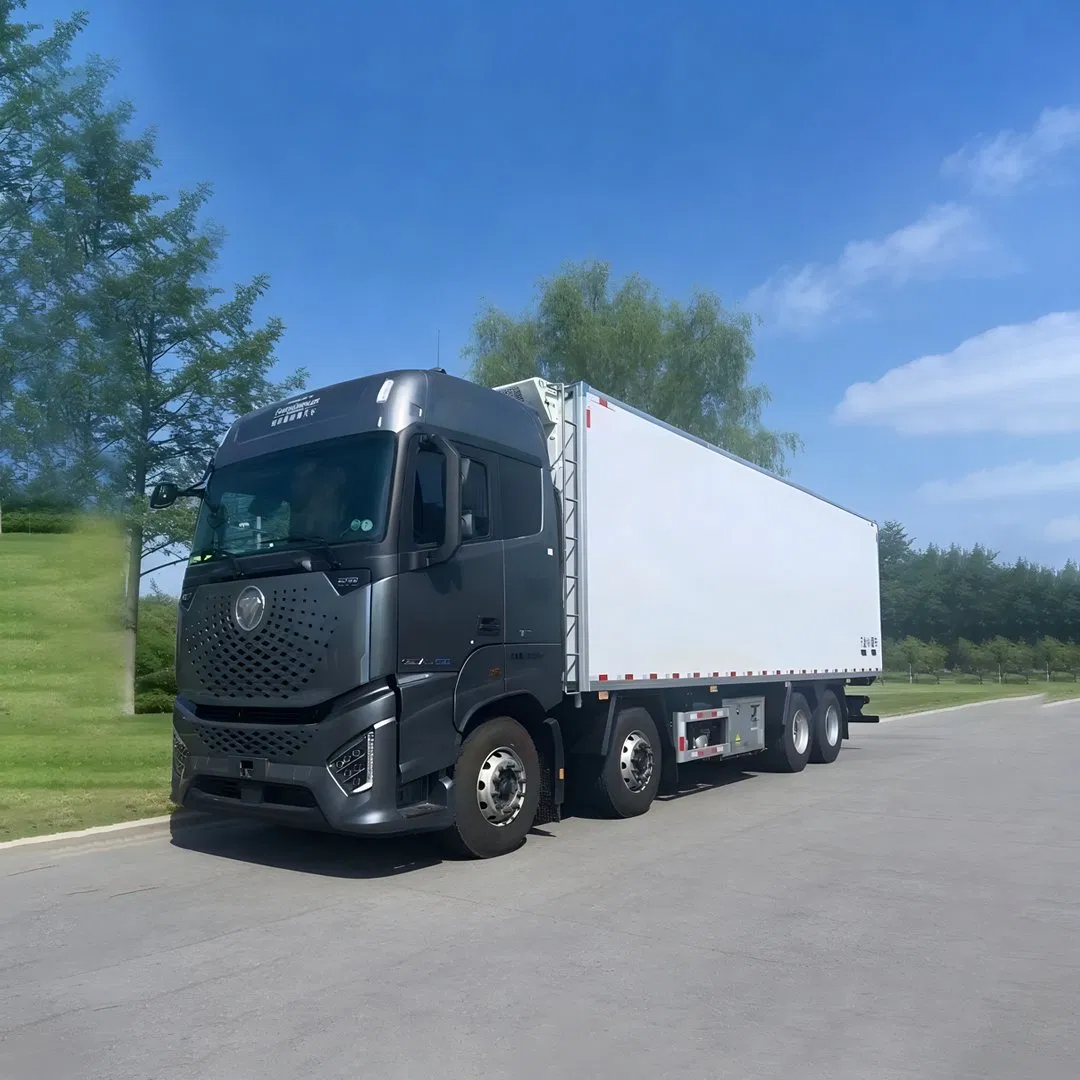

FOTON AUMAN GALAXY 490 AUTOMATIC TRANSMISSION 8X4 REFRIGERATOR TRUCK
Product Features: Refrigerated trucks are designed for transporting frozen food. The insulation compartment features fully enclosed inner and outer fiberglass plates with a polyurethane foam insulation material. Benefits include light weight, high strength, seamless construction, excellent insulation, and corrosion resistance.
Chassis Configuration: New Galaxy High Top High Floor Cab, Kangji 520HP (X13NS6B520), ZF Automatic Transmission, 850+150L Aluminum Alloy Fuel Tank (with heating), 12R22.5 Tubeless Tires, 12.3-inch LCD Instrument Cluster, Panoramic View, 220AH Battery, and High-Performance Airbag Seats with heating and ventilation.

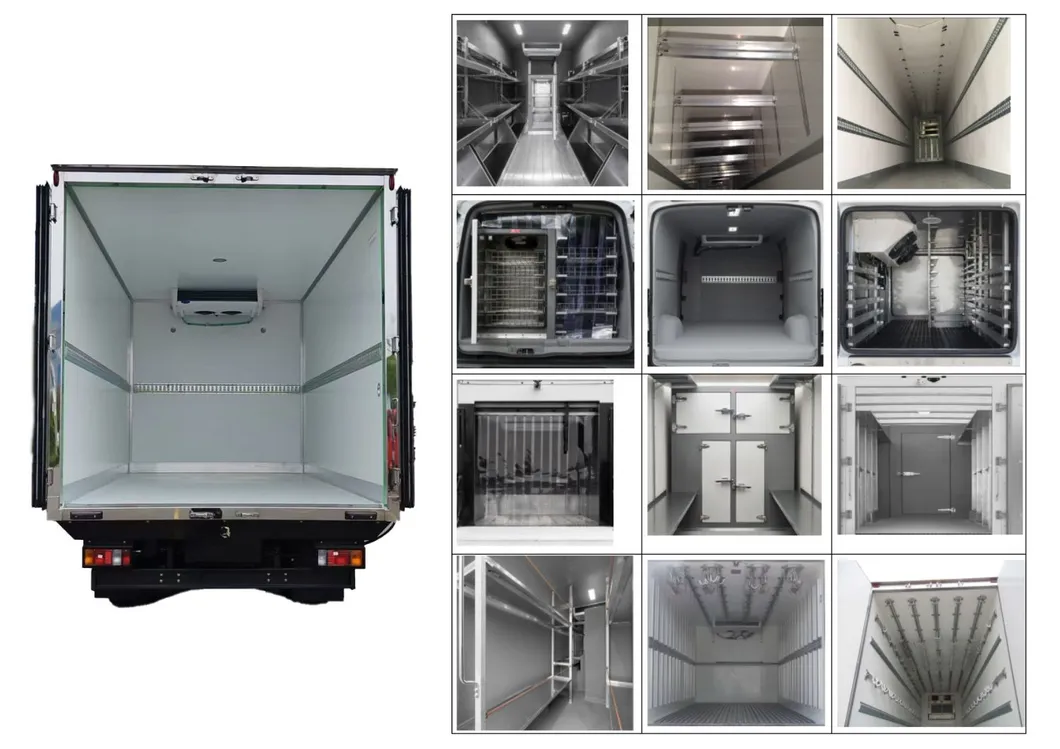

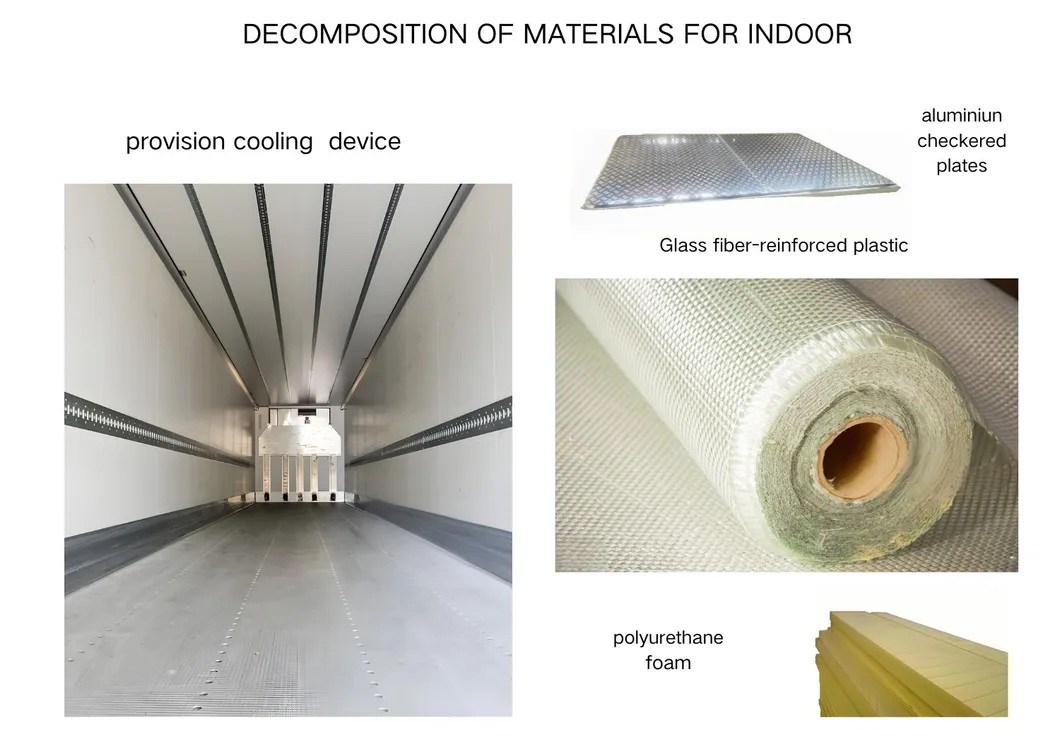

Phase Material: Produced using a hydraulic adsorption integrated molding line. The cabin volume is 15.6 cubic meters. Interior and exterior fabrics use the latest nano glass fiber reinforced plastic (non-absorbing, strong hardness). Insulation thickness is 8cm, filled with polyurethane foam without gaps. Rear door frames, hinges, and locks are made of stainless steel.
| Technical Specifications | |||
|---|---|---|---|
| Product Name | Foton Galaxy Ouman 490 Refrigerated Truck | GVW (Kg) | 8275 |
| External Dimensions | 7530×2350×2540 mm | Loading Capacity | 2525 kg |
| Curb Weight | 5620 kg | Wheelbase | 3360, 3800, 4200 mm |
| Max Speed | 105 km/h | Fuel Type | Diesel |
| Engine Model | F2.8NS6B156 | Displacement | 2780 ml |
| Tire Model | 7.50R16LT 14PR | Tire Quantity | 6 |
Standard Production Flow: Chassis Selection → Design Drawings → Pipeline Installation → Sub-frame Welding → Box Frame Construction → Plate Installation → Functional Assembly → External Structure → Painting & Coating → Oil Circuit Installation → Testing & Debugging → Final Acceptance.
What are refrigerator trucks used for? They transport perishable goods that require temperature-controlled environments to remain fresh and safe.
We are a professional manufacturer specializing in various special trucks for municipal, environmental, and medical use. Our production capabilities include water trucks, garbage trucks, fuel tanks, and refrigerated vehicles. With advanced technology and flexible operation modes, we ensure high quality through ISO9001-2000 and 3C certification.

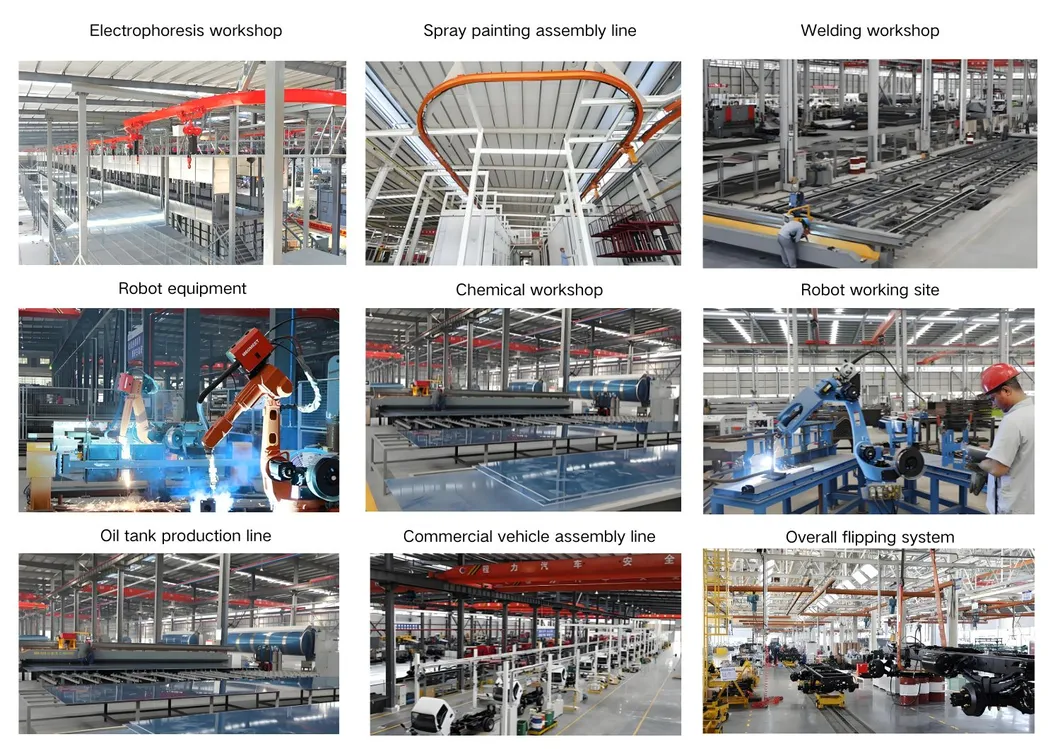

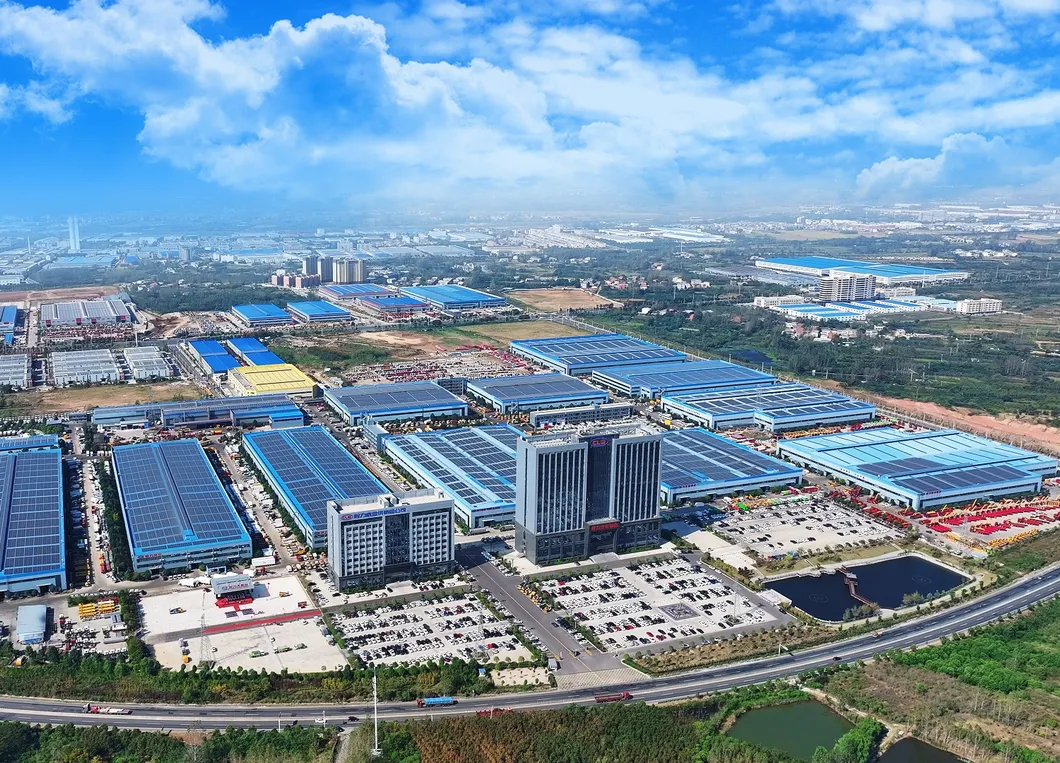

Our commitment is based on quality and credit. We provide full life-cycle maintenance and responsive after-sales service. Our facility integrates research, development, and sales, featuring its own electrophoresis workshop and testing sites for all special purpose vehicles.
