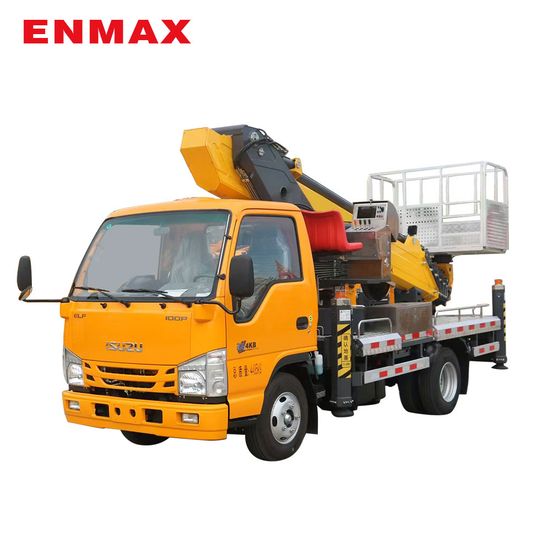

CKLER Vehicle
1 / 5
1. 30-60M Working Height
2. 360° Continuous Rotation
3. CE Certified Quality
We collaborate with world-renowned commercial vehicle manufacturers to ensure optimal performance. Choose your preferred chassis for seamless integration:
| 30M Upper Part LIFTING & SLEWING SYSTEM | |
|---|---|
| Max. operating height | 30m |
| Max. operating range | 16m (200kg) |
| Platform capacity | 200kg |
| Platform rotating angle | ±90° |
| Boom type | 7-section synchronous telescopic boom |
| Slewing device | 360° continuous rotation |
| Leveling system | Hydraulic leveling device |
| Operating system | Outrigger & Lifting system Hydraulic handle; Wireless remote control; Emergency manual pump |
| Chassis Specifications (Example: FAW) | |
|---|---|
| Overall dimensions | 5995*2000*2780mm |
| Wheelbase | 2800mm |
| Engine power | 132hp/98kw |
| Max. driving speed | 95km/h |
| Outrigger Type | Front/rear X-shape, Individually adjustable |
| Approch/Departure angle | 18°/14° |
The Manufacturer is a globally recognized provider of high-quality specialized vehicles and equipment. Based in a major machinery production hub, we specialize in the production of advanced machinery including truck cranes, aerial work platforms, spider cranes, and mini excavators.
Our product range covers 5T to 16T truck cranes, versatile truck-mounted cranes, and aerial platforms ranging from 28m to 60m. Each machine is engineered with precision, ensuring durability and efficiency for industrial applications worldwide.
