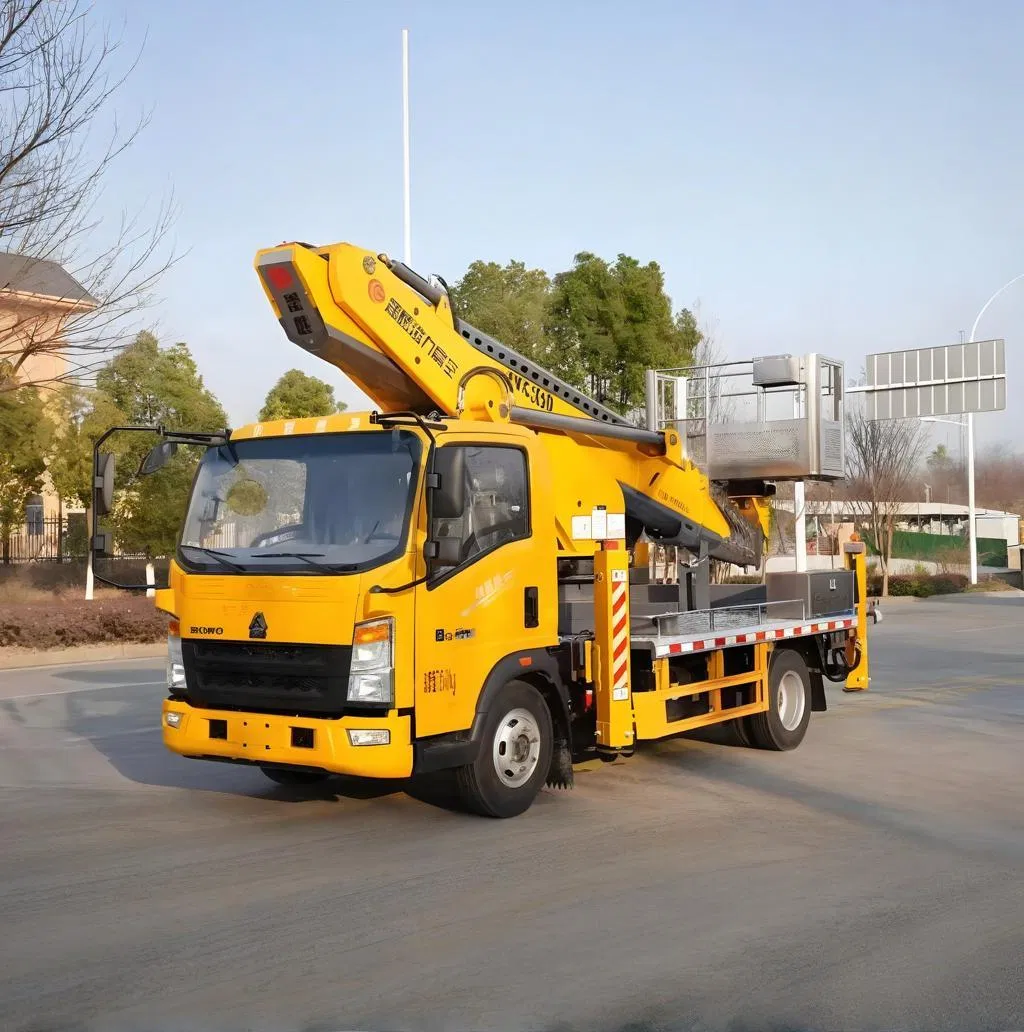

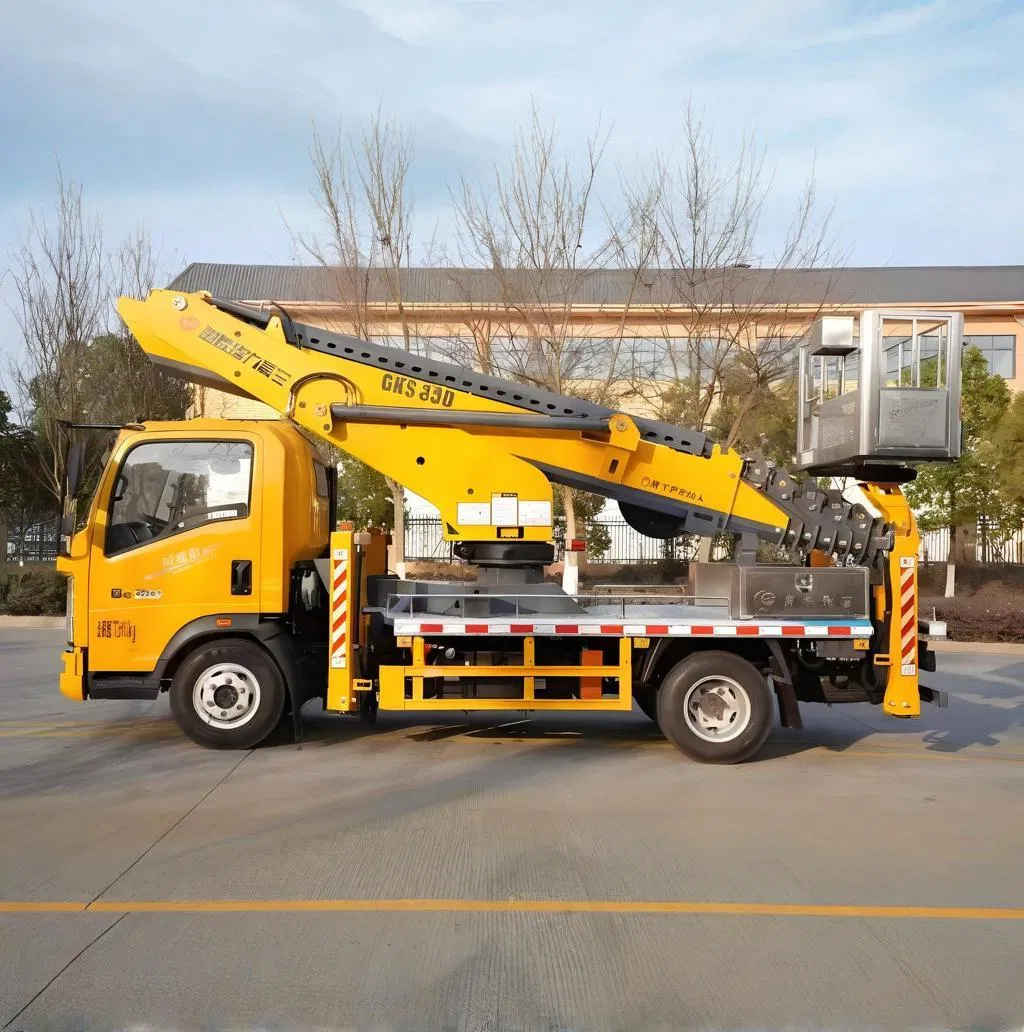

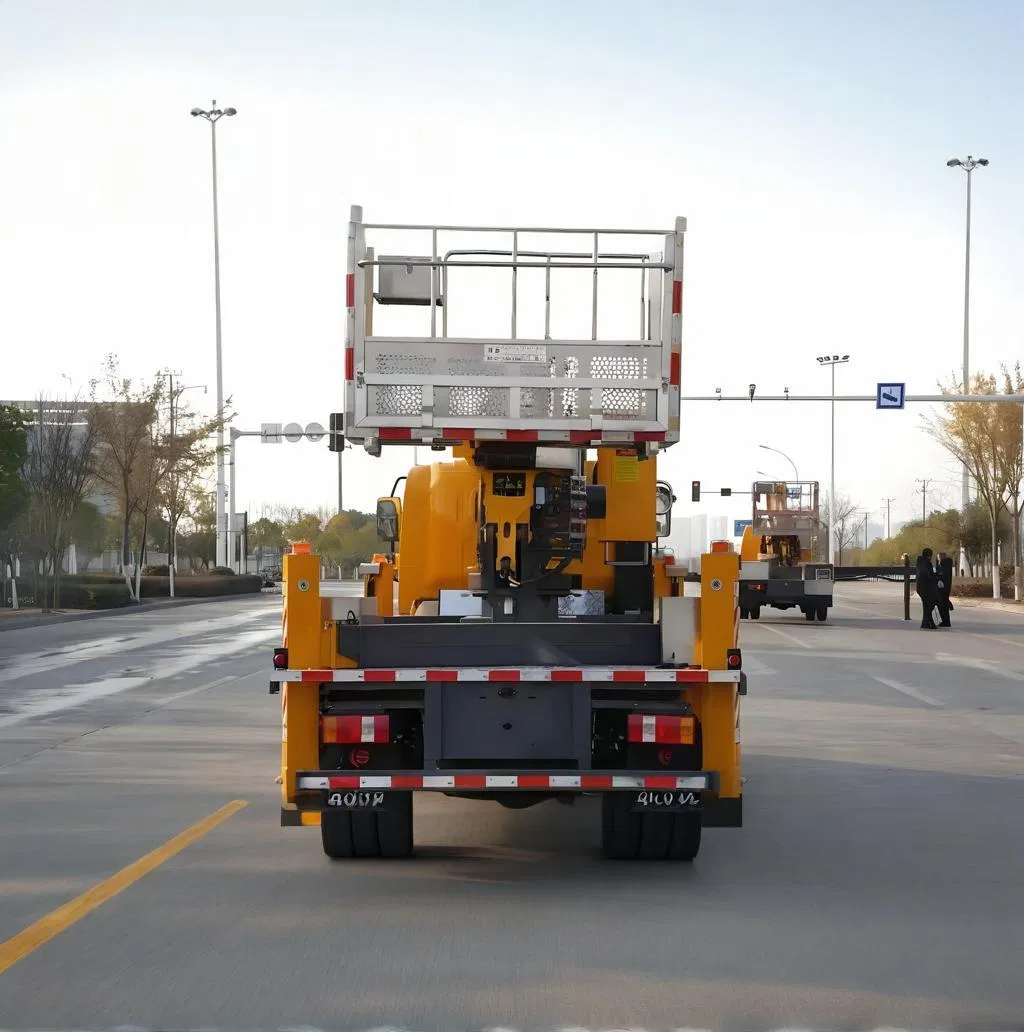

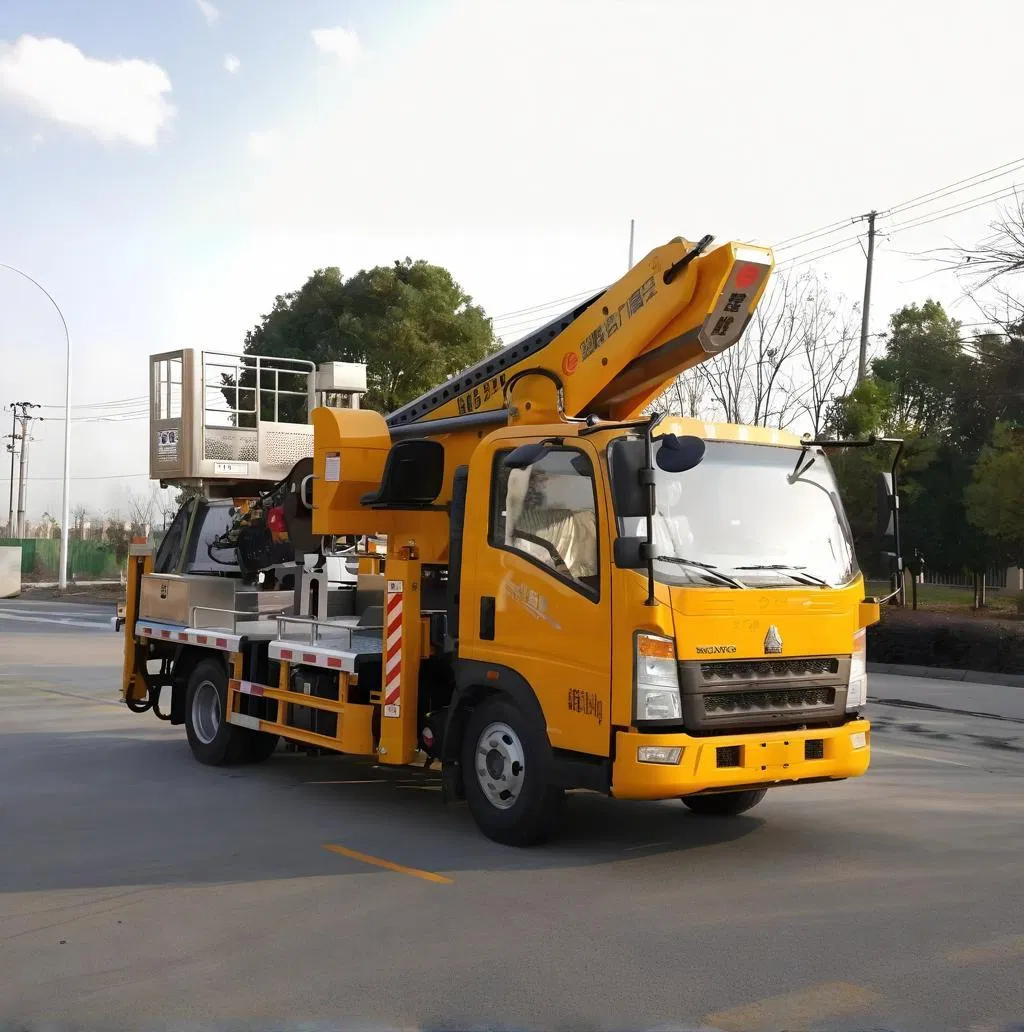

Sinotuck 33m Aerial Work Vehicle Truck with a Small Aerial Platform
Sinotuck 33m Aerial Work Vehicle Truck with a Small Aerial Platform
Sinotuck 33m Aerial Work Vehicle Truck with a Small Aerial Platform
Sinotuck 33m Aerial Work Vehicle Truck with a Small Aerial Platform
Sinotuck 33m Aerial Work Vehicle Truck with a Small Aerial Platform
1 / 5
Sinotuck 33m Aerial Work Vehicle Truck with a Small Aerial Platform
Sinotuck 33m Aerial Work Vehicle Truck with a Small Aerial Platform
Sinotuck 33m Aerial Work Vehicle Truck with a Small Aerial Platform
Sinotuck 33m Aerial Work Vehicle Truck with a Small Aerial Platform
Sinotuck 33m Aerial Work Vehicle Truck with a Small Aerial Platform

Sinotuck 33m Aerial Work Vehicle Truck with a Small Aerial Platform

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Aerial Work Vehicle
i

Basic Info.

Model NO. RRR5047GKC Type Self-propelled
Certification ISO9000, CCC Emission Standard Euro 3
Horsepower 140HP Payload 200kg
Fuel Diesel Transmission Manual
Drive Wheel 4x2 Condition New
Specification 6350*2300*3450 Production Capacity 2000 pieces/Year
📷

Product Image

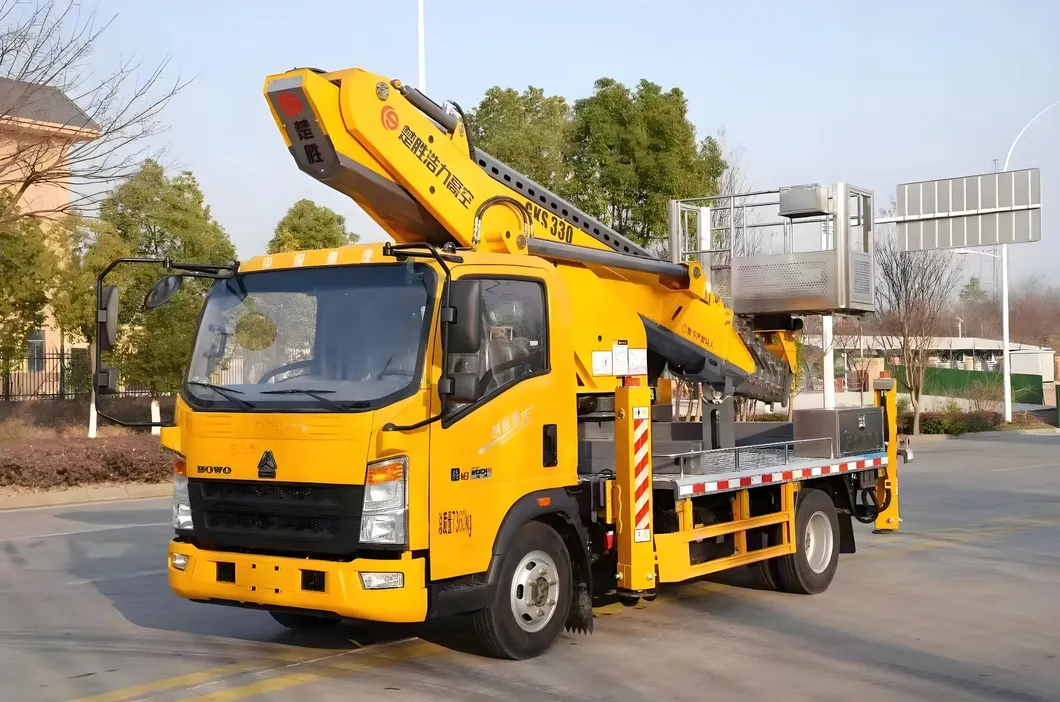

Product Image 1

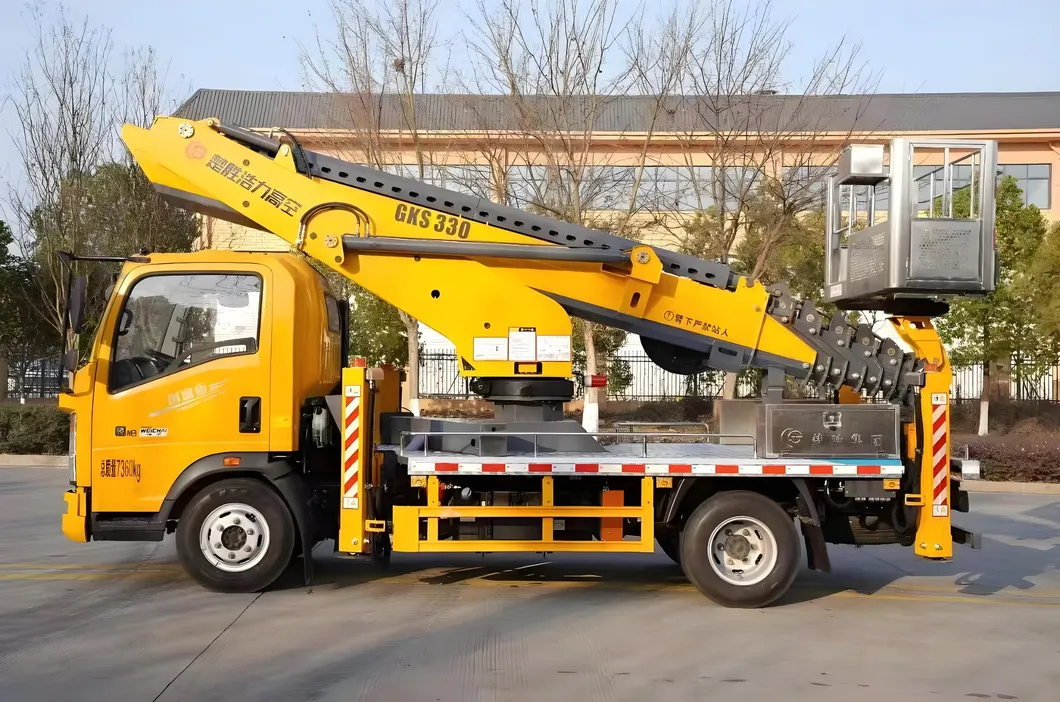

Product Image 2

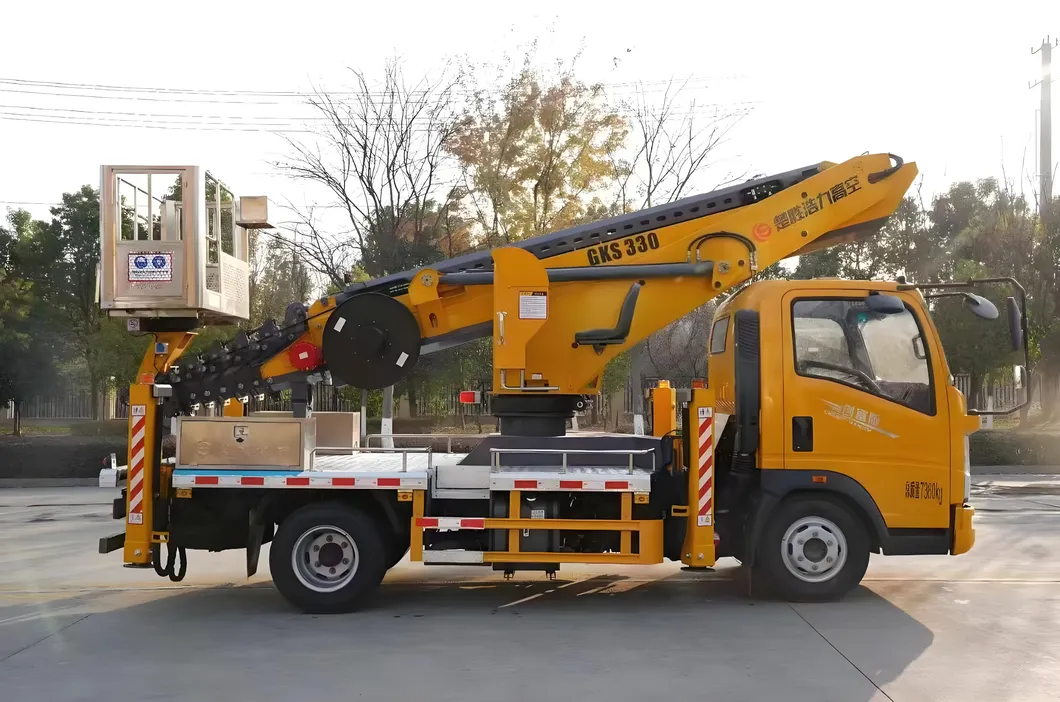

Product Image 3

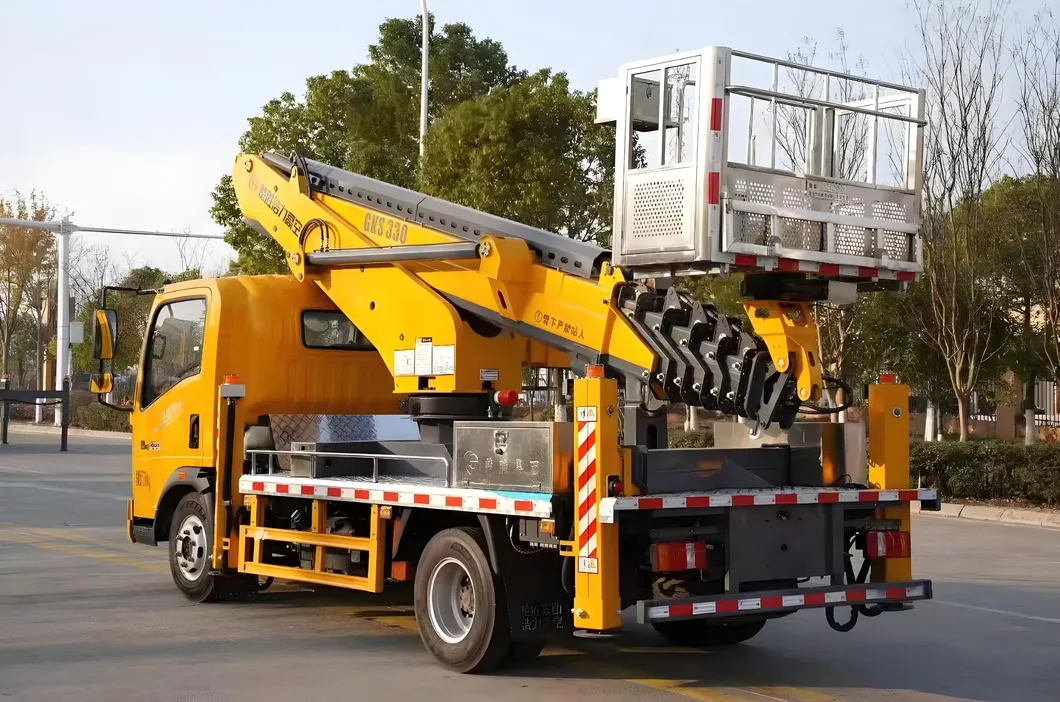

Product Image 4

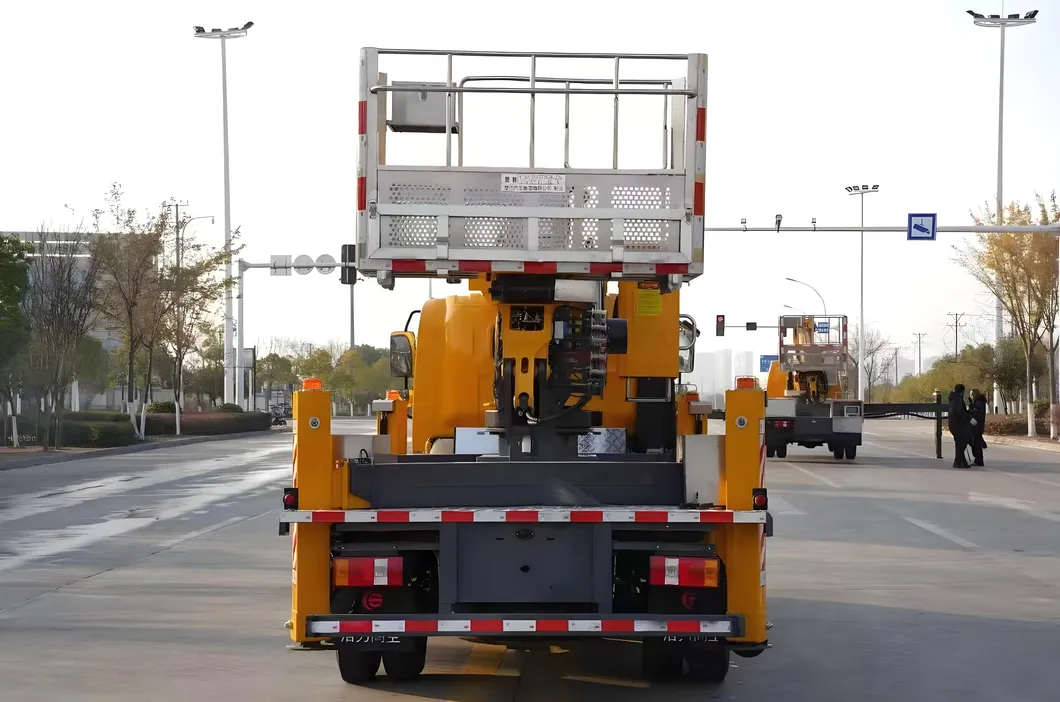

Product Image 5

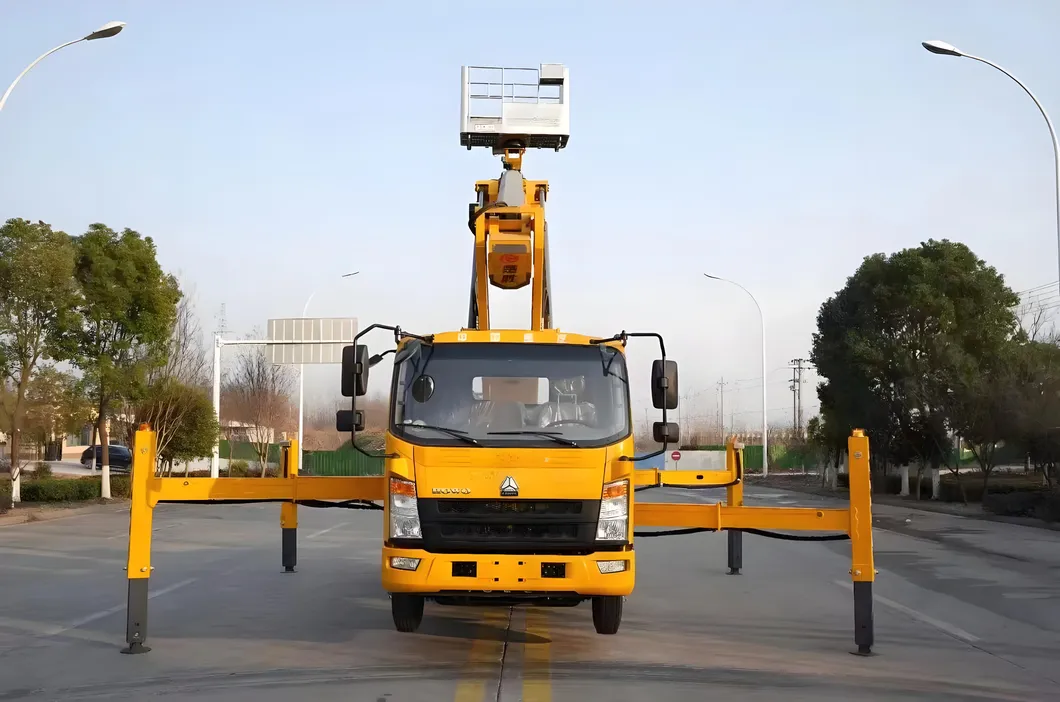

Product Image 6
📊

Product Parameters

Vehicle Parameters
Vehicle Name Sinotuck 33m Aerial Work Truck
External Dimensions (mm) 6350 x 2300 x 3350
Total Mass (kg) 7360
Wheelbase (mm) 3280
Engine Model WP2.3Q140E62 (140 HP)
Main Performance Parameters
Max. Operating Height 33m
Max. Operating Range 18m
Platform Load Rating 200kg
Outrigger Span (Transverse) 6000mm
Rotation 360° Continuous
⚙️

Brief Description of Components

Arm Form: Eight section fourteen sided synchronous telescopic arm.

Control System: Self-developed high-altitude vehicle control system with strong stability.

Safety Features: Real-time leg detection, upper/lower vehicle interlock device, and emergency stop.

🔍

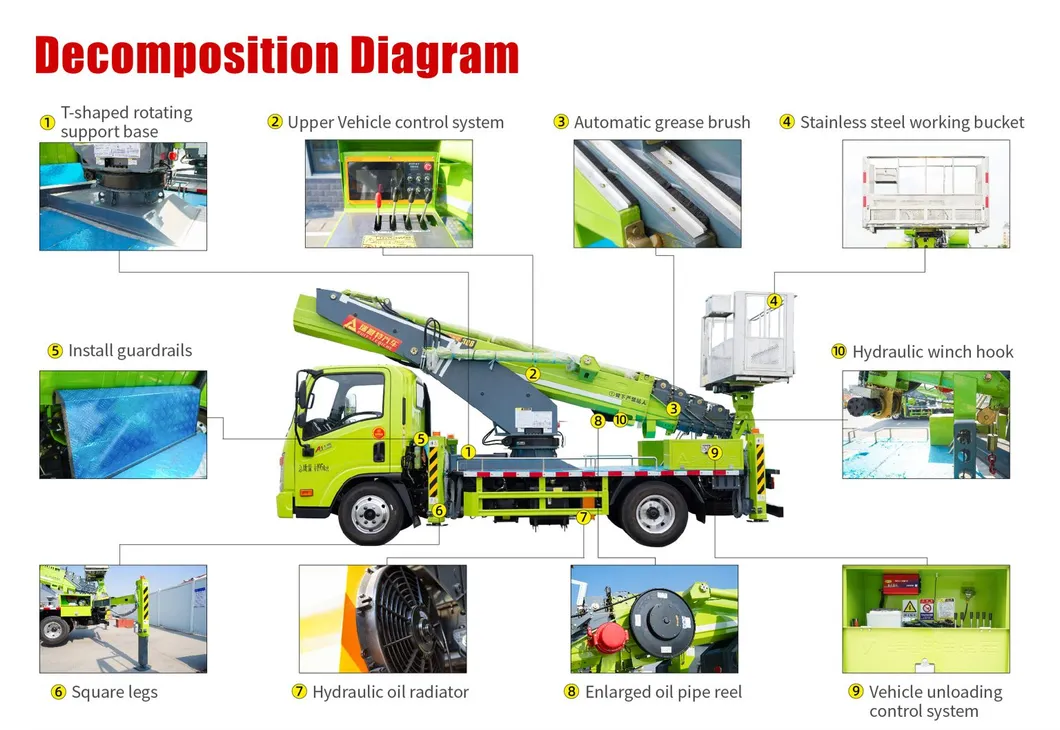

Product Decomposition Diagram

Decomposition 1

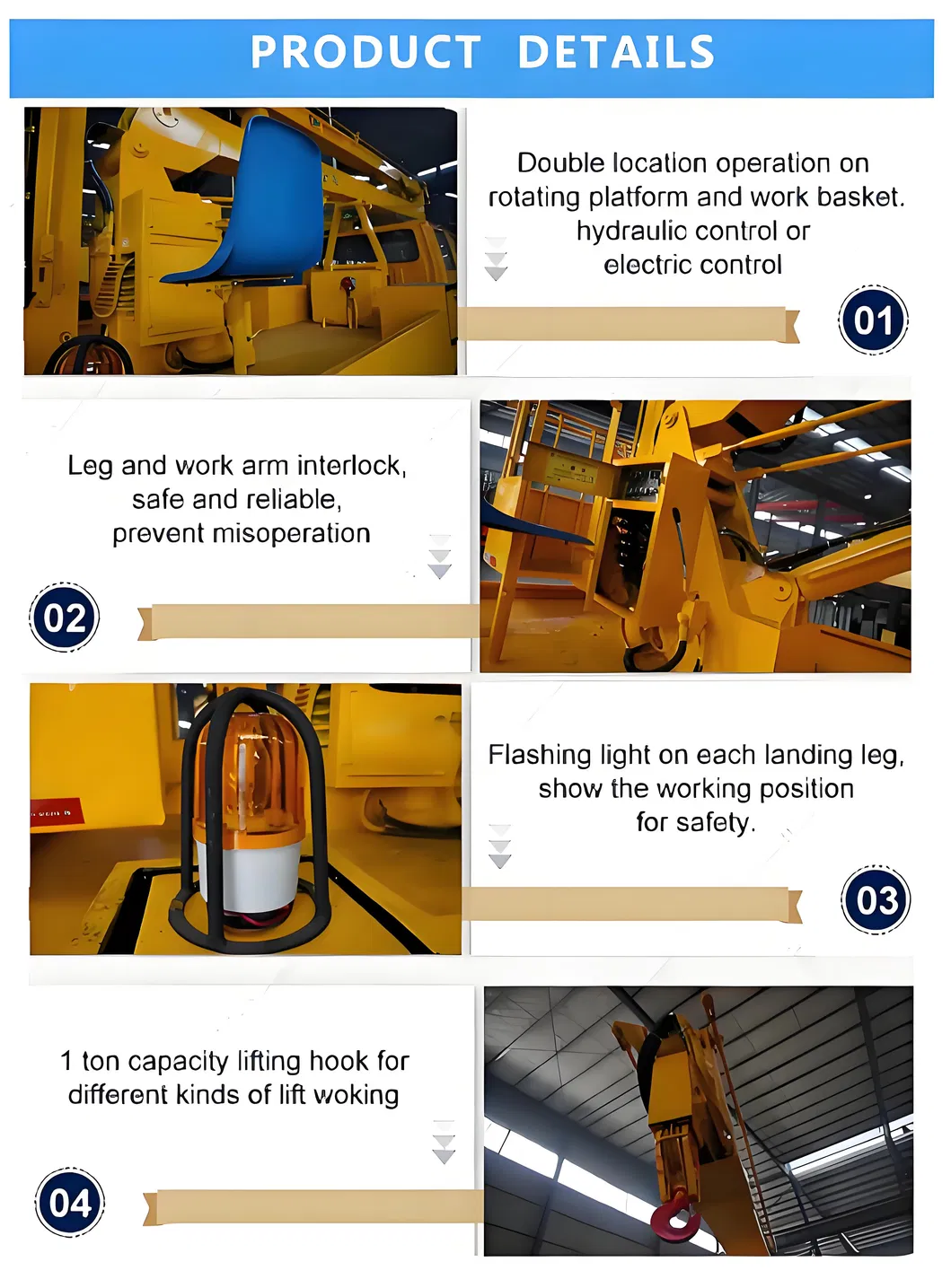

Decomposition 2

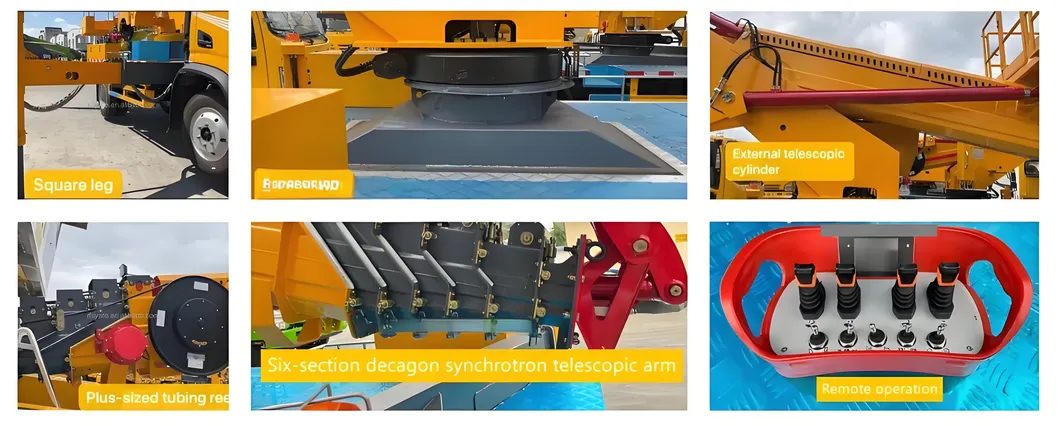

Decomposition 3
Detail View 1 Detail View 2
Detail 3
Detail 4
Detail 5
Detail 6 Detail 7 Detail 8
?

FAQ

What is the maximum working height of this vehicle?
The Sinotuck aerial work vehicle can reach a maximum operating height of 33 meters.
What is the rated load capacity for the working platform?
The working platform has a rated load capacity of 200kg.
What kind of engine powers this aerial work truck?
It is equipped with a WP2.3Q140E62 Diesel engine providing 140 Horsepower.
Does the vehicle have automatic leveling?
Yes, it features a combined Automatic Leveling System using equal volume cylinders for stability.
What safety mechanisms are included for outriggers?
The vehicle includes leg soft leg detection, which provides real-time monitoring of the leg force state to prevent movement if a loose leg is detected.
What happens if the main engine fails during operation?
The vehicle is equipped with an emergency electric-hydraulic pump to safely return staff to the ground in case of engine or main pump failure.
