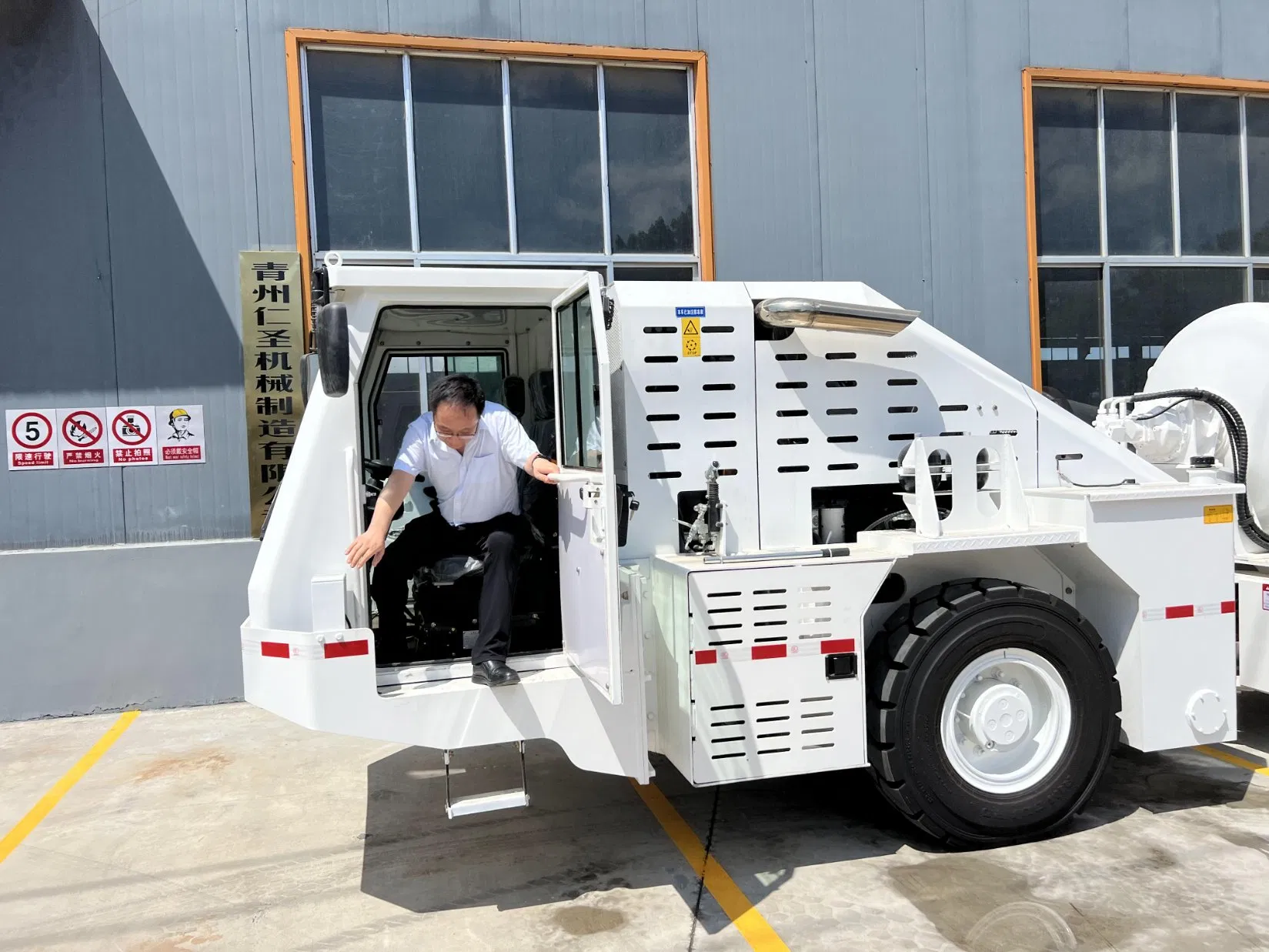

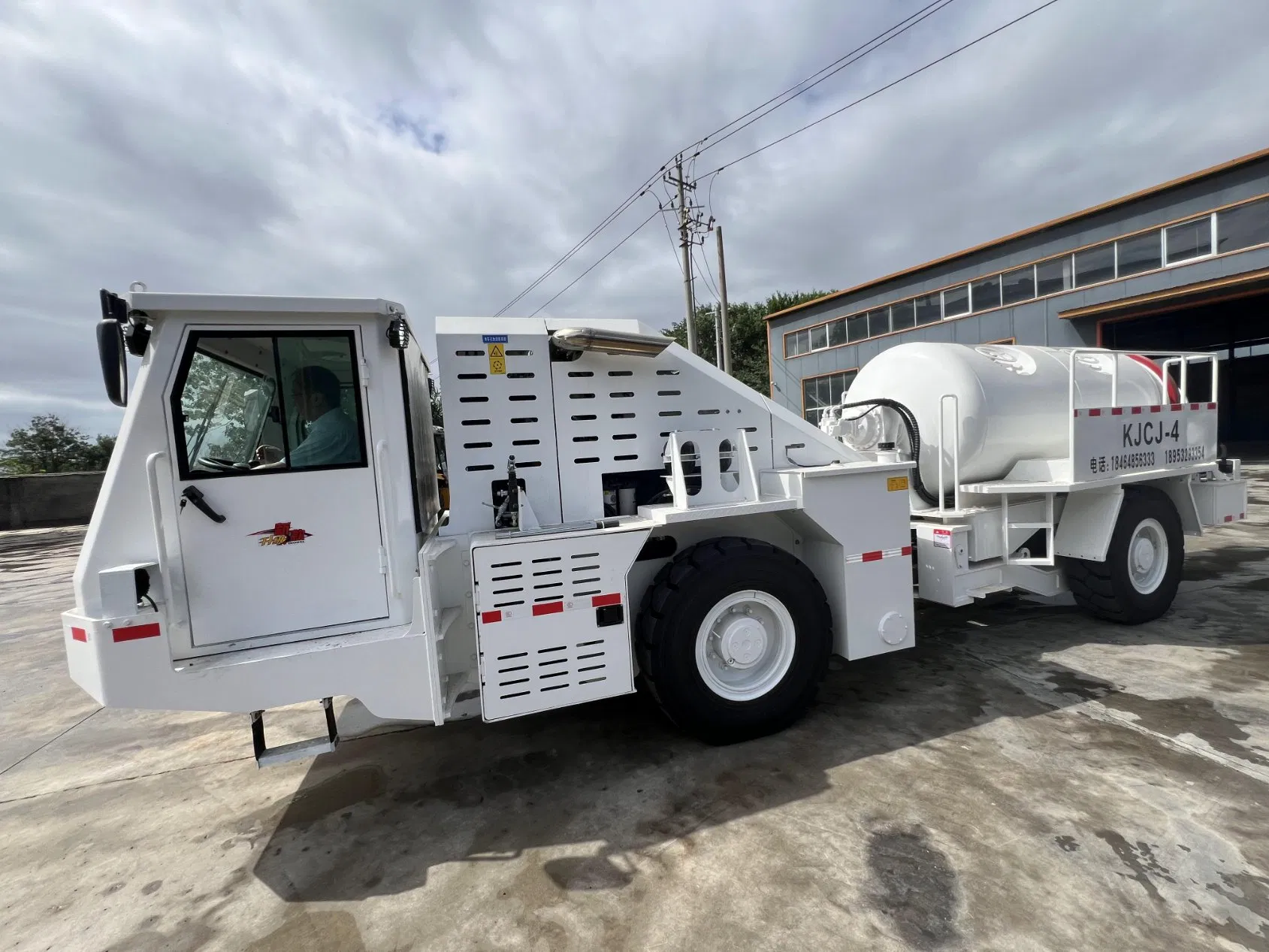

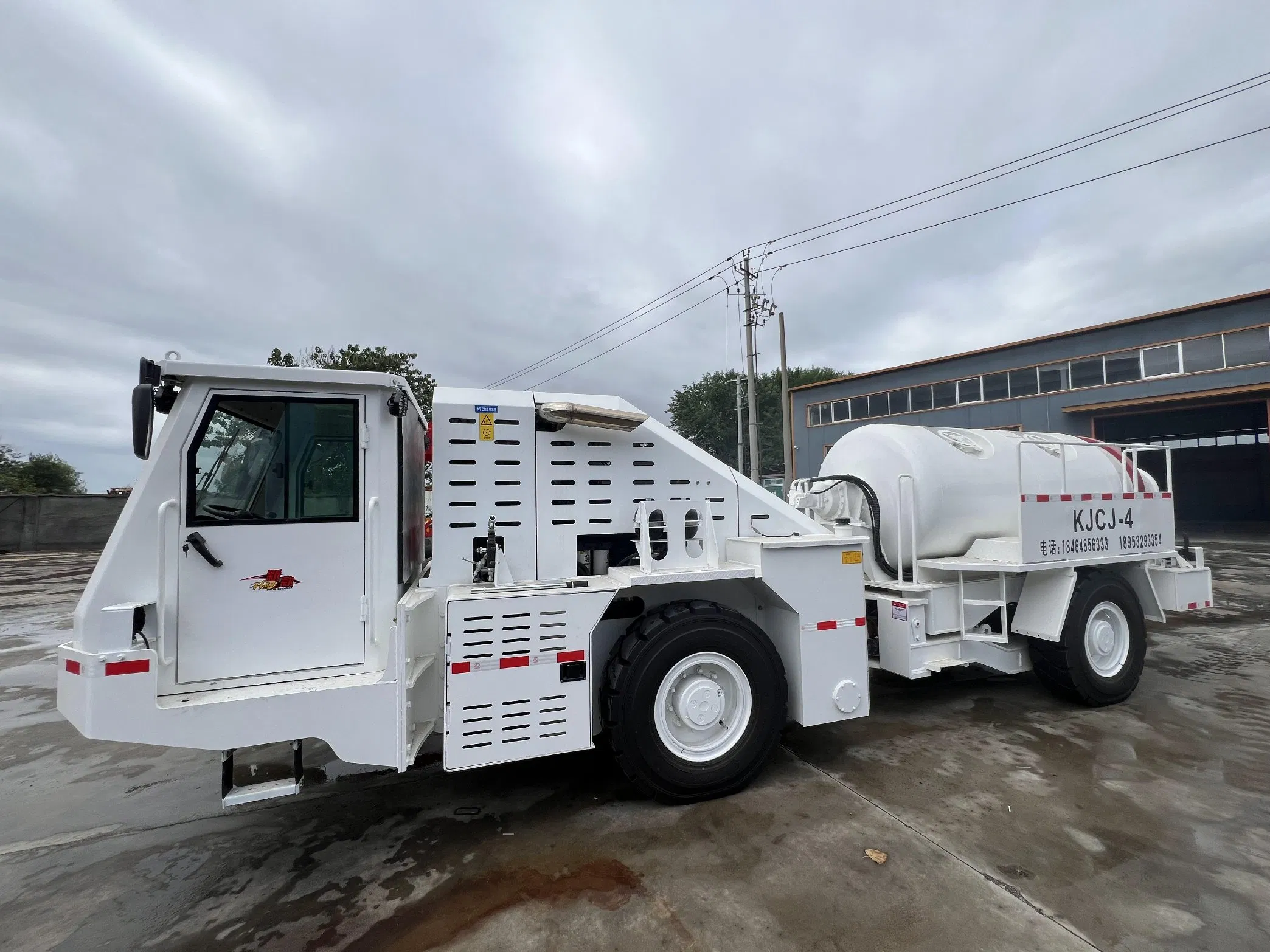

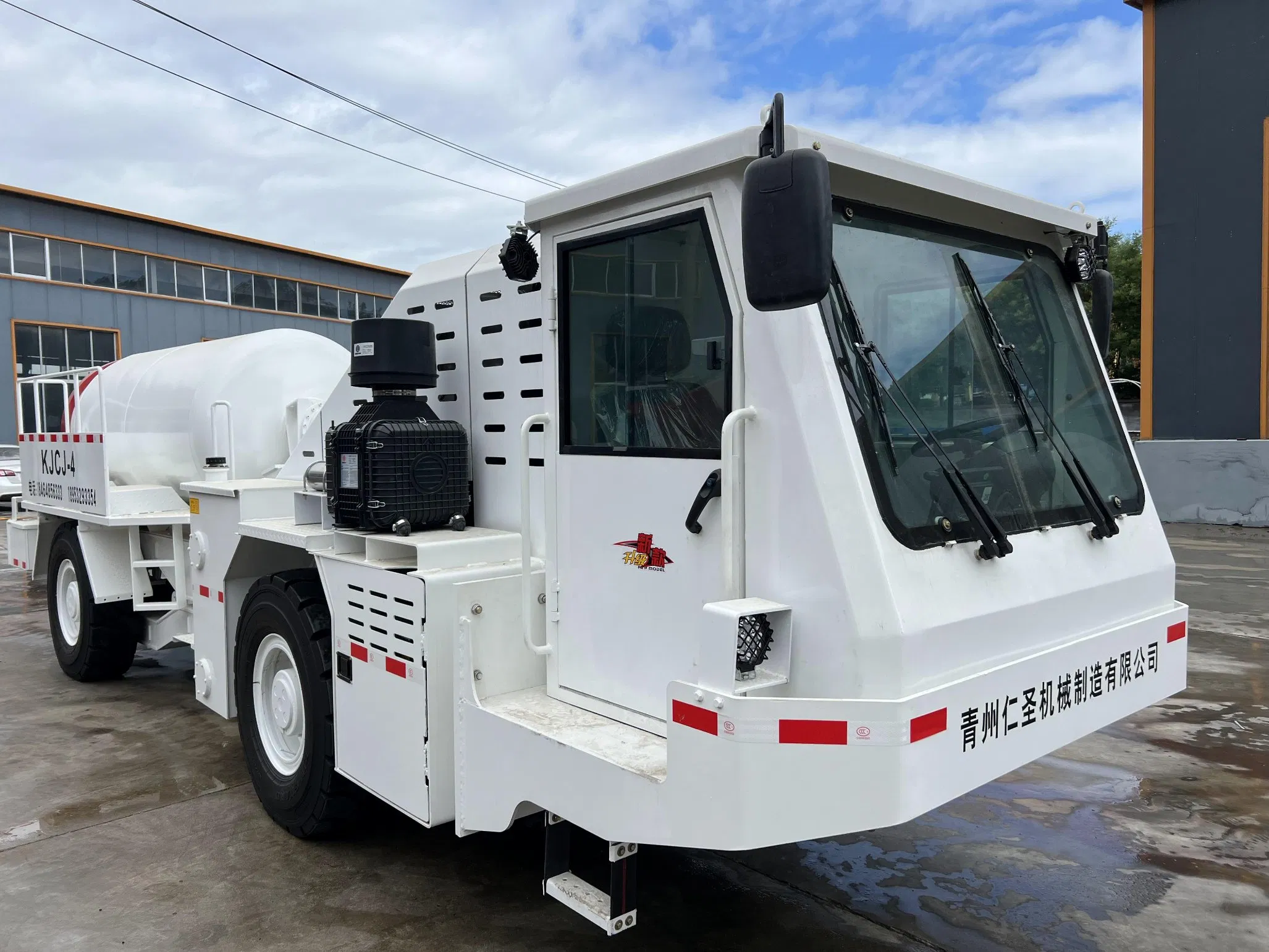

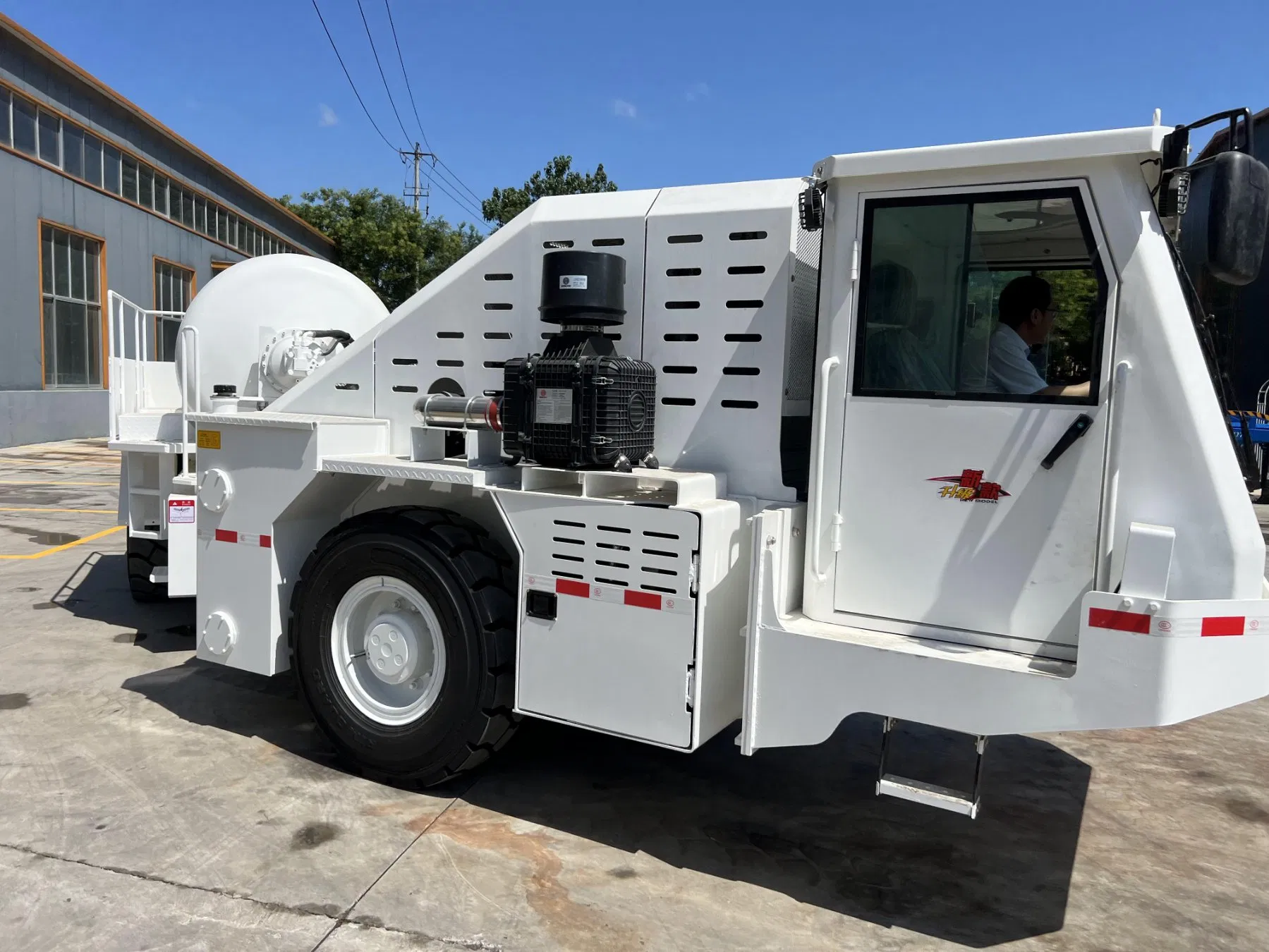

Tmg Brand Tu312 Underground Mining Vehicle Low Profile Concrete Mixer Truck with CE
Tmg Brand Tu312 Underground Mining Vehicle Low Profile Concrete Mixer Truck with CE
Tmg Brand Tu312 Underground Mining Vehicle Low Profile Concrete Mixer Truck with CE
Tmg Brand Tu312 Underground Mining Vehicle Low Profile Concrete Mixer Truck with CE
Tmg Brand Tu312 Underground Mining Vehicle Low Profile Concrete Mixer Truck with CE
1 / 5
Tmg Brand Tu312 Underground Mining Vehicle Low Profile Concrete Mixer Truck with CE
Tmg Brand Tu312 Underground Mining Vehicle Low Profile Concrete Mixer Truck with CE
Tmg Brand Tu312 Underground Mining Vehicle Low Profile Concrete Mixer Truck with CE
Tmg Brand Tu312 Underground Mining Vehicle Low Profile Concrete Mixer Truck with CE
Tmg Brand Tu312 Underground Mining Vehicle Low Profile Concrete Mixer Truck with CE

Tmg Brand Tu312 Underground Mining Vehicle Low Profile Concrete Mixer Truck with CE

Customization: Available
Type: Underground Service Vehicle
Structure: Chass + Working Body
Send Inquiry

Product Description

Technical Specifications
Model NO.
TU312
Material
Stainless Steel
Material Feature
Heat Resistant
Certification
ISO9001:2000
Energy Saving
Yes
Warranty
2 Years
Color
White or Customized
After-sales
2 Years
Capacity
200 Units/Year
Origin
China

Underground Utility Vehicle TU312

Payload 12 ton Chassis for Underground Mining Multifunction Application

New generation of Drive-Train product lines

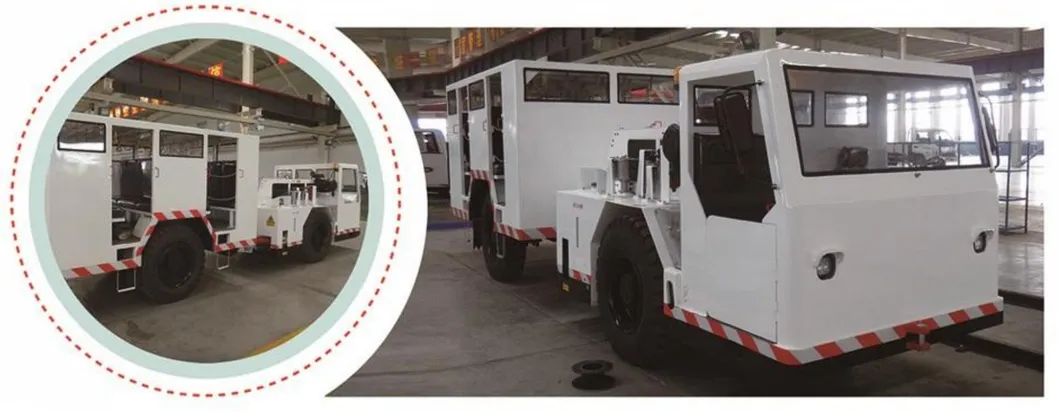

Underground Utility Vehicle Range
Product Varieties for Underground Application

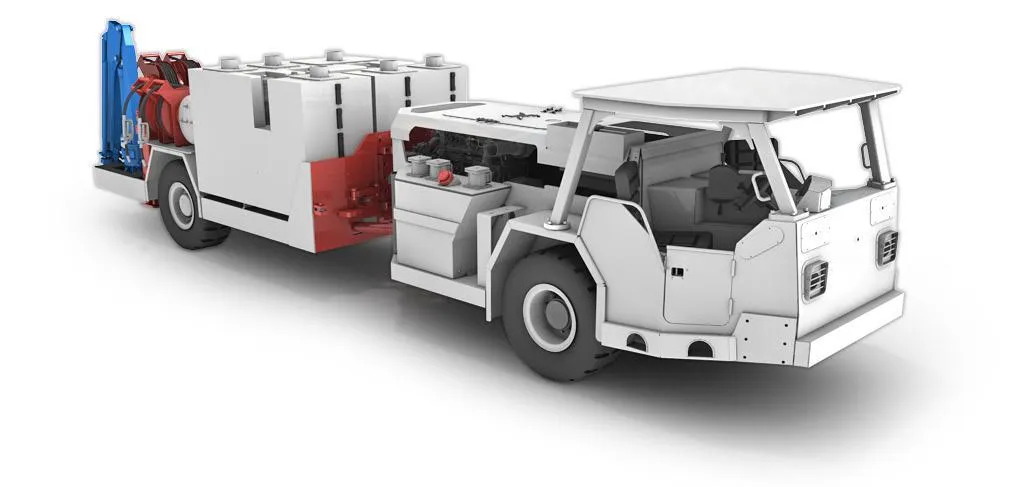

Miner Carrier Vehicle

Miner Carrier Vehicle

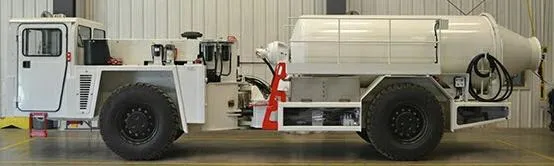

Lube Tank Vehicle

Lube Tank for Underground Mining

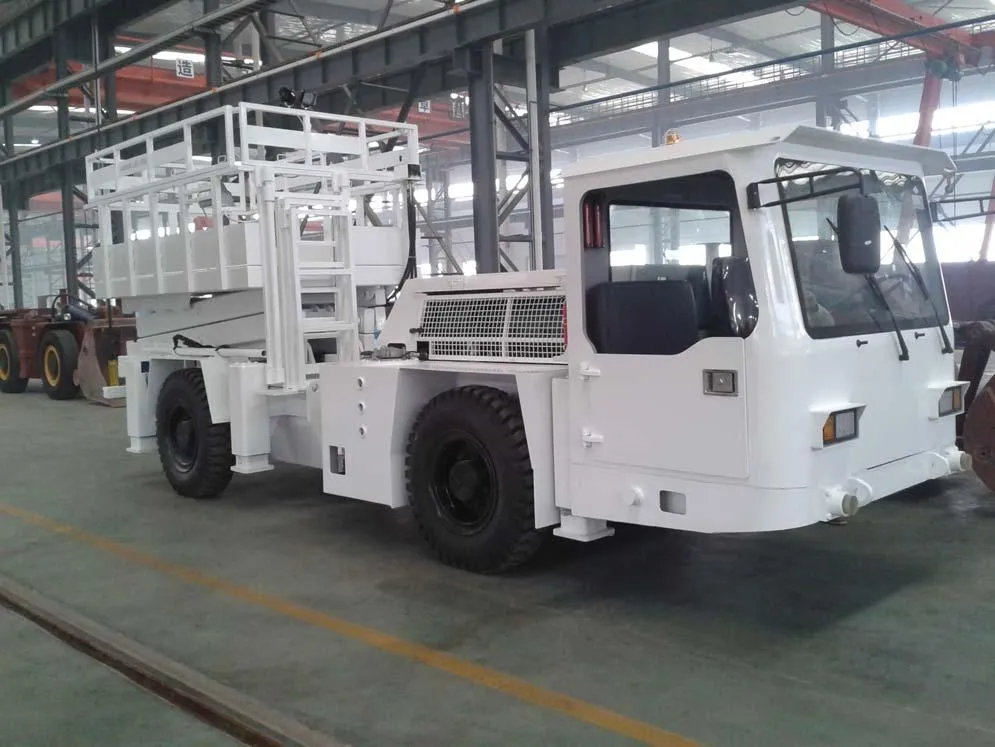

Underground Oil Tank

Underground Oil Tank Application

Detailed Specifications
Category Details
EngineF6L914 Air-Cooled, 112 Kw/2300 rpm, Tier II Approved
Fuel SystemTank Volume 112L
Exhaust SystemCatalytic exhaust gas purifier and muffler
TransmissionC273+R32000 series power shift, 3 speed forward/reverse, 4 wheel drive
AxlePlanetary type Dana 113 or XCMG/LiuZhou ZF options, Angle oscillation +/- 10°
Tires12.00-20 TL 20 / 14.00-24 TL 24
Performance1st: 6km/h, 2nd: 12km/h, 3rd: 25km/h. Max tractive effort: 132KN
BrakesDual-circuit oil immerse multidisc service brake; Spring applied fail-safe parking brake
SteeringHydraulic frame steering, Articulation angle: +/- 40°
Electrical24 VDC System, IP 65 components, 2X115Ah Lead-Acid batteries
Cab2 man Cab FOPS Approved, Air suspended seat with seat belt
Available Attachments
Lifting PlatformsHydro Pipe jack or tilting
Crane12Knm for lifting, Rig crane with Grapple option
Roof SystemsSliding safety Roof (Adjustable height)
Tank SystemsLube Tank (up to 7 kinds of Lube)
PersonnelMiner Carrier attachments
Core Technology Features

Professional technical development for off-highway underground mining trackless vehicles:

  • Low-pollution Engines specialized for underground mines
  • Shaft-fixed Power shift Transmission and Torque converters
  • Heavy-duty Axles with SAHR (Spring Applied Hydraulic Released) brakes
  • Reliable Cable and Battery electric vehicle options
Frequently Asked Questions
1. What is the maximum payload capacity of the TU312?
The TU312 chassis is designed for a 12-ton payload capacity, making it suitable for heavy-duty underground mining utility tasks.
2. Does the vehicle meet international safety standards?
Yes, the cab is FOPS approved, and the engine complies with Tier II emission standards. The electrical components meet a minimum of IP 65 standards.
3. What types of attachments can be mounted on the chassis?
The universal chassis supports various attachments including lifting platforms, cranes (12Knm), lube tanks for up to 7 types of lubrication, and miner carrier modules.
4. What are the key features of the braking system?
It features a hydraulically powered dual-circuit oil immerse multidisc service brake and a spring-applied hydraulically released fail-safe parking brake.
5. Is the TU312 suitable for inclined tunnel operations?
Yes, it has a maximum speed of 9km/h in a 1:7 inclined tunnel, supported by a 132KN maximum tractive effort.
6. What is the warranty period for this vehicle?
The product comes with a standard 2-year warranty and 2-year after-sales service support.
