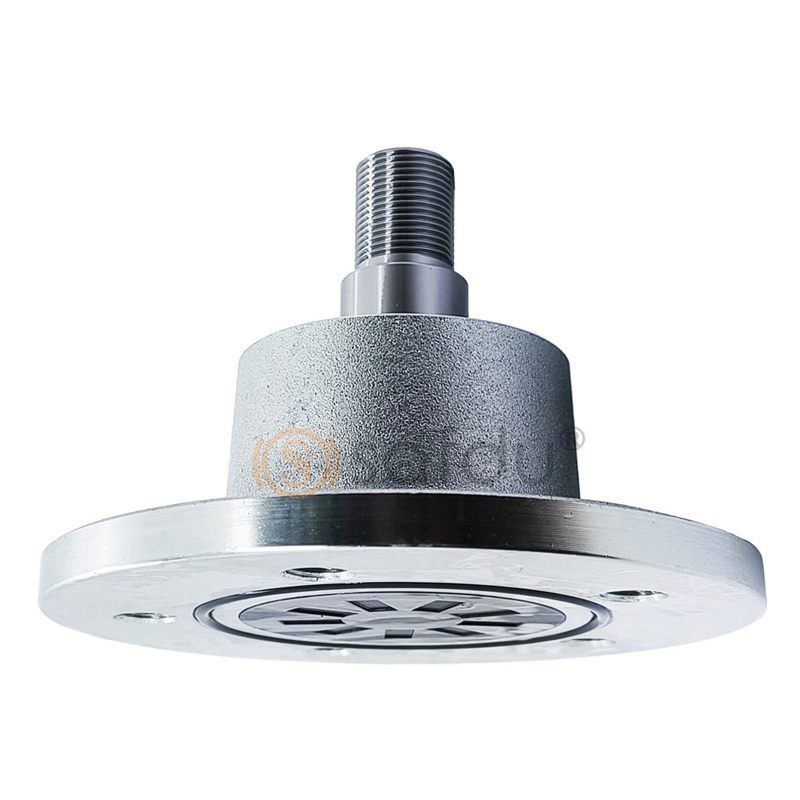

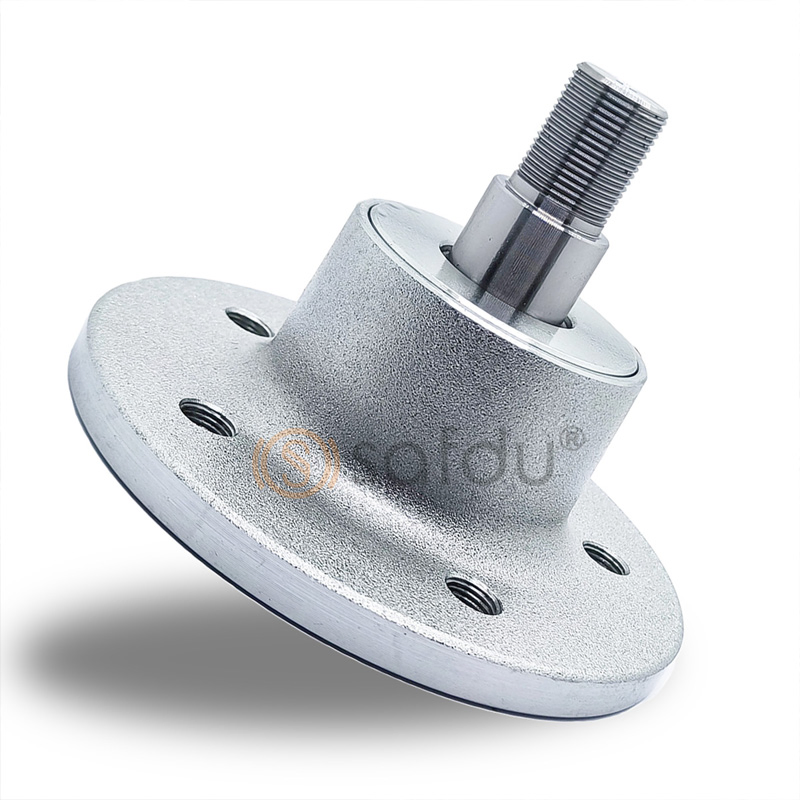

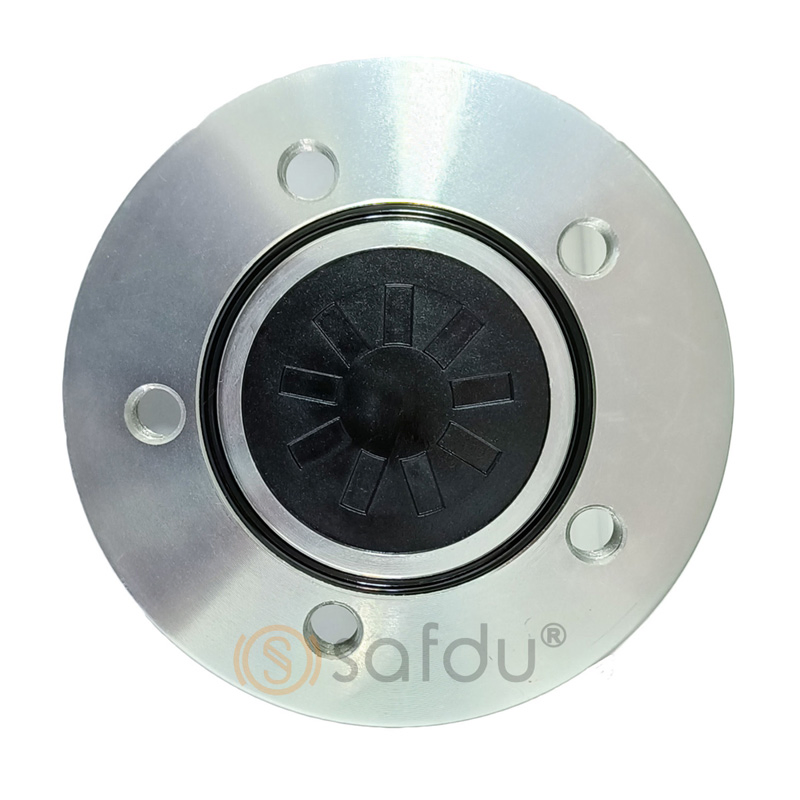

Agri Hub Bearing

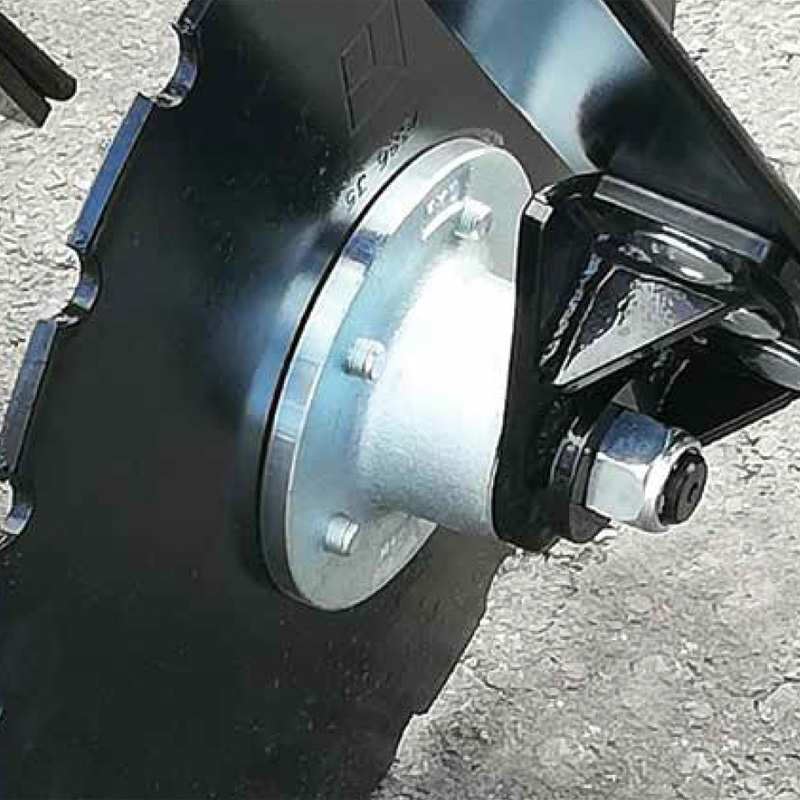

The agri hub bearing is an extremely sturdy device for agricultural equipment, designed to meet the demands for higher productivity, lower operational costs, and environmental protection. It features a single row angular contact ball bearing with a flange and triple-seal protection for maximum durability in harsh field conditions.
Simple installation process with optional spare parts including screws, nuts, and washers.
Blocks 99% of dust, mud, and debris common in cornfields and tilling environments.
Withstands -30℃ to 35℃ temperature swings without brittleness or performance loss.

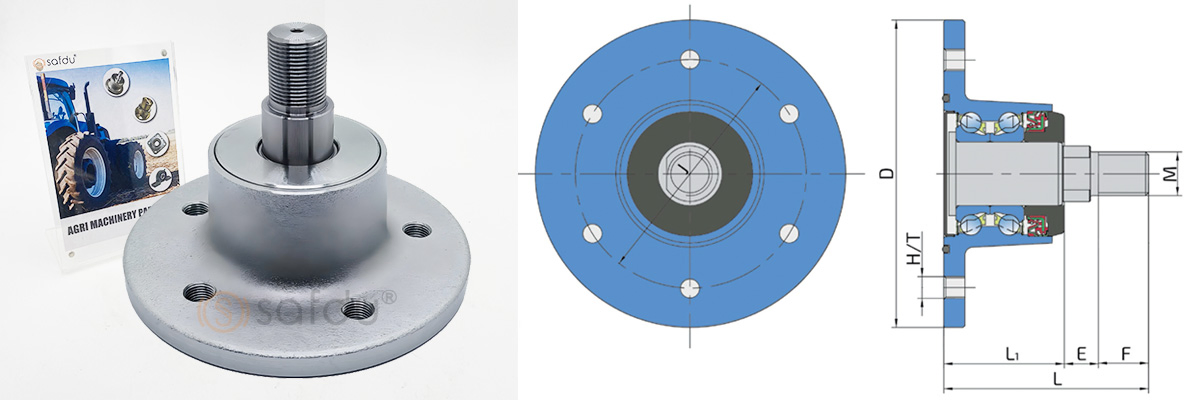

| Model | IL40-104/5T-M22*1.5-01 | ||
|---|---|---|---|
| D | Outside diameter | 145 | mm |
| J | Pitch circle diameter | 104 | mm |
| H/T | Hole/Thread | 5*M12*1.25 | mm |
| L | Total length | 101 | mm |
| L1 | Total flange length | 55 | mm |
| E | Length of D-shaft | 21 | mm |
| M | Outer thread | M22x1.5 | mm |
| d | Bore diameter | 32 | mm |
| kg | Weight | 2.48 | kg |

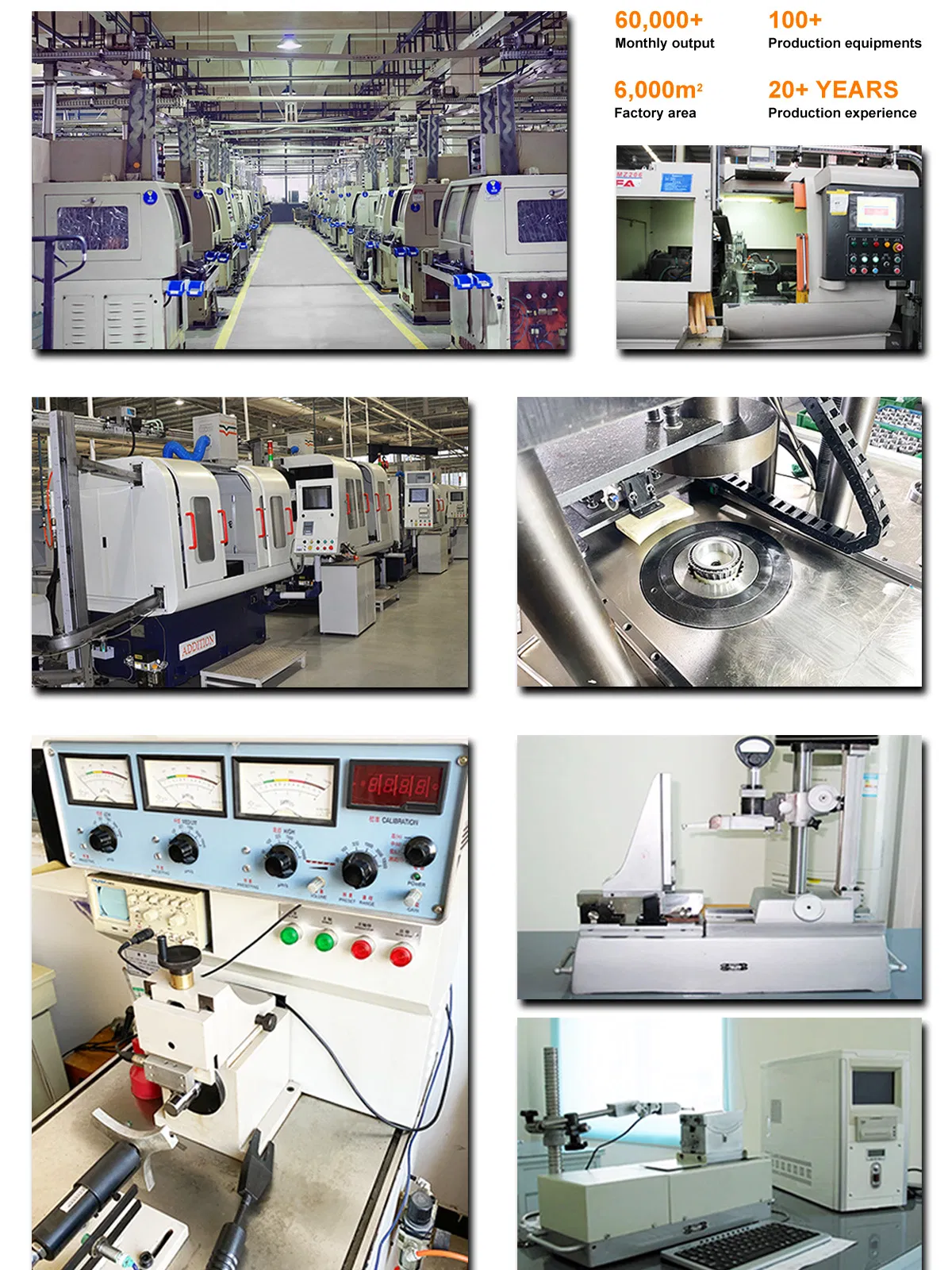

We focus on quality at every stage of the process from material handling, through inspection, testing and shipping. Our mission is helping customers to enhance market share through innovation and industry-leading durability.
Package Size: 31.00cm * 31.00cm * 17.00cm
Gross Weight: 11.000kg
Transport Package: Box + Pallet (Export Standard)
