OEM 16t/20t/25t/40t Wrecker Towing Body Equipment DTU Mounted on Truck Chassis Detachable Wrecker Unit

Customization:	Available
After-sales Service:	24 Hours on Line
Warranty:	1 Year

Send Inquiry

Product Description

Technical Specifications

CertificationISO9000, CCC

TransmissionAutomatic

Towing Tonnage30T

FuelDiesel

BrandEurope Tractor Truck

ConditionNew

Lifting Capacity40tons, 20 Tons, 25 Tons

Winch SystemTwo Hydraulic Winches, 2*10tons

Remote ControlEnglish Format Available

ApplicationRoad Rescue, Breakdown Recovery

Underlift12 Tons, 16 Tons, 20 Tons

HS Code87059099

OEM Professional Equipment

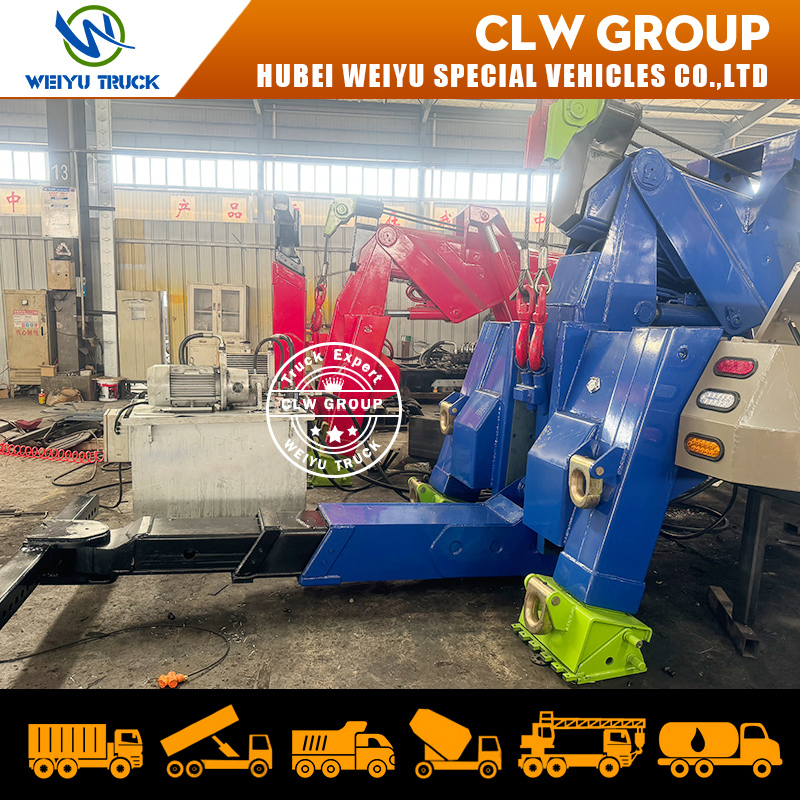

Detachable Wrecker Unit (DTU) Overview

OEM 16T/20T/25T/40T Wrecker Towing Body Equipment

The Detachable Towing Unit (DTU) is designed to decrease rear overhang, increase front axle weight, and offer superior towability. It features repositioned lift cylinders for better underlift height and an improved center of gravity.

Key Applications

Multi-functional usage for both towing and pulling trailers.
Quick removal system via front lock-down bracket and Fifth Wheel Plate.
Equipped with high-capacity hydraulic winches (8T, 10T, or 15T).
Aluminum alloy tool boxes and manual/remote operating systems.

Standard Configuration

Low Profile Fabricated Cross Bar & Front Stands.
Fork Storage Holders, Air & Electrical Lines.
Side Control & Aluminum Alloy Tool Box.
2 pieces 10Tons Hydraulic Winch with 45m steel rope.
20Tons Capacity underlift system.

Optional Upgrades

8Tons or 15Tons Hydraulic Winch variants.
Wet Line Kit (PTO, Pump, 15 Gallon Tank).

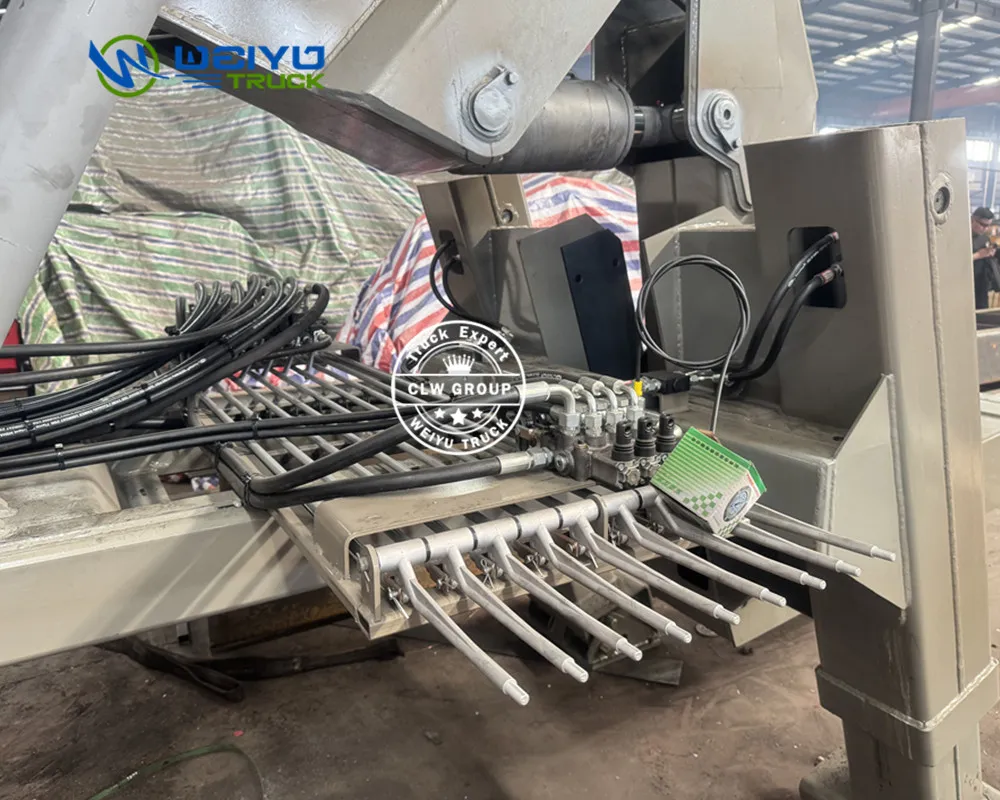

Wireless or Hand-Held 6-Function Remote Control.
Emergency and Work Area Lighting packages.
Bus Lift & specialized storage systems.

Product Visuals

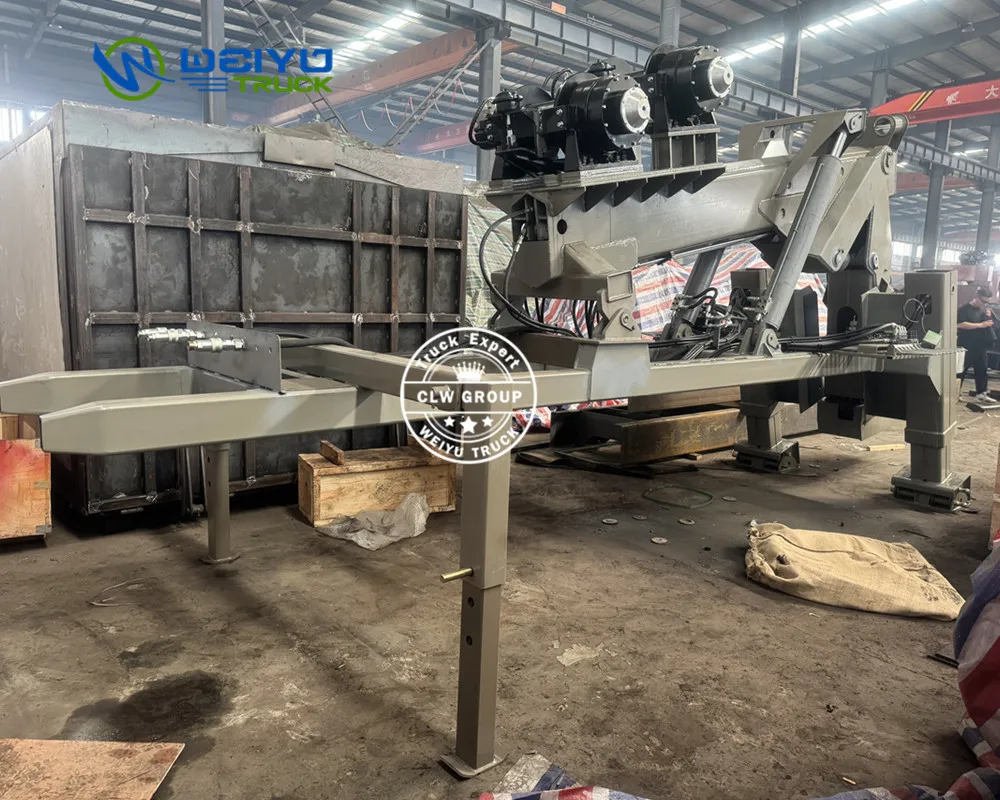

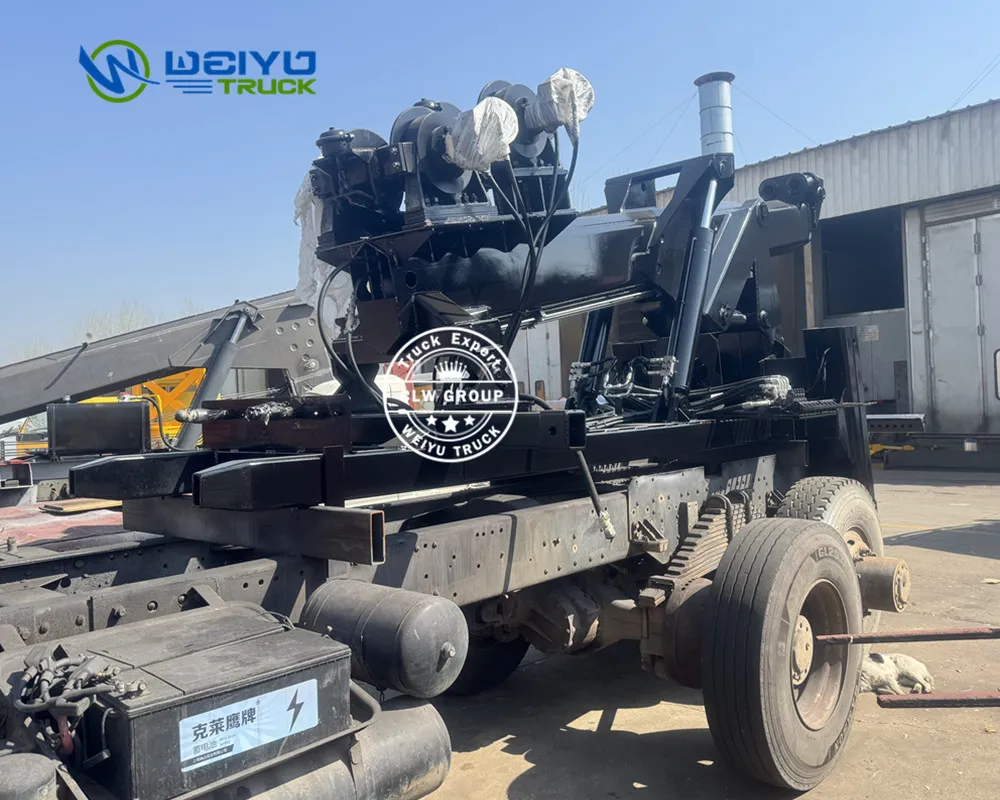

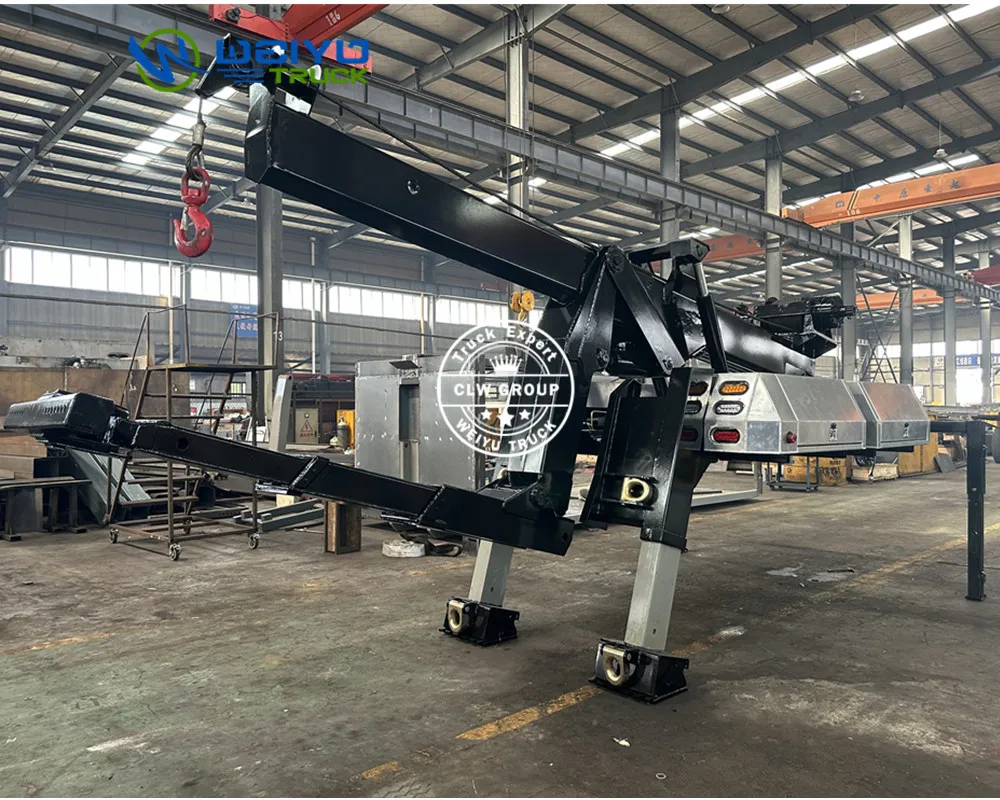

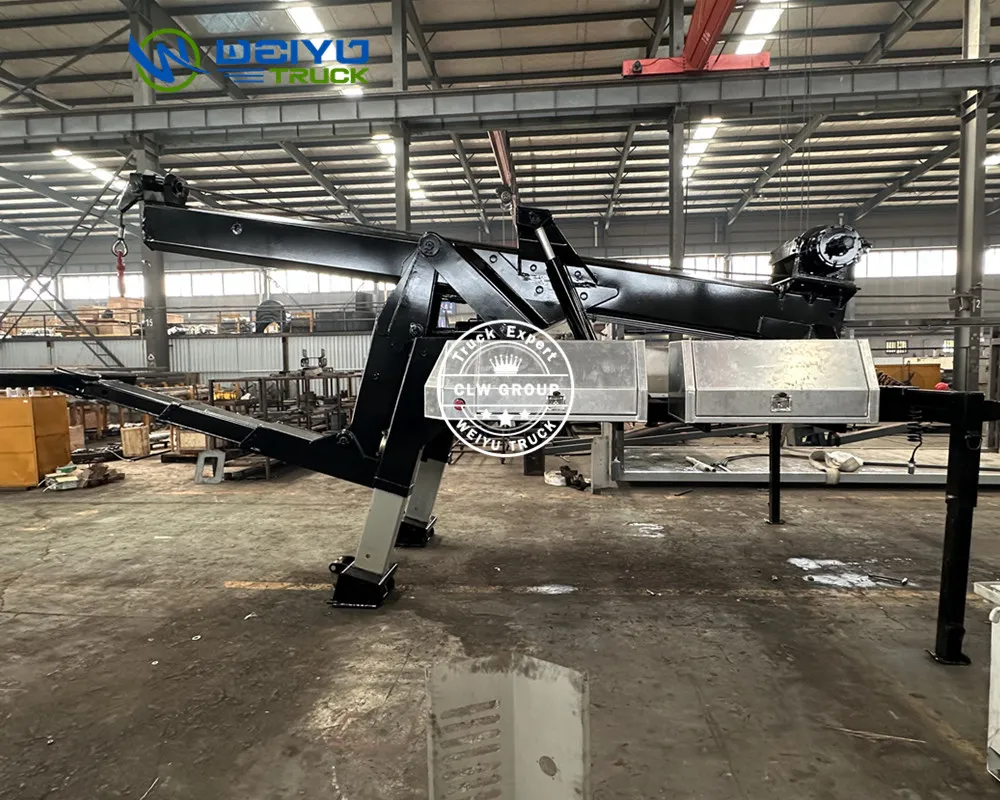

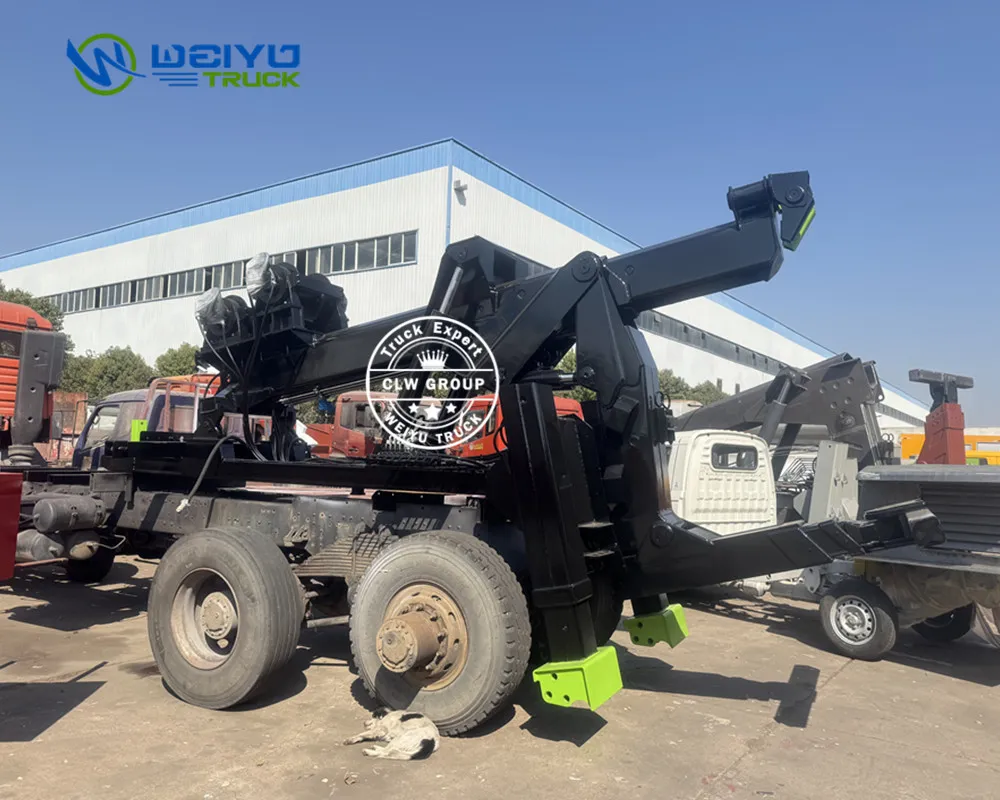

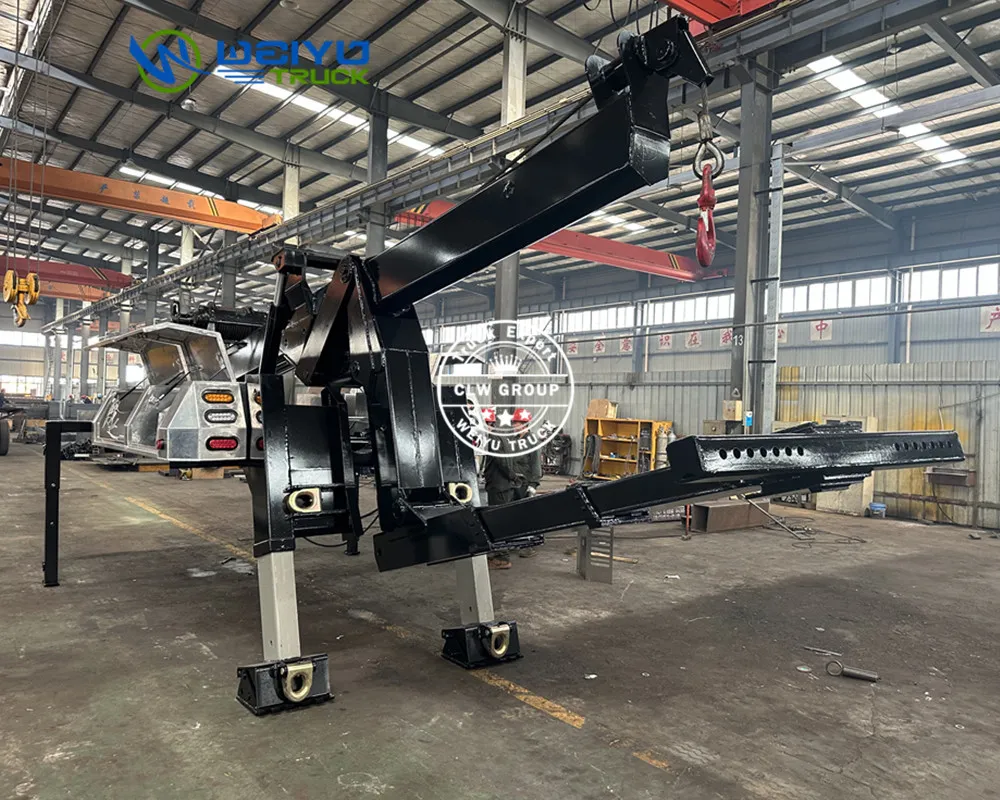

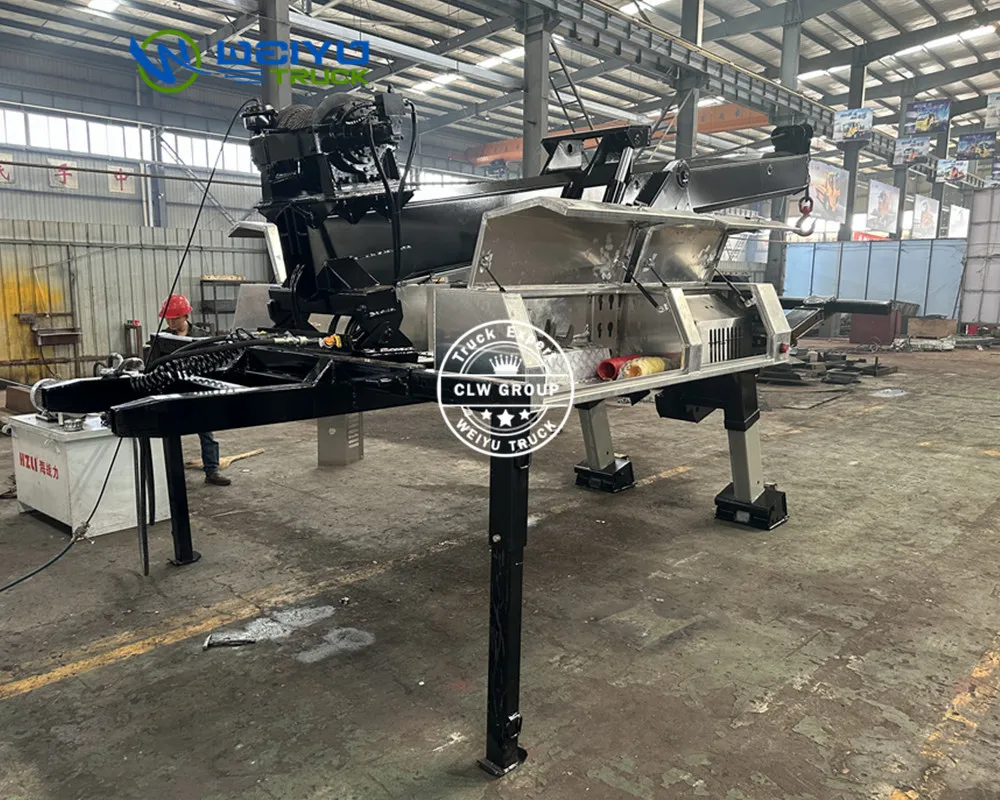

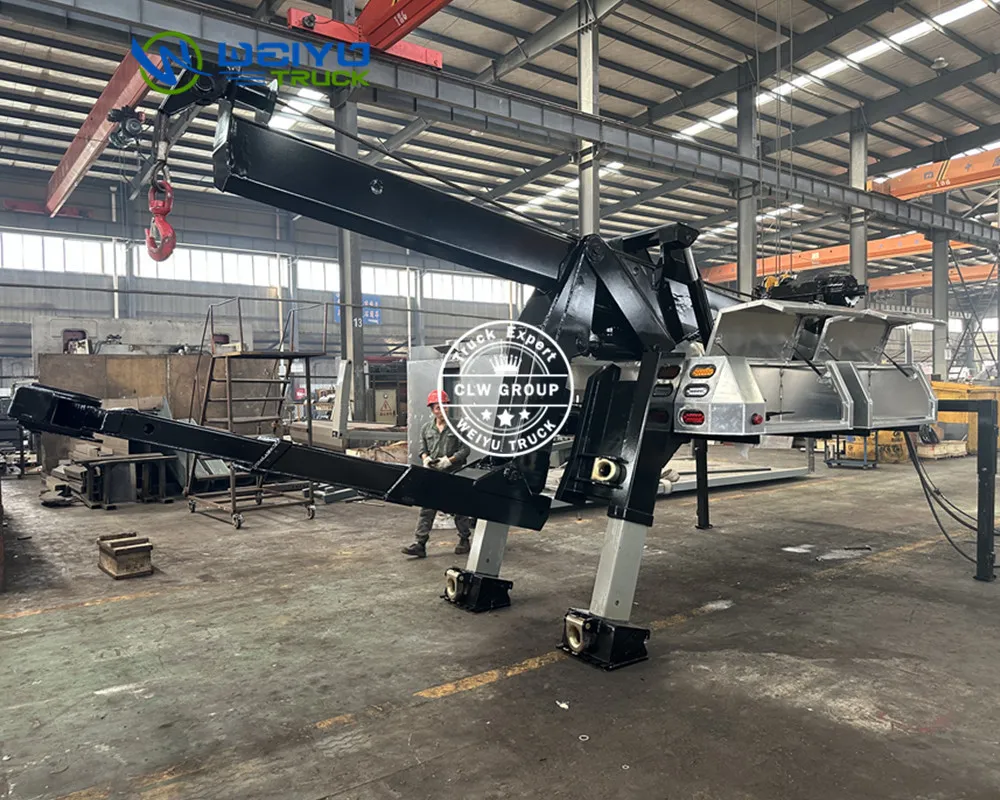

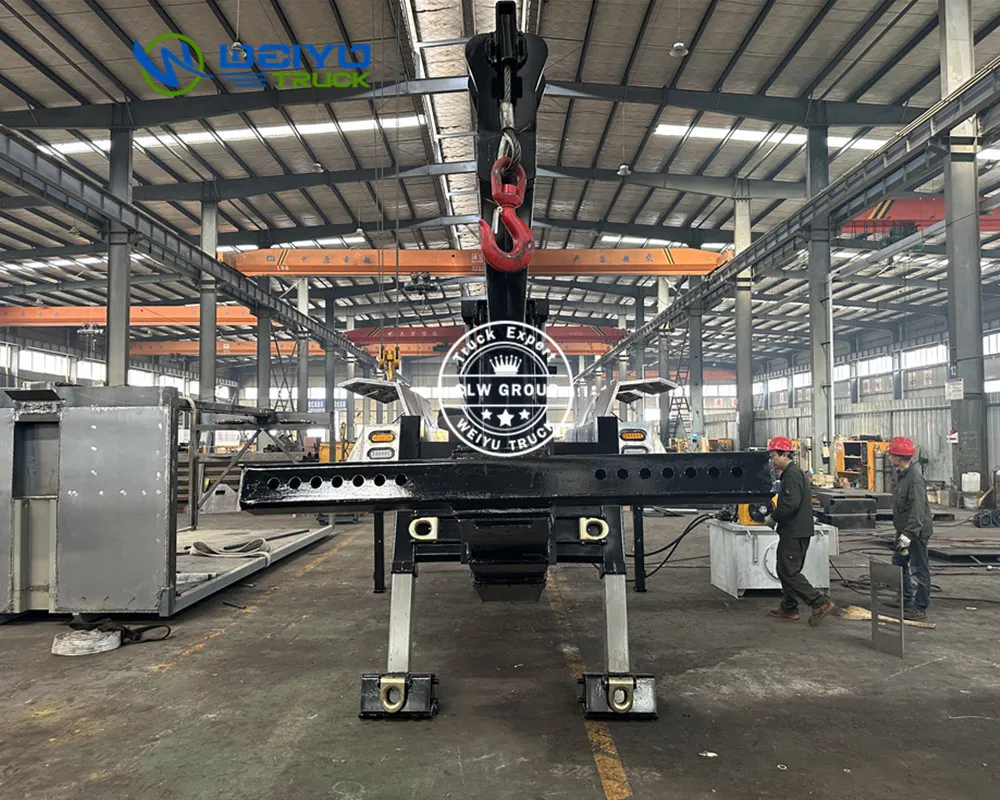

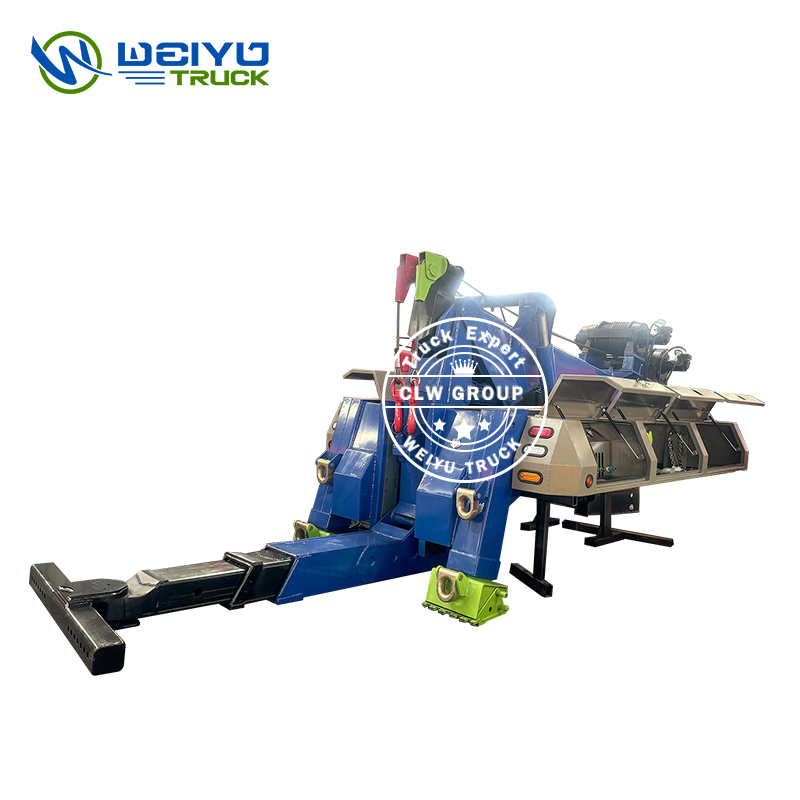

Tractor Mounted DTU Series

Technical Structure & Range

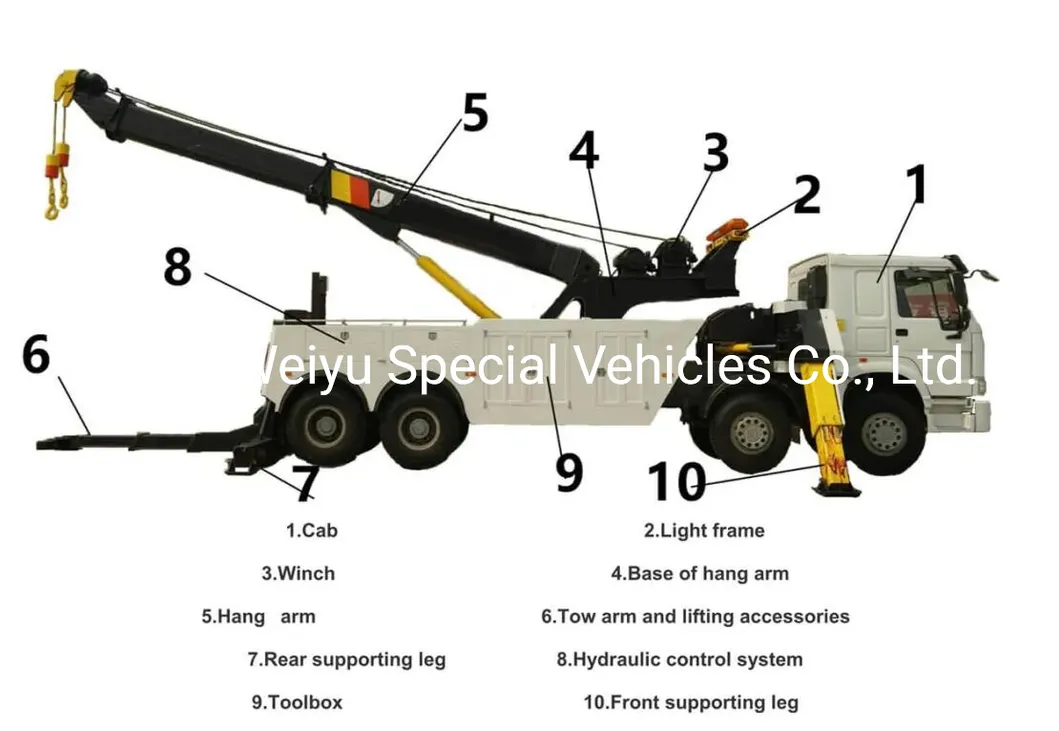

Structural Diagram:

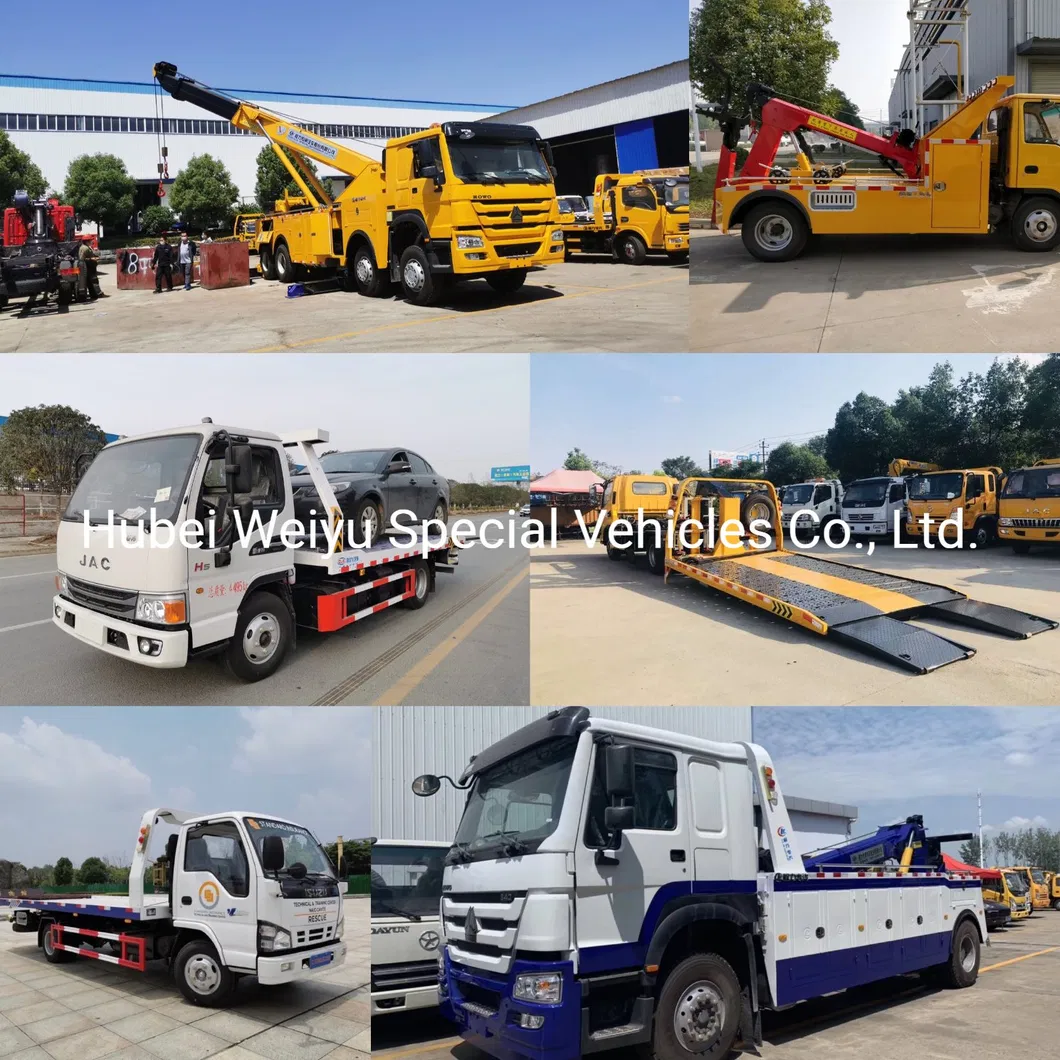

25 Tons Tow Truck

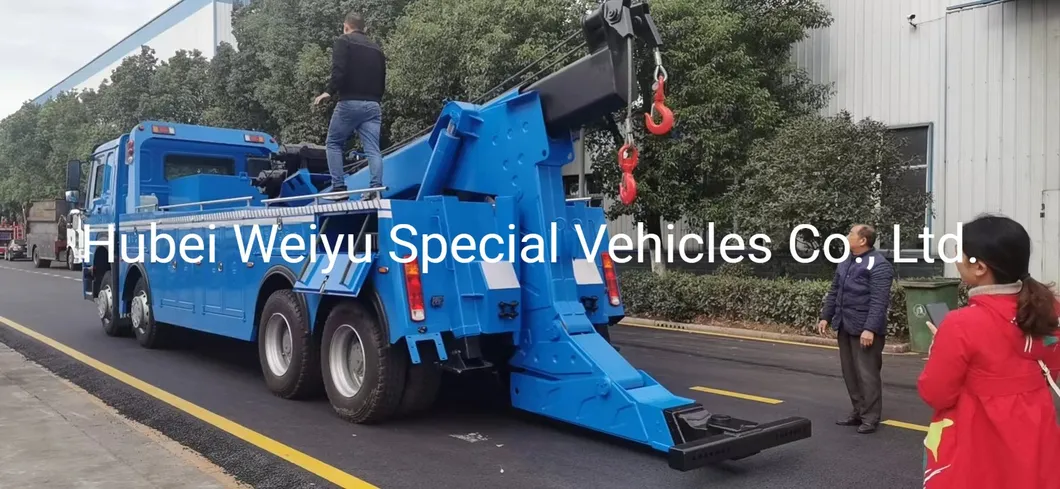

4 Tons Tow Truck

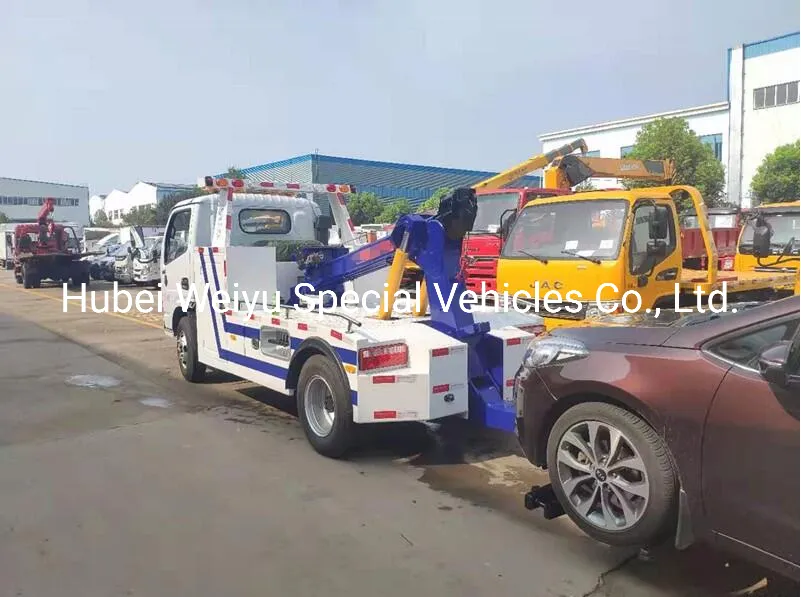

30 Tons Recovery Truck

12 Tons Flatbed Rollback

Frequently Asked Questions

What is a Detachable Towing Unit (DTU)?

A DTU is a specialized wrecker body designed to be easily mounted and removed from a tractor unit. This allows your truck to be multi-functional, serving both as a towing vehicle and a trailer hauler.

What are the available lifting capacities for these units?

We offer a range of capacities including 16T, 20T, 25T, and 40T to suit various heavy-duty recovery needs.

Can the unit be operated remotely?

Yes, the units come with manual operating levers as standard, but we offer both hand-held 6-function controllers and wireless remote control options for enhanced safety and convenience.

How is the DTU secured to the truck?

The unit is secured using a specialized front lock-down bracket in combination with your truck's Fifth Wheel Plate for a stable and secure connection.

What kind of winches are installed?

Standard units include two hydraulic winches (typically 10T capacity). Options for 8T and 15T winches with up to 50 meters of steel rope are also available.

Are the tool boxes durable?

Yes, our tool boxes are constructed from high-quality aluminum alloy or carbon steel to ensure durability and resistance to harsh road conditions.
