Product Description

📋 Basic Information
Model NO.
HNSG Series
Specification
Power pack for movable compactor
Trademark
Hyswell
HS Code
86090090
Production Capacity
50000 Unit Per Year
⚙️ Product Description
HNSG Series Overview

The HNSG series fixed garbage station power unit is a specialized power system developed to match horizontal split garbage compression equipment. Its primary function is to compact and press loose household garbage, efficiently squeezing out moisture to prevent dripping during transportation. This significantly reduces secondary pollution and acts as a vital hub for garbage collection and transportation systems.

Recognizing the complex composition of household waste, the system incorporates spray dust reduction devices to protect operators from dust and odors. Additionally, biological deodorizers are used to inhibit ozone production and decompose odor pollution, ensuring harmless treatment and improved transportation efficiency. The entire system integrates a high-performance hydraulic system with an advanced electronic control system.

Our product synchronizes with advanced European technology, ensuring reliable and efficient operation. Featuring a modular design, the system offers advanced performance with a neat, aesthetic layout. The electronic control system utilizes PLC technology (with optional touch screen and upper computer control), enabling automatic repositioning, locking, and compression. Safety features include full load warnings, emergency stops, forced retreat, and safety warning functions.

Technical Layout
📊 Technical Parameters
Technical Parameter HNSG15A HNSG26C HNSG40A HNSG60A HNSG80A
Theoretical Capacity (m³/h) 172 340 345 560 800
Normal Compressive Force (kN) 270 320 350 470 580
Crushing Compression Force (kN) 320 405 460 700 1100
Compression Chamber Volume (m³) 1.5 2.6 4 6 8
Head Entry Length (mm) 360 500 800 1200 2400
Feeding Port Size (mm) 1450×1950 1530×1950 2450×1950 3000×1950 4165×1950
Cycle Time Approx (sec) 31 27 41 38 50
Motor Power (kW) 11 11 22 2×22 2×45
🖼️ Product Showcase

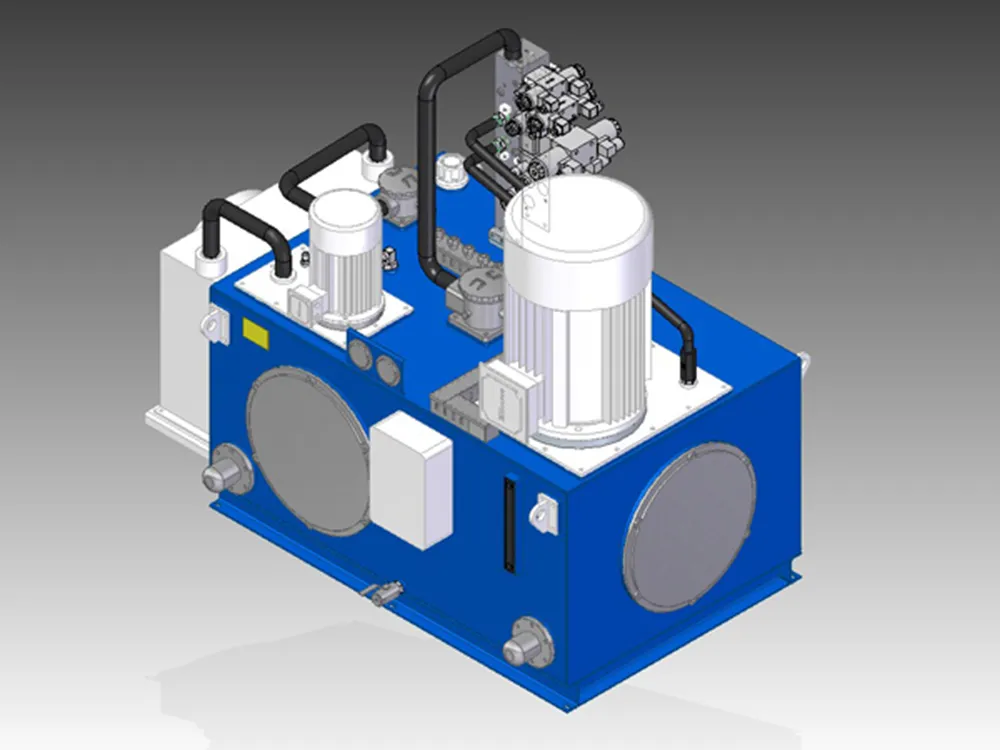

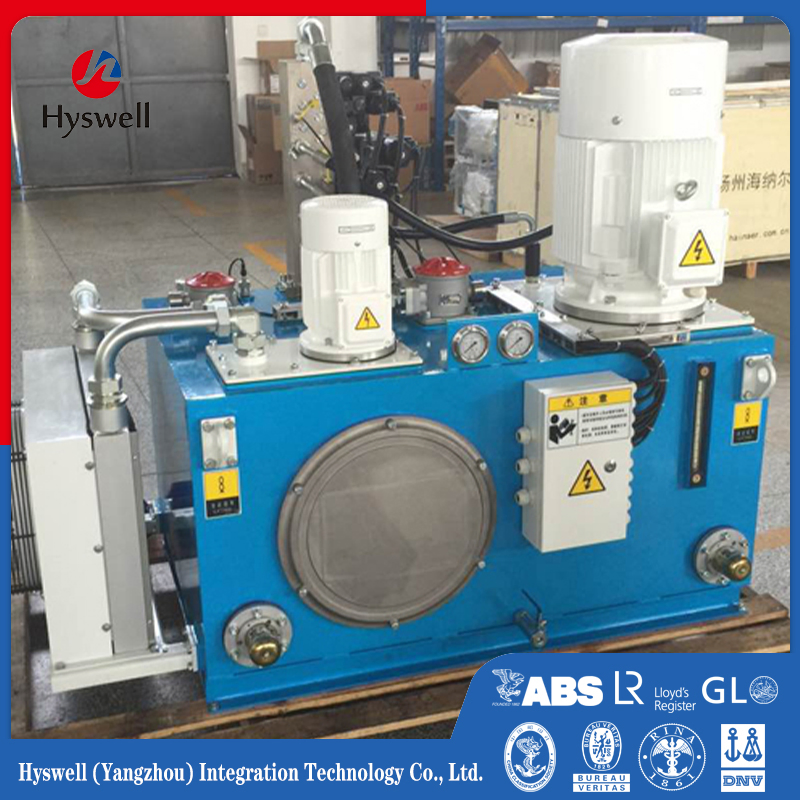

Main Unit

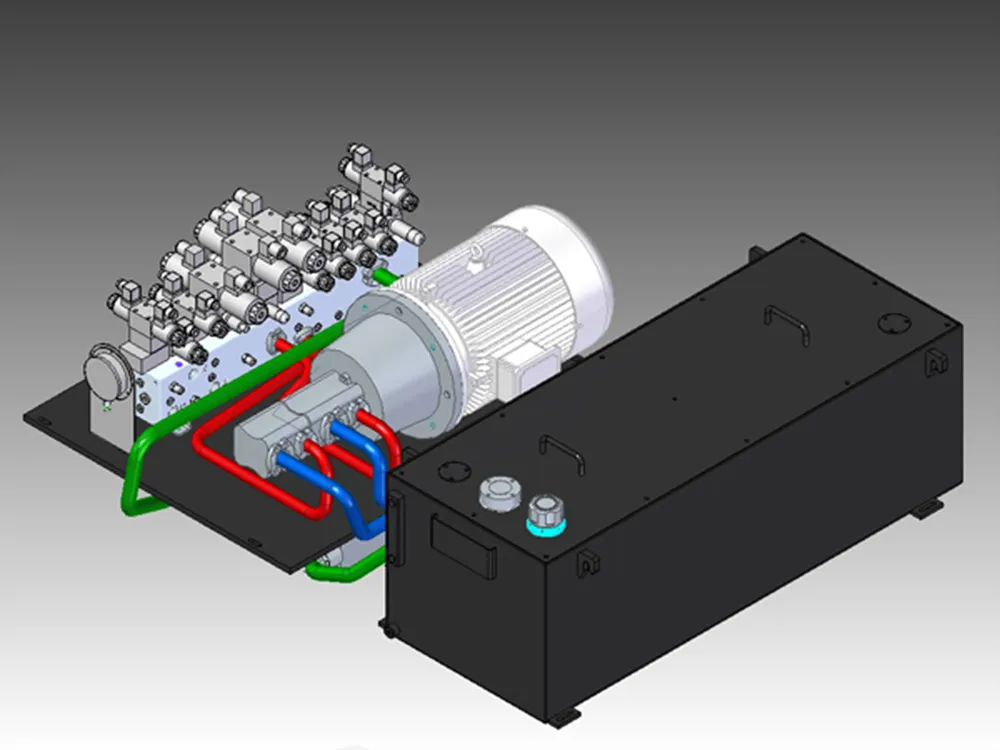

Component 1

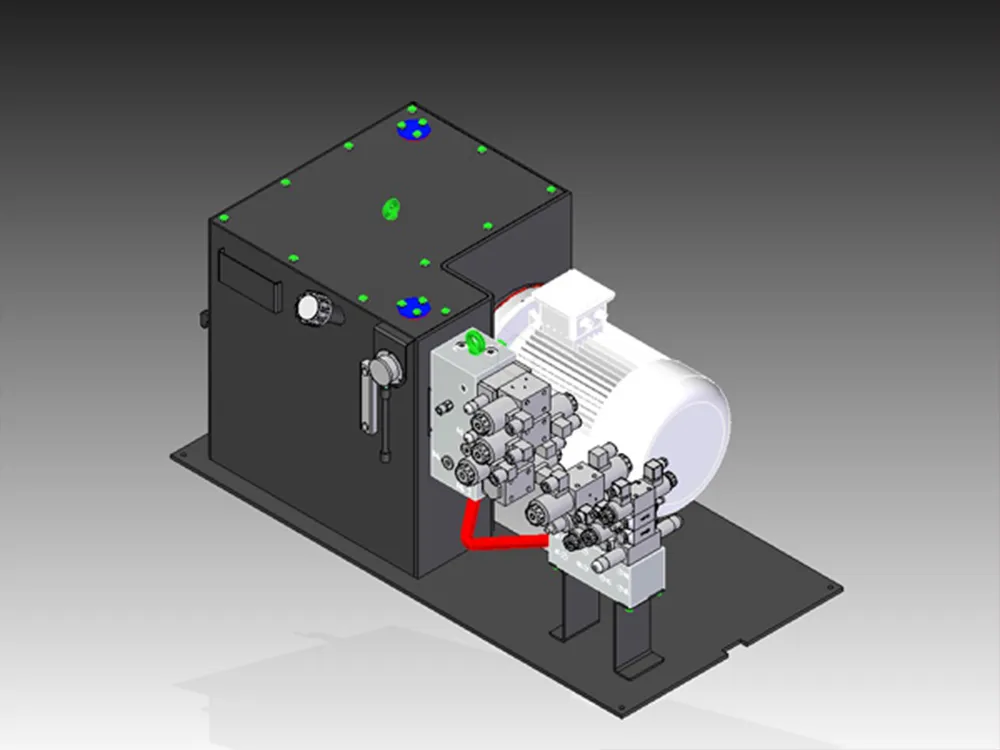

Component 2

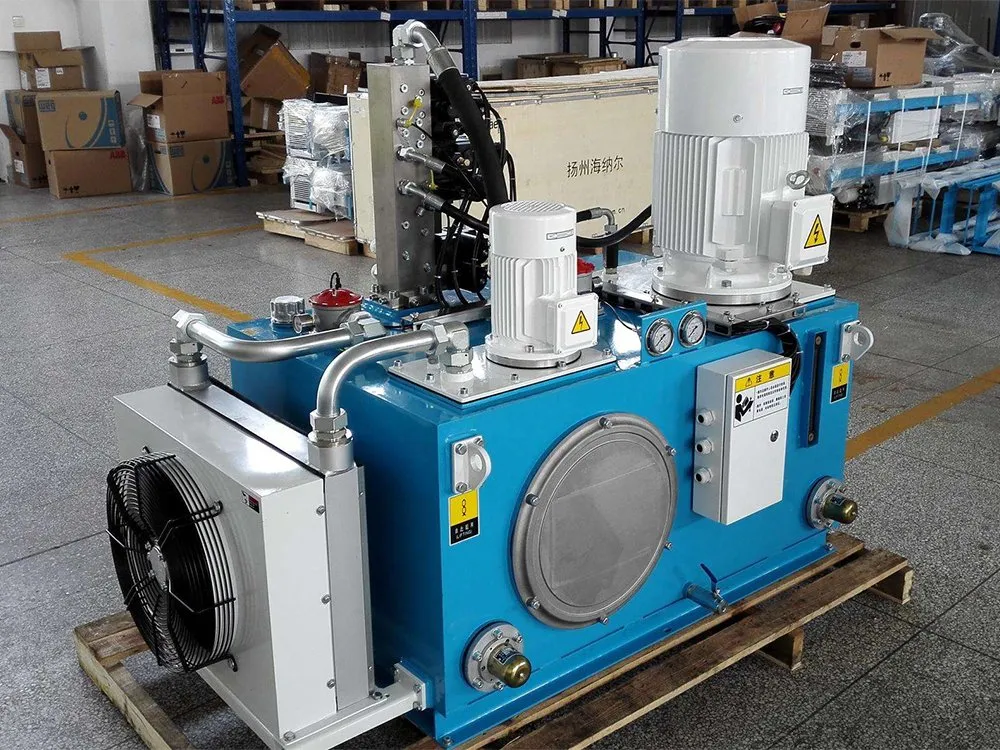

Component 3

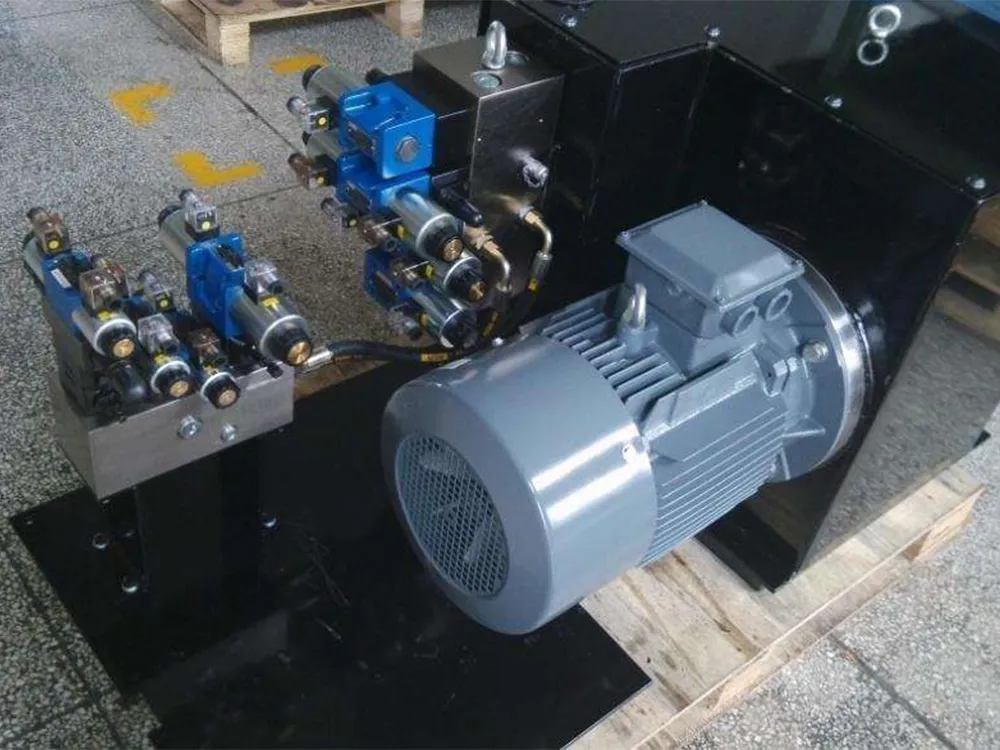

Component 4

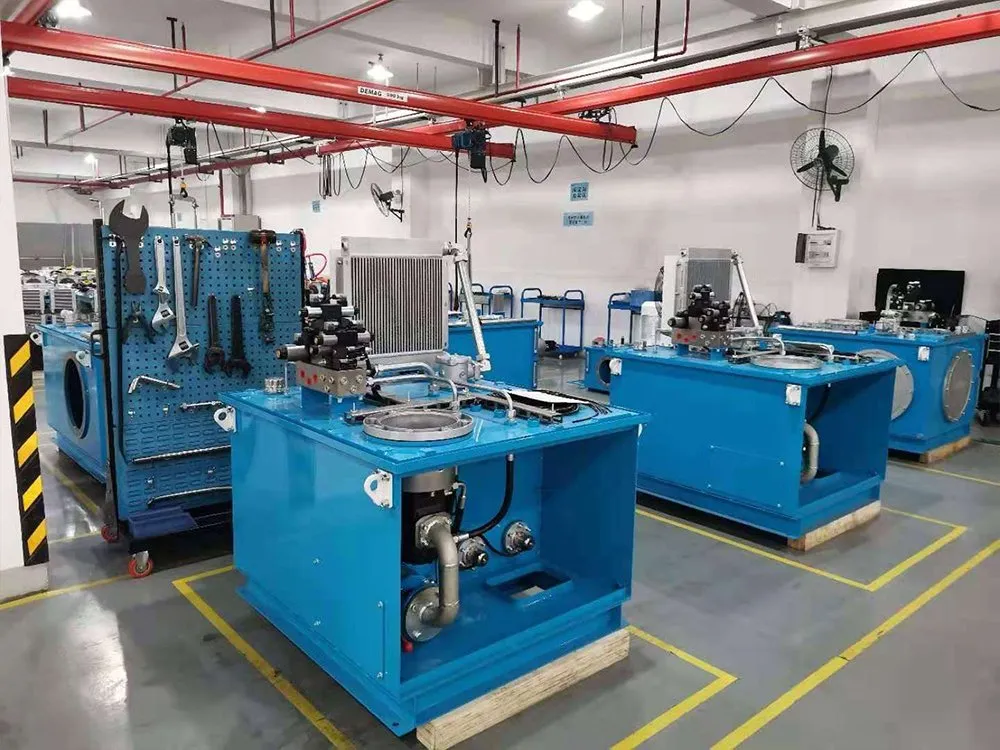

Component 5

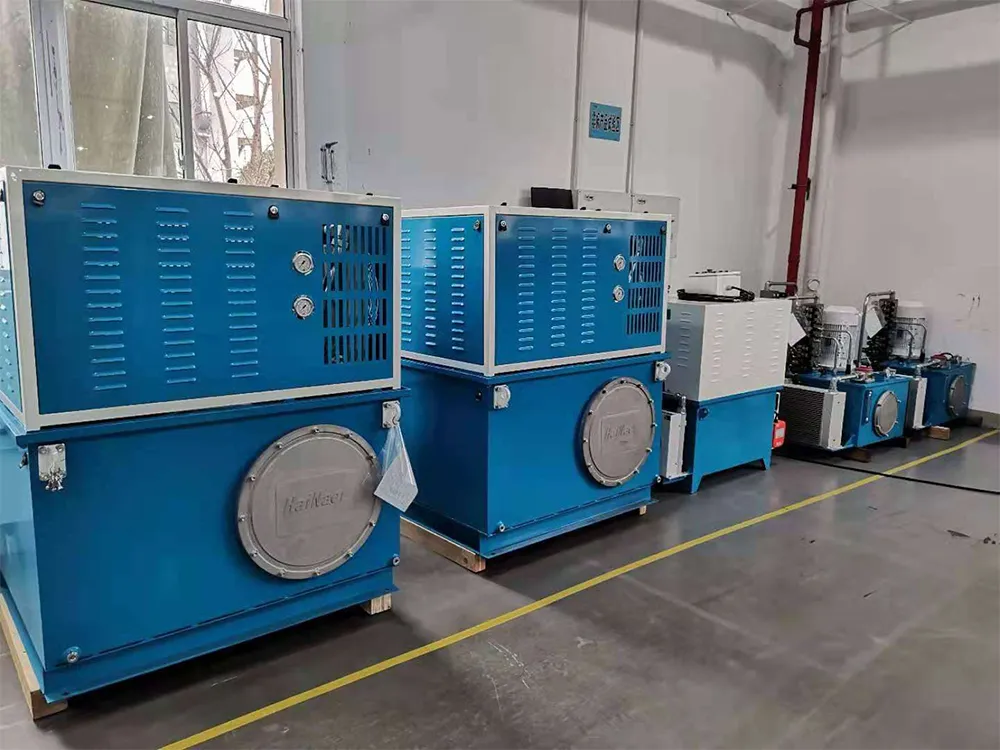

Component 6
Operational View
Detailed View 1
Detailed View 2
Detailed View 3
Detailed View 4
Frequently Asked Questions
What is the primary application of the HNSG series power unit?
The HNSG series is designed to power horizontal split garbage compression equipment, primarily used for compacting household waste and managing moisture content.
How does the system prevent secondary environmental pollution?
It squeezes out moisture from waste to prevent dripping during transport and utilizes spray dust reduction devices alongside biological deodorizers to handle dust and odors.
What type of control system does the unit use?
The system utilizes a PLC-based electronic control system, with options for touch screens and upper computer integration for automated management.
What safety features are integrated into the compression process?
The unit includes emergency stop functions, full load warnings, safety warnings, and automatic box locking to ensure operator and equipment safety.
Is the HNSG power unit based on international technology?
Yes, the product synchronizes with advanced European technology and features a modular design for high reliability and efficient maintenance.
