Optical Cables Hydraulic Traction Puller/Pulling Unit^

Basic Specifications

Product Name Optical Cables Hydraulic Traction Puller/Pulling

Certification CCC, PSE, FDA, RoHS, ISO, CE

Warranty 12 Months

Automatic Grade Automatic

Driven Type Electric

Tractive Force 200~15000kg

Speed 20-150m/Min

Motor Power 3-55kw

Cable OD 2-300mm

Mould Life >1,000,000 Shots

Product Description

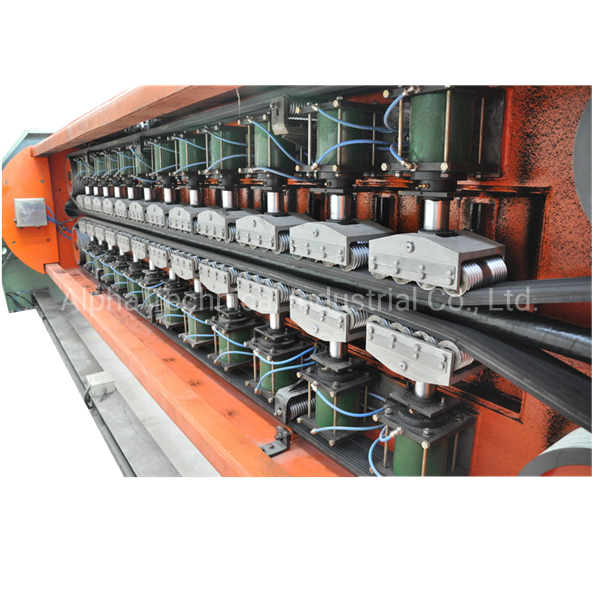

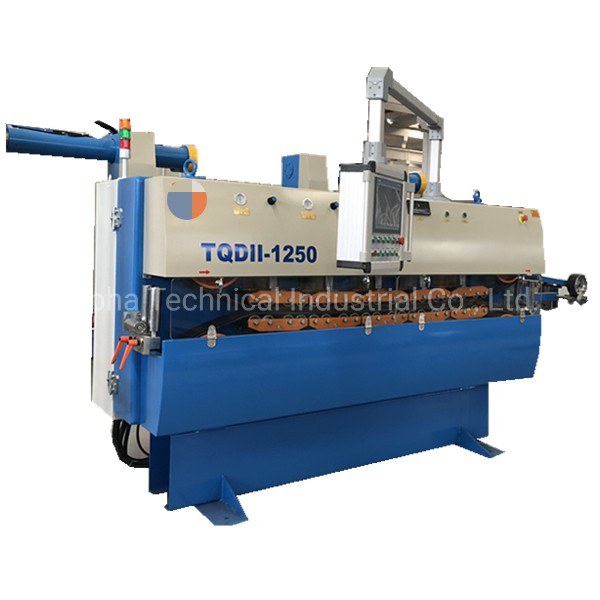

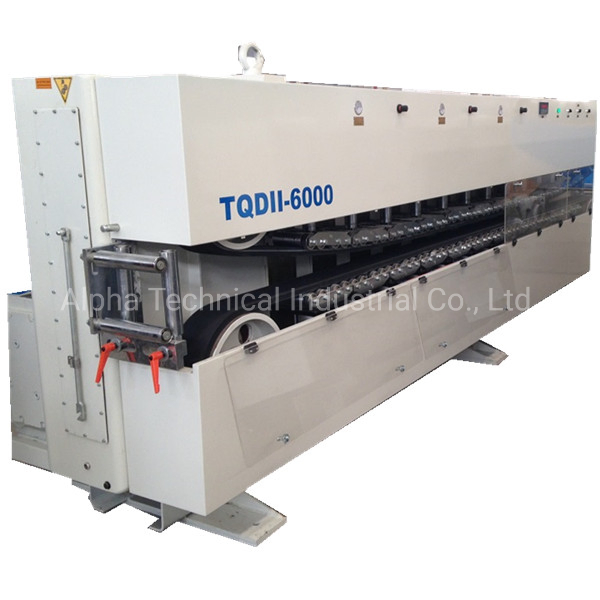

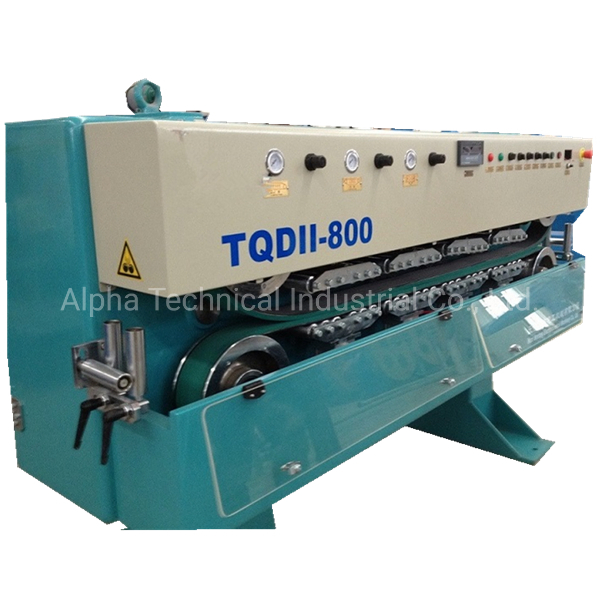

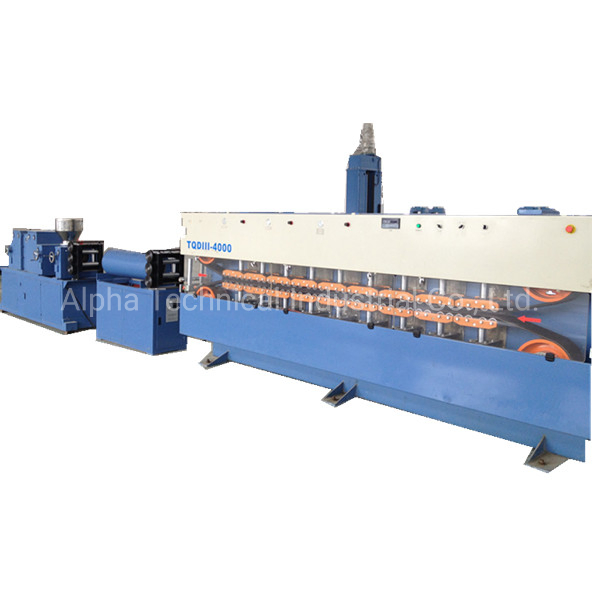

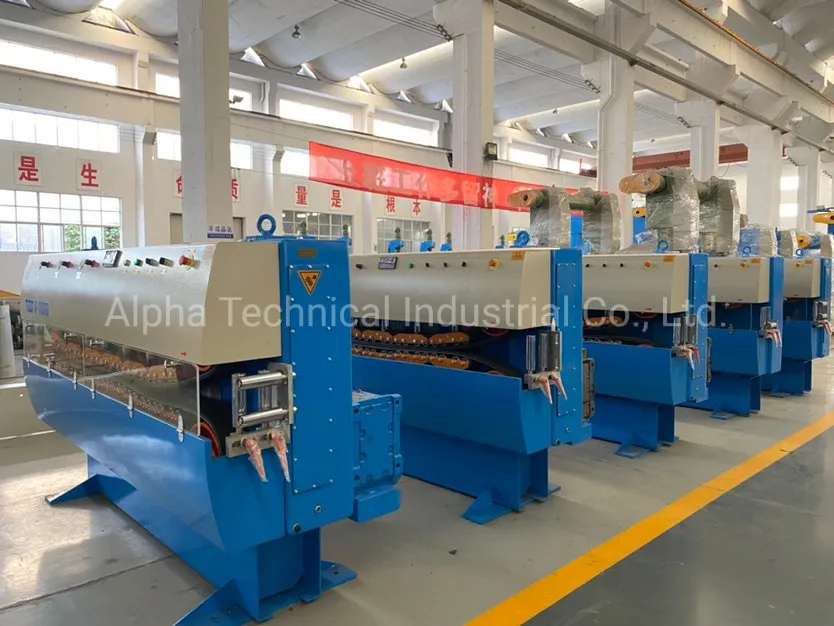

Optical Cables Hydraulic Traction Puller

I. Equipment Application

Mainly used for various cable production lines for single machine or front and rear double traction.

II. Key Features

✔High-quality steel plate frame after bending and splicing for a novel appearance.

✔Stable transmission using motor-transmission gearbox and upper/lower helical gears structure.

✔Available in over ten specifications from 200kg to 15000kg with adjustable speed options (DC or Frequency motor).

✔Electronic meter for real-time display of line speed and meter length.

✔Magnetic powder tension control for instantaneous adjustment, preventing cable abrasion.

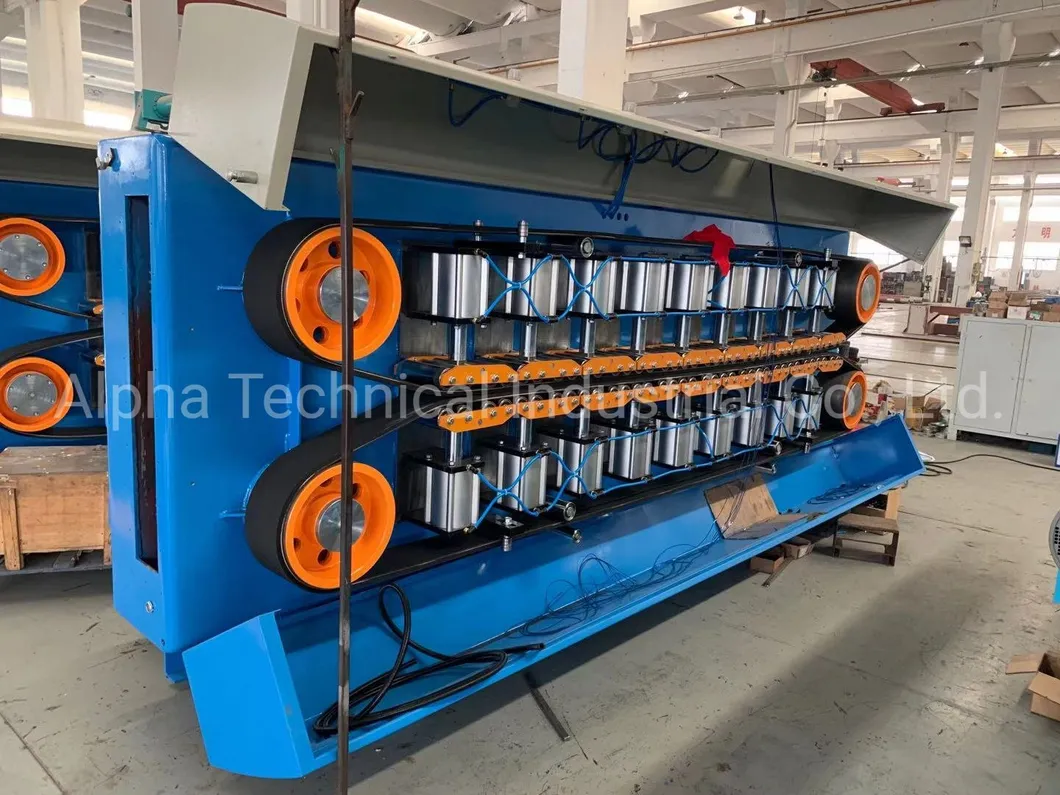

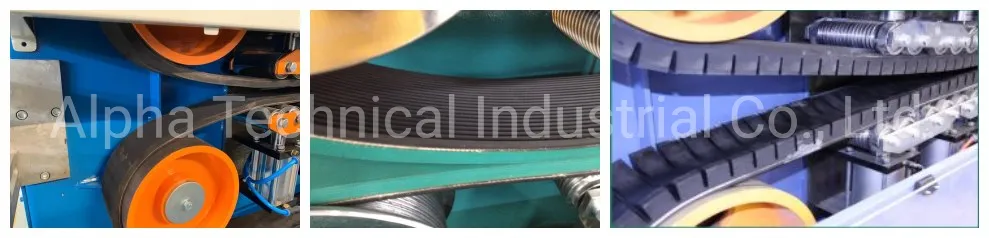

Machine Details

III. Technical Parameters

Model	Type 200	Type 500	Type 800	Type 1250	Type 1600	Type 2000
Max. traction force (kg)	200	500	800	1250	1600	2000
Speed (m/min)	150	100	100	80	80	60
Track contact length (mm)	520	750	1200	1500	1900	2100
Track width (mm)	70	80	100	120	120	135
Motor power (kw)	3	5.5	7.5	7.5	11	11

IV. Related Equipment

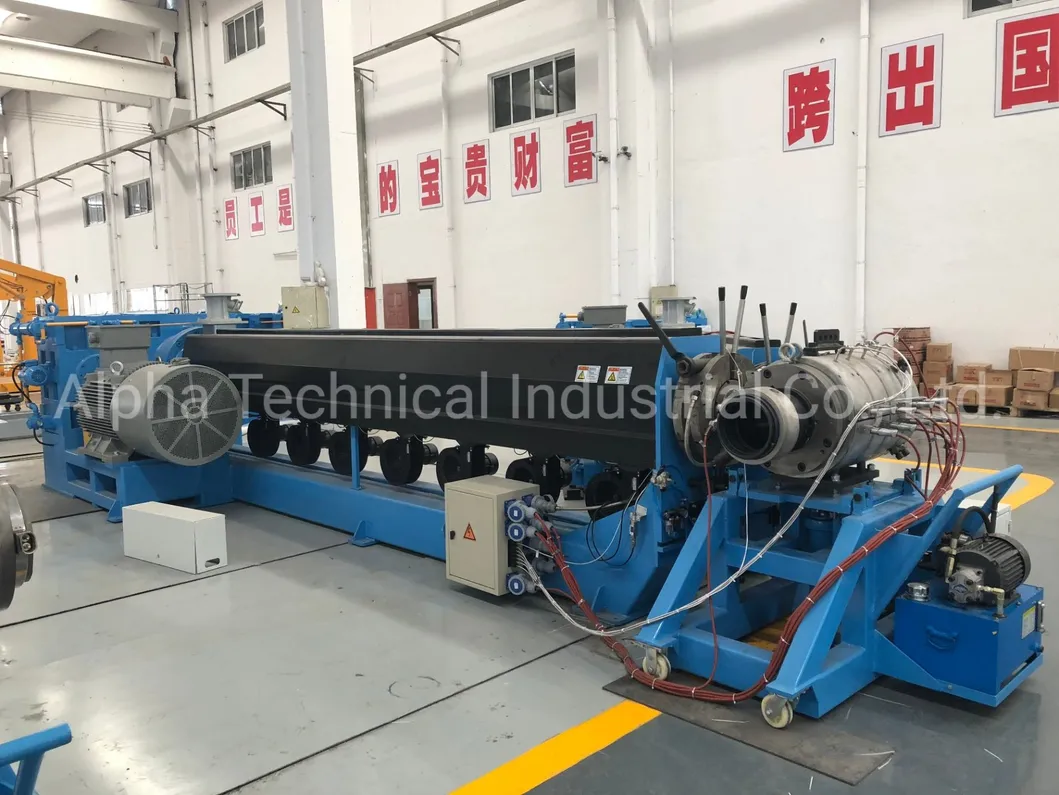

Cable Extrusion Machine

Utilizes hot press methods for extruded insulation wire cores (PVC).

Type & Size	Screw Dia (mm)	L/D Ratio	Screw speed (rpm)	Main motor (kw)	Max Output (kg/h)
SJ45X25	45	25:1	10-120	15	50
SJ65X25	65	25:1	10-100	30	120
SJ90X25	90	25:1	10-100	90	280

Other Cable Machinery

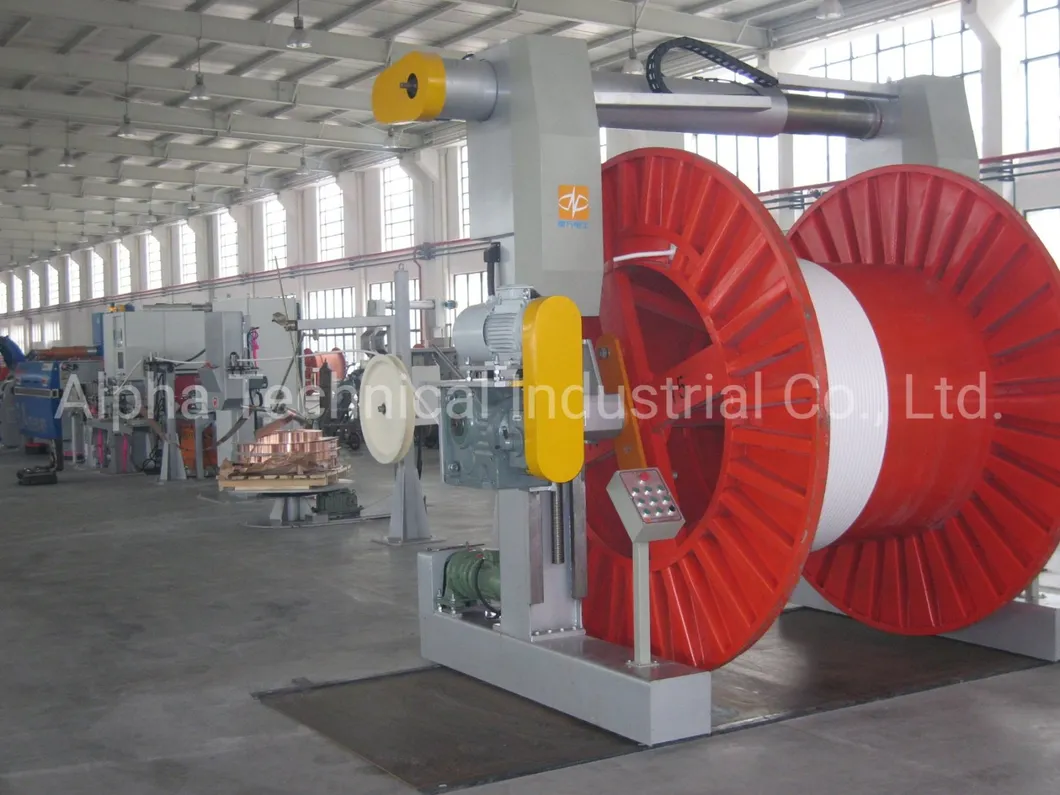

Take-up & Pay-off

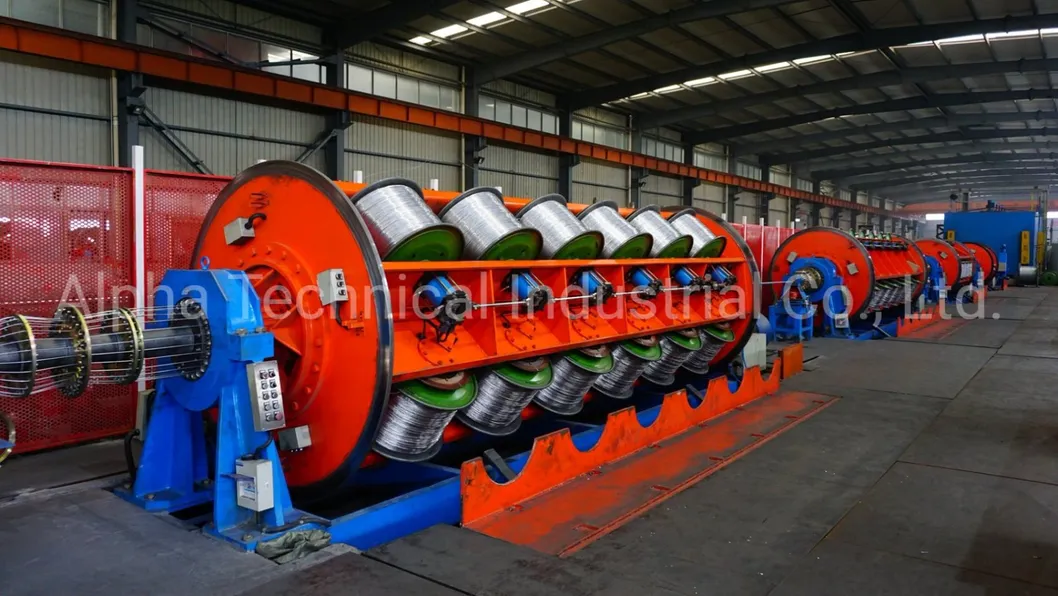

Cable Strander

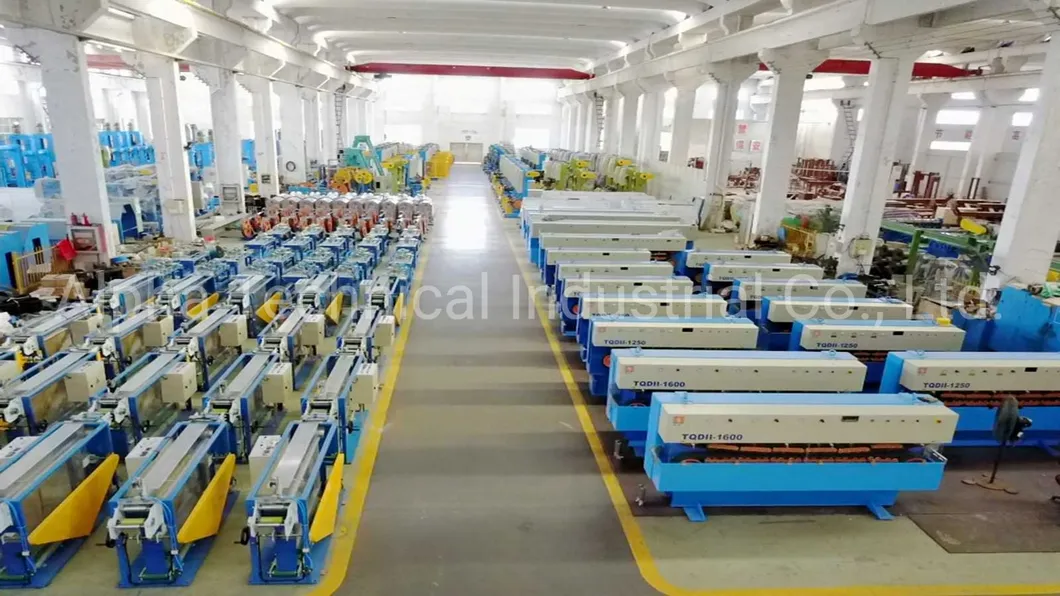

Facilities & Global Projects

Frequently Asked Questions

Q: Are you a manufacturer or a trading company? A: We are a professional manufacturer with a group of highly qualified engineers and experts who have been working in the OFC equipment field for over ten years.

Q: What are the main types of machinery you produce? A: We specialize in optical fiber and cable machinery, including coloring and rewinding series, secondary coating lines, stranding lines, and cable sheathing lines.

Q: How long is the warranty period for your machines? A: The warranty period is one year from the completion of mechanical debugging at the buyer's factory.

Q: How is the belt tension adjusted on the puller? A: The belts are controlled by two sets of cylinders adjusted via pressure gauges and regulators on the panel. Air pressure can be adjusted online.

Q: Can you provide after-sales service and training? A: Yes, our technical personnel can train customers' employees to ensure smooth production and provide comprehensive after-sales support.

Q: Can the equipment be customized? A: Yes, we can customize designs based on specific customer requirements and sample specifications.
