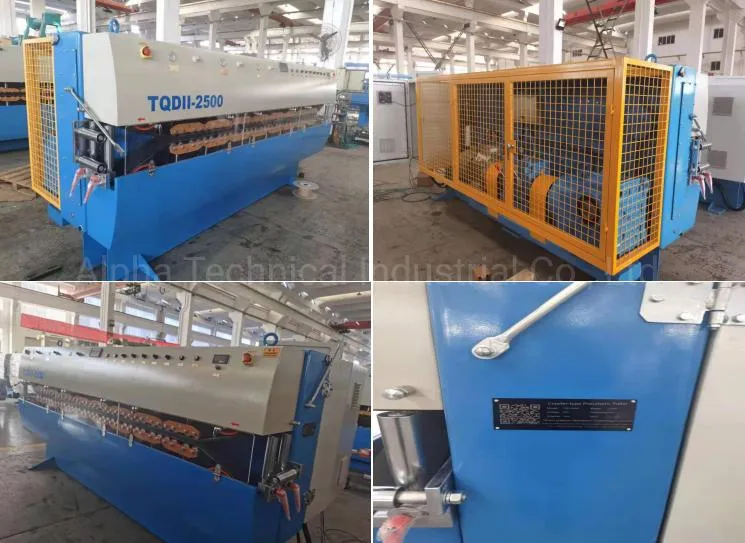

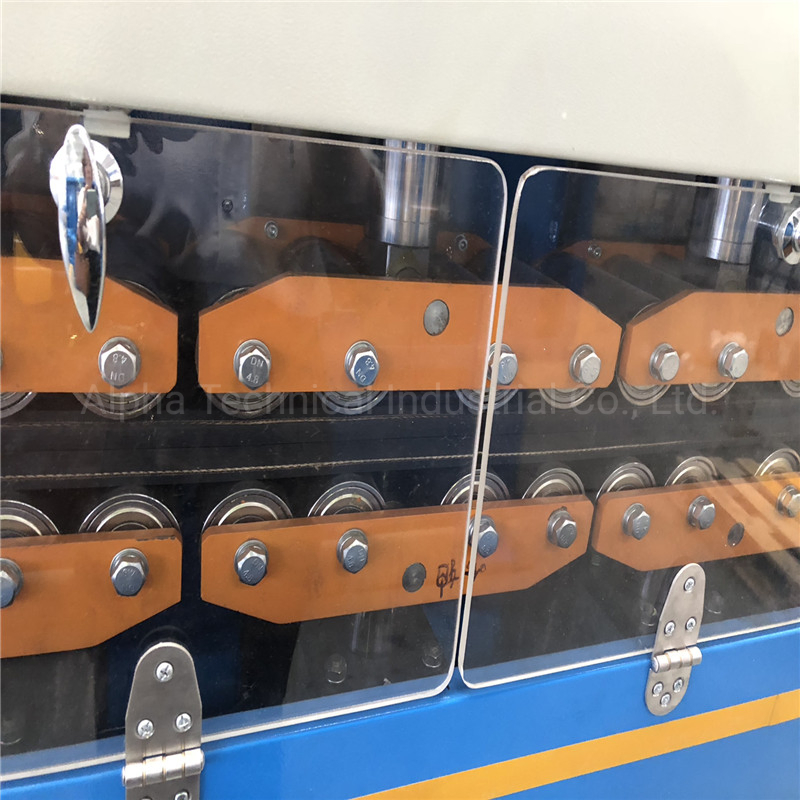

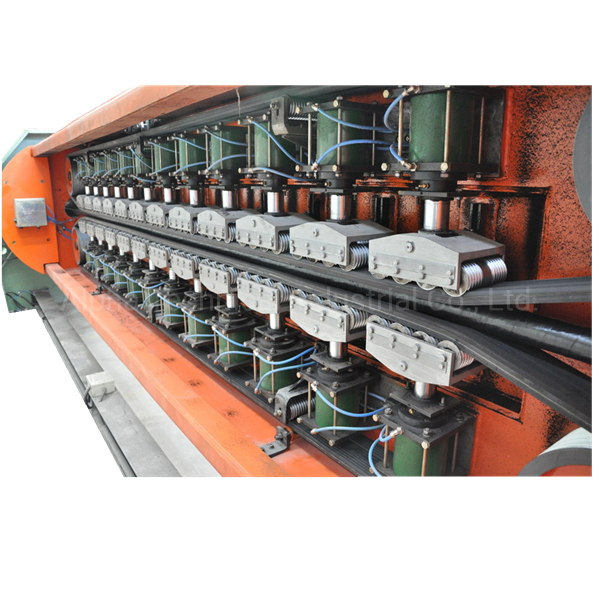

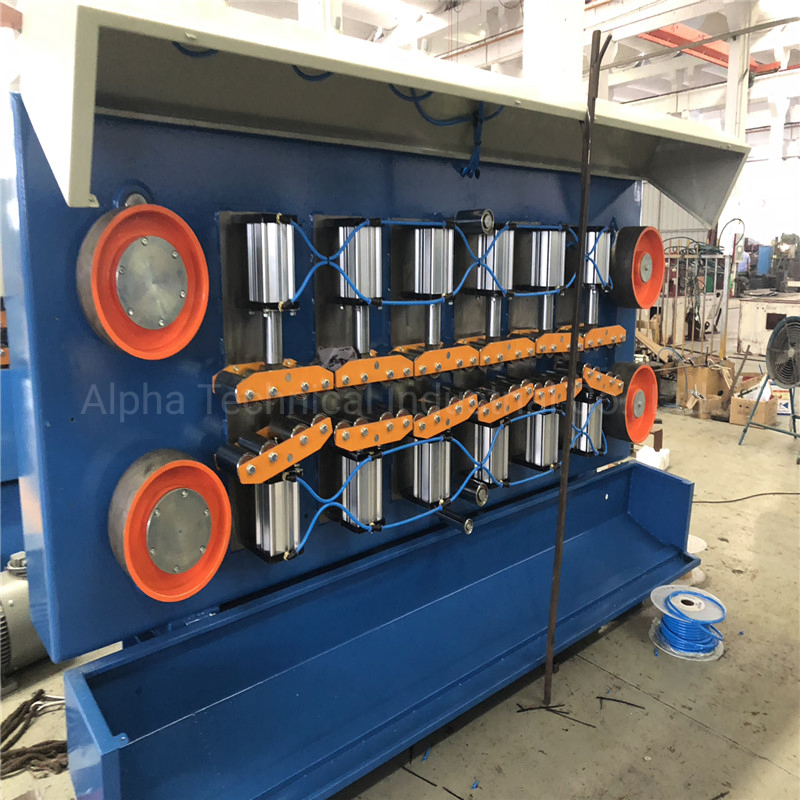

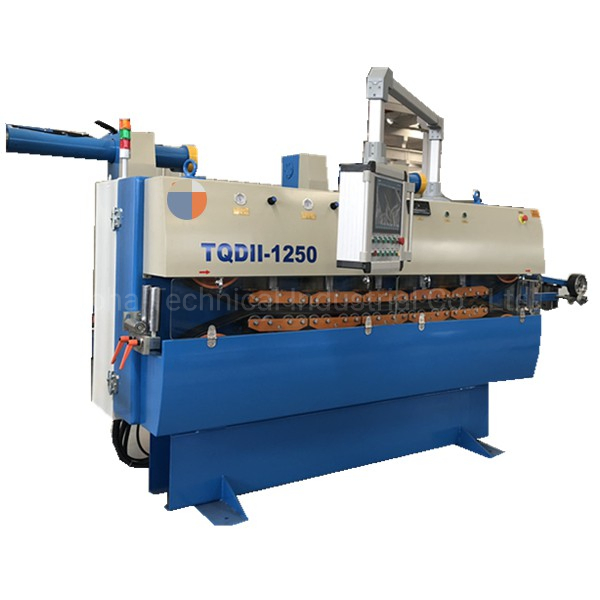

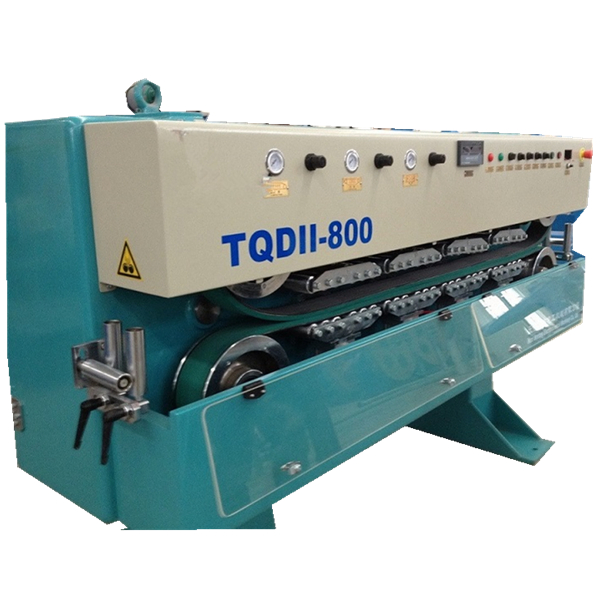

TQDV1600 Cable Pulling Unit for CTC Wires, Puller Traction Machine With Speed Regulator

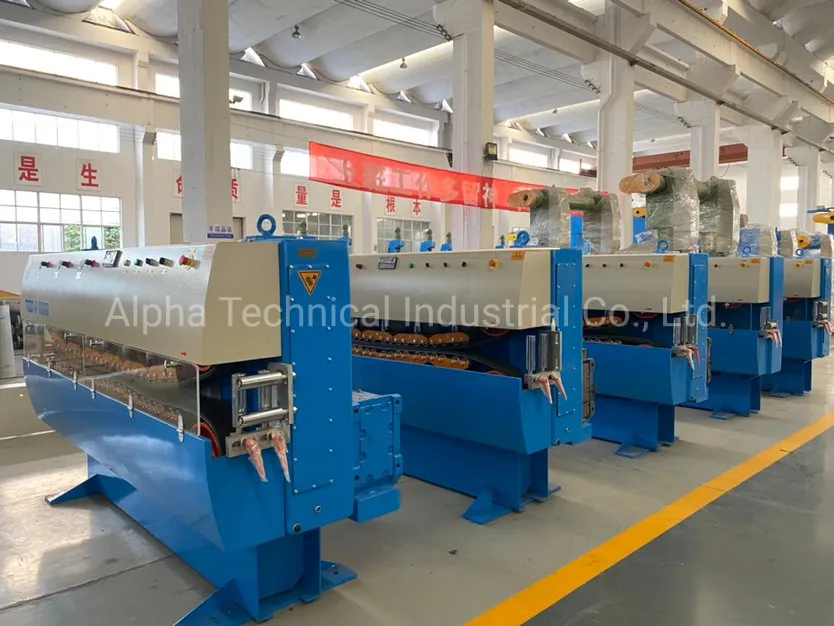

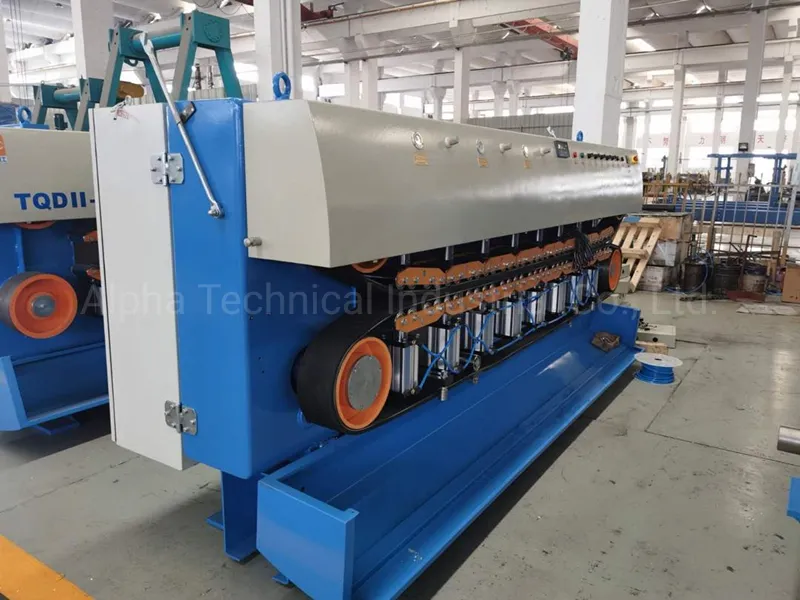

Cable pulling machine detailed introduction:
Mainly used for various cable production lines for single machine or front and rear double traction.
| Model | Type 200 | Type 300 | Type 500 | Type 800 | Type 1250 | Type 1600 | Type 2000 |
|---|---|---|---|---|---|---|---|
| Cable OD (mm) | 2~20 | 5~25 | 5~40 | 8~60 | 10~80 | 15~100 | 20~120 |
| Max Force (kg) | 200 | 300 | 500 | 800 | 1250 | 1600 | 2000 |
| Speed (m/min) | 150 | 150 | 100 | 100 | 80 | 80 | 60 |
| Track Width (mm) | 70 | 70 | 80 | 100 | 120 | 120 | 135 |
| Motor Power (kw) | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 | 11 |
| Model | Type 2500 | Type 3200 | Type 4000 | Type 5000 | Type 10000 | Type 15000 |
|---|---|---|---|---|---|---|
| Cable OD (mm) | 20~130 | 25~150 | 30~180 | 50~200 | 80~300 | 80~300 |
| Max Force (kg) | 2500 | 3200 | 4000 | 5000 | 10000 | 15000 |
| Speed (m/min) | 60 | 45 | 40 | 30 | 25 | 20 |
| Motor Power (kw) | 15 | 15 | 18.5 | 22 | 37 | 55 |

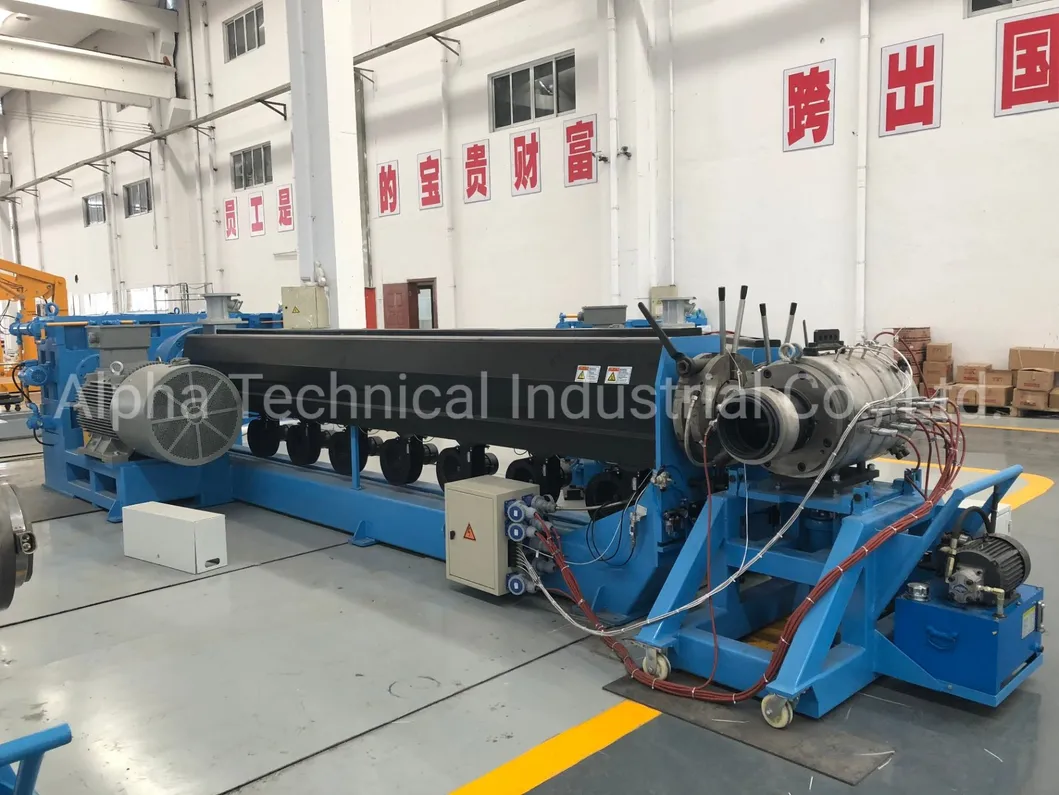

| Type & Size | Screw Dia.(mm) | L/D ratio | Screw speed(rpm) | Main motor(kw) | Max output(kg/h) |
|---|---|---|---|---|---|
| SJ45X25 | 45 | 25:1 | 10-120 | 15 | 50 |
| SJ65X25 | 65 | 25:1 | 10-100 | 30 | 120 |
| SJ90X25 | 90 | 25:1 | 10-100 | 90 | 280 |
| SJ120X25 | 120 | 25:1 | 7-68 | 132 | 580 |

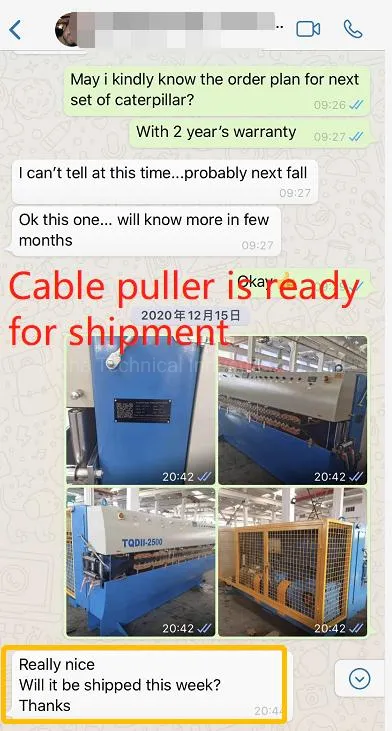

Client from Canada satisfied with machine quality:
