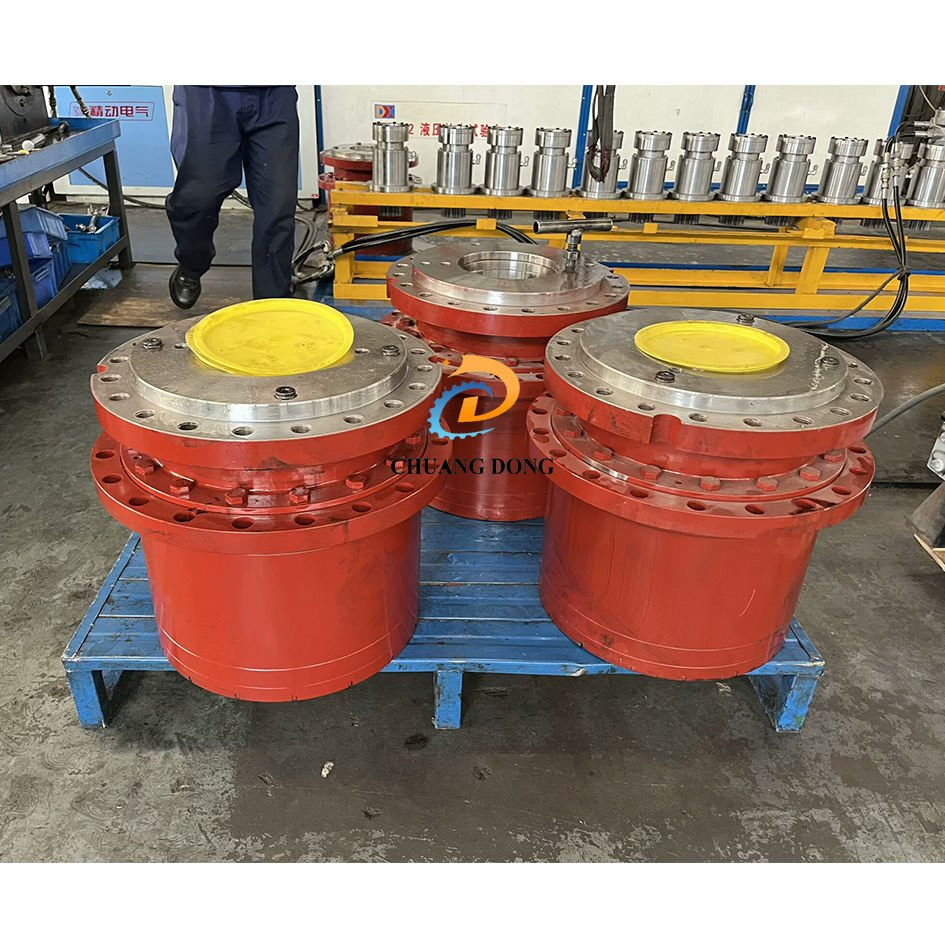

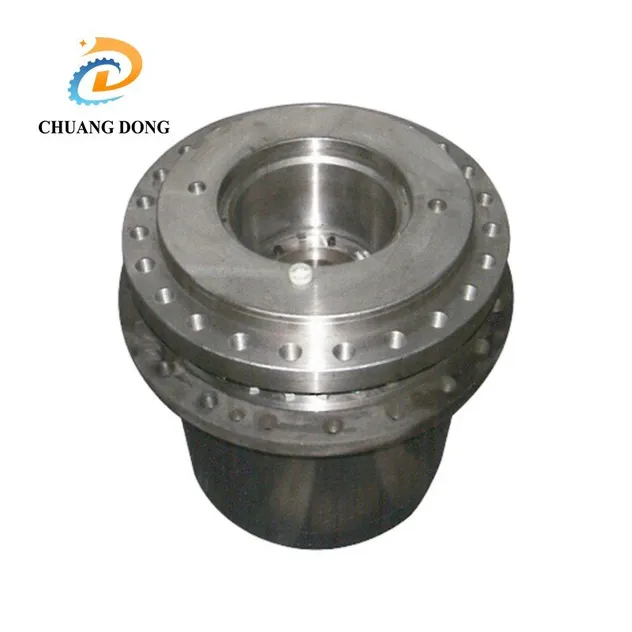

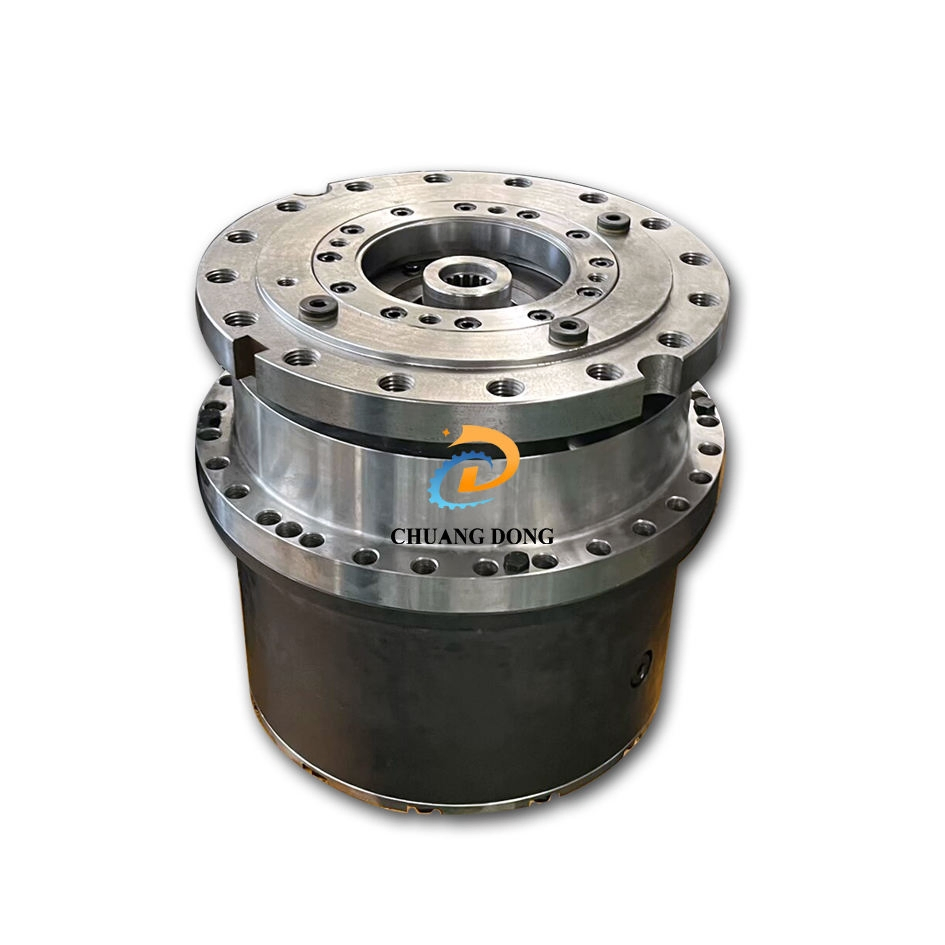

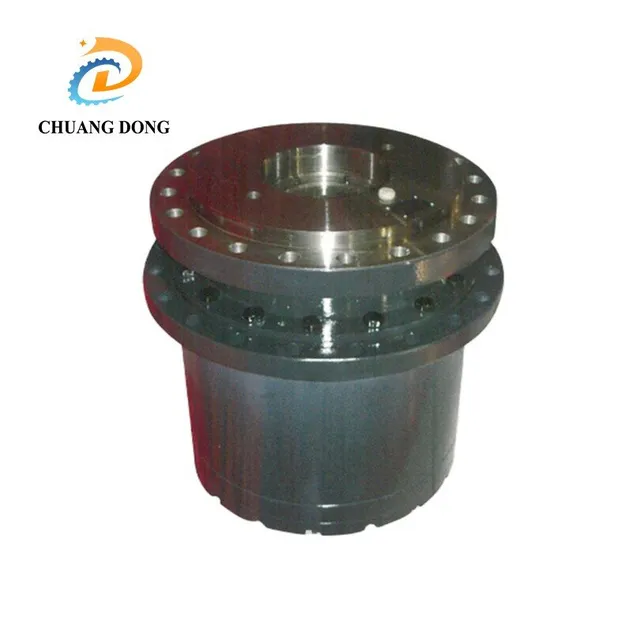

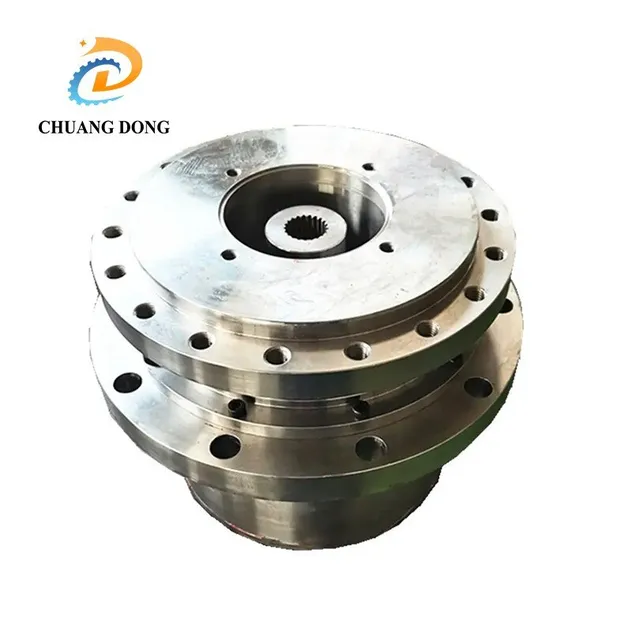

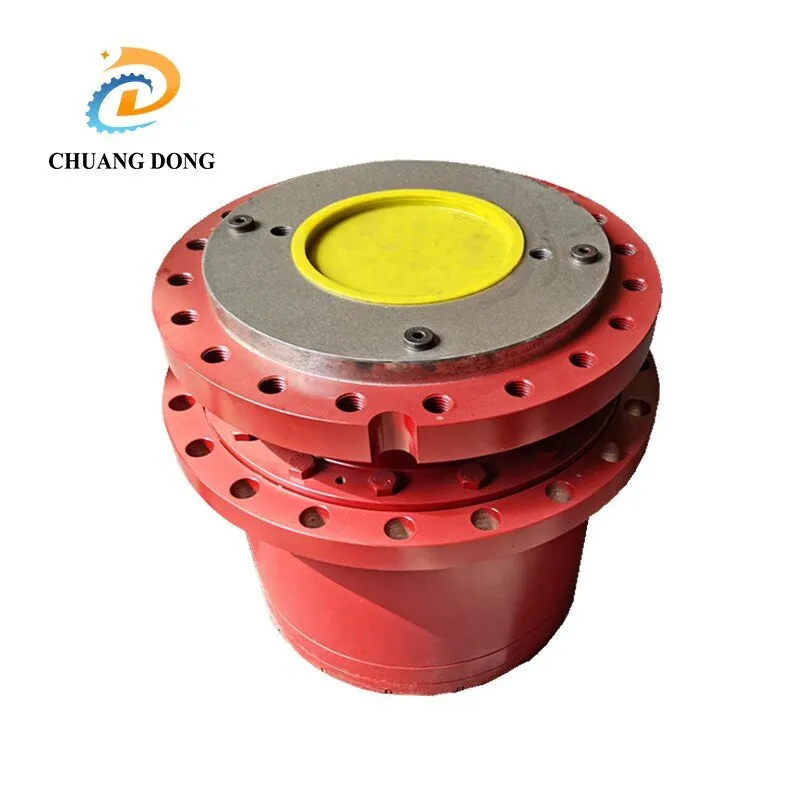

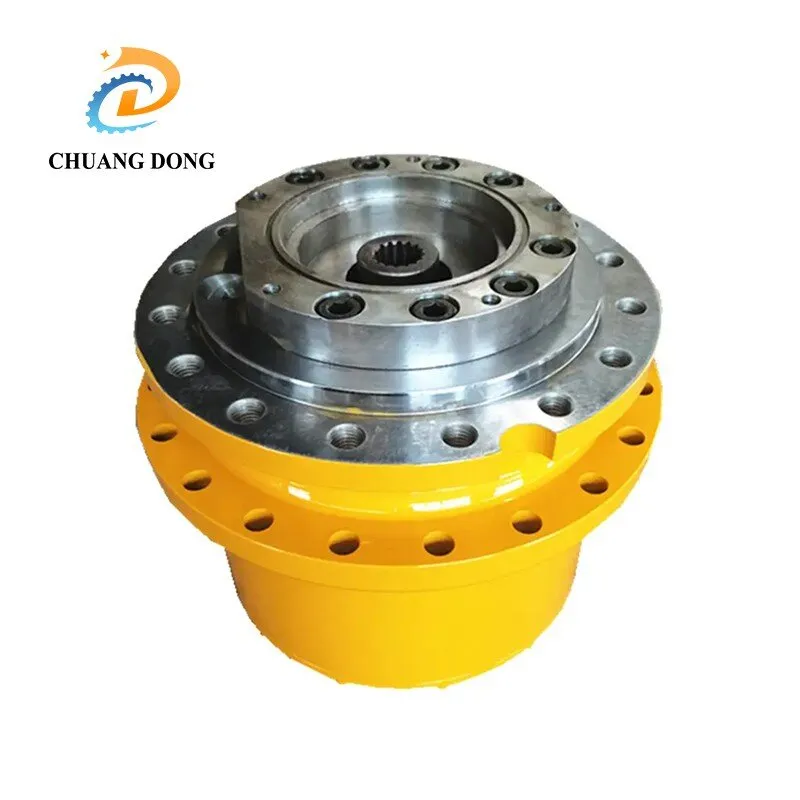

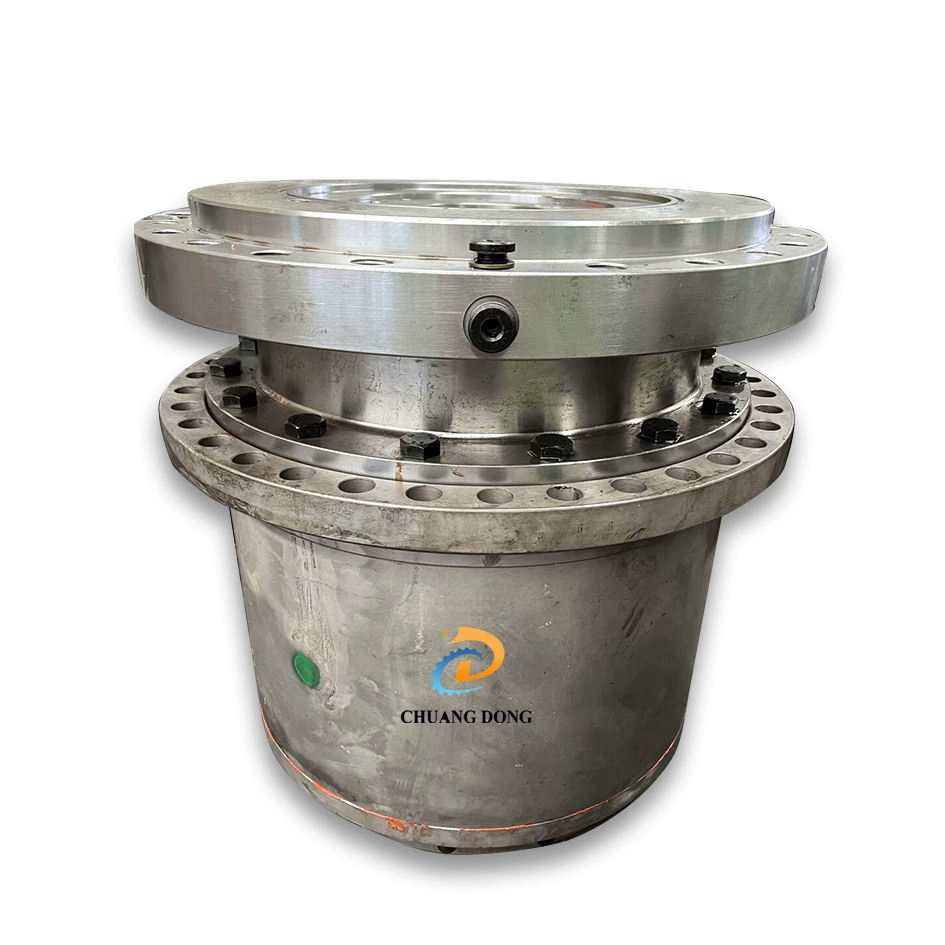

GFT Travel Motor Speed Reducer, Hydraulic Walking Reducer, Slewing Reducer Drive
Engineered for extreme heavy-duty applications, our Final Drive Reducer delivers 20:1 torque amplification via patented hypoid gearing—lowering equipment for unmatched slope stability. Crafted from case-hardened alloy steel with IP67 sealing, it withstands abrasive dust, high-pressure water, and temperatures from -30°C to 120°C, ensuring 10,000+ service hours in mining/construction.
1. Torque Density & Efficiency
Hypoid/bevel gear designs achieve >95% mechanical efficiency with 50% higher torque-weight ratios.
2. Compact & Modular Design
Single-stage and two-stage designs for extreme ratios without excessive bulk.
3. Extreme Environment Resilience
Hardened alloy steel housing with IP54+ sealing prevents dust and water ingress.
4. Safety & Stability
Integrated overload shear pins and mechanical locks prevent back-driving on slopes.

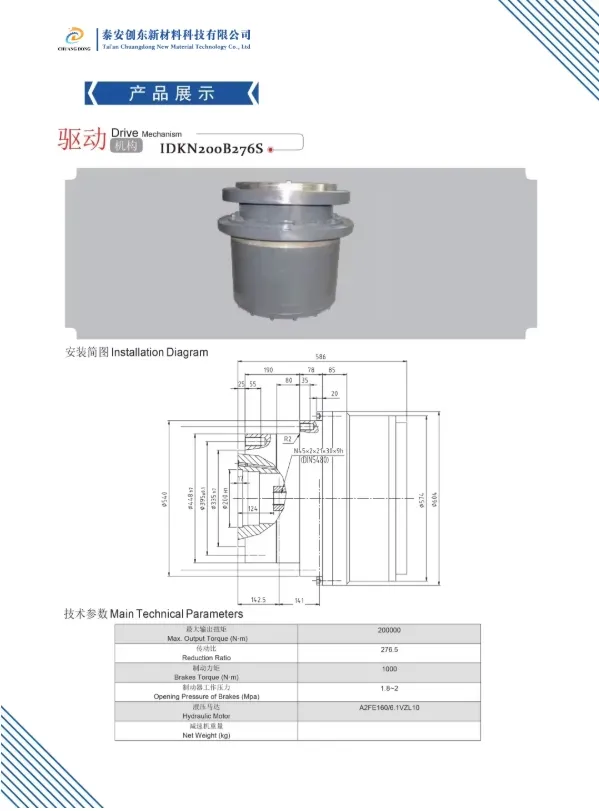

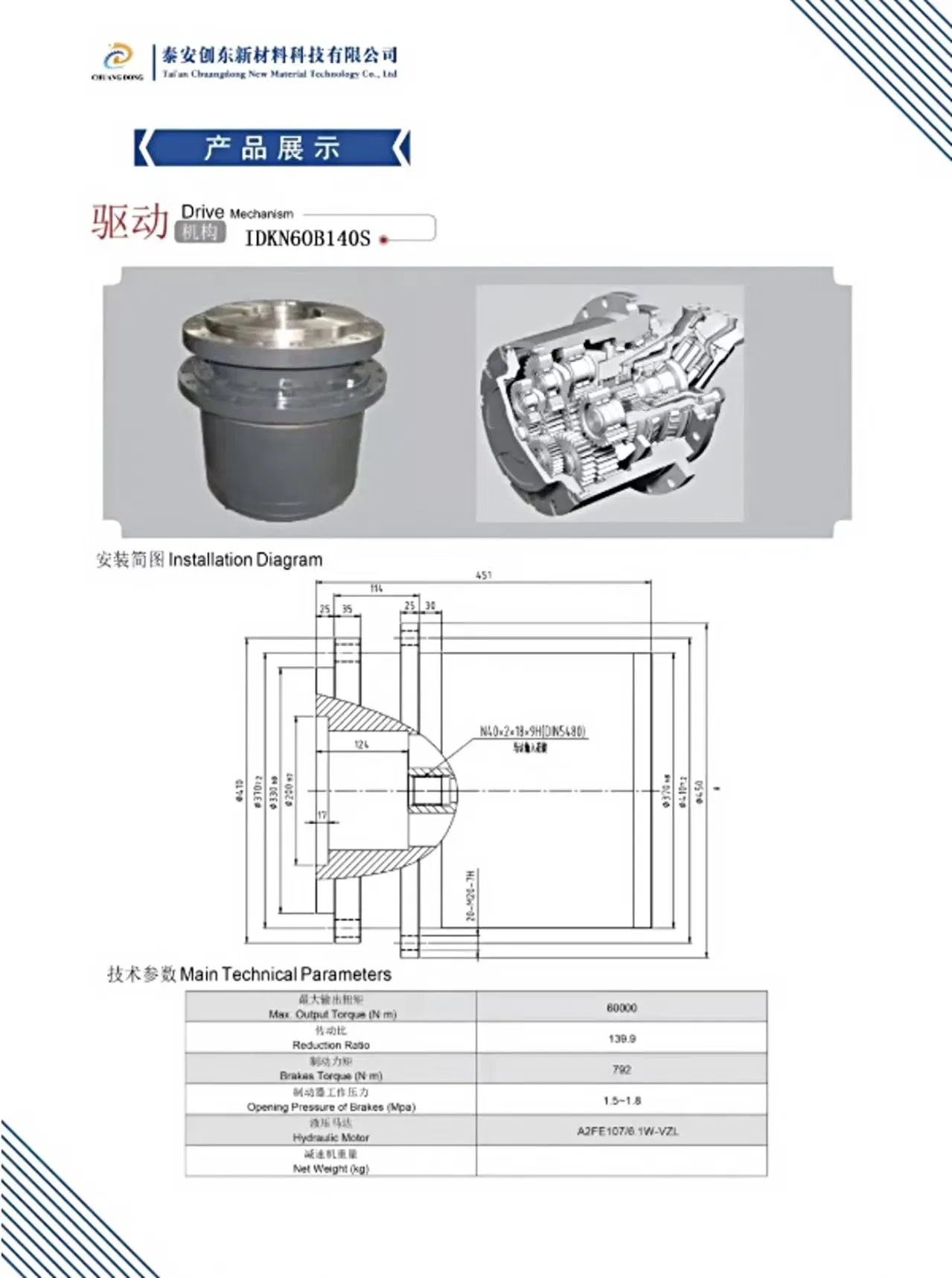

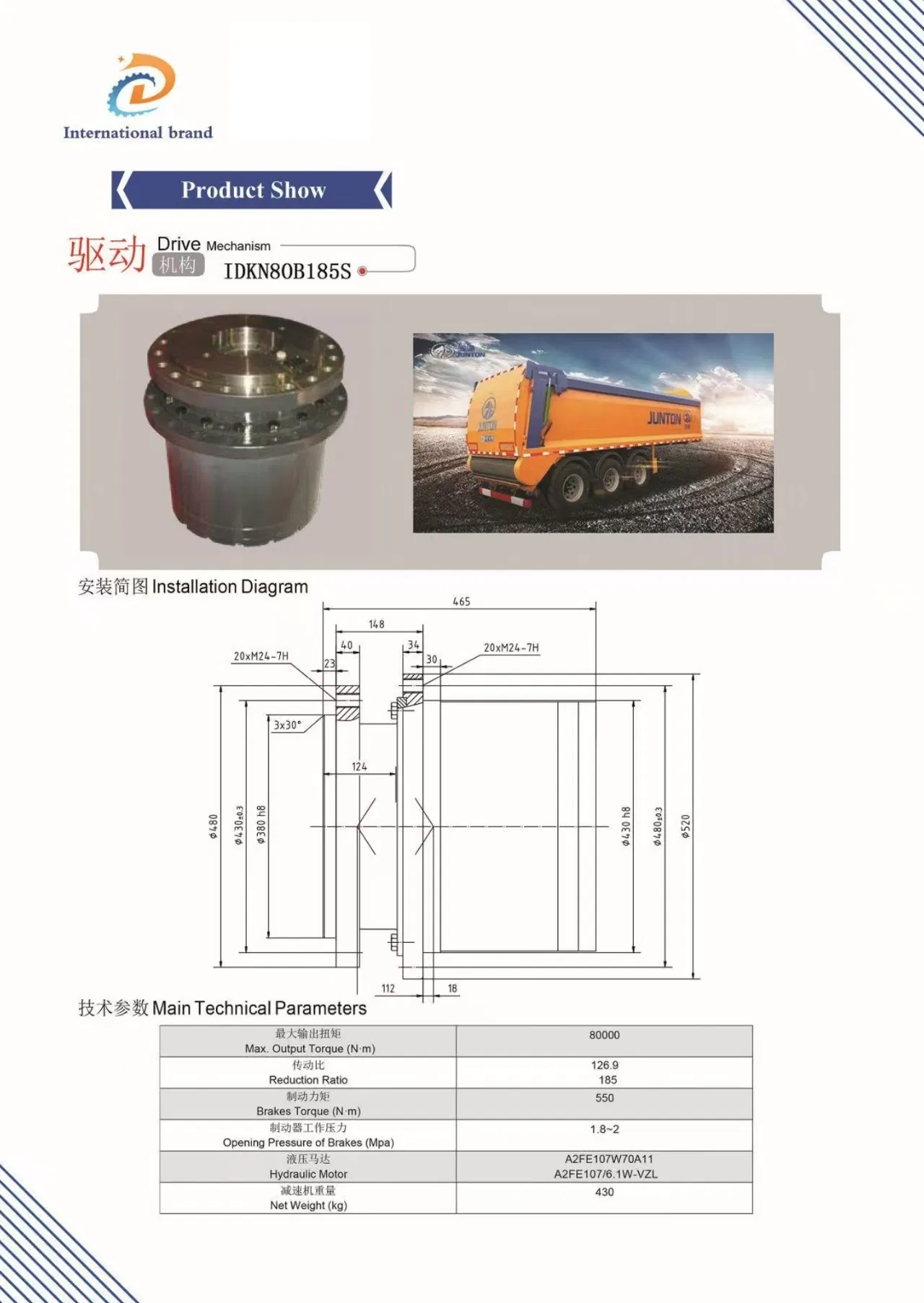

| Product Name | Final Drive Reducer |
| Mounting Position | As per Customer Requirements |
| Input Form | Hydraulic Motor |
| Gears Style | Planetary Gears |
| Max. Output Torque (N·m) | 80,000 / 60,000 / 200,000 etc. |
| Reduction Ratio | 126.9 / 185 / 139.9 / 276.5 etc. |
| Opening Pressure of Brakes (Mpa) | 1.8~2 / 1.5~1.8 / 1.8~2 etc. |
| Net Weight (kg) | Approx. 430 kg |
| Standard Warranty | 12 months or 2,000 operating hours |

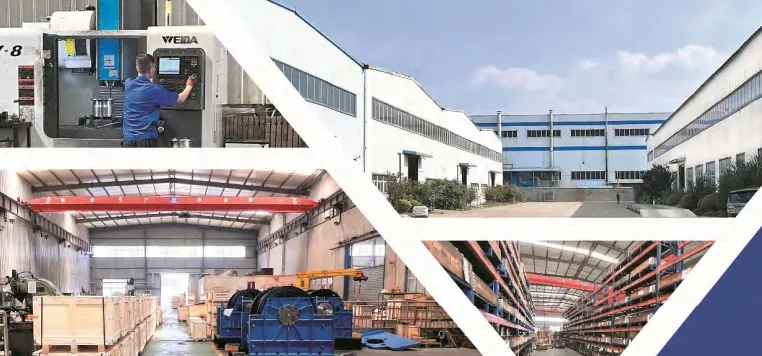

Specializing in the research and development of planetary transmission technology, our facility is equipped with high-precision boring machines, machining centers, gear shapers, and CNC lathes. Our inspection protocols include metallographic examination, gear inspection, and finished product loading experiments to ensure the highest quality standards.
