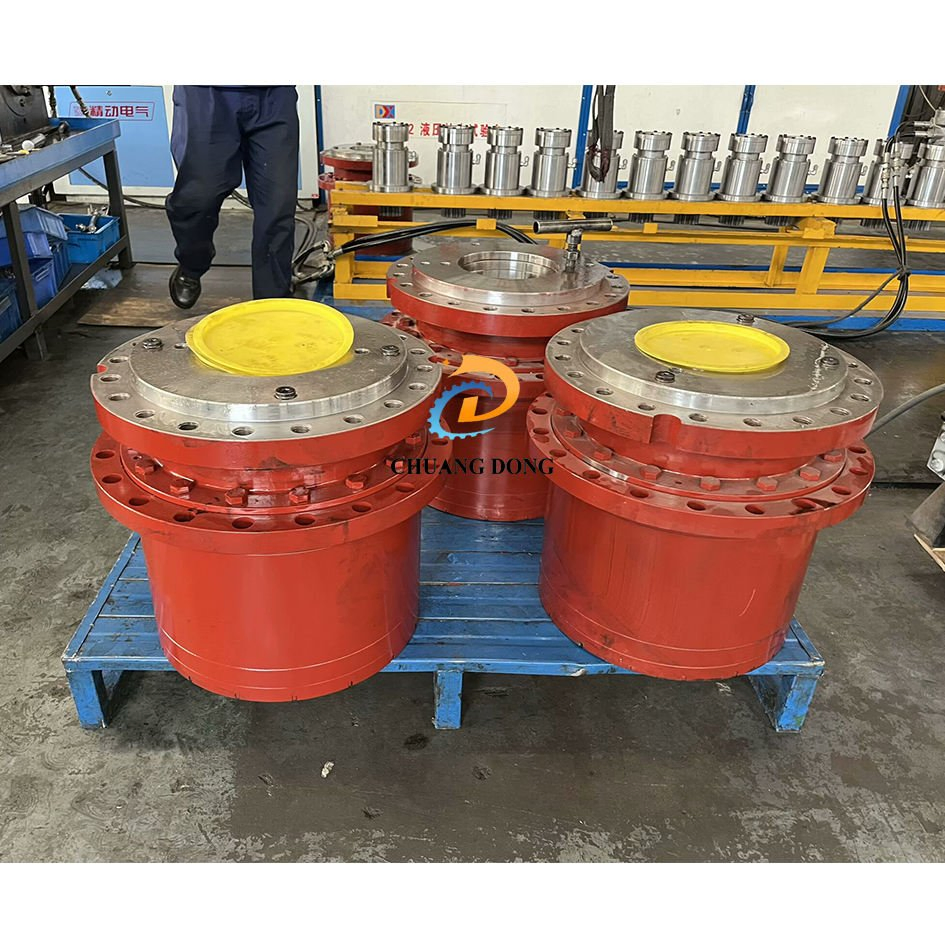

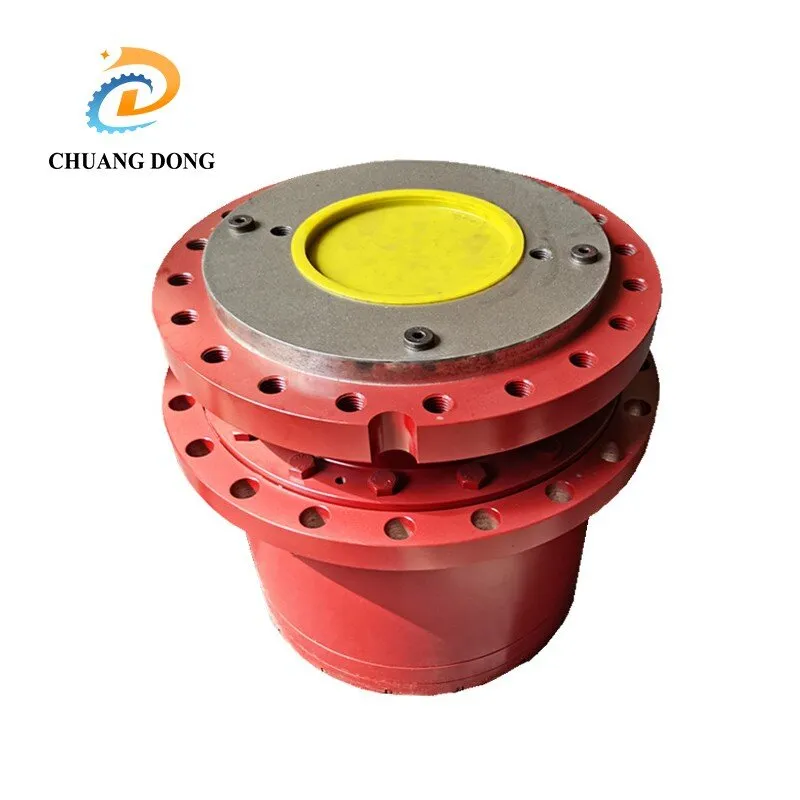

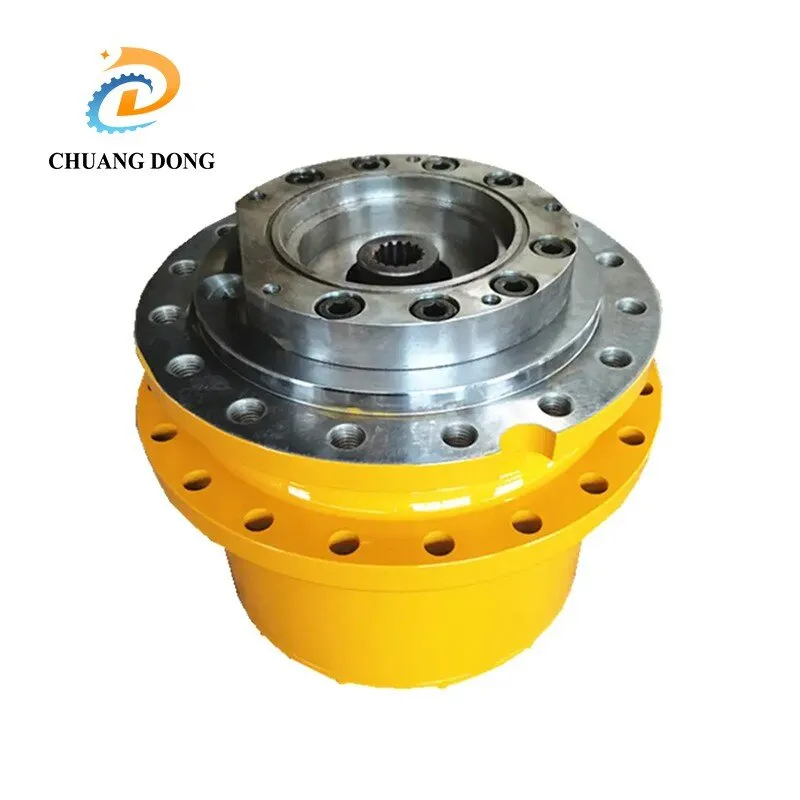

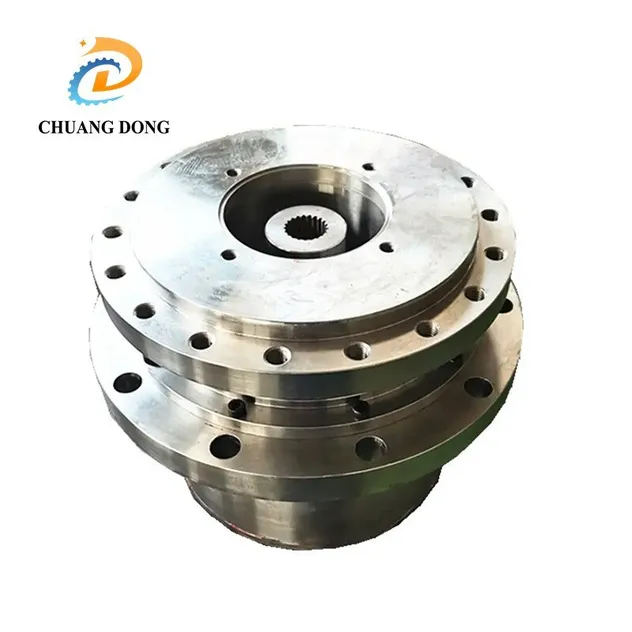

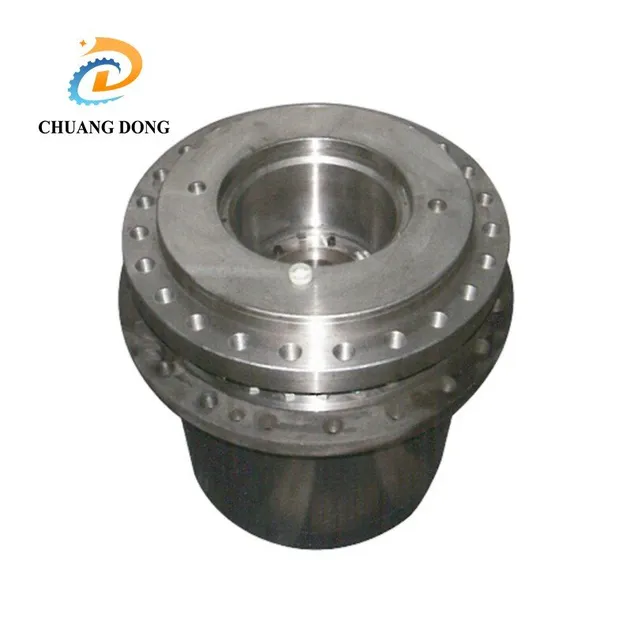

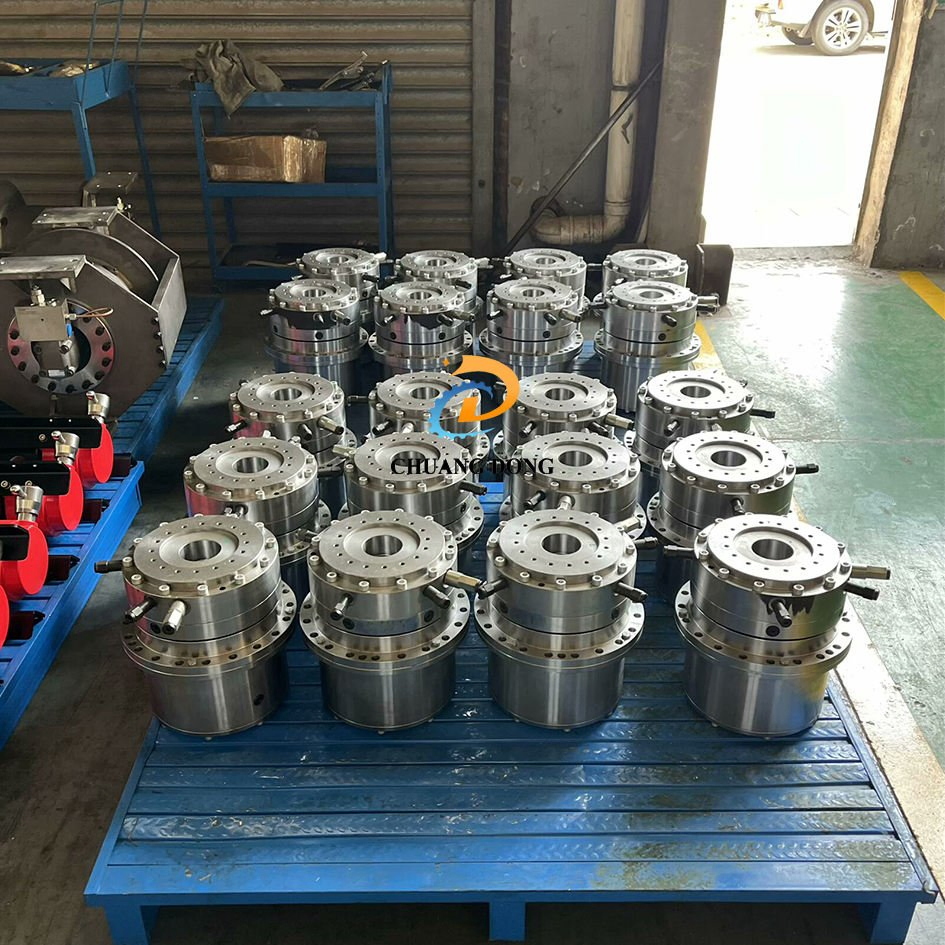

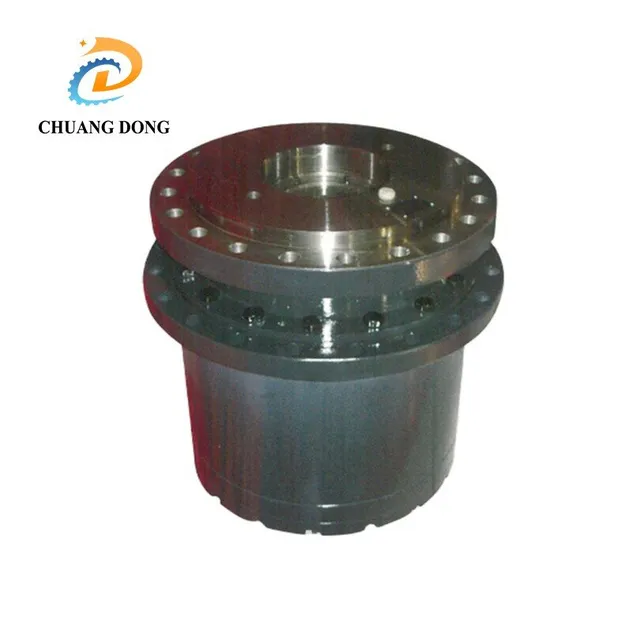

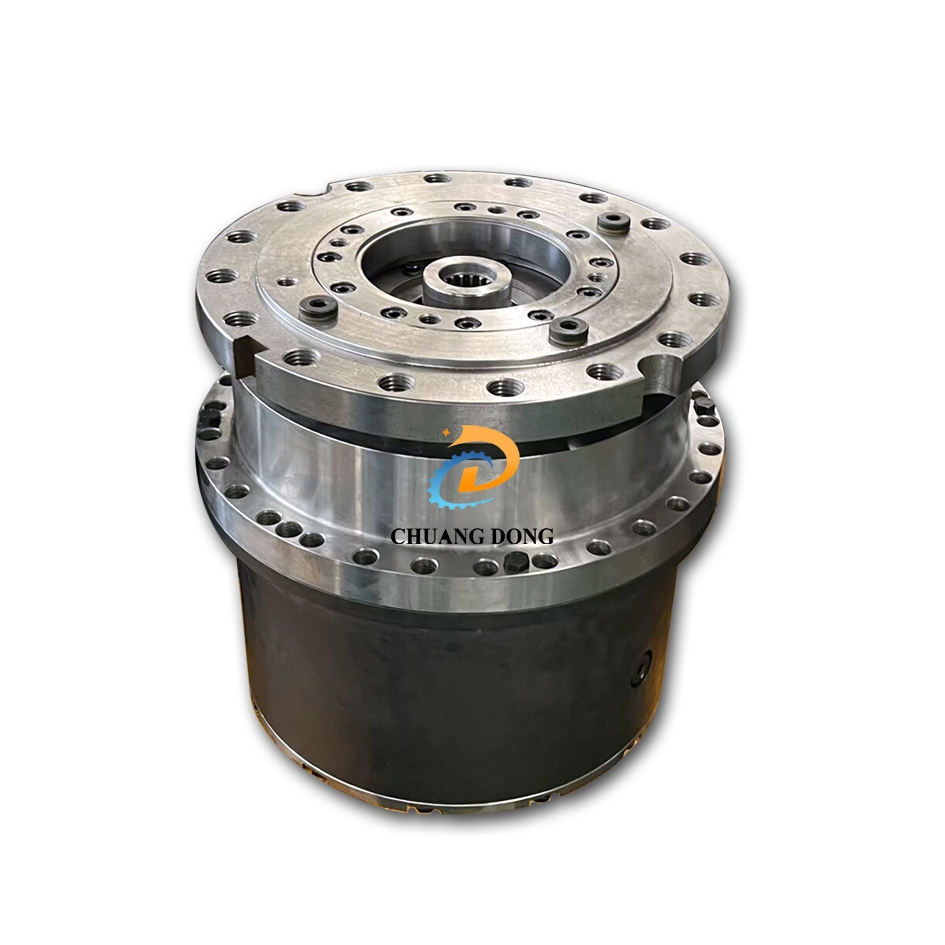

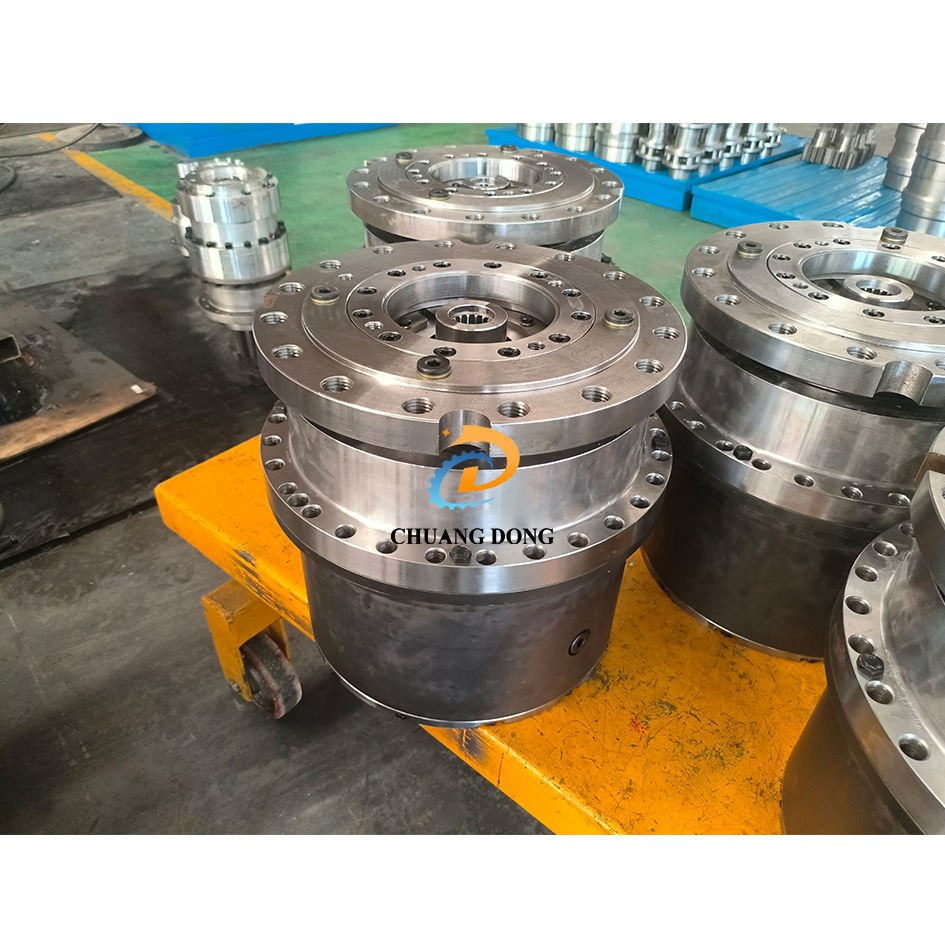

Hydraulic Reducer 1000 Nm Planetary Winch Drive Gearbox
Engineered for extreme heavy-duty applications, our Final Drive Reducer delivers 20:1 torque amplification via patented hypoid gearing—lowering equipment for unmatched slope stability. Crafted from case-hardened alloy steel with IP67 sealing, it withstands abrasive dust, high-pressure water, and temperatures from -30°C to 120°C, ensuring 10,000+ service hours in mining/construction. Achieve >95% mechanical efficiency (15% energy savings) with zero-backlash gears and GL-5 lubricants.
Hypoid/bevel gear designs achieve >95% mechanical efficiency with 50% higher torque-weight ratios vs. conventional gears. Reduces energy waste and extends equipment uptime.
Hardened alloy steel housing with IP54+ sealing prevents ingress. Specialized lubrication resists scuffing under shock loads. Operates in -30°C to 120°C.
Integrated overload shear pins and mechanical locks prevent back-driving. Precision-ground teeth ensure vibration-free operation <75 dB.
Configurable as hub-mounted, inline, or planetary reducers. Supports hydraulic/electric motor coupling and IoT sensors.

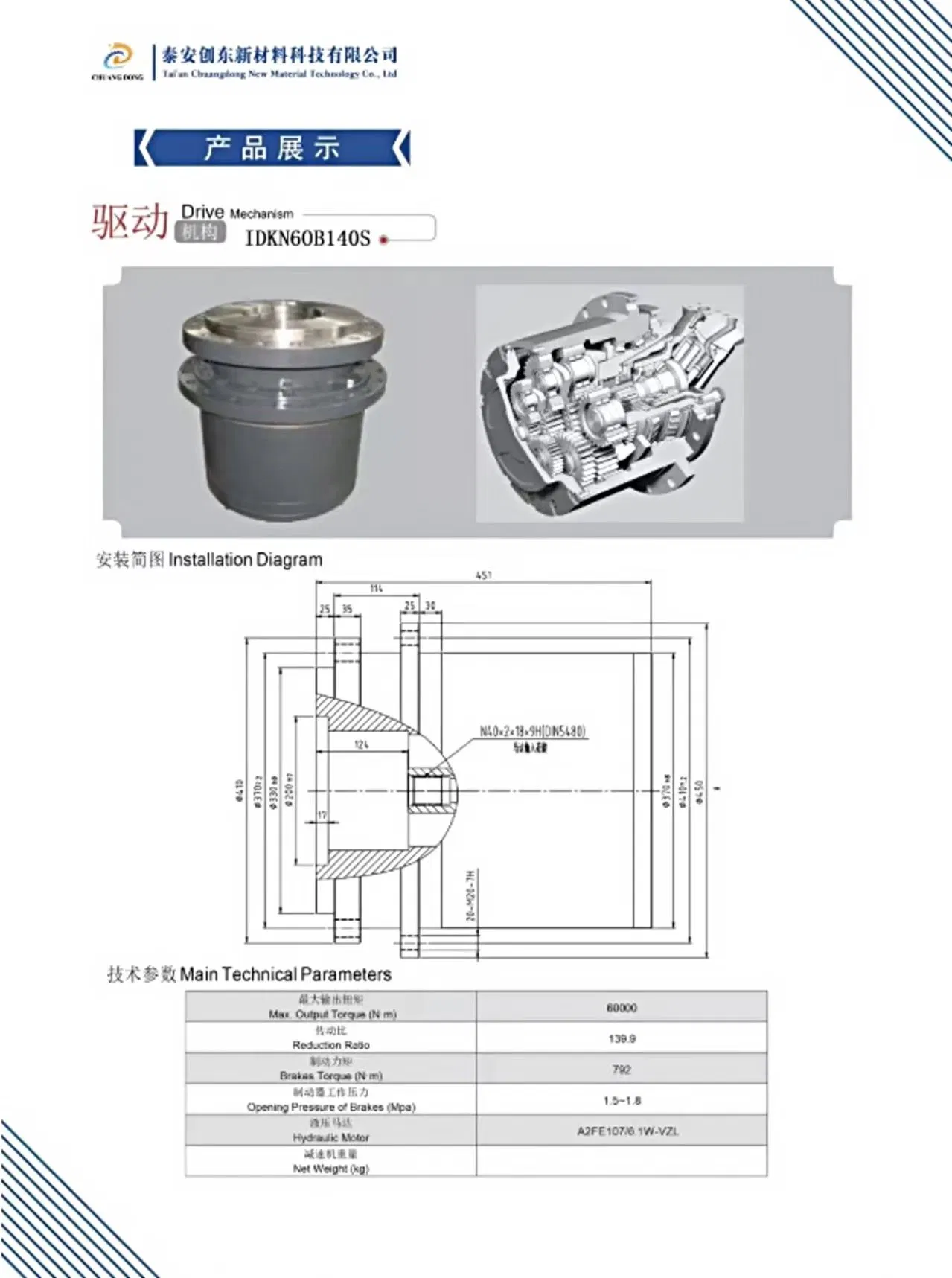

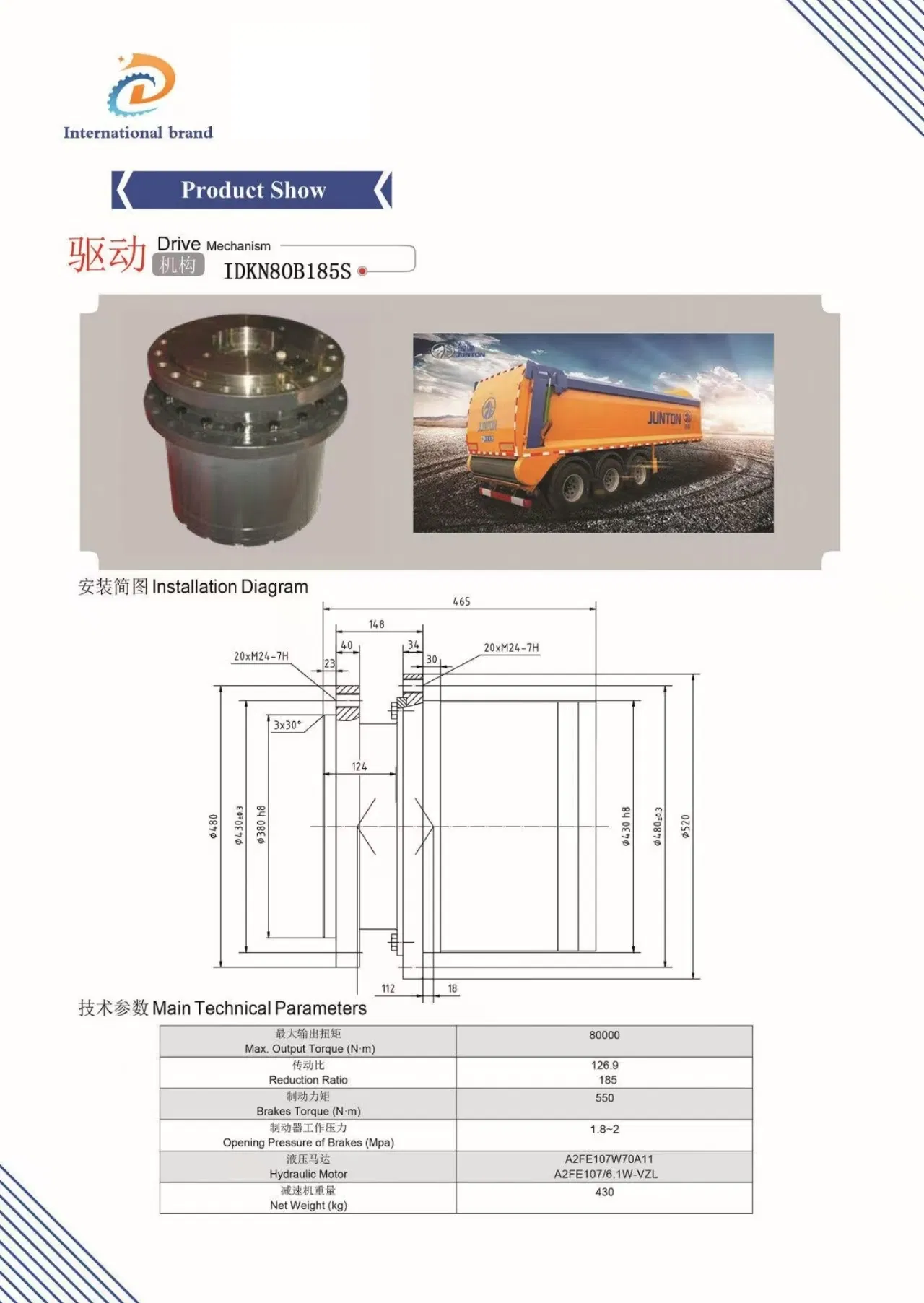

| Parameter | Details |
|---|---|
| Product Name | Final Drive Reducer |
| Input Form | Hydraulic Motor |
| Gears Style | Planetary Gears |
| Max. Output Torque (N·m) | 80000 / 60000 / 200000 etc |
| Reduction Ratio | 126.9 / 185 / 139.9 / 276.5 etc |
| Opening Pressure of Brakes (Mpa) | 1.5 ~ 2.0 |
| Net Weight (kg) | 430 approx. |
| Standard Warranty | 12 months or 2,000 operating hours |
