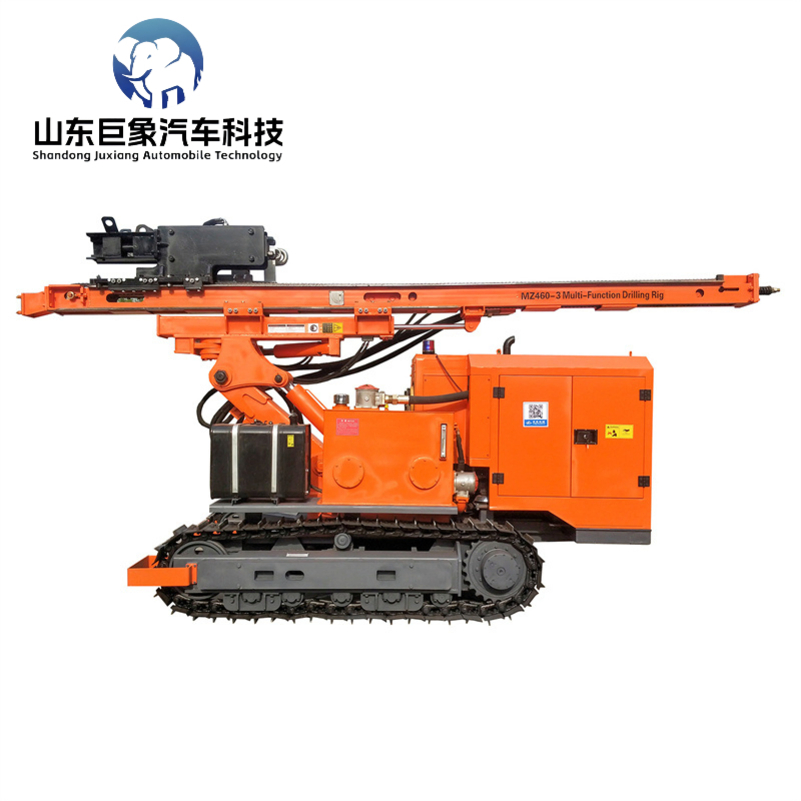

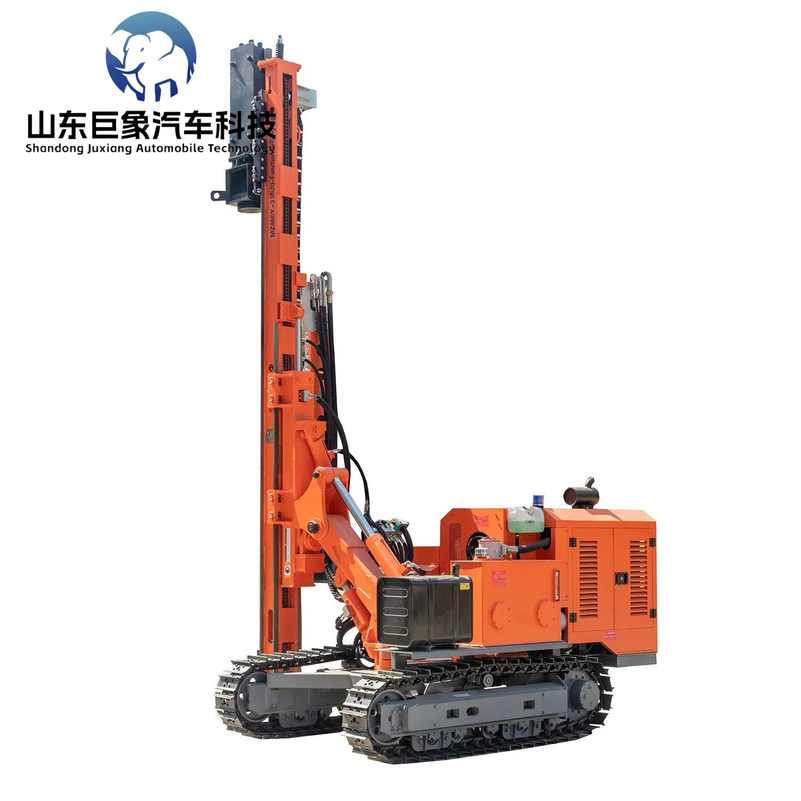

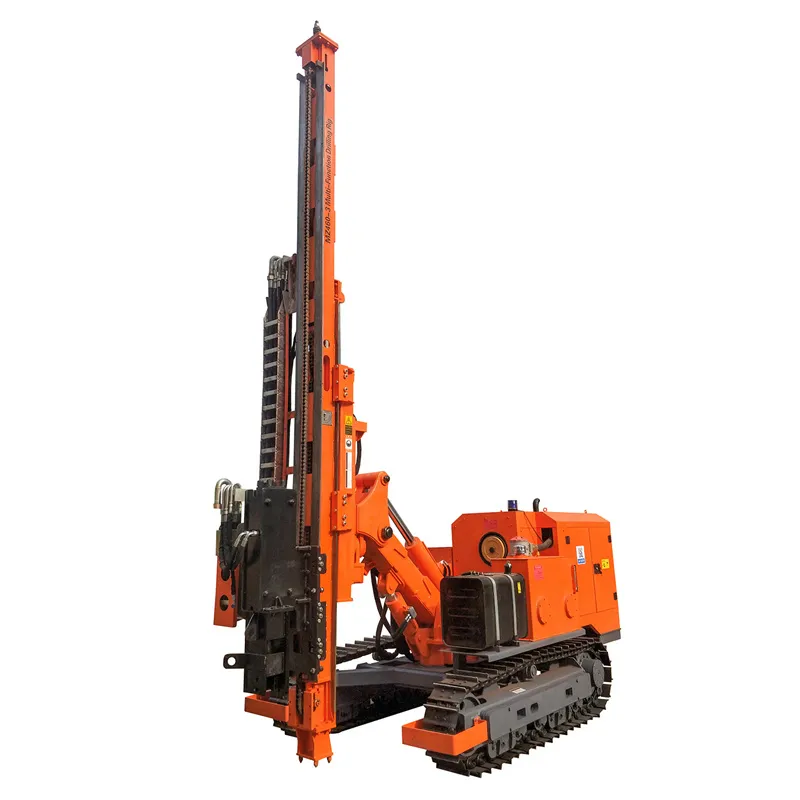

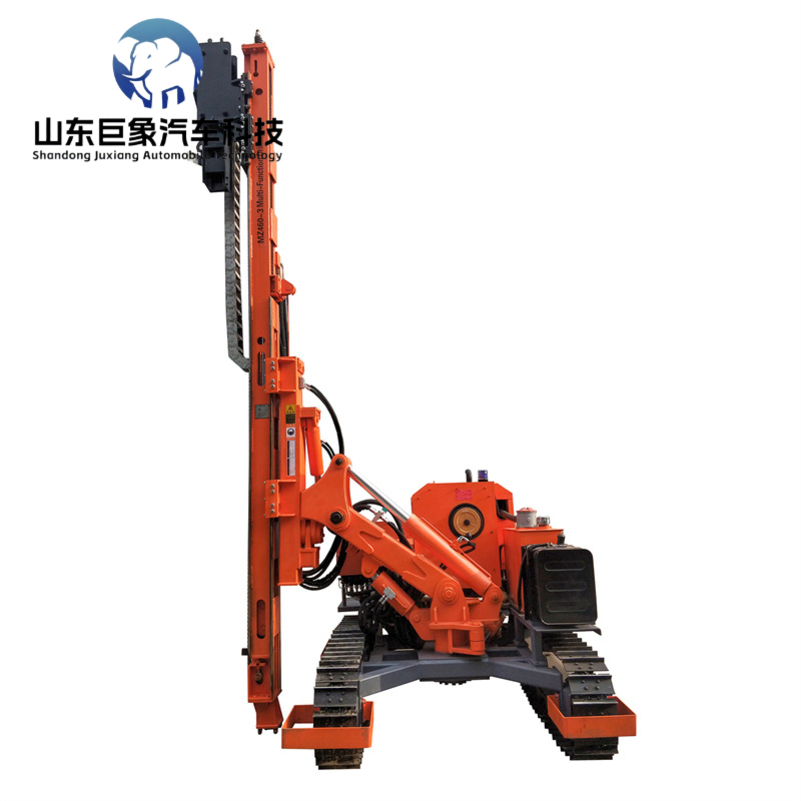

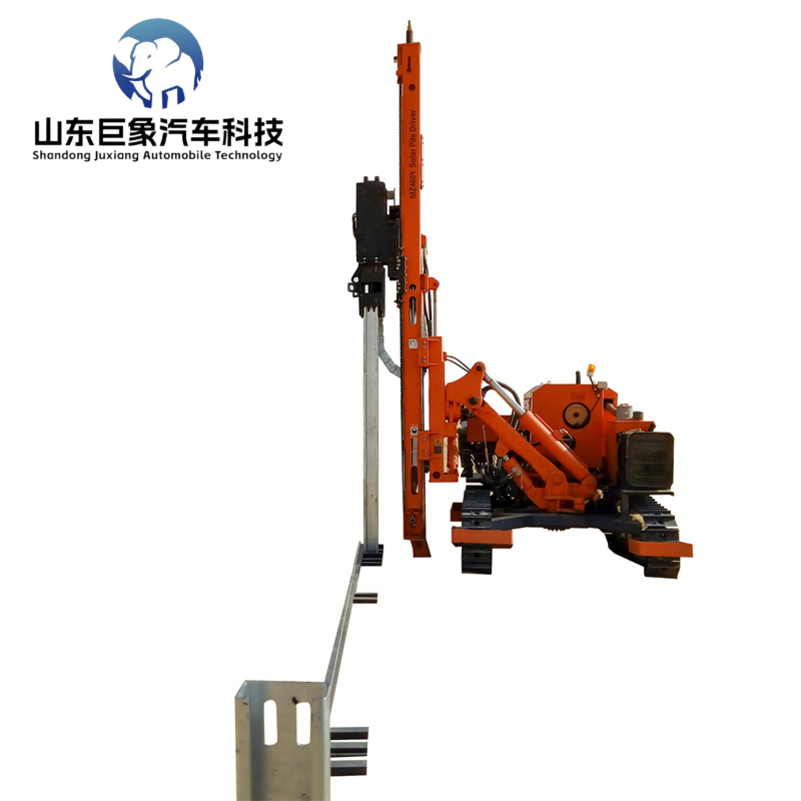

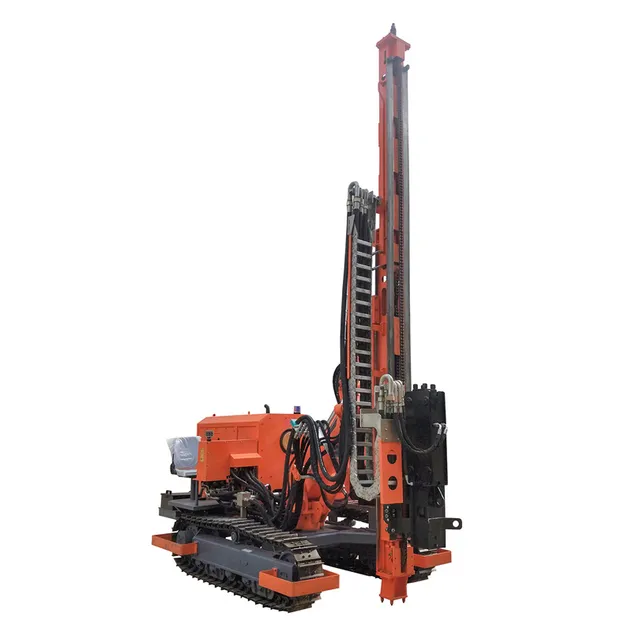

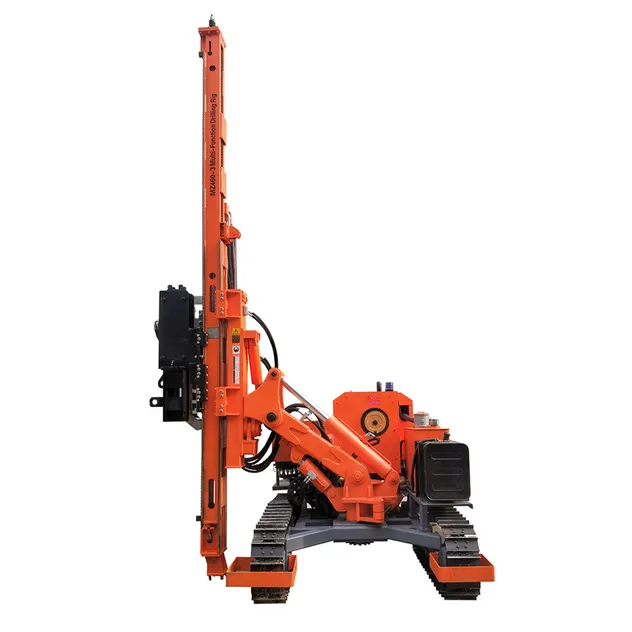

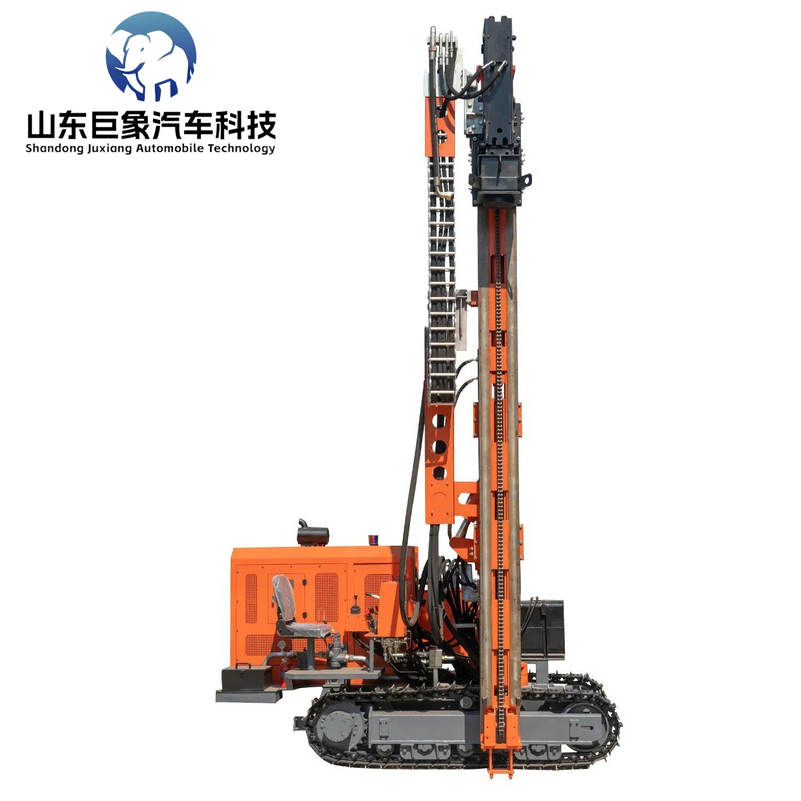

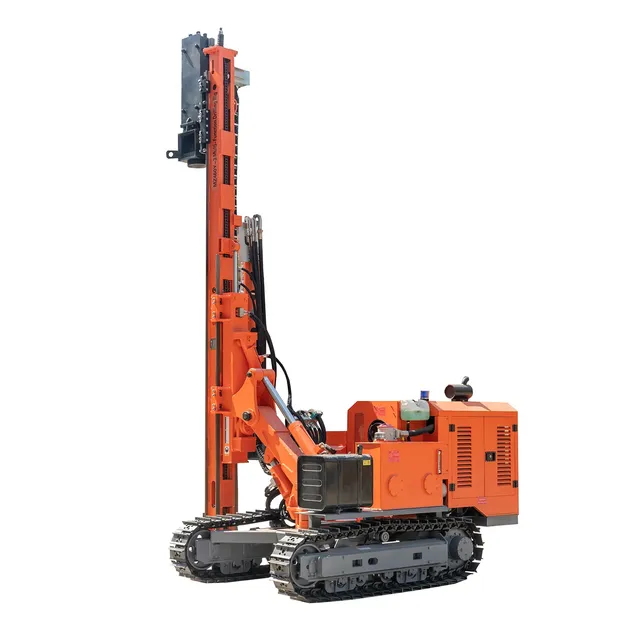

Solar pile driver, using new type of hydraulic technology, convenient for hole transfer. The drilling machine structure is compact, while the mast has adjustable compensation function. When drilling, the mast supported on the ground, borehole stability is good.
The machine hydraulic pressure can be adjusted according to different soil textures, so as to achieve the appropriate impact power for pile driving. It is a new type of pile driver mainly used in pile drilling for photovoltaic solar power stations, highway guardrails, and construction engineering.
| Parameter Item | Specifications |
|---|---|
| Impact frequency (bpm) | 450--800 |
| Impact (j) | 1000 |
| Work pressure (bar) | 130---150 |
| Once promotion (mm) | 4100 |
| Maximum ramming length (mm) | 6000 |
| Skid pitch (°) | 95 |
| Boom swing angle (°) | 110 |
| Boom pitch (°) | 30° |
| Swinging angle of skid (°) | 40 (left and right total 40) |
| Host power (KW) | 84 |
| Climb ability (°) | 35 |
| Dimension (L*W*H) (mm) | 6240*2250*3000 |
| Weight (Kg) | 7350 |
| Walk speed (km/h) | 0--2.5 |
